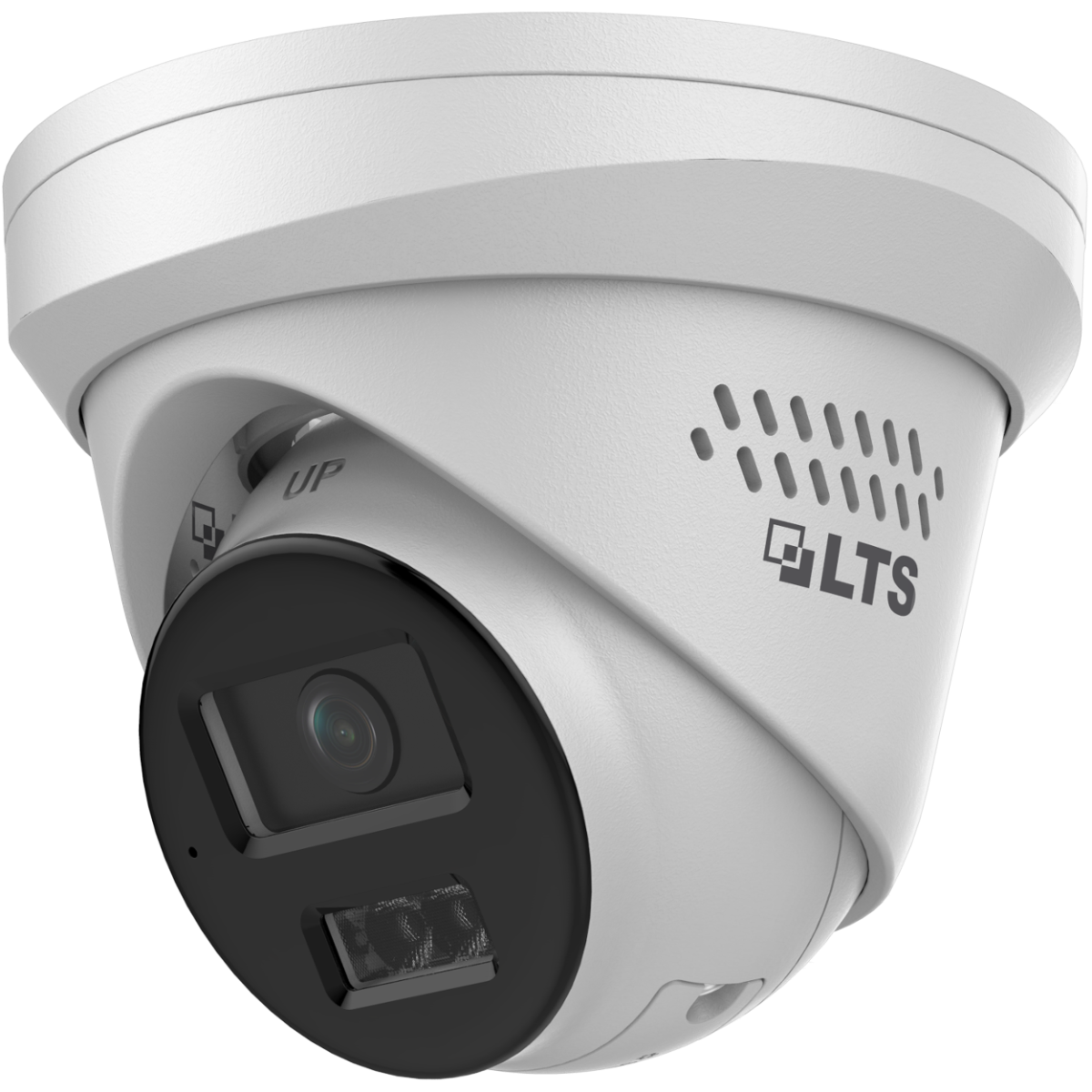

LTS LTCMIP3342WI-28SDL 4MP Active Deterrence Turret Camera

Detect Important Activity and Respond with Active Deterrence

The LTS LTCMIP3342WI-28SDL is a 4MP turret IP camera that combines human and vehicle classification with Smart Hybrid Light, red/blue flashing lights, an audible warning, dual microphones, and a built-in speaker.

4MP Image and Lens

• Maximum resolution: 2688 × 1520 at up to 30 fps
• 1/2.9-inch Progressive Scan CMOS sensor
• 2.8mm fixed lens
• F1.6 aperture
• 101° horizontal field of view
• 57° vertical field of view
• 118° diagonal field of view
• 120dB True WDR
• BLC, HLC, and 3D DNR image enhancement

Smart Hybrid Night Illumination

Smart Hybrid Light combines infrared and white supplemental lighting with three lighting modes, allowing the camera to adapt its nighttime illumination to the application.

• IR and white supplemental light
• Maximum illumination range: 98 ft / 30 m
• 850nm infrared wavelength
• Minimum color illumination: 0.005 lux at F1.6 with AGC on
• 0 lux with supplemental light

Active Deterrence

• Red and blue flashing warning lights
• Built-in speaker for audible warnings
• Human and vehicle-triggered event support
• Configurable audible warning and strobe-light linkage

Human and Vehicle Detection

• Human and vehicle classification
• Motion detection with specified target filtering
• Line crossing detection
• Intrusion detection

Detection accuracy depends on camera placement, target size, lighting, scene conditions, and configuration.

Built-In Audio and Two-Way Communication

• Arrayed dual built-in microphones
• Environmental noise filtering
• Built-in speaker
• Speaker sound pressure level up to 110dB at 10 cm
• Two-way audio capability through compatible software or recording equipment

Recording and Network

• H.265+, H.265, H.264+, and H.264 compression
• microSD/microSDHC/microSDXC storage up to 512GB
• NAS storage support
• Auto Network Replenishment support
• ONVIF Profiles S and G
• RJ45 10/100 Ethernet
• LTS Connect, NVMS V3, and XVMS support

A compatible LTS NVR is recommended for the most complete support of analytics, recording, audio, and deterrence functions. Advanced features may vary with third-party ONVIF recorders.

Power Requirements

• PoE+: IEEE 802.3at, Class 4, maximum 16W
• Alternative power: 12V DC ±25%, maximum 12W

This is a wired Ethernet camera and does not include Wi-Fi. Make sure the connected NVR or PoE switch can provide 802.3at PoE+ power.

Outdoor Protection

• IP67 dust and water ingress protection
• Metal housing
• Operating temperature: -22°F to 140°F

IP67 does not mean the camera is intended for permanent underwater installation.

Dimensions and Mounting

• Dimensions: approximately 5.0-inch diameter × 3.8 inches high
• Weight: approximately 1.1 lb
• Pan adjustment: 0° to 360°
• Tilt adjustment: 0° to 75°
• Rotation: 0° to 360°

LTS lists the LTB301 wall mount, LTB331 pendant mount, LTB378 vertical pole mount, LTB379 corner mount, and LTB03-W junction box as compatible accessories. Mounting accessories and microSD card are sold separately.

Complete the System

• IP security cameras
• Network video recorders
• Security camera accessories
• Network switches

Need Help Confirming Compatibility?

Send Bear Security Shop your NVR model, camera quantity, mounting location, and cable-run details. We can help confirm recorder compatibility, PoE+ capacity, storage, and mounting accessories.

What resolution does the LTCMIP3342WI-28SDL support?

It supports up to 2688 × 1520 4MP resolution at 30 fps in a 60Hz configuration.

What lens does it use?

It uses a fixed 2.8mm F1.6 lens with a 101° horizontal field of view.

What makes this an active deterrence camera?

It includes red and blue flashing warning lights plus a built-in speaker that can provide an audible warning when configured events are triggered.

Does it detect people and vehicles?

Yes. Deep-learning analytics support human and vehicle classification for motion and perimeter events.

Does it support two-way audio?

Yes. The camera includes dual microphones and a built-in speaker for compatible two-way audio operation.

How far does the night illumination reach?

LTS specifies Smart Hybrid IR and white supplemental illumination up to approximately 98 feet, or 30 meters.

Is this a Color 24/7 camera?

LTS specifies Smart Hybrid IR and white-light illumination for this model. It should not be confused with newer LTS Color 24/7 models that use F1.0 optics.

Does it support a microSD card?

Yes. It supports microSD, microSDHC, and microSDXC cards up to 512GB. The card is sold separately.

Does it require PoE+?

Yes when powered through Ethernet. LTS specifies IEEE 802.3at Class 4 PoE+ with maximum consumption of 16W.

Does it have Wi-Fi?

No. This is a wired Ethernet IP camera.

Will it work with a third-party NVR?

It supports ONVIF Profiles S and G. Basic interoperability may be available, but analytics, audio, deterrence, and event functions can vary by recorder.

Is it waterproof?

It is IP67 rated for dust and water ingress protection but is not intended for permanent underwater use.
