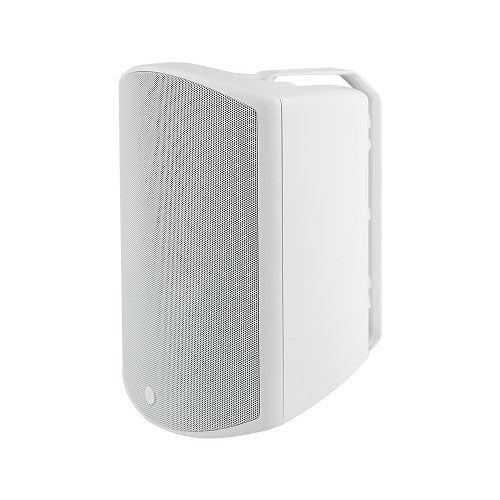

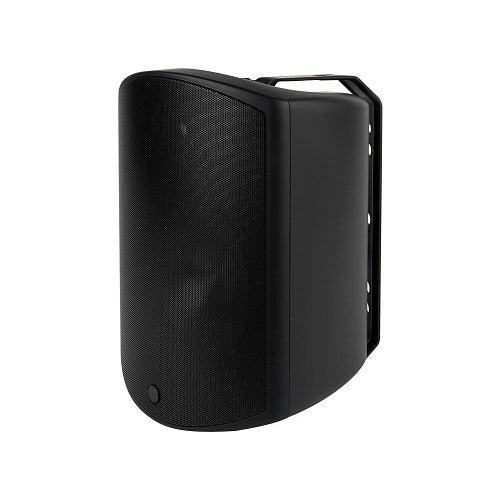

Episode ECS-500-AW70V-8 Surface Mount 8 inch Outdoor Speaker

High-Output Outdoor Audio for Larger Spaces

The Episode ECS-500-AW70V-8 is a high-output 8-inch surface-mount speaker designed for larger residential patios, backyards, poolside seating areas, restaurants, offices, retail spaces, and other zones that need several speakers connected to a compatible 70V or 100V amplifier.

Its 8-inch titanium-coated polypropylene woofer, 1-inch pure titanium tweeter, 60Hz–20kHz frequency response, 90 dB sensitivity, IPX5-rated enclosure, selectable transformer taps, protected terminals, and included adjustable bracket provide scalable outdoor sound with more output and bass capability than the smaller ECS-500-AW70V models.

This speaker is sold individually and requires a compatible 70V or 100V amplifier. It does not include an 8-ohm bypass for a conventional home AV receiver.

Best Use Cases

• Large residential patios: Provide fuller music and stronger output across outdoor dining, seating, and entertainment areas.
• Backyards and poolside seating: Distribute weather-resistant speakers around appropriate outdoor listening zones.
• Outdoor television areas: Add stronger sound around a covered patio or outdoor display when a multi-speaker 70V system is being used.
• Restaurants and cafés: Create more consistent music coverage across larger indoor or outdoor seating areas.
• Retail and office spaces: Support background music, general audio, and announcements across multiple zones.
• Courtyards and common areas: Extend sound over longer cable runs without depending on one distant speaker playing excessively loud.
• Noisier environments: The larger woofer, higher sensitivity, and 60W maximum transformer setting provide more output capability than the smaller 4-inch and 6-inch models.

Who Should Buy This?

This is a strong choice if you need several permanently installed outdoor speakers connected to one compatible 70V or 100V amplifier.

It makes particular sense for larger residential or business spaces where stronger output, improved bass extension, longer cable runs, and individually adjustable speaker levels are important.

The ECS-500-AW70V-8 is also a good fit when the smaller 4-inch or 6-inch models would require more speakers or higher transformer settings to reach the desired listening level.

Who Should Not Buy This?

This is not the correct speaker for a standard home AV receiver or ordinary 8-ohm stereo amplifier. The ECS-500-AW70V-8 does not include an 8-ohm bypass setting.

For a simple residential left-and-right system connected to a conventional receiver, choose the 8-ohm Episode ES-500-AW-8 speaker pair instead.

This is also not a powered or wireless speaker. It requires speaker wire and a compatible external amplifier. It does not include Bluetooth, Wi-Fi, an internal amplifier, a battery, or a power cord.

The IPX5 rating does not make the speaker waterproof, submersible, or suitable for installation inside a pool, fountain, or other continuously wet location.

Sold Individually

The Episode ECS-500-AW70V-8 is sold as one speaker, not as a pair.

Order the required quantity based on the size and shape of the listening area, mounting locations, transformer settings, amplifier capacity, background-noise level, and desired volume.

A larger space may use several speakers distributed around the perimeter. Using multiple speakers at moderate output generally provides more comfortable and consistent coverage than relying on one or two distant speakers playing very loudly.

8-Inch Titanium-Coated Polypropylene Woofer

The ECS-500-AW70V-8 uses an 8-inch polypropylene woofer with vacuum-deposited titanium.

The larger woofer provides greater cone area and stronger low-frequency capability than the 6-inch and 4-inch size-class models. This makes it better suited to larger, noisier, or more open listening areas.

The woofer is supported by a Nomex spider and high-temperature voice coil designed for reliable outdoor and distributed-audio use.

1-Inch Pure Titanium Tweeter

A 1-inch pure titanium dome tweeter reproduces speech, vocals, instruments, and high-frequency detail.

The two-way woofer-and-tweeter design provides fuller audio reproduction than a single full-range driver and is suitable for music, television sound, announcements, and general outdoor entertainment.

60Hz–20kHz Frequency Response

The official published frequency response is 60Hz to 20kHz, with a 2.0kHz crossover between the woofer and tweeter.

The 60Hz low-frequency specification provides stronger supporting bass than the 6-inch model’s published 65Hz response and the compact model’s 70Hz response.

The ECS-500-AW70V-8 is still not a subwoofer. Systems expected to reproduce deeper bass or higher-impact music may benefit from a compatible outdoor subwoofer.

90 dB Sensitivity

The official sensitivity rating is 90 dB, making the 8-inch model more efficient than the smaller ECS-500-AW70V speakers.

Actual volume and coverage also depend on the transformer setting, amplifier capacity, speaker quantity, mounting height, listening distance, environmental noise, and system equalization.

70V and 100V System Compatibility

The ECS-500-AW70V-8 is designed for compatible 70.7V and 100V distributed-audio systems.

These systems allow multiple speakers to share a common speaker line while the transformer selector on each speaker determines how much amplifier power that speaker uses.

• 70V transformer settings: 7.5W, 15W, 30W, and 60W.
• 100V transformer settings: 15W, 30W, and 60W.
• 8-ohm bypass: Not available.

The 7.5W setting is intended for 70V operation only. Confirm the amplifier voltage and transformer setting before powering the system.

What the Transformer Setting Controls

The rear transformer selector controls how much amplifier power the speaker draws and influences the available output at that location.

• 7.5W: Useful for quieter background-music zones on a 70V system.
• 15W: A practical setting for moderate-volume listening areas.
• 30W: Provides additional output for larger, noisier, or more distant zones.
• 60W: Provides the highest available transformer setting when greater output is required and the amplifier has sufficient capacity.

Do not automatically set every speaker to 60W. Select each setting according to the required volume, listening distance, speaker location, environmental noise, and total available amplifier power.

Planning the Amplifier Load

Add together the selected transformer wattage of every speaker connected to an amplifier channel. The combined speaker load must remain below the amplifier’s rated output for the selected line voltage, with appropriate operating headroom.

For example, six speakers set to 15W create a combined load of 90W. Eight speakers at 30W create a 240W load. The amplifier must support the complete calculated load and the correct 70V or 100V output.

Recalculate the system whenever speaker quantity or transformer settings change.

No 8-Ohm Bypass

The ECS-500-AW70V-8 is not a hybrid 70V/8-ohm speaker. It is designed specifically for 70.7V and 100V distributed-audio systems.

Do not connect it directly to the conventional left, right, center, or surround speaker terminals on a standard AV receiver.

Choose the 8-ohm ES-500-AW-8 speaker pair when the system uses a conventional home stereo amplifier or AV receiver.

IPX5 Weather Resistance

The ECS-500-AW70V-8 carries an IPX5 weather-resistance rating.

Outdoor-ready construction includes a UV-treated, mineral-filled polypropylene cabinet, aluminum grille and mounting bracket, stainless-steel hardware, and protected rear connections.

IPX5 indicates resistance to water jets under the rating’s test conditions. It does not mean the speaker can be submerged or installed underwater.

Published Operating-Temperature Range

The published operating-temperature range is approximately -4°F to 140°F.

Whenever possible, mounting the speaker beneath an eave or awning can reduce direct exposure to rain, snow, sun, debris, and irrigation spray and may help preserve its finish over time.

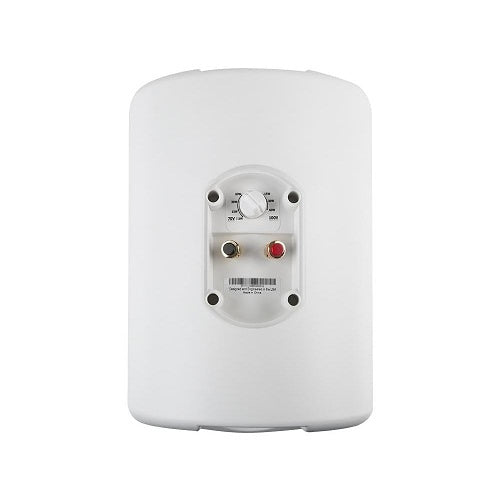

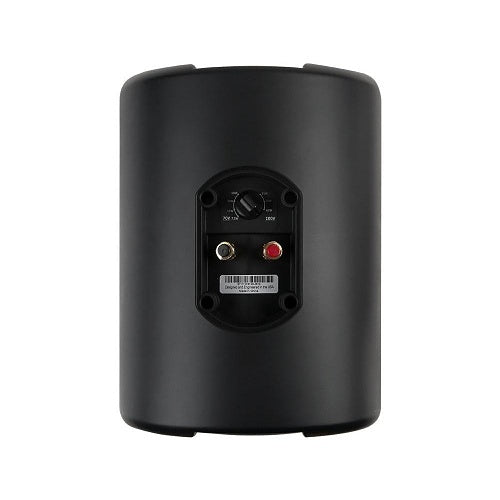

Protected Transformer Selector and Terminals

The transformer selector and gold-plated push terminals are positioned behind a removable rear protective cover.

Complete the wiring and transformer selection before reinstalling the cover. Make sure the cover is fully seated before normal outdoor operation.

Maintain correct positive-to-positive and negative-to-negative polarity, and make sure no loose wire strands extend outside the terminals.

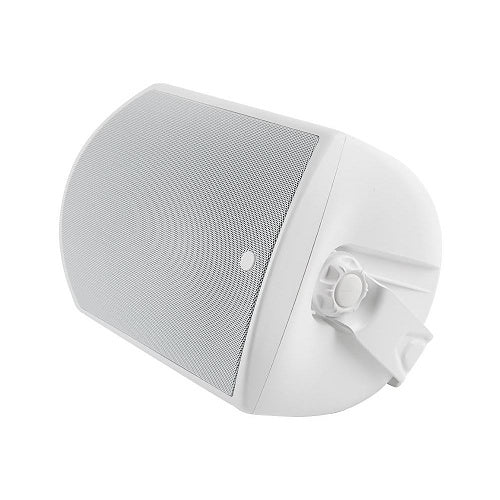

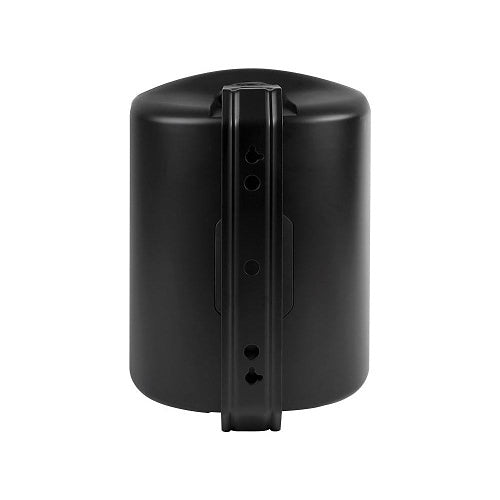

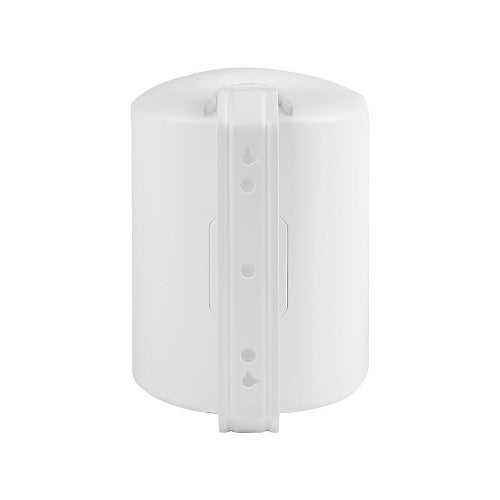

Included Adjustable Mounting Bracket

The speaker includes a U-shaped mounting bracket that can be installed vertically, horizontally, or beneath an eave.

After the bracket is secured to the structure, the speaker slides into place and is retained by the side knobs. Its angle can then be adjusted toward the intended listening area.

An included security screw can be installed beneath the retention-knob cap once the speaker position is finalized.

Structural screws, bolts, and anchors are not included. Select mounting hardware appropriate for the surface and capable of safely supporting the speaker’s 10.7 lb weight under outdoor conditions.

Speaker Wire Requirements

Episode recommends high-quality 14- to 16-gauge stranded speaker wire.

Use cable with the correct environmental rating for the installation, including outdoor, in-wall, conduit, underground, or direct-burial use when applicable.

Long cable runs and higher total system loads may require additional conductor-size planning. Follow the amplifier manufacturer’s recommendations and applicable installation requirements.

Correct Speaker Polarity

Maintain positive-to-positive and negative-to-negative polarity throughout the system.

Incorrect polarity can cause speakers to operate out of phase, reducing bass and making vocals or music sound thin, distant, or inconsistent across the listening area.

Verify every connection before completing the installation and closing the rear terminal covers.

Placement Guidance

Position several speakers so their coverage areas overlap slightly. This generally creates more consistent sound than placing only one or two speakers far from the listeners.

Aim each speaker toward the intended seating or activity area and away from neighboring properties or areas that do not require sound coverage.

Consider walls, rooflines, seating positions, walking paths, landscaping, doors, windows, and future changes to outdoor furniture or vegetation.

Technical Specifications

• Product type: Passive 70V/100V surface-mount speaker.
• Series: Episode Commercial All-Weather 500 Series.
• Sold as: One speaker.
• Woofer: 8-inch polypropylene cone with vacuum-deposited titanium.
• Tweeter: 1-inch pure titanium dome.
• Frequency response: 60Hz to 20kHz.
• Crossover frequency: 2.0kHz.
• Sensitivity: 90 dB.
• Line-voltage compatibility: 70.7V and 100V.
• Transformer settings: 7.5W, 15W, 30W, and 60W.
• 8-ohm bypass: No.
• Weather rating: IPX5.
• Connections: Gold-plated push terminals behind a protective rear cover.
• Mount: Adjustable U-shaped mounting bracket included.
• Structural mounting hardware: Not included.
• Available colors: Black or white.
• Internal amplifier: None; compatible external amplification is required.
• Operating-temperature range: Approximately -4°F to 140°F.
• Warranty: Limited lifetime manufacturer warranty, subject to current warranty terms.

Dimensions and Weight

• Without bracket: Approximately 9.1 inches wide, 12.6 inches high, and 8.6 inches deep.
• With bracket: Approximately 9.1 inches wide, 12.6 inches high, and 9.1 inches deep.
• Weight: Approximately 10.7 lb per speaker.

When to Choose the 8-Ohm Version

Choose the Episode ES-500-AW-8 speaker pair when the system uses a conventional home AV receiver or stereo amplifier with standard 8-ohm speaker outputs.

The 8-ohm model is generally more appropriate for a simple left-and-right patio or outdoor television system.

Choose the ECS-500-AW70V-8 when the project uses several speakers, longer cable runs, or individually adjustable transformer settings.

When to Choose a Smaller Model

Choose the ECS-500-AW70V-6 when you need a balance of output, bass performance, cabinet size, and mounting flexibility.

Choose the ECS-500-AW70V-4 when compact dimensions and visual discretion are more important than maximum output and low-frequency extension.

Choose the ECS-500-AW70V-8 when the space is larger, noisier, or requires the strongest output and bass capability in the series.

Good Products to Pair With This Speaker

• Outdoor Speakers to compare surface-mount, landscape, and rock-speaker options.
• Episode Speakers for matching outdoor, architectural, and distributed-audio products.
• Episode ECS-500-AW70V-6 Outdoor Speaker for medium-size listening zones.
• Episode ECS-500-AW70V-4 Outdoor Speaker for compact distributed-audio zones.
• Amplifiers for compatible 70V and 100V system amplification.
• Speaker Wires for properly rated outdoor, in-wall, conduit, and direct-burial cable.
• Outdoor TVs for complete backyard and patio entertainment systems.
• Power Management Solutions to protect amplifiers, sources, network equipment, and control components.

Need Help Planning Your Speaker System?

Send us the area dimensions, speaker quantity, mounting locations, cable distances, preferred listening level, and amplifier model. We can help confirm speaker count, transformer settings, amplifier capacity, wiring requirements, and whether a 70V, 100V, or conventional 8-ohm system is the better fit.

Is the Episode ECS-500-AW70V-8 sold individually or as a pair?

It is sold individually. Order the required quantity based on the coverage plan, transformer settings, and amplifier capacity.

Is this a powered speaker?

No. It is a passive speaker that requires speaker wire and a compatible 70V or 100V amplifier.

Does it include Bluetooth or Wi-Fi?

No. Bluetooth, Wi-Fi, streaming, source selection, and app control must come from the connected amplifier or audio source.

Can it work with a standard home AV receiver?

No. The ECS-500-AW70V-8 does not include an 8-ohm bypass. Choose the 8-ohm ES-500-AW-8 speaker pair for a conventional home receiver.

Does it support 70V systems?

Yes. It supports 7.5W, 15W, 30W, and 60W transformer settings on a compatible 70V system.

Does it support 100V systems?

Yes. It supports applicable 15W, 30W, and 60W settings on a compatible 100V system.

Does it have an 8-ohm bypass?

No. It is designed specifically for 70.7V and 100V distributed-audio systems.

Which transformer setting is for 70V only?

The 7.5W setting is intended for 70V operation only.

What is the maximum transformer setting?

The highest available setting is 60W.

Is the 60W transformer setting the same as a 60W power-handling rating?

No. The 60W setting identifies the amount of power the speaker draws from a compatible distributed-audio line. Episode does not publish a conventional peak or RMS power-handling specification for this 70V/100V model.

How do I choose the correct transformer setting?

Choose the setting according to the required volume, listening distance, speaker location, background-noise level, total speaker quantity, and available amplifier power.

Can different speakers use different transformer settings?

Yes. Speakers on the same distributed line can use different supported settings, provided the combined load remains within the amplifier’s capacity.

How do I calculate the amplifier load?

Add the selected transformer wattage of every speaker connected to the amplifier channel. Keep the combined total below the amplifier’s rated output with suitable operating headroom.

Can I change the transformer setting while the amplifier is powered?

No. Turn off and disconnect the amplifier before changing transformer settings.

Where is the transformer selector located?

The rotary selector is positioned on the rear of the speaker behind the removable protective cover.

What size woofer does it use?

It uses an 8-inch polypropylene cone woofer with vacuum-deposited titanium.

What type of tweeter does it use?

It uses a 1-inch pure titanium dome tweeter.

What is the frequency response?

The published frequency response is 60Hz to 20kHz.

What is the sensitivity?

The official sensitivity rating is 90 dB.

What is the crossover frequency?

The published crossover frequency is 2.0kHz.

Does it produce deep bass?

It provides stronger supporting bass than the smaller models in the series, but it is not a subwoofer. Add a suitable outdoor subwoofer when deeper low-frequency performance is required.

What does IPX5 mean?

IPX5 indicates resistance to water jets under the rating’s test conditions. It does not mean the speaker is waterproof, submersible, or intended for underwater installation.

Can it remain installed outdoors?

Yes. It is designed for permanent outdoor installation. Correct mounting, wiring, rear-cover installation, drainage, and maintenance remain important.

What is the operating-temperature range?

The published operating range is approximately -4°F to 140°F.

Can it be installed near a pool?

It can be installed in a suitable poolside listening area, but it must not be submerged or positioned where it could fall into the water.

Can it be mounted beneath an eave?

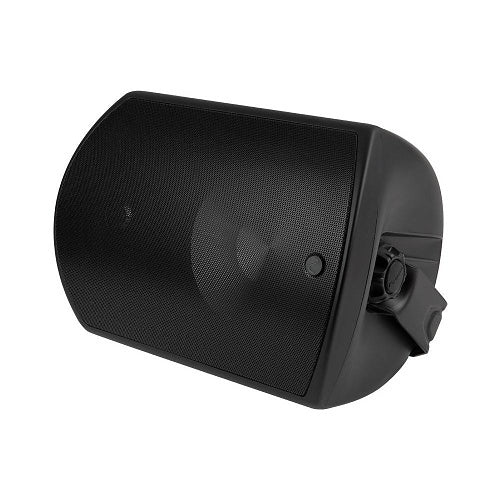

Yes. The included U-shaped bracket can be mounted vertically, horizontally, or beneath an eave.

Is the mounting bracket included?

Yes. One adjustable mounting bracket is included with each speaker.

Are mounting screws and anchors included?

No. Select structural screws, bolts, or anchors that are appropriate for the mounting surface and capable of safely supporting the speaker.

Can the speaker angle be adjusted?

Yes. Loosen the side retention knobs, aim the speaker toward the listening area, and retighten the knobs.

Does it include a security screw?

Yes. A security screw can be installed beneath the retention-knob cap after the speaker position is finalized.

What speaker wire should I use?

Episode recommends high-quality 14- to 16-gauge stranded speaker wire. Use cable with the correct outdoor, in-wall, conduit, or burial rating for the installation.

Why is correct polarity important?

Incorrect polarity can reduce bass and cause vocals or music to sound thin, distant, or inconsistent between speakers.

What colors are available?

The speaker is available in black or white.

What are the dimensions?

It measures approximately 9.1 inches wide, 12.6 inches high, and 8.6 inches deep without the bracket, or approximately 9.1 inches deep with the bracket.

How much does it weigh?

Each speaker weighs approximately 10.7 lb.

What is the warranty?

Episode lists a limited lifetime manufacturer warranty, subject to its current warranty terms and conditions.

What should I check before ordering?

Check amplifier voltage, available amplifier wattage, speaker quantity, transformer settings, cable distances, mounting locations, weather exposure, speaker color, and whether the system requires 70V, 100V, or conventional 8-ohm operation.
