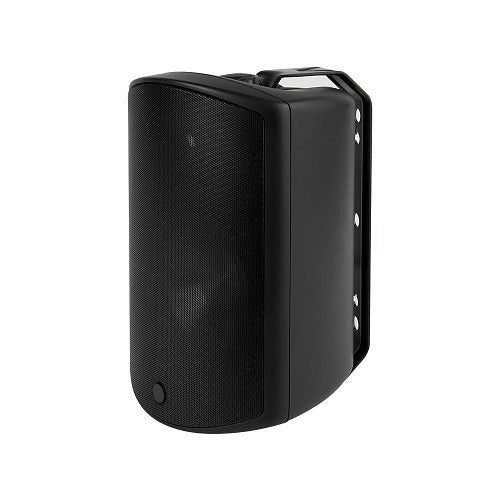

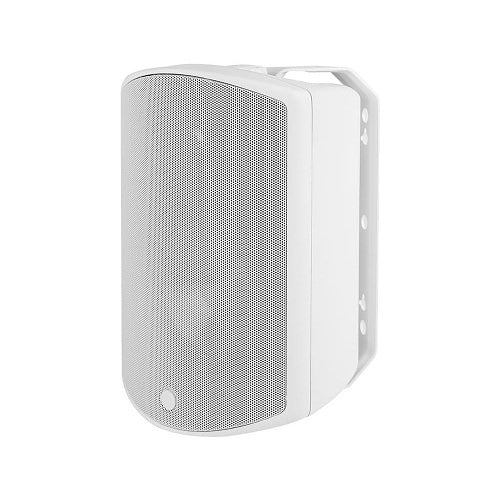

Episode ECS-500-AW70V-6 Surface Mount 6.5 inch Outdoor Speaker

Scalable Outdoor Audio for Patios, Backyards, and Multi-Speaker Zones

The Episode ECS-500-AW70V-6 is a weather-resistant 6-inch surface-mount speaker designed for larger patios, backyard entertainment areas, restaurant seating, offices, walkways, and other spaces that need several speakers operating from a compatible 70V or 100V amplifier.

Its 6-inch titanium-coated polypropylene woofer, 1-inch pure titanium tweeter, selectable transformer taps, IPX5-rated enclosure, protected terminals, and adjustable mounting bracket provide a practical way to distribute clear audio across a wider area without relying on one speaker playing at excessive volume.

This speaker is sold individually and requires a compatible 70V or 100V amplifier. It does not include an 8-ohm bypass for a standard home AV receiver.

Best Use Cases

• Larger residential patios: Distribute several speakers around outdoor dining, seating, and entertainment areas for more consistent sound.
• Backyards and poolside seating: Provide weather-resistant audio coverage near suitable outdoor listening areas without relying on portable speakers.
• Restaurants and cafés: Create even background-music coverage across indoor and outdoor seating zones.
• Offices and shared spaces: Support background music, announcements, and general audio across several rooms or areas.
• Retail environments: Install multiple speakers at lower individual volume for more comfortable and consistent coverage.
• Walkways and common areas: Extend audio across longer distances using a properly designed distributed system.
• Mixed indoor and outdoor projects: Use matching speakers across appropriate spaces while adjusting each speaker’s transformer tap for the required volume.

Who Should Buy This?

This is a strong choice if you need several permanently installed speakers connected to one compatible 70V or 100V amplifier.

It makes particular sense when the system covers a large patio, backyard, restaurant, office, or other space where conventional 8-ohm wiring would become difficult to scale.

The selectable transformer taps also make it useful when some speakers need to play louder than others because of their distance from listeners, background-noise level, or location within the property.

Who Should Not Buy This?

This is not the correct speaker for a standard home AV receiver or conventional 8-ohm stereo amplifier. It does not include an 8-ohm bypass setting.

For a simple residential left-and-right system connected to an ordinary receiver, choose the 8-ohm Episode ES-500-AW-6 speaker pair instead.

This is also not a powered or wireless speaker. It requires speaker wire and a compatible external amplifier. It does not include Bluetooth, Wi-Fi, an internal amplifier, a battery, or a power cord.

The IPX5 rating does not make it waterproof, submersible, or suitable for installation inside a pool, fountain, or other continuously wet location.

Sold Individually

The Episode ECS-500-AW70V-6 is sold as one speaker, not as a pair.

Order the quantity based on the coverage plan, amplifier capacity, selected transformer taps, mounting locations, and desired listening level.

A multi-speaker system may use two, four, six, or more speakers depending on the size and shape of the property. There is no single speaker-count rule that works for every installation.

70V and 100V System Compatibility

The ECS-500-AW70V-6 is designed for compatible 70.7V and 100V distributed-audio systems.

These systems allow multiple speakers to be connected along a common speaker line while each speaker’s transformer tap determines how much amplifier power it uses.

• 70V operation: Supports 7.5W, 15W, 30W, and 60W tap settings.
• 100V operation: Supports the applicable 15W, 30W, and 60W settings.
• 8-ohm operation: Not supported; there is no 8-ohm bypass setting.

Confirm the amplifier voltage and selected tap before powering the system. An incorrect transformer setting can overload the amplifier or damage equipment.

What the Transformer Tap Controls

The rear rotary dial determines how much power the speaker draws from the amplifier and influences the available output at that location.

• 7.5W: Useful for quieter background-music areas on a 70V system.
• 15W: A practical starting point for many moderate-volume listening zones.
• 30W: Provides additional output for larger, noisier, or more distant areas.
• 60W: Provides the highest available tap when greater output is needed and the amplifier has enough capacity.

Do not automatically set every speaker to 60W. Choose each setting according to the listening area, distance, background-noise level, speaker quantity, and total available amplifier power.

Planning the Amplifier Load

Add the selected tap wattage of every speaker connected to an amplifier channel. The total must remain within the amplifier’s rated output for the chosen line voltage, with appropriate operating headroom according to the amplifier manufacturer’s instructions.

For example, six speakers set to 15W create a combined speaker load of 90W. The amplifier selected for that channel must provide more than the combined 90W load and support the correct 70V or 100V output.

Changing one speaker from 15W to 30W increases the total channel load by 15W, so recalculate the system whenever tap settings or speaker quantity change.

6-Inch Titanium-Coated Polypropylene Woofer

The ECS-500-AW70V-6 uses a 6-inch polypropylene woofer with vacuum-deposited titanium.

The woofer reproduces vocals, instruments, and supporting bass, while the rigid cone construction is designed to maintain control during outdoor and distributed-audio use.

The official specifications identify this as a 6-inch woofer. It should not be described as a 6.5-inch speaker.

1-Inch Pure Titanium Tweeter

A 1-inch pure titanium dome tweeter handles vocals, speech, instruments, and high-frequency detail.

The two-way design provides broader and more balanced reproduction than a single full-range driver, making the speaker suitable for music and general audio coverage.

65Hz–20kHz Frequency Response

The published frequency response is 65Hz to 20kHz, with a 2.2kHz crossover between the woofer and tweeter.

This provides useful bass for background music and outdoor entertainment, but the speaker is not a subwoofer. Large spaces or systems expected to reproduce stronger low-frequency content may benefit from a compatible outdoor subwoofer.

88 dB Sensitivity

The official sensitivity rating is 88 dB. Sensitivity is one factor affecting how efficiently the speaker converts amplifier power into sound.

Final volume and coverage will also depend on tap selection, speaker quantity, mounting height, listening distance, environmental noise, amplifier capacity, and system equalization.

IPX5 Weather Resistance

The ECS-500-AW70V-6 carries an IPX5 weather-resistance rating for outdoor exposure.

Its construction includes a UV-treated, mineral-filled polypropylene cabinet, aluminum grille and bracket, stainless-steel hardware, and protected rear connections.

IPX5 indicates resistance to water jets under the rating’s test conditions. It does not mean the speaker can be submerged or installed underwater.

Outdoor Temperature Range

The published operating-temperature range is approximately -4°F to 140°F.

Whenever possible, installing the speaker beneath an eave or awning can reduce direct exposure to rain, snow, sun, debris, and irrigation spray and may help preserve the finish over time.

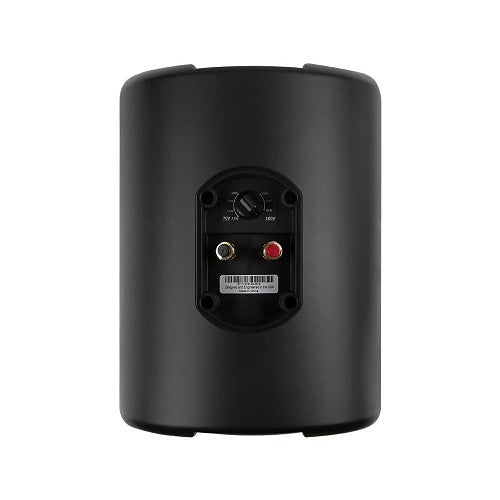

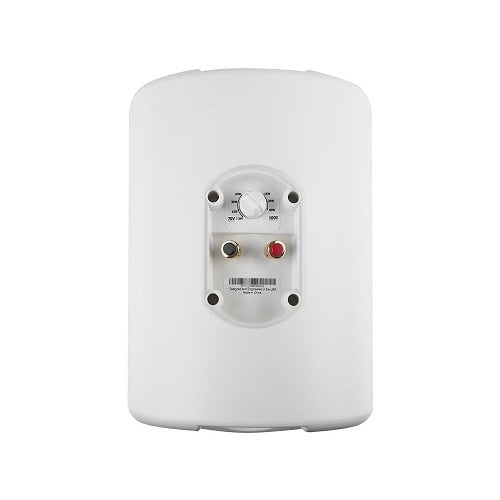

Protected Transformer Dial and Connections

The transformer selector and gold-plated push terminals are positioned behind a removable rear weather cover.

After wiring and setting the transformer tap, reinstall the cover securely. Do not leave the controls exposed during normal outdoor operation.

Maintain correct speaker polarity and make sure no loose wire strands extend outside the terminal.

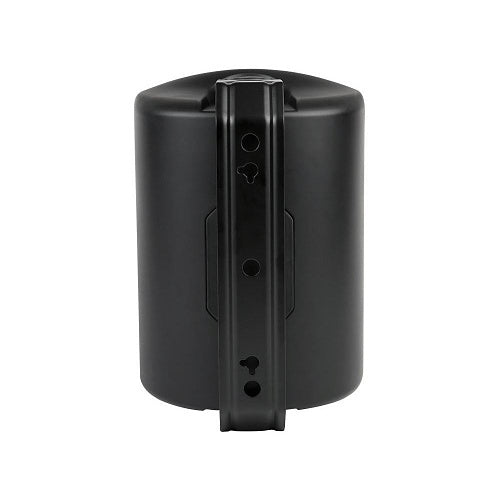

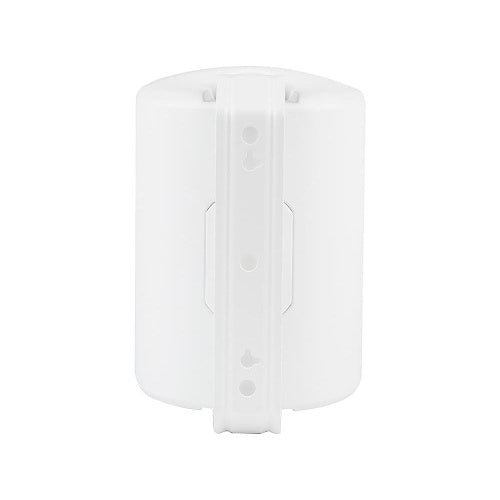

Included Adjustable Mounting Bracket

The speaker includes a U-shaped mounting bracket that can be installed vertically, horizontally, or beneath an eave.

Once the bracket is attached to the structure, the speaker slides into position and is held by the side retention knobs. The speaker angle can then be adjusted toward the intended listening area.

An included security screw can be installed beneath the retention-knob cap to help prevent the speaker from loosening or being removed unintentionally.

Structural screws, bolts, and anchors are not included. Select hardware that is appropriate for the mounting surface and capable of supporting the speaker under outdoor conditions.

Speaker Wire Requirements

Episode recommends high-quality 14- to 16-gauge stranded speaker wire.

Use cable with the correct rating for the installation, including outdoor, in-wall, conduit, underground, or direct-burial use when applicable.

Long cable runs, high total power, and demanding outdoor installations may require additional cable planning. Confirm conductor size with the amplifier manufacturer and applicable installation requirements.

Correct Speaker Polarity

Maintain positive-to-positive and negative-to-negative polarity throughout the system.

Reversed polarity can make speakers operate out of phase, reducing bass and causing vocals to sound thin, distant, or inconsistent between listening positions.

Verify all wiring before completing the installation and closing the rear terminal covers.

Placement Guidance

Position multiple speakers so that their coverage areas overlap slightly rather than placing one or two speakers far away and operating them at very high volume.

Using more speakers at moderate tap settings generally provides more comfortable and consistent sound across a large area.

Aim the speakers toward the intended listeners and away from neighboring properties, highly reflective surfaces, or areas where sound coverage is unnecessary.

For outdoor areas, account for seating locations, walls, rooflines, landscaping, walking paths, doors, and future changes to furniture or vegetation.

Technical Specifications

• Product type: Passive 70V/100V surface-mount speaker.
• Series: Episode Commercial All-Weather 500 Series.
• Sold as: One speaker.
• Woofer: 6-inch polypropylene cone with vacuum-deposited titanium.
• Tweeter: 1-inch pure titanium dome.
• Frequency response: 65Hz to 20kHz.
• Crossover frequency: 2.2kHz.
• Sensitivity: 88 dB.
• Line-voltage compatibility: 70.7V and 100V.
• 70V transformer taps: 7.5W, 15W, 30W, and 60W.
• 100V transformer taps: 15W, 30W, and 60W.
• 8-ohm bypass: No.
• Weather rating: IPX5.
• Connections: Gold-plated push terminals behind a protective cover.
• Mount: Adjustable U-shaped bracket included.
• Structural mounting hardware: Not included.
• Colors: Black or white.
• Internal amplifier: None; compatible external amplification is required.
• Operating-temperature range: Approximately -4°F to 140°F.
• Warranty: Limited lifetime manufacturer warranty, subject to current warranty terms.

Dimensions and Weight

• Without bracket: Approximately 7.5 inches wide, 11.1 inches high, and 7.2 inches deep.
• With bracket: Approximately 7.5 inches wide, 11.1 inches high, and 7.7 inches deep.
• Weight: Approximately 8.9 lb per speaker.

When to Choose the 8-Ohm Version

Choose the Episode ES-500-AW-6 pair when the system uses a conventional home AV receiver or stereo amplifier with 8-ohm speaker outputs.

The standard ES-500-AW-6 is sold as a pair and is better suited to a simple left-and-right patio or outdoor TV system.

Choose the ECS-500-AW70V-6 when the project uses several speakers, longer cable runs, or individually adjustable transformer tap settings.

When to Choose Another Size

Choose the ECS-500-AW70V-4 when compact dimensions and lower tap settings are more important than maximum output and bass extension.

Choose the ECS-500-AW70V-8 when stronger bass, higher sensitivity, and greater output are required for a larger or noisier space.

Choose a landscape satellite-and-subwoofer system when the property needs sound distributed throughout gardens, pathways, or large open outdoor areas rather than mounted to a building.

Good Products to Pair With This Speaker

• Outdoor Speakers to compare surface-mount, landscape, and rock-speaker options.
• Episode Speakers for matching outdoor, commercial, architectural, and subwoofer products.
• Amplifiers for compatible 70V and 100V system amplification.
• Speaker Wires for properly rated outdoor, in-wall, conduit, and direct-burial cable.
• Outdoor TVs for complete backyard and patio entertainment systems.
• Power Management Solutions to protect the amplifier, audio sources, network equipment, and control components.

Need Help Planning Your Speaker System?

Send us the area dimensions, speaker quantity, mounting locations, cable distances, preferred listening level, and amplifier model. We can help confirm the correct speaker count, transformer taps, amplifier capacity, wiring plan, and whether a 70V, 100V, or conventional 8-ohm system is the better fit.Scalable Outdoor Audio for Patios, Backyards, and Multi-Speaker Zones
