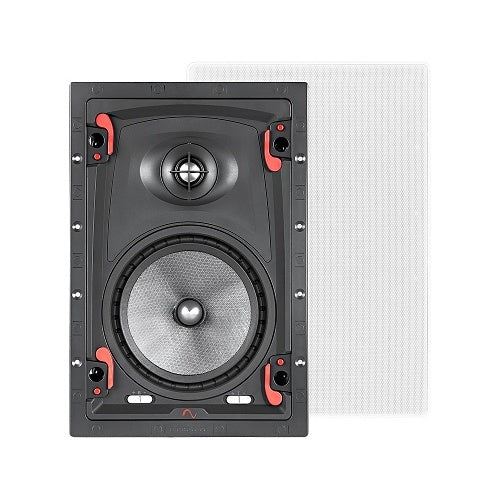

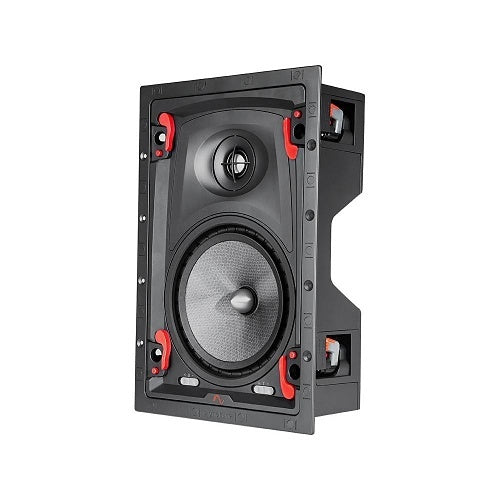

Episode Signature Series SIG-76-IW 6" In-Wall Premium Speaker

Premium Architectural Sound for Music and Home Theater

The Episode SIG-76-IW is a premium 6-inch Signature 7 Series in-wall speaker designed for high-quality stereo music, whole-home audio, TV rooms, media spaces, and properly planned home-theater channels.

It combines a 6-inch honeycomb fiberglass Nomex woofer with a 1-inch pure titanium dome tweeter, broad 100-degree horizontal by 90-degree vertical coverage, independent woofer and tweeter adjustments, and Episode’s Push Lock by Swarm installation system.

Best Use Cases

• Stereo music systems: Install one speaker on the left and one on the right for premium sound without visible bookshelf or floorstanding speakers.
• Whole-home audio: Provides higher-quality distributed audio in living rooms, bedrooms, dining areas, offices, and open spaces.
• TV and media rooms: Delivers clearer, fuller sound than relying on the television’s built-in speakers.
• Front left and right channels: Can serve as discreet in-wall front speakers when the room and output requirements are appropriate.
• Direct-radiating surrounds: May be used as side or rear surround speakers when a standard direct-radiating design fits the theater layout.
• Open living areas: The broad coverage pattern helps distribute sound across a larger seating or activity area.

Who Should Buy This?

This is a strong choice if you want premium architectural sound with better driver materials, bass extension, sensitivity, and tuning flexibility than a basic in-wall speaker.

It makes particular sense when you need wide coverage, independent bass and treble adjustment, shallow wall installation, and flexible one-step or staged construction options.

Who Should Not Buy This?

This is not the correct model when one wall location must reproduce both left and right stereo channels. The SIG-76-IW is a standard single-channel speaker, not a dual-voice-coil model.

It is also not a selectable bipole or dipole surround speaker. Choose the SIG-76-IWSURR when the theater requires a wider and more diffuse side- or rear-surround field.

For a center channel or horizontal front-stage installation, choose the SIG-76-IWLCR rather than rotating this standard speaker sideways.

This model does not include a 70V transformer or selectable transformer taps. Do not connect it directly to a commercial 70V or 100V amplifier.

No outdoor or moisture rating is published for this speaker. Install it only in dry indoor locations.

Sold Individually

The Episode SIG-76-IW is sold as one speaker. A conventional stereo room normally requires two speakers, with one connected to the amplifier’s left channel and the other connected to its right channel.

A complete home-theater system may require additional center, surround, height, and subwoofer channels depending on the planned configuration.

6-Inch Honeycomb Fiberglass Nomex Woofer

The SIG-76-IW uses a 6-inch honeycomb fiberglass Nomex cone woofer designed to combine low weight with high rigidity.

Episode publishes a frequency response of 41Hz to 20kHz, giving the speaker useful midbass extension for music, television audio, dialogue, and home-theater effects.

Actual bass performance depends on wall construction, cavity volume, use of the optional enclosure, speaker placement, receiver settings, room acoustics, and whether a subwoofer is included.

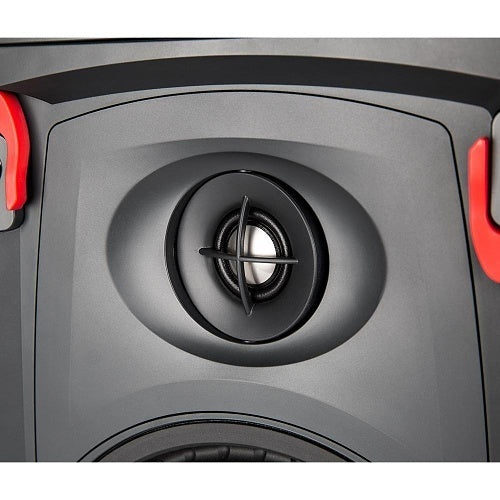

1-Inch Pure Titanium Tweeter

The official model-specific specification lists one 1-inch pure titanium dome tweeter.

The vented tweeter-pod design supports a lower crossover point and broad dispersion, helping distribute vocals, dialogue, instruments, and high-frequency detail across the listening area.

This standard SIG-76-IW should not be described as a dual-tweeter speaker. Episode uses dual tweeters on separate surround-specific models such as the SIG-76-IWSURR.

Independent Tweeter and Woofer Adjustments

The SIG-76-IW includes separate compensation controls for the tweeter and woofer. Each control provides +2 dB, 0 dB, and –2 dB settings.

Tweeter Adjustment

• +2 dB: Adds high-frequency output in heavily furnished rooms or when the speaker is farther from the listening area.
• 0 dB: Provides a neutral starting point for setup and calibration.
• –2 dB: Reduces high-frequency output in reflective rooms or when the speaker is close to listeners.

Woofer Adjustment

• +2 dB: Adds supporting low-frequency output when the wall cavity or room reduces bass response.
• 0 dB: Provides the recommended neutral starting point.
• –2 dB: Reduces excessive bass caused by wall boundaries, corners, or room acoustics.

Begin with both controls at 0 dB. Make final adjustments after the speakers are installed and the system has been evaluated from the normal listening positions.

Wide 100° × 90° Coverage

Episode publishes a coverage pattern of approximately 100 degrees horizontally by 90 degrees vertically.

This broad dispersion helps serve several seating positions and makes the speaker suitable for living rooms, bedrooms, offices, open-plan spaces, and media rooms.

Wide coverage does not eliminate the need for correct speaker quantity and placement. Speaker height, spacing, wall orientation, furniture, and room geometry should still be considered before cutting the wall.

Amplifier and Receiver Compatibility

• Speaker type: Passive two-way standard in-wall speaker.
• Series: Episode Signature 7 Series.
• Sold as: One speaker.
• Nominal impedance: 8 ohms.
• Power rating: 140W peak.
• Sensitivity: 90 dB.
• Frequency response: 41Hz to 20kHz.
• Crossover frequency: 2.6kHz.
• Woofer: 6-inch honeycomb fiberglass Nomex cone.
• Tweeter: One 1-inch pure titanium dome.
• Tweeter adjustment: +2 dB, 0 dB, or –2 dB.
• Woofer adjustment: +2 dB, 0 dB, or –2 dB.
• Coverage: Approximately 100° horizontal by 90° vertical.

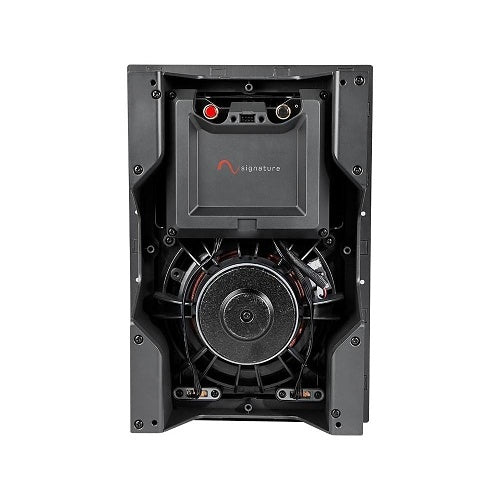

• Connections: Gold-plated push terminals.
• Internal amplifier: None; external amplification is required.
• 70V compatibility: No built-in transformer or selectable taps.

Use an amplifier or AV receiver that supports passive 8-ohm speakers. Connect each SIG-76-IW to one compatible amplifier channel.

The official 140W specification is a peak rating and should not be presented as a 140W RMS amplifier recommendation. Clean amplification, correct impedance support, suitable crossover settings, and avoiding audible clipping are more important than directly matching peak-wattage numbers.

Using the SIG-76-IW for Stereo Music

For conventional stereo, install one speaker to the left and one to the right of the primary listening area. Keep both speakers at similar heights and distances whenever the room layout allows.

Begin with the woofer and tweeter controls at 0 dB. Make small adjustments only after listening to familiar music from the normal seating position.

For larger or irregularly shaped rooms, additional speakers operating at moderate volume may provide more consistent coverage than one pair playing at very high volume.

Using It with a Television

The SIG-76-IW can be used as a discreet left or right speaker beside a television or projection screen.

When the system includes a dedicated center channel, use a matching Episode LCR speaker positioned close to the display for clearer dialogue localization.

Keep the left and right speakers reasonably symmetrical around the screen to support a balanced front soundstage.

Using It as a Surround Speaker

The SIG-76-IW may be used as a standard direct-radiating side or rear surround speaker when that presentation matches the theater design.

It does not provide selectable bipole or dipole operation. Choose the SIG-76-IWSURR when the room requires a more diffuse surround effect.

Is It Suitable for Dolby Atmos?

The SIG-76-IW is an in-wall speaker rather than an overhead height speaker. It is better suited to the ear-level front or surround layer of a theater system.

Use an appropriate Episode in-ceiling or directional point speaker for conventional Dolby Atmos overhead channels.

Installation Dimensions

• Finished size with grille: Approximately 8.9 inches wide by 13 inches high.
• Wall cutout: Approximately 7.6 inches wide by 11.7 inches high.
• Mounting depth without enclosure: Approximately 3.6 inches.
• Mounting depth with compatible enclosure: Approximately 3.8 inches.
• Weight: Approximately 5.7 lb.
• Clamping range: Approximately 3/8-inch through double 1/2-inch wall material.
• Recommended open cavity volume: Approximately 15 to 20 liters.

Before Cutting the Wall

Confirm the full 7.6-by-11.7-inch cutout and check for studs, electrical wiring, plumbing, HVAC components, fire blocking, insulation, and other hidden obstructions.

Allow enough space for the 3.6-inch speaker depth, terminals, speaker-wire bend radius, mounting dogs, and recommended cavity volume.

Verify all speaker locations before cutting so the finished layout remains visually balanced and acoustically appropriate.

Push Lock by Swarm Installation

Episode’s Push Lock by Swarm system uses spring-loaded mounting dogs that engage when the front buttons are pressed.

Once engaged, the speaker is supported in the wall while the installer completes final positioning and tightening. The mounting dogs can be cinched by up to approximately 6mm when additional pressure is needed for uneven, textured, or layered wall material.

Only tighten each mounting dog after it has fully engaged behind the wall. Excessive tightening can damage the speaker frame or wall surface.

Direct-to-Stud Installation

The in-wall cradle includes countersunk mounting holes that can support direct attachment to a suitable wall stud when required by the project.

The countersunk holes are an installation feature. They should not be described as creating a completely flush or mud-in speaker installation.

One-Step or Staged Two-Step Installation

The SIG-76-IW ships as an assembled speaker-and-cradle system for a straightforward one-step installation.

For staged construction, the speaker core can be removed and the cradle installed first. Wiring, a protective cover, and the optional enclosure can be completed while the speaker remains protected from paint, drywall dust, insulation, and construction debris.

The speaker core can then be installed after the wall finish and surrounding work are complete.

Included Cradle and Optional Enclosure

The compatible Signature cradle is included with the speaker. The SIG-CRADLE-IW-6 is available separately for advance installation, replacement, or projects requiring an additional cradle.

The compatible ESS-ENCL-IW-6 enclosure is optional and sold separately. It can provide more predictable acoustic performance, help reduce sound transfer into an adjoining room, and keep insulation or construction debris away from the speaker.

When the enclosure is used, allow approximately 3.8 inches of mounting depth and align the speaker, cradle, and direct-connect interface correctly.

Grille and Finish

The speaker is compatible with thin-bezel, paintable magnetic grilles for a clean, low-profile architectural appearance.

Do not describe the standard installation as a fully flush or mud-in finish unless the correct optional construction and grille system has been selected.

Do not paint the woofer, tweeter, adjustment switches, terminals, mounting system, or internal components. Avoid blocking the grille perforations when painting.

Does It Need a Subwoofer?

A subwoofer may be optional for moderate whole-home music and ordinary television listening.

For home theater, bass-heavy music, or systems expected to play at higher volume, a dedicated subwoofer is recommended. The subwoofer handles the deepest frequencies while the in-wall speaker focuses on dialogue, music, and directional content.

When to Choose Another Episode Model

Choose the SIG-56-IW when a lower-priced 6-inch speaker with titanium-coated polypropylene drivers provides enough performance for the room.

Choose the SIG-78-IW when you need an 8-inch woofer, deeper bass, and greater output for a larger space.

Choose the SIG-76-IWSURR when you need selectable bipole or dipole side- or rear-surround performance.

Choose the SIG-76-IWLCR for a dedicated center channel or matched left-center-right front stage.

Choose a dual-voice-coil model when one wall location must reproduce both left and right stereo channels.

Good Products to Pair With This Speaker

• In-Wall & In-Ceiling Speakers to compare architectural speaker sizes and channel types.
• Episode Speakers for matching front, center, surround, ceiling, outdoor, and subwoofer products.
• Episode SIG-76-IWLCR for a matching universal left, center, or right home-theater speaker.
• Amplifiers for compatible stereo, home-theater, and multi-zone amplification.
• Speaker Wires for correctly rated in-wall speaker cable.
• Subwoofers for deeper bass in music and home-theater systems.
• Power Management Solutions to protect receivers, amplifiers, sources, and control equipment.

Need Help Planning Your Speaker Layout?

Send us the room dimensions, wall construction, available speaker positions, amplifier or receiver model, and intended use. We can help determine speaker quantity, placement, amplifier compatibility, and whether the SIG-76-IW or another Episode model is the better fit.

Is the Episode SIG-76-IW sold individually or as a pair?

It is sold individually. A conventional stereo room normally requires two speakers.

Is this a powered speaker?

No. It is a passive in-wall speaker that requires speaker wire and a compatible amplifier or AV receiver.

Does it include Bluetooth or Wi-Fi?

No. Bluetooth, Wi-Fi, streaming, and app control must come from the connected amplifier, receiver, or audio source.

Is the SIG-76-IW a standard or dual-voice-coil speaker?

It is a standard single-channel in-wall speaker. One SIG-76-IW connects to one amplifier channel.

Can one speaker reproduce both left and right stereo channels?

No. Use two speakers for conventional stereo or choose a dedicated dual-voice-coil model when only one physical speaker location is available.

Does the SIG-76-IW have one or two tweeters?

The model-specific Episode specification lists one 1-inch pure titanium dome tweeter. It should not be described as a dual-tweeter speaker.

Why does another section of Episode’s website mention dual tweeters?

The general marketing content appears to include wording used across several Signature models. The SIG-76-IW specification table and product configuration identify one tweeter. Dedicated surround models use dual tweeters.

What size woofer does it use?

It uses a 6-inch honeycomb fiberglass Nomex cone woofer.

What is the nominal impedance?

The speaker has an 8-ohm nominal impedance.

What is the correct power rating?

The official specification lists 140W peak power. It should not be described as a 140W RMS speaker.

What is the frequency response?

The published frequency response is 41Hz to 20kHz.

What is the sensitivity?

The published sensitivity is 90 dB.

What is the crossover frequency?

The published crossover frequency is 2.6kHz.

What do the woofer and tweeter switches control?

Separate switches provide +2 dB, 0 dB, and –2 dB adjustment for low-frequency and high-frequency output.

What is the coverage pattern?

Episode publishes approximately 100-degree horizontal by 90-degree vertical coverage.

Can it be used as a front left or right speaker?

Yes. It can serve as a discreet front left or right speaker when the room, placement, and required output are appropriate.

Can it be used as a center speaker?

A dedicated Episode LCR model is the better choice for a center channel, particularly when horizontal placement and dialogue localization are important.

Can it be used as a surround speaker?

Yes. It can serve as a standard direct-radiating side or rear surround speaker. It does not provide selectable bipole or dipole operation.

Can it be used for Dolby Atmos?

This is an in-wall speaker intended for the ear-level speaker layer. Use a suitable in-ceiling speaker for conventional Dolby Atmos overhead channels.

Can it connect to a 70V amplifier?

No. It does not include a 70V transformer or selectable transformer taps.

Does it need a subwoofer?

A subwoofer may be optional for moderate music listening but is recommended for home theater, bass-heavy music, and systems requiring deeper low-frequency output.

What wall cutout is required?

The required cutout is approximately 7.6 inches wide by 11.7 inches high.

What is the finished size?

The finished size with the standard grille installed is approximately 8.9 inches wide by 13 inches high.

How much mounting depth is required?

Allow approximately 3.6 inches without an enclosure and approximately 3.8 inches with the compatible enclosure.

How much cavity volume is recommended?

Episode recommends approximately 15 to 20 liters of open cavity volume when the optional enclosure is not used.

What wall thickness can the mounting system support?

The published clamping range is approximately 3/8-inch through double 1/2-inch wall material.

How much does the speaker weigh?

The speaker weighs approximately 5.7 lb.

Does it include the mounting cradle?

Yes. The speaker ships with its compatible Signature cradle.

Which additional cradle is compatible?

The compatible replacement or advance-installation cradle is the SIG-CRADLE-IW-6.

Is the backbox included?

No. The compatible ESS-ENCL-IW-6 enclosure is optional and sold separately.

What does the optional enclosure do?

It helps provide more predictable acoustic performance, reduces sound transfer into adjacent rooms, and keeps insulation or debris away from the speaker.

Can the cradle attach directly to a stud?

Yes. The cradle includes countersunk mounting holes for suitable direct-to-stud installations.

Does the countersunk mounting design make it flush?

No. Countersunk holes support direct structural mounting. The standard speaker uses a low-profile architectural grille but is not automatically a completely flush mud-in installation.

Can the grille be painted?

Compatible thin-bezel magnetic grilles can be painted when prepared according to Episode’s instructions. Avoid blocking the grille perforations.

Can it be installed outdoors or in a shower?

No outdoor or moisture rating is published for this model. Install it only in dry indoor locations.

What should I check before ordering?

Check speaker quantity, amplifier compatibility, wall cutout, mounting depth, stud locations, cavity volume, wire routing, intended channel use, and whether an optional enclosure or construction bracket is required.
