Episode Signature SIG-76-IWLCR 6" In-Wall Universal LCR Speaker

A Matched In-Wall Front Stage for Home Theater

The Episode SIG-76-IWLCR is a premium Signature 7 Series in-wall speaker designed to serve as a left, center, or right channel in a home-theater system.

Using the same speaker model across all three front channels helps maintain consistent tonal balance as dialogue, music, and effects move across the screen. Dual 6-inch honeycomb fiberglass Nomex woofers, an adjustable titanium-coated silk-dome tweeter, a dedicated Dialogue Enhancement switch, and broad 100-degree by 85-degree coverage support clear, powerful front-stage sound without visible speaker cabinets.

Best Use Cases

• Matched left, center, and right channels: Use three SIG-76-IWLCR speakers to create a consistent front soundstage across a television or projection screen.
• Dedicated center channel: Install it horizontally above or below the display for clear dialogue and anchored on-screen sound.
• In-wall left and right speakers: Install vertically beside the display when freestanding speakers are not practical or visually desirable.
• Media rooms: Provides premium front-channel performance while preserving floor space and maintaining a clean room design.
• Projection systems: Suitable for placement around a fixed projection screen when a behind-screen installation is not available.
• Higher-output architectural audio: The dual-woofer design can also support suitable premium music zones when a universal LCR form factor fits the room.

Who Should Buy This?

This is a strong choice if you want an architectural home-theater system with matching left, center, and right speakers rather than mixing different vertical and horizontal models.

It makes particular sense when dialogue clarity, consistent front-stage voicing, broad seating coverage, shallow wall depth, and discreet installation are priorities.

Who Should Not Buy This?

This is not the simplest choice for ordinary background music in a small room. A standard in-wall or in-ceiling speaker may require less wall space and provide sufficient performance for casual listening.

It is not a surround-specific bipole or dipole speaker. Choose an Episode IWSURR or ICSURR model when the theater requires a broader, more diffuse side- or rear-surround presentation.

It is not a dual-voice-coil stereo speaker. One SIG-76-IWLCR connects to one amplifier or AV-receiver channel.

This model does not include a 70V transformer or selectable tap settings. Do not connect it directly to a commercial 70V or 100V speaker output.

No outdoor or moisture rating is published for this model. Install it only in dry indoor locations.

Sold Individually

The Episode SIG-76-IWLCR is sold as one speaker.

A complete matched front stage normally requires three speakers: one for the left channel, one for the center channel, and one for the right channel. Additional Episode speakers and a subwoofer are required for a complete 5.1, 7.1, or Dolby Atmos system.

Universal Left, Center, or Right Design

The SIG-76-IWLCR can be used in any of the three front-channel positions.

• Left channel: Normally installed vertically to the left of the television or projection screen.
• Center channel: Commonly installed horizontally above or below the display.
• Right channel: Normally installed vertically to the right of the display.

Using three identical speakers can create smoother tonal transitions than combining differently designed left, right, and center speakers.

When the optional enclosure is not used, the speaker and cradle system allows multiple installation orientations. When using the compatible enclosure, align the speaker, cradle, and quick-connect interface exactly as directed in the installation manual.

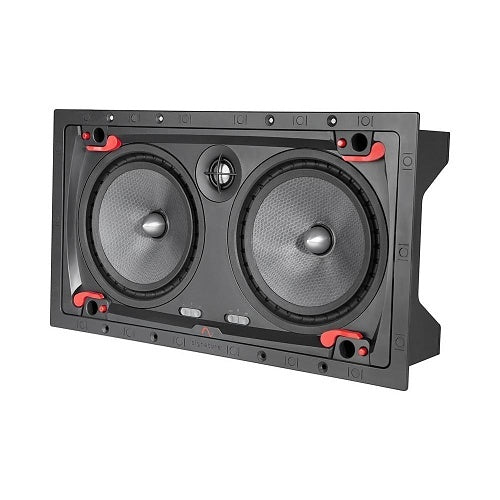

Dual 6-Inch Nomex Woofers

The SIG-76-IWLCR uses dual 6-inch honeycomb fiberglass Nomex cone woofers. The dual-driver layout provides greater cone area and output capability than a conventional single-woofer architectural speaker.

Episode publishes a frequency response of 41Hz to 20kHz, giving the speaker useful midbass extension for dialogue, music, and front-channel effects.

Actual bass performance depends on wall construction, cavity volume, speaker placement, use of the optional enclosure, receiver crossover settings, and room acoustics.

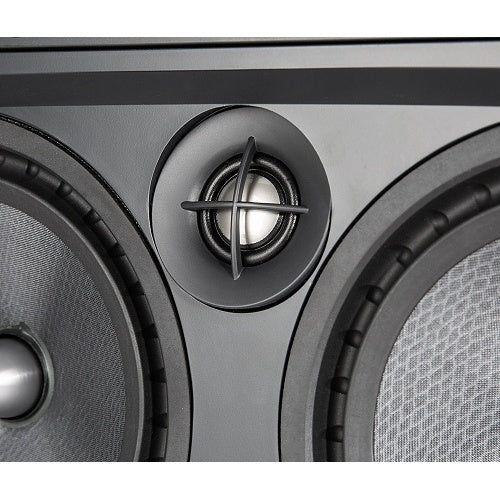

Adjustable Titanium-Coated Silk-Dome Tweeter

The speaker uses an adjustable 3/4-inch silk-dome tweeter with vacuum-deposited titanium.

The tweeter can be directed toward the main seating area to improve clarity and imaging when wall studs, the display, furniture, or other architectural limitations prevent ideal speaker placement.

Adjust the tweeter carefully and do not rotate or tilt it beyond the limits described in the official installation instructions.

Dialogue Enhancement Switch

The front-mounted Dialogue Enhancement switch provides On and Off settings.

When enabled, it is designed to increase speech clarity, making it particularly useful when the SIG-76-IWLCR is installed as the center channel.

Begin with the switch off, complete the receiver’s room calibration, and compare both settings from the primary seating position. The preferred setting will depend on the room, listening level, center-channel placement, and receiver configuration.

Tweeter Compensation

The tweeter adjustment provides +2 dB, 0 dB, and –2 dB settings for matching high-frequency output to the room and speaker position.

• +2 dB: Adds high-frequency output in heavily furnished rooms or when the speaker is farther from the listening area.
• 0 dB: Provides a neutral starting point for setup and calibration.
• –2 dB: Reduces high-frequency output in reflective rooms or when the speaker is close to the listeners.

The model-specific Episode specifications do not list a separate woofer compensation switch for the SIG-76-IWLCR.

Broad 100° × 85° Coverage

Episode publishes a coverage pattern of approximately 100 degrees horizontally by 85 degrees vertically.

This broad dispersion helps serve several seating positions and supports smoother coverage across a home-theater front stage.

Coverage still depends on speaker orientation, spacing, installation height, seating distance, room shape, and surrounding surfaces.

Amplifier and AV-Receiver Compatibility

• Speaker type: Passive universal in-wall LCR speaker.
• Series: Episode Signature 7 Series.
• Sold as: One speaker.
• Nominal impedance: 8 ohms.
• Power rating: 140W peak.
• Sensitivity: 89 dB.
• Frequency response: 41Hz to 20kHz.
• Crossover frequency: 2.5kHz.
• Woofers: Dual 6-inch honeycomb fiberglass Nomex cones.
• Tweeter: Adjustable 3/4-inch silk dome with vacuum-deposited titanium.
• Tweeter adjustment: +2 dB, 0 dB, or –2 dB.
• Dialogue control: On or Off.
• Coverage: Approximately 100° horizontal by 85° vertical.
• Connections: Gold-plated push terminals.
• Internal amplifier: None; external amplification is required.
• 70V compatibility: No built-in transformer or selectable taps.

Use an AV receiver or amplifier that supports passive 8-ohm speakers. Connect each SIG-76-IWLCR to one dedicated amplifier channel.

The official 140W specification is a peak rating and should not be described as 140W RMS. Correct impedance support, clean amplification, suitable crossover settings, and avoiding audible clipping are more important than matching peak-wattage figures directly.

Using Three Matching LCR Speakers

For the most consistent front soundstage, use three SIG-76-IWLCR speakers across the left, center, and right positions.

Try to keep the tweeters at similar heights whenever the room and display permit. When the center speaker must sit above or below the left and right speakers, aim its tweeter toward the primary seating area and use the AV receiver’s distance, level, and room-correction controls.

Maintain similar wall-cavity conditions or use matching enclosures where possible. Significant differences behind the three speakers can change their bass response and tonal balance.

Using It as a Center Channel

Install the center speaker as close to the television or projection screen as practical so voices remain connected to the image.

A horizontal installation is normally the most practical above or below a display. Keep the speaker centered relative to the screen and avoid placing it far to one side.

The Dialogue Enhancement switch can be evaluated after the receiver calibration is complete.

Using It as Left and Right Channels

For left and right use, the speakers are commonly installed vertically on opposite sides of the display.

Keep the two speakers reasonably symmetrical relative to the screen and main seating position. Aim each tweeter toward the listening area and begin with the tweeter adjustment at 0 dB.

Avoid placing one speaker inside a substantially different wall cavity or close to a corner when the other speaker is in an open wall section, unless receiver calibration or acoustic treatment can compensate for the difference.

Does It Need a Subwoofer?

A dedicated subwoofer is recommended for home-theater use.

Although the SIG-76-IWLCR extends down to a published 41Hz, a subwoofer is designed to reproduce the deepest movie effects and bass content more efficiently.

Use the AV receiver’s bass-management system to establish a suitable crossover between the LCR speakers and the subwoofer. The ideal setting depends on placement, wall construction, room response, and the subwoofer being used.

Installation Dimensions

• Finished size with grille: Approximately 8.9 inches wide by 15.7 inches high.
• Wall cutout: Approximately 7.6 inches wide by 14.4 inches high.
• Mounting depth without enclosure: Approximately 3.7 inches.
• Mounting depth with compatible enclosure: Approximately 3.8 inches.
• Weight: Approximately 7.8 lb.
• Clamping range: Approximately 3/8-inch through double 1/2-inch wall material.
• Recommended open cavity volume: Approximately 35 to 40 liters.

Before Cutting the Wall

Confirm the full 7.6-by-14.4-inch cutout and check for studs, electrical wiring, plumbing, HVAC components, fire blocking, insulation, and other hidden obstructions.

Allow enough space for the speaker depth, gold-plated terminals, speaker-wire bend radius, mounting dogs, and optional enclosure.

Confirm all three front-channel positions before cutting so the finished left, center, and right arrangement remains visually and acoustically balanced.

Push Lock by Swarm Installation

Episode’s Push Lock by Swarm system uses spring-loaded mounting dogs that engage when the front buttons are pressed.

Once engaged, the speaker is supported in the wall while the installer completes final positioning and tightening. The mounting dogs can be cinched by up to approximately 6mm when additional pressure is needed for uneven or layered wall material.

Only tighten each mounting dog after it has fully engaged behind the wall. Excessive tightening can damage the speaker frame or drywall.

Direct-to-Stud Installation Option

The in-wall cradle includes countersunk mounting points that can support direct attachment to a suitable wall stud when the project requires it.

Confirm the structural layout, speaker orientation, and final grille position before using a stud-mounted installation method.

One-Step or Staged Two-Step Installation

The SIG-76-IWLCR ships as an assembled speaker-and-cradle system for a straightforward one-step installation.

For staged construction, the speaker core can be removed and the cradle installed first. Wiring, a protective cover, and the optional enclosure can then be completed while the speaker remains protected from paint, drywall dust, insulation, and construction debris.

The speaker core can be inserted after the wall finish and surrounding construction work are complete.

Included Cradle and Optional Enclosure

The required Signature LCR cradle is included with the speaker.

The SIG-CRADLE-IWLCR-6 is available separately for advance installation, replacement, or projects requiring an additional cradle.

The compatible ESS-ENCL-IWLCR-6 enclosure is optional and sold separately. It can provide a more consistent acoustic volume, help reduce sound transfer into an adjacent room, and keep insulation or construction debris away from the speaker.

When the enclosure is used, align the speaker, cradle, and quick-connect interface correctly. Do not force a misaligned speaker into the enclosure connection.

Pre-Construction Bracket

The ES-ESS-BRKT-IWLCR-6 pre-construction bracket is available separately for suitable new-construction installations.

Installing the bracket before drywall can make final speaker placement and wire access more predictable.

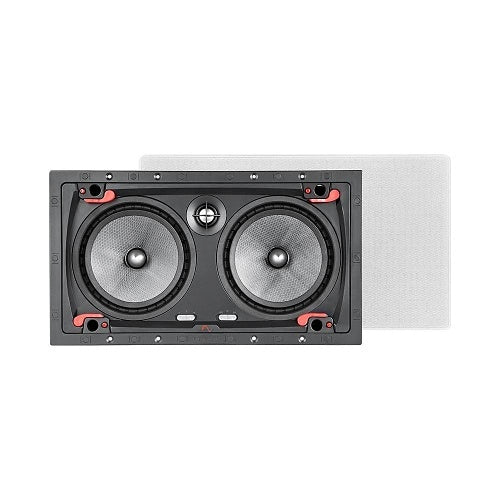

Grille and Finish

The standard speaker uses a thin-bezel magnetic grille that can be painted to better match the wall.

The standard grille creates a clean, low-profile appearance but should not automatically be described as a completely flush, mud-in installation.

Do not paint the woofers, tweeter, adjustment switches, terminals, mounting mechanism, or internal speaker components. Avoid blocking the grille perforations when painting.

When to Choose Another Episode Model

Choose the SIG-76-IW when you need a standard single-woofer in-wall speaker for stereo music, distributed audio, or direct-radiating surround use.

Choose the SIG-76-IWSURR when you need selectable bipole or dipole side- or rear-surround performance.

Choose an Episode in-ceiling or point speaker when wall installation is unavailable or sound must be directed from the ceiling.

Choose a 70V Episode speaker when the project uses constant-voltage amplification or requires many speakers over long wire runs.

Good Products to Pair With This Speaker

• In-Wall & In-Ceiling Speakers to compare LCR, surround, height, and distributed-audio models.
• Episode Speakers for matching front, surround, ceiling, outdoor, and subwoofer products.
• Amplifiers for compatible home-theater receivers and external amplification.
• Speaker Wires for properly rated in-wall speaker cable.
• Subwoofers for the low-frequency effects required by a complete theater system.
• Power Management Solutions to protect receivers, amplifiers, source components, and control equipment.

Need Help Planning Your Front Speaker Layout?

Send us the room dimensions, display size, seating distance, wall construction, AV receiver model, and intended 3.1, 5.1, 7.1, or Dolby Atmos layout. We can help confirm speaker quantity, orientation, placement, amplifier compatibility, and whether optional enclosures or construction brackets are appropriate.

What does LCR mean?

LCR means left, center, and right. The SIG-76-IWLCR can be used in any of the three front-channel positions in a home-theater system.

Is the Episode SIG-76-IWLCR sold individually or as a set?

It is sold individually. Order three speakers for a fully matched left, center, and right front stage.

Can it be used as a center-channel speaker?

Yes. It is specifically designed for universal left, center, or right use and can be installed horizontally above or below a display.

Can it be installed vertically?

Yes. Vertical installation is commonly used for the left and right channels.

Can it be installed horizontally?

Yes. Horizontal installation is commonly used for the center channel. When using the optional enclosure, follow the required speaker, cradle, and quick-connect orientation.

Should I use three matching SIG-76-IWLCR speakers?

Using the same model for the left, center, and right channels provides the most consistent tonal balance as sound moves across the front stage.

Is this a powered speaker?

No. It is a passive speaker that requires speaker wire and a compatible AV receiver or amplifier.

Does it include Bluetooth or Wi-Fi?

No. Streaming, Bluetooth, Wi-Fi, source selection, and app control must come from the connected receiver or source equipment.

How many woofers does it have?

It uses two 6-inch honeycomb fiberglass Nomex cone woofers.

What type of tweeter does it use?

It uses an adjustable 3/4-inch silk-dome tweeter with vacuum-deposited titanium.

Can the tweeter be aimed?

Yes. The tweeter can be directed toward the primary seating area after the speaker is installed.

What does the Dialogue Enhancement switch do?

It provides On and Off settings intended to increase speech clarity. It is especially useful to evaluate when the speaker is used as the center channel.

Does it have tweeter adjustment?

Yes. The tweeter can be set to +2 dB, 0 dB, or –2 dB.

Does it have a woofer compensation switch?

The model-specific Episode specification lists Dialogue Enhancement and tweeter adjustment. It does not list a separate woofer compensation switch for the SIG-76-IWLCR.

What is the nominal impedance?

The speaker has an 8-ohm nominal impedance.

What is the correct power rating?

Episode lists 140W peak power. It should not be described as a 140W RMS speaker.

What is the frequency response?

The published frequency response is 41Hz to 20kHz.

What is the sensitivity?

The published sensitivity is 89 dB.

What is the crossover frequency?

The published crossover frequency is 2.5kHz.

What is the coverage pattern?

Episode publishes approximately 100-degree horizontal by 85-degree vertical coverage.

Can it be used as a surround speaker?

It can reproduce a surround channel, but a dedicated Episode bipole/dipole surround model may provide a more appropriate dispersion pattern for side- or rear-surround use.

Can it be used for Dolby Atmos?

This is an in-wall LCR speaker rather than an overhead height speaker. Use a suitable in-ceiling direct-radiating or point speaker for conventional Dolby Atmos height channels.

Can it connect to a 70V amplifier?

No. It does not include a 70V transformer or selectable transformer taps.

Does it need a subwoofer?

A subwoofer is recommended for home-theater use so the LCR speakers can focus on dialogue, music, and directional effects while the subwoofer handles the deepest bass.

What wall cutout is required?

The required cutout is approximately 7.6 inches wide by 14.4 inches high.

What is the finished size?

The finished size with the standard grille installed is approximately 8.9 inches wide by 15.7 inches high.

How much mounting depth is required?

Allow approximately 3.7 inches without an enclosure and approximately 3.8 inches with the compatible enclosure.

Why do some Episode documents list 3.6 inches of depth?

The current product specification lists approximately 3.7 inches, while an older installation manual lists 3.6 inches for the LCR platform. Treat the depth as approximately 3.6 to 3.7 inches and confirm the available wall cavity before cutting.

How much cavity volume is recommended?

Episode recommends approximately 35 to 40 liters of open cavity volume when the optional enclosure is not used.

What wall thickness can the mounting system support?

The published clamping range is approximately 3/8-inch through double 1/2-inch wall material.

How much does the speaker weigh?

The speaker weighs approximately 7.8 lb.

Does it include the Signature cradle?

Yes. The speaker ships with its compatible LCR cradle.

Which additional cradle is compatible?

The compatible replacement or advance-installation cradle is the SIG-CRADLE-IWLCR-6.

Which enclosure is compatible?

The compatible enclosure is the ESS-ENCL-IWLCR-6, sold separately.

Which pre-construction bracket is compatible?

The compatible pre-construction bracket is the ES-ESS-BRKT-IWLCR-6, sold separately.

Can the speaker attach directly to a stud?

The in-wall cradle includes countersunk mounting points that can support direct-to-stud installation when appropriate for the project.

Can the grille be painted?

Yes. The thin-bezel magnetic grille can be painted when prepared according to Episode’s instructions. Avoid blocking the grille perforations.

Is it a true flush-mount speaker?

The standard installation uses a low-profile thin-bezel grille. Do not assume it is a fully mud-in flush installation unless the appropriate optional construction system has been selected.

Can it be installed outdoors or in a shower?

No outdoor or moisture rating is published for this model. Install it only in dry indoor locations.

What should I check before ordering?

Check speaker quantity, left-center-right placement, wall cutout, mounting depth, stud locations, cavity volume, receiver compatibility, wire routing, display position, and whether optional enclosures or construction brackets are required.
