Episode ES-SUB-EVO12-700-BLK 12 Inch 720W Home Theater Subwoofer

Stronger Sealed Bass for Larger Rooms

The Episode ES-SUB-EVO12-700-BLK is a 12-inch powered subwoofer designed for larger living rooms, media rooms, dedicated home theaters, gaming systems, and serious two-channel music setups.

Its sealed cabinet contains a woven-fiberglass woofer powered by Episode’s efficient DRiVE Class-D amplifier. LFE, stereo RCA, and speaker-level connections allow it to integrate with AV receivers, processors, stereo amplifiers, and other compatible audio systems.

The built-in amplifier delivers 300W RMS and 720W peak. The 720W figure is a peak rating, not continuous amplifier output.

Best Use Cases

• Dedicated home theaters: Reproduce movie effects and soundtrack bass with greater output than the smaller EVO8 and EVO10 models.
• Larger media rooms: Add low-frequency impact to television, streaming, sports, and gaming.
• Living rooms and open spaces: Provide more headroom where a compact subwoofer may struggle to reach the preferred listening level.
• Two-channel music systems: Extend bookshelf, in-wall, in-ceiling, and floorstanding speakers into lower frequencies.
• Systems without a subwoofer pre-out: Connect through the high-level speaker-wire inputs and outputs.
• Wireless retrofit projects: Add the separately sold Episode wireless subwoofer kit when running a long RCA cable is impractical.
• Multiple-subwoofer systems: Use two properly positioned subwoofers to improve bass consistency across several seats.

Who Should Buy This?

This is a strong choice when the EVO8 or EVO10 does not provide enough output for the room, seating distance, or preferred listening level.

It is particularly suitable for buyers who want a larger sealed subwoofer with straightforward physical controls, flexible wired connections, automatic signal sensing, and optional wireless-kit support without moving to Episode’s more advanced MEGA platform.

Who Should Not Buy This?

This may be larger than necessary for a bedroom, office, apartment, or secondary television system where moderate bass and a smaller cabinet are the priorities.

This is not a passive subwoofer. It contains its own amplifier and requires AC power.

It is not wireless out of the box. Wireless audio requires the separately sold Episode wireless subwoofer kit. The rear USB port only powers the optional wireless receiver.

It does not include Bluetooth, Wi-Fi, app control, automatic microphone-based room correction, Ethernet control, or a 12V trigger.

The ES-SUB-EVO12-700 is designed for dry indoor use. Do not expose it to rain, dripping water, outdoor humidity, or blocked ventilation.

Sold Individually

The ES-SUB-EVO12-700-BLK is sold as one complete powered subwoofer.

One EVO12 may provide sufficient output for many systems. Two correctly positioned subwoofers can improve seat-to-seat bass consistency when the receiver or processor supports the required outputs and calibration.

12-Inch Woven-Fiberglass Driver

The subwoofer uses one 12-inch woven-fiberglass cone driver with a Nomex spider, ribbed surround, and high-temperature 2-inch voice coil.

The rigid, lightweight cone is designed for controlled low-frequency movement, while the ribbed surround supports linear excursion at higher listening levels.

This is a single-driver design. It should not be described as a dual-driver subwoofer or as using a passive radiator.

Sealed Cabinet Design

The ES-SUB-EVO12-700 uses a sealed enclosure rather than a ported cabinet.

The sealed design supports controlled transient response and a relatively compact footprint for a 12-inch subwoofer.

Sealed and ported designs involve different tradeoffs in cabinet size, efficiency, maximum output, extension, and response. Neither enclosure type is universally better for every room or listener.

300W RMS and 720W Peak Amplification

The built-in DRiVE Class-D amplifier is rated at 300W RMS and 720W peak.

The 300W RMS figure is the continuous amplifier rating and should be used as the main power specification.

The 720W figure represents short-duration peak capability. It should not be presented as 720W RMS or as 720W of continuous output.

No separate external subwoofer amplifier is required.

Efficient DRiVE Class-D Technology

Episode’s DRiVE Class-D amplifier is designed to provide efficient low-frequency amplification while generating less heat than many conventional analog amplifier designs.

Episode publishes standby consumption below 0.5W.

The subwoofer still requires ventilation and access to the rear controls, connections, voltage selector, fuse holder, and power cord.

LFEQ Internal Equalization

Episode’s LFEQ technology uses internal dual equalization to shape the response of the driver and sealed cabinet.

LFEQ is built-in product tuning. It does not measure the room, adapt automatically to furniture or seating, or provide microphone-based room correction.

Placement, crossover, phase, volume, and receiver calibration remain important.

Published Frequency Performance

Episode’s Evolution Series cutsheet lists a broad published frequency range of 20Hz to 200Hz for the EVO12.

The installation manual separately identifies approximately 23Hz as the lower -3 dB point.

These values use different reporting conventions. Customer-facing copy should distinguish the broad published range from the documented -3 dB specification rather than treating them as identical measurements.

50Hz–200Hz Adjustable Crossover

The rear crossover control adjusts the highest frequencies reproduced by the subwoofer from approximately 50Hz to 200Hz and includes an LFE position.

The correct setting depends on the low-frequency capability of the main speakers and whether bass management is being handled by the AV receiver, processor, or subwoofer.

When using a receiver’s dedicated Sub Out or LFE output, set the subwoofer crossover control to LFE and manage the crossover through the receiver.

Continuously Variable Phase Control

The rear phase control is continuously adjustable from 0 to 180 degrees.

Phase adjustment helps align the subwoofer’s output with the main speakers at the listening position.

Begin at 0 degrees and adjust while playing familiar bass content. Select the position that provides the strongest and most even integration from the primary seating area.

Rear Volume Control

The rear volume control adjusts subwoofer output relative to the main speakers.

Begin near the midpoint during initial setup unless the receiver or processor manufacturer provides different instructions.

After calibration, set the level so the subwoofer supports movies and music without overwhelming dialogue, vocals, or instruments.

RCA and LFE Connections

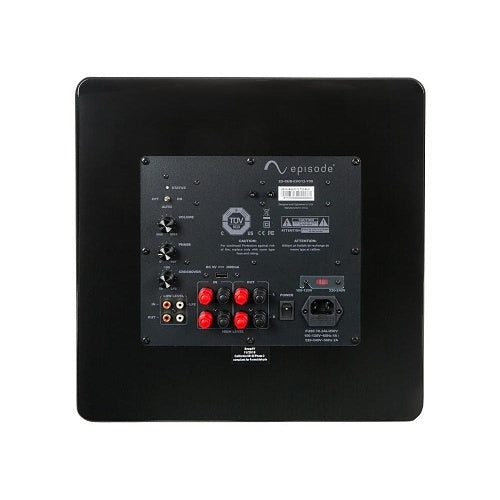

The rear panel provides left and right low-level RCA inputs and outputs.

For a receiver or processor’s dedicated Sub Out or LFE connection, use the left RCA input, which Episode designates for LFE operation.

The RCA outputs can pass the corresponding low-level signal to another compatible subwoofer or audio component.

Use a shielded, low-impedance RCA or subwoofer cable with secure connectors.

Speaker-Level Inputs and Outputs

Gold-plated five-way binding posts provide left and right high-level inputs and outputs.

This allows the EVO12 to receive a signal from an amplifier or receiver that provides speaker outputs but no dedicated subwoofer preamp output.

The high-level outputs pass the speaker signal onward to the main speakers. They are not additional channels powered by the EVO12’s internal amplifier.

Use Only One Input Method

Do not connect the low-level RCA inputs and high-level speaker inputs at the same time.

Use either the RCA/LFE connection method or the speaker-level connection method.

Connecting both methods simultaneously may cause noise or improper operation.

Automatic Signal Sensing

The rear power-mode control provides Auto, Off, and On settings.

• Auto: Turns the subwoofer on when an audio signal is detected and places it in standby after approximately 15 minutes without a signal.
• On: Keeps the subwoofer ready for operation until it is switched off.
• Off: Disables normal amplifier operation while AC power may remain connected.

The status LED is blue when the amplifier is operating and red while it is in standby or the mode switch is set to Off with AC power available.

Optional Wireless Subwoofer Kit

The EVO12 is compatible with the separately sold Episode wireless subwoofer kit.

A rear 5V USB port provides up to 500mA to power the optional wireless receiver. Holding bolts on the rear panel allow the compatible receiver to be secured to the cabinet.

The EVO12 itself does not include the wireless receiver or transmitter.

Wireless operation replaces the long audio-signal cable. The powered subwoofer still requires a nearby AC outlet.

No Bluetooth, Wi-Fi, or App Control

The USB connection and optional wireless-kit support should not be confused with Bluetooth, Wi-Fi, or mobile-app features.

The ES-SUB-EVO12-700 does not provide Bluetooth music streaming, network control, app-based DSP, or automatic room calibration.

AV Receiver Compatibility

Most AV receivers connect through the receiver’s Sub Out or LFE output and the EVO12’s left RCA/LFE input.

Set the subwoofer crossover to LFE and run the receiver’s speaker-calibration system when available.

The receiver may display a calculated subwoofer distance that differs from the physical measurement because filters and phase behavior affect acoustic timing.

Stereo Amplifier Compatibility

A stereo amplifier with variable preamp outputs can connect through the low-level RCA inputs.

An amplifier without a preamp or subwoofer output may connect through the high-level speaker inputs and outputs.

Do not connect the high-level terminals to a constant-voltage 70V or 100V speaker output.

Soundbar Compatibility

The EVO12 can work with a soundbar only when the soundbar or its control unit provides a compatible wired RCA, LFE, subwoofer, or speaker-level output.

It cannot pair directly with a soundbar that supports only its own proprietary wireless subwoofer.

Confirm the exact soundbar model and output connections before ordering.

Placement Has a Major Effect on Bass

Subwoofer placement can significantly change low-frequency output and consistency.

Positioning the cabinet near a wall or corner can increase output through boundary reinforcement, but it may also make some bass frequencies excessive while reducing others.

Test several suitable floor positions and evaluate the result from the important listening seats before finalizing the cable route or furniture placement.

Using Two Subwoofers

Two properly positioned subwoofers can increase available output, but their greater benefit may be smoother bass across several seating locations.

The receiver or processor must provide a suitable output arrangement, delay control, level adjustment, and calibration for the planned configuration.

Two subwoofers placed poorly can still produce uneven bass, so placement and setup remain important.

Initial Setup

1. Connect either the RCA/LFE input or the speaker-level input.
2. Confirm that the voltage selector matches the local electrical supply.
3. Set the power mode to On for initial setup.
4. Set the volume near the midpoint.
5. Set phase to 0 degrees.
6. Set the crossover to LFE when using receiver-controlled bass management, or choose a suitable frequency for the main speakers.
7. Play familiar music or movie content at a normal listening level.
8. Adjust volume and phase from the primary seating position.
9. Run the receiver or processor’s room-calibration system when available.
10. Return the power mode to Auto when automatic signal sensing is preferred.

Switchable AC Voltage

The ES-SUB-EVO12-700 supports switchable 100–120V or 220–240V AC operation.

Confirm that the rear voltage selector matches the local electrical supply before connecting power.

• 100–120V AC, 60Hz: Approximately 4A.
• 220–240V AC, 50Hz: Approximately 2A.
• Replaceable fuse: T6.3AL/250V.

Replace the fuse only with the same type and rating specified by Episode. Using an incorrect voltage setting or fuse may damage the subwoofer and create a safety hazard.

Indoor Placement and Ventilation

Install the subwoofer in a dry indoor location with access to the rear controls, power cord, fuse holder, and signal connections.

Do not block ventilation openings or place the cabinet directly beside radiators, fireplaces, heaters, or other heat-producing equipment.

Keep the power connection accessible so the subwoofer can be disconnected when required.

Cleaning and Maintenance

Clean the gloss-black cabinet with a soft, dry, lint-free cloth.

Use a vacuum dust-brush attachment or lint brush to remove dust from the grille.

Do not use abrasive cleaners, excess moisture, furniture polish, or household chemicals that could damage the finish.

Technical Specifications

• Product type: Powered sealed subwoofer.
• Series: Episode Evolution.
• Model: ES-SUB-EVO12-700-BLK.
• Sold as: One powered subwoofer.
• Finish: High-gloss black.
• Driver: One 12-inch woven-fiberglass cone.
• Voice coil: High-temperature 2-inch voice coil.
• Suspension: Nomex spider and ribbed surround.
• Enclosure: Sealed.
• Amplifier: DRiVE Class-D.
• Continuous output: 300W RMS.
• Peak output: 720W.
• Published overall frequency range: 20Hz to 200Hz.
• Manual-specified lower point: Approximately 23Hz at -3 dB.
• Adjustable crossover: 50Hz to 200Hz, plus LFE position.
• Phase adjustment: Continuously variable from 0 to 180 degrees.
• Low-level connections: Stereo RCA inputs and outputs; left RCA supports LFE.
• High-level connections: Gold-plated five-way binding-post inputs and outputs.
• Wireless support: Compatible with the optional Episode wireless subwoofer kit.
• Wireless-receiver power: 5V USB, up to 500mA.
• Power modes: Auto, Off, and On.
• Automatic standby: Approximately 15 minutes without signal.
• AC input: Switchable 100–120V or 220–240V.
• Power consumption: Approximately 4A at 100–120V or 2A at 220–240V.
• Replaceable fuse: T6.3AL/250V.
• Use location: Dry indoor environments.

Dimensions and Weight

• Width: Approximately 14.8 inches.
• Height: Approximately 15.4 inches.
• Depth: Approximately 16 inches.
• Weight: Approximately 34.6 lb.

Warranty

Episode’s Evolution installation manual documents a two-year limited warranty on the built-in amplifier and a ten-year limited warranty on the woofer and cabinet, subject to the manufacturer’s warranty terms, exclusions, and current policy.

When to Choose Another Episode Subwoofer

Choose the EVO8 when compact dimensions and lower cost are more important than maximum output.

Choose the EVO10 when you want a balance between cabinet size, output, and low-frequency extension.

Choose the EVO12 when the room is larger, the listening distance is greater, or stronger bass output is required.

Choose an Episode MEGA subwoofer when app-based room EQ, parametric DSP, balanced XLR inputs, Ethernet control, a 12V trigger, wireless-receiver integration, or substantially higher amplifier power is required.

Good Products to Pair With This Subwoofer

• Subwoofers to compare compact, powered, architectural, and high-output models.
• Episode Products for matching speakers, amplifiers, and audio components.
• Episode EVO10 Powered Subwoofer for a smaller cabinet and lower amplifier output.
• Episode EVO8 Powered Subwoofer for bedrooms, apartments, and smaller systems.
• In-Wall & In-Ceiling Speakers for a discreet theater or music system.
• AV Receivers & Surround Sound for LFE output, bass management, and speaker calibration.
• Power Management Solutions to protect the subwoofer, receiver, television, and source equipment.

Need Help Choosing the Right Subwoofer?

Send us the room dimensions, seating layout, main speaker models, receiver or amplifier model, preferred listening level, and available subwoofer locations. We can help determine whether the EVO12, a smaller Evolution model, or a more advanced MEGA subwoofer is the better fit.

Is the Episode ES-SUB-EVO12-700-BLK sold individually?

Yes. It is sold as one complete powered subwoofer.

Is this a powered or passive subwoofer?

It is powered and contains its own DRiVE Class-D amplifier.

How much continuous power does it deliver?

The built-in amplifier is rated at 300W RMS.

What does the 720W rating mean?

The 720W specification is the peak rating. It is not 720W RMS or 720W of continuous output.

Does it require a separate subwoofer amplifier?

No. The amplifier is built into the cabinet.

What size driver does it use?

It uses one 12-inch woven-fiberglass cone driver.

What size is the voice coil?

The official installation manual lists a high-temperature 2-inch voice coil.

Does it use two 12-inch drivers?

No. It is a single-driver powered subwoofer.

Does it use a passive radiator?

No passive radiator is listed. It uses one active woofer in a sealed cabinet.

Is the cabinet sealed or ported?

It uses a sealed enclosure.

Is a sealed subwoofer always better than a ported subwoofer?

No. Sealed and ported designs involve different tradeoffs in enclosure size, efficiency, extension, output, and response. The better option depends on the room and listening goals.

What is LFEQ?

LFEQ is Episode’s internal equalization system for shaping the subwoofer’s driver and sealed-cabinet response.

Does LFEQ automatically calibrate the room?

No. It is fixed internal tuning, not microphone-based automatic room correction.

What is the published frequency range?

Episode’s cutsheet lists a broad 20Hz–200Hz range.

What is the -3 dB lower-frequency point?

The installation manual lists approximately 23Hz at -3 dB.

Why are both 20Hz and 23Hz published?

They use different reporting conventions. The 23Hz figure is specifically identified as the -3 dB point, while 20Hz–200Hz is the broader published range.

What is the adjustable crossover range?

The crossover adjusts from approximately 50Hz to 200Hz and includes an LFE position.

What should the crossover be set to with an AV receiver?

When using the receiver’s Sub Out or LFE connection, set the subwoofer crossover to LFE and manage the crossover through the receiver.

Does it have phase control?

Yes. Phase is continuously adjustable from 0 to 180 degrees.

Is phase limited to a 0° or 180° switch?

No. The current installation manual specifies a continuously variable control rather than only two fixed settings.

What is a good initial phase setting?

Begin at 0 degrees and adjust while listening from the primary seating position.

What is a good initial volume setting?

Begin near the midpoint and make final adjustments after crossover setup and receiver calibration.

How do I connect it to an AV receiver?

Connect the receiver’s Sub Out or LFE output to the subwoofer’s left RCA input.

Which RCA input is used for LFE?

The left RCA input is designated for LFE operation.

Does it include stereo RCA inputs?

Yes. It includes left and right low-level RCA inputs.

Does it include RCA outputs?

Yes. The corresponding low-level outputs can pass the signal to another compatible component or subwoofer.

Can I connect a second subwoofer through the RCA output?

Yes, when the output and second subwoofer are configured using the same compatible connection type.

Does it include speaker-level inputs?

Yes. Gold-plated five-way binding posts accept left and right speaker-level signals.

Does it include speaker-level outputs?

Yes. The high-level outputs pass the main-speaker signal onward.

Does the subwoofer amplifier power the main speakers?

No. The high-level outputs are passthrough connections. The internal amplifier powers only the subwoofer driver.

Can I connect the RCA and speaker-level inputs simultaneously?

No. Episode instructs users to use either the low-level connection or the high-level connection, not both at the same time.

Can it work with a stereo amplifier?

Yes. Use variable preamp outputs when available or the high-level speaker inputs and outputs when the amplifier has no suitable subwoofer output.

Can it connect to a 70V or 100V amplifier?

Not through the constant-voltage speaker output. Its high-level inputs are intended for compatible conventional speaker signals.

Can it connect to a soundbar?

Only when the soundbar or its control unit provides a compatible wired RCA, LFE, subwoofer, or speaker-level output.

Can it pair with any wireless soundbar?

No. It cannot directly join a proprietary wireless-only soundbar system unless that system provides a compatible output and external wireless connection method.

Does it include Bluetooth?

No. It does not provide Bluetooth music streaming or Bluetooth control.

Does it include Wi-Fi or app control?

No. It has no Wi-Fi, Ethernet, mobile app, or network-control interface.

Is the EVO12 wireless?

Not by itself. It supports the separately sold Episode wireless subwoofer kit.

Does the EVO12 contain a built-in wireless receiver?

No. The optional wireless receiver is sold separately and can be powered by the rear USB port.

What is the USB port used for?

The 5V USB port provides up to 500mA to power the optional Episode wireless receiver.

Can the USB port play music?

No. It is not documented as a USB audio or music-playback input.

Does the wireless kit eliminate the power cord?

No. It replaces the long audio-signal cable. The powered subwoofer still requires AC power.

Does it turn on automatically?

Yes. In Auto mode, it turns on when a suitable audio signal is detected.

How long before it enters standby?

It enters standby after approximately 15 minutes without a detected signal.

What do the status-light colors mean?

Blue indicates normal operation. Red indicates standby or that the power-mode control is set to Off while AC power remains available.

Can it operate on 120V power?

Yes. It supports 100–120V AC operation.

Can it operate on 230V power?

Yes. It can be switched for 220–240V AC operation.

Do I need to check the voltage selector?

Yes. Confirm that the selector matches the local electrical supply before connecting the power cord.

What is the power consumption?

The published figures are approximately 4A at 100–120V/60Hz and 2A at 220–240V/50Hz.

Which replacement fuse does it use?

The official manual specifies a T6.3AL/250V fuse.

Can I substitute another fuse?

No. Replace it only with the same type and rating specified by Episode.

How much power does it use in standby?

Episode publishes standby consumption below 0.5W.

Where should the subwoofer be placed?

Test several floor locations near the front of the room. Walls and corners can increase output but may also make bass sound uneven or boomy.

Is corner placement always best?

No. A corner often increases output, but the best position depends on the room dimensions, seating locations, and bass response.

Can it be placed inside a cabinet?

Only when the cabinet provides sufficient ventilation, structural support, cable access, and acoustic clearance. Furniture may also rattle or alter the bass response.

Can it be installed outdoors?

No. It is designed for dry indoor use.

Can I use two EVO12 subwoofers?

Yes, when the receiver or processor supports the required outputs and calibration. Two properly positioned subwoofers can improve bass consistency across several seats.

Is one EVO12 enough for every large room?

No. Suitability depends on room volume, construction, seating distance, playback level, placement, and the amount of low-frequency output expected.

What finish is this model?

ES-SUB-EVO12-700-BLK has a high-gloss black finish with a flush-mounted grille.

Is a white EVO12 available?

Episode’s current Evolution family documentation lists the 12-inch EVO12 in gloss black.

What are the dimensions?

It measures approximately 14.8 inches wide, 15.4 inches high, and 16 inches deep.

How much does it weigh?

It weighs approximately 34.6 lb.

What is the warranty?

The Evolution installation manual documents two years on the amplifier and ten years on the woofer and cabinet, subject to Episode’s current warranty terms and exclusions.

What should I check before ordering?

Check room size, available floor space, receiver or amplifier outputs, connection method, nearby AC power, voltage setting, main-speaker capabilities, preferred listening level, and whether one EVO12 or a multiple-subwoofer system is appropriate.
