Episode ES-SS-SUB10 SurroundScape 10 Inch Burial Outdoor Subwoofer

Deep Outdoor Bass with Minimal Visual Impact

The Episode ES-SS-SUB10 is a passive 10-inch burial subwoofer designed to add deep, controlled bass to SurroundScape landscape audio systems covering patios, gardens, poolside seating areas, courtyards, hospitality spaces, and other outdoor listening zones.

Its rotomolded enclosure is installed below ground, leaving only the earth-tone ported mushroom visible above the landscape. A high-excursion 10-inch polypropylene woofer, 2.5-inch voice coil, 500W RMS power handling, and bass extension down to 26Hz help restore the low-frequency impact that small outdoor satellite speakers cannot reproduce on their own.

This is a passive 8-ohm subwoofer. It requires a compatible external amplifier, DSP crossover, direct-burial speaker cable, and properly planned outdoor installation.

Best Use Cases

• Landscape audio systems: Completes a system of outdoor satellite speakers by handling the deeper frequencies they are not designed to reproduce.
• Large patios and backyards: Adds fuller bass for music, parties, dining, and outdoor entertainment.
• Poolside seating areas: Provides low-frequency support near appropriate poolside listening zones without placing a large cabinet on the patio.
• Gardens and landscaped properties: The underground enclosure and brown earth-tone port reduce the visual impact of the audio system.
• Restaurant and hospitality patios: Supports higher-output outdoor systems where fuller music reproduction is important.
• Premium residential projects: A strong option when the customer wants deep bass without a visible surface-mounted subwoofer enclosure.

Who Should Buy This?

This is a strong choice if you are building a wired landscape audio system and want substantially deeper bass than outdoor satellite speakers can provide by themselves.

It makes particular sense for installations that need 26Hz low-frequency extension, 500W RMS handling, a discreet buried enclosure, and compatibility with a properly configured 8-ohm DSP amplifier or dedicated subwoofer amplifier.

Who Should Not Buy This?

This is not a powered subwoofer. It does not include an internal amplifier, power cord, Bluetooth, Wi-Fi, wireless receiver, volume control, or built-in crossover.

It is also not a 70V subwoofer. The ES-SS-SUB10 has an 8-ohm nominal impedance and no transformer tap settings. Do not connect it directly to a 70V speaker output or place it on the same 70V line as landscape satellites.

This is not an underwater speaker. The enclosure is designed for burial and carries an IP67 ingress-protection rating, but the ported mushroom must remain above ground and open to the air.

If excavation is not possible, consider a compatible hardscape or surface-installed outdoor subwoofer instead.

Why Outdoor Satellite Speakers Need a Subwoofer

Compact landscape satellites are designed primarily for midrange and high-frequency coverage. For example, many small outdoor satellites begin their published response around 100Hz or higher.

The ES-SS-SUB10 extends the system down to a published 26Hz, allowing the satellites to focus on vocals, instruments, and coverage while the subwoofer handles deeper musical bass.

Outdoor spaces also lack the walls and ceilings that reinforce low frequencies indoors. A dedicated landscape subwoofer helps compensate for the way bass disperses across open patios, lawns, and gardens.

10-Inch High-Excursion Woofer

The ES-SS-SUB10 uses a 10-inch polypropylene woofer with a 2.5-inch voice coil and 18mm of published peak-to-peak excursion.

The high-excursion design allows the woofer to move more air, which is important for producing useful bass output in an open outdoor environment.

The large voice coil also helps manage heat and maintain driver control during higher-output operation.

500W RMS Power Handling

The official power ratings are 500W RMS and 650W peak. The 500W RMS specification represents the more useful continuous power-handling figure for system planning.

This does not mean that every installation requires a 500W amplifier, nor does it mean that any amplifier labeled 500W is automatically suitable. Amplifier selection must account for impedance, DSP capability, crossover settings, output configuration, system headroom, and the number of connected subwoofers.

26Hz–120Hz Frequency Response

The published anechoic frequency response is 26Hz to 120Hz. This allows the subwoofer to reproduce deep bass information that outdoor satellite speakers cannot provide.

Actual performance will depend on placement, soil conditions, surrounding hard surfaces, amplifier configuration, DSP settings, listening distance, and the size and shape of the outdoor area.

Passive 8-Ohm Design

The ES-SS-SUB10 has an 8-ohm nominal impedance. It must connect to an amplifier output designed to operate an 8-ohm passive subwoofer load.

The subwoofer does not include 70V transformer taps. In a hybrid landscape system, the 70V satellites and 8-ohm subwoofer should use correctly configured, separate amplifier outputs.

Do not connect the subwoofer directly to a receiver’s line-level RCA or LFE output. A line-level output must first feed a compatible power amplifier.

Amplifier and DSP Requirements

Use a compatible DSP amplifier or dedicated subwoofer amplifier that supports an 8-ohm load and provides the required low-pass filtering, level control, and equalization.

Episode recommends pairing SurroundScape systems with a compatible Episode Hybrid DSP amplifier. Supported Episode Hybrid amplifiers include a dedicated ES-SS-SUB10 DSP preset that can simplify initial configuration.

When using another compatible DSP amplifier, the installer must configure appropriate low-pass filtering, output level, protection, and equalization for the subwoofer and complete outdoor system.

No Built-In Crossover

The official specification lists no internal crossover frequency. The subwoofer should not receive an unrestricted full-range signal.

The amplifier or external DSP must provide a suitable low-pass filter so the ES-SS-SUB10 reproduces bass while the landscape satellites handle the higher frequencies.

Proper crossover integration helps prevent audible overlap, weak bass around the crossover region, excessive woofer movement, and unnecessary amplifier load.

Using It with 70V SurroundScape Satellites

The ES-SS4, ES-SS6, and ES-SS8 satellites can be configured for 70V operation, but the ES-SS-SUB10 remains an 8-ohm subwoofer.

A suitable hybrid DSP amplifier can operate the 70V satellite system and 8-ohm subwoofer from separately configured output channels. Do not combine the subwoofer with the satellites on the same 70V speaker line.

Burial Installation

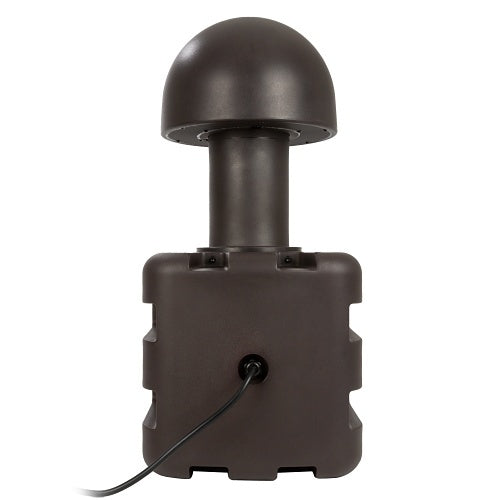

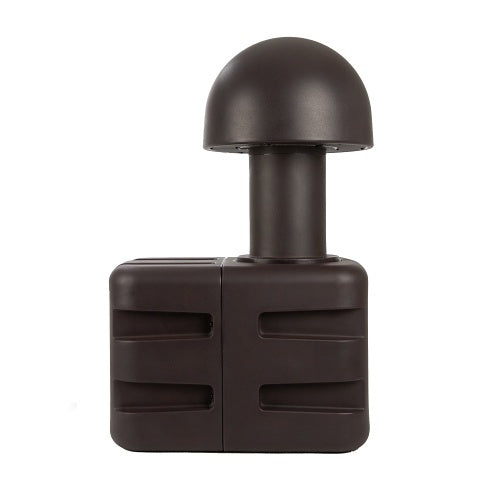

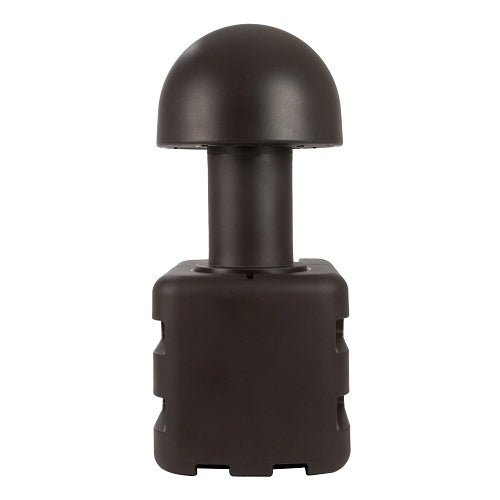

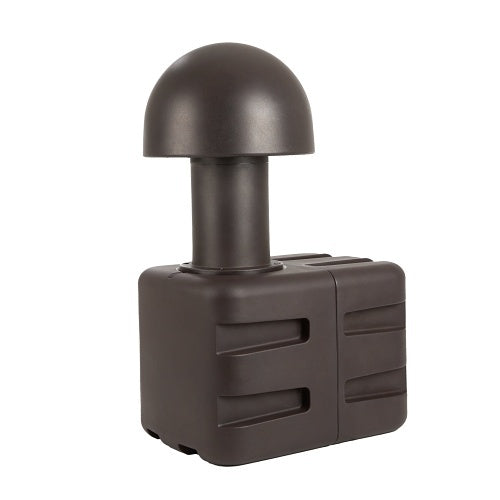

The square rotomolded enclosure is designed to be installed below ground. Only the ported mushroom should remain exposed above the finished landscape surface.

Do not bury or cover the mushroom port with soil, mulch, gravel, plants, landscape fabric, or decorative materials. The port must remain open so the subwoofer can operate correctly.

Plan the excavation carefully before installation. Confirm the enclosure dimensions, cable route, drainage conditions, irrigation layout, underground utilities, landscaping plans, and service access.

Installation Dimensions

• Overall dimensions: Approximately 18.6 inches long, 12.2 inches wide, and 28 inches high.
• Product weight: Approximately 32.6 lb.
• Packaged shipping weight: Approximately 36.7 lb.
• Visible component: Earth-tone ported mushroom above the landscape surface.
• Buried component: Square rotomolded subwoofer enclosure.

Leave enough working space to position the enclosure without damaging the speaker, wiring, irrigation lines, or nearby landscaping.

Drainage and Location Planning

Choose a location that does not routinely collect standing water, roof runoff, or concentrated irrigation discharge.

The IP67-rated enclosure is designed for demanding moisture conditions, but good drainage and correct installation remain important for long-term reliability and serviceability.

Do not install the mushroom port below grade or inside an area where mulch, leaves, mud, or water can block its opening.

IP67-Rated Rotomolded Enclosure

The rotomolded enclosure and outdoor hardware carry an IP67 ingress-protection rating for resistance to dust and water intrusion.

This rating supports demanding buried outdoor use, but it does not convert the subwoofer into a permanent underwater product. The port must remain above ground and unobstructed.

Wiring and Connections

The subwoofer uses bare speaker leads with two silicone wire nuts. Connect it with appropriately rated outdoor or direct-burial speaker cable and maintain correct polarity.

Follow local requirements for underground low-voltage cable, conduit, burial depth, junction protection, and separation from electrical, irrigation, gas, and other utilities.

Protect the wiring from landscaping equipment, sharp rocks, roots, foot traffic, and future excavation.

Placement Guidance

Position the subwoofer close enough to the primary outdoor listening area to provide useful bass without requiring excessive amplifier output.

Nearby walls, patio edges, and other boundaries can change the perceived bass response. Final placement should be evaluated as part of the complete system design rather than chosen only for visual convenience.

For large or unusually shaped outdoor areas, multiple subwoofers may provide more consistent bass across several seating zones than one subwoofer operating from a distant location.

Technical Specifications

• Product type: Passive burial outdoor subwoofer.
• Series: Episode SurroundScape.
• Sold as: One subwoofer.
• Woofer: 10-inch polypropylene high-excursion driver.
• Voice coil: 2.5 inches.
• Woofer excursion: 18mm peak to peak.
• Nominal impedance: 8 ohms.
• Power handling: 500W RMS.
• Peak power: 650W.
• Frequency response: 26Hz to 120Hz.
• Sensitivity: 87 dB.
• Internal crossover: None published; amplifier or external DSP required.
• 70V transformer taps: None.
• Connector: Bare speaker wire with two silicone wire nuts.
• Weather protection: IP67-rated enclosure and hardware.
• Color: Brown earth-tone finish.
• Internal amplifier: None.
• Warranty: Five-year limited manufacturer warranty, subject to current warranty terms.

When to Choose Another Outdoor Subwoofer

Choose the ES-SS-SUB8 when a smaller enclosure, lower power requirement, or more compact excavation is better suited to the property.

Choose the ES-SS-SUB12 when the system requires greater sensitivity, a larger driver, and additional output for a very large outdoor area.

Choose a hardscape subwoofer when the property does not permit burial or when installation inside a wall, planter, deck, or other architectural structure is more practical.

Good Products to Pair With This Subwoofer

• Episode ES-SS4 Outdoor Satellite Speaker for compact landscape coverage.
• Episode ES-SS6 Outdoor Satellite Speaker for higher-output landscape zones.
• Outdoor Speakers to compare landscape, surface-mount, and rock-speaker options.
• Episode Speakers for compatible SurroundScape products and system components.
• Amplifiers for compatible DSP and low-impedance amplification.
• Speaker Wires for properly rated outdoor and direct-burial cable.
• Power Management Solutions to protect the indoor amplifier, source equipment, network components, and control system.

Need Help Designing Your Landscape Audio System?

Send us the outdoor-area dimensions, satellite quantity, listening zones, cable distances, amplifier model, and preferred volume level. We can help confirm subwoofer quantity, amplifier compatibility, output configuration, wiring requirements, and whether the ES-SS-SUB10 is the right size for the project.

Is the Episode ES-SS-SUB10 powered?

No. It is a passive outdoor subwoofer and requires a compatible external amplifier.

Does it include Bluetooth, Wi-Fi, or wireless audio?

No. It has no built-in streaming, wireless receiver, network connection, or internal amplifier.

Is it sold individually?

Yes. The ES-SS-SUB10 is sold as one burial subwoofer.

What size woofer does it use?

It uses one 10-inch polypropylene high-excursion woofer.

What is the correct power rating?

The official ratings are 500W RMS and 650W peak. The 500W RMS figure is the more useful continuous power-handling specification.

What is the nominal impedance?

The subwoofer has an 8-ohm nominal impedance.

Can it be connected directly to a 70V amplifier output?

No. The ES-SS-SUB10 does not include a 70V transformer or tap settings. It must connect to a compatible 8-ohm amplifier output.

Can it share the same 70V line as SurroundScape satellite speakers?

No. In a hybrid system, the 70V satellites and 8-ohm subwoofer must use separately configured amplifier outputs.

Can it connect directly to an AV receiver’s RCA subwoofer output?

No. An RCA or LFE output is a line-level signal and cannot power the subwoofer directly. It must feed a compatible power amplifier.

Does it have a built-in crossover?

No internal crossover frequency is published. The connected amplifier or DSP must provide appropriate low-pass filtering and system tuning.

What is the frequency response?

The official anechoic frequency response is 26Hz to 120Hz.

What is the sensitivity?

The published sensitivity is 87 dB.

What size voice coil does it use?

It uses a 2.5-inch voice coil.

What is the woofer excursion?

The published woofer excursion is 18mm peak to peak.

Can the entire subwoofer be completely buried?

No. The main enclosure is buried underground, but the ported mushroom must remain visible above grade and open to the air.

Can mulch or gravel cover the mushroom port?

No. Keep the port clear of soil, mulch, gravel, plants, leaves, mud, and other material that could restrict airflow.

Can it be installed underwater?

No. The IP67-rated enclosure is designed for demanding outdoor moisture conditions, but the product is not intended to operate as a permanently submerged underwater speaker.

What does IP67 mean for this product?

It indicates protection against dust and water ingress under the conditions defined by the rating. Correct burial, drainage, wiring, and an unobstructed above-ground port are still required.

Can it be installed near a pool?

It can support an appropriately designed poolside audio system, but it must remain outside the pool and be installed according to applicable safety, electrical, and building requirements.

Should it be installed where water collects?

Avoid locations that routinely collect standing water, concentrated roof runoff, or direct irrigation discharge. Good drainage improves serviceability and long-term reliability.

What wire connection does it use?

The subwoofer has bare speaker leads and includes two silicone wire nuts for the connection.

What speaker cable should I use?

Use appropriately rated outdoor or direct-burial speaker cable sized for the cable distance, amplifier power, and installation method.

Does it work with Episode Hybrid amplifiers?

Yes. Episode recommends compatible Hybrid DSP amplifiers, and supported models include a dedicated ES-SS-SUB10 preset.

Can it work with another amplifier brand?

Yes, provided the amplifier supports an 8-ohm passive subwoofer, supplies appropriate power, and offers suitable DSP, low-pass filtering, and protection settings.

How many subwoofers do I need?

The manufacturer does not publish a fixed coverage number. Quantity depends on the outdoor-area size, seating zones, listening level, satellite layout, placement options, and desired bass consistency.

What are the dimensions?

The subwoofer measures approximately 18.6 inches long, 12.2 inches wide, and 28 inches high.

How much does it weigh?

The product weighs approximately 32.6 lb before shipping packaging.

What color is the visible port?

The product uses a brown earth-tone finish designed to blend with typical landscaping.

What is the warranty?

Episode lists a five-year limited manufacturer warranty, subject to its current warranty terms and conditions.

What should I check before ordering?

Check the amplifier’s 8-ohm capability, available DSP and crossover controls, required cable length, excavation space, drainage, irrigation, underground utilities, satellite quantity, listening-zone size, and whether one or several subwoofers are required.
