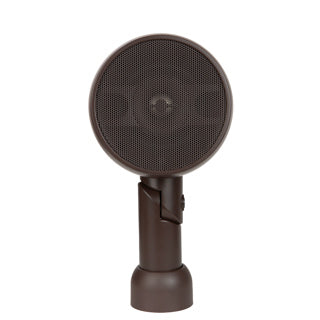

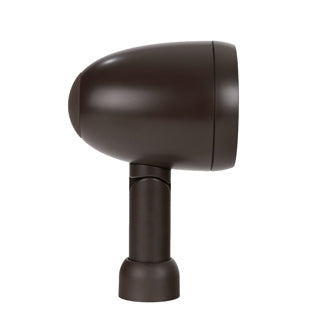

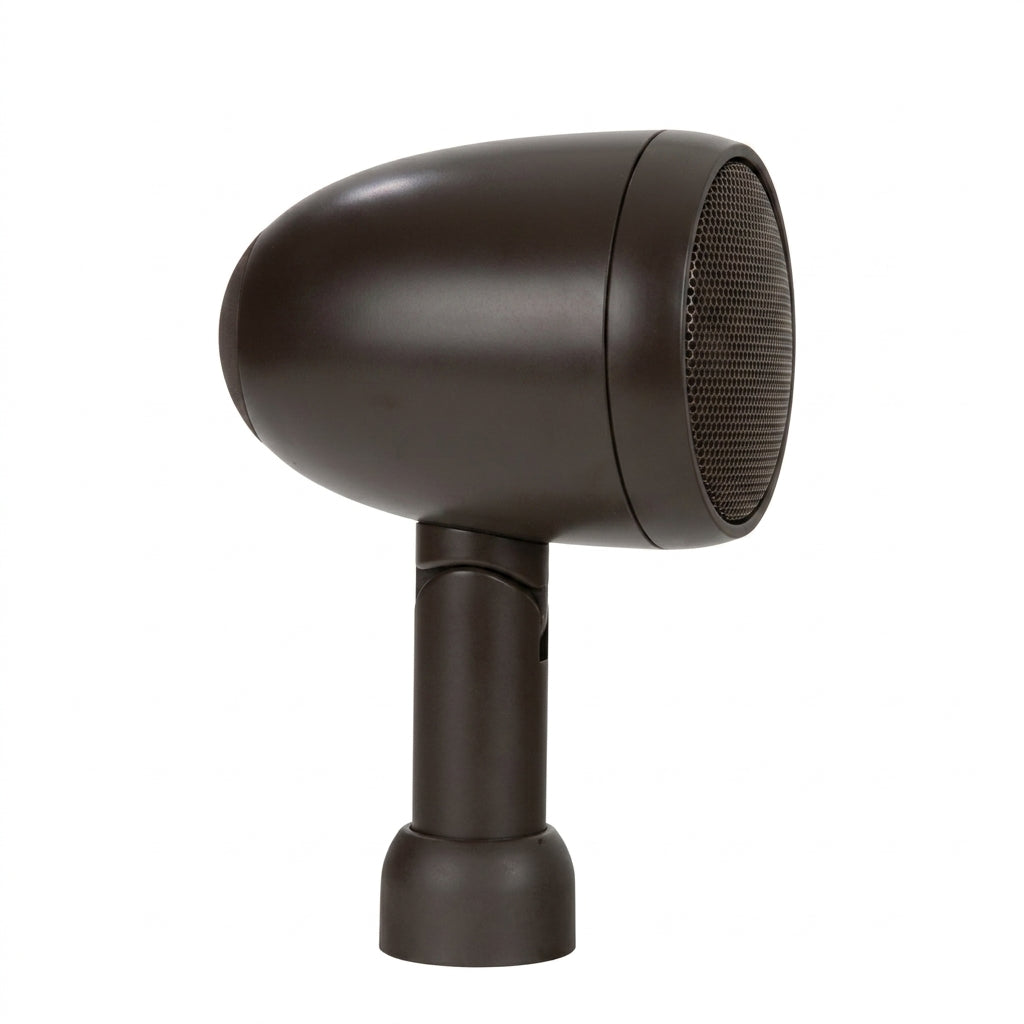

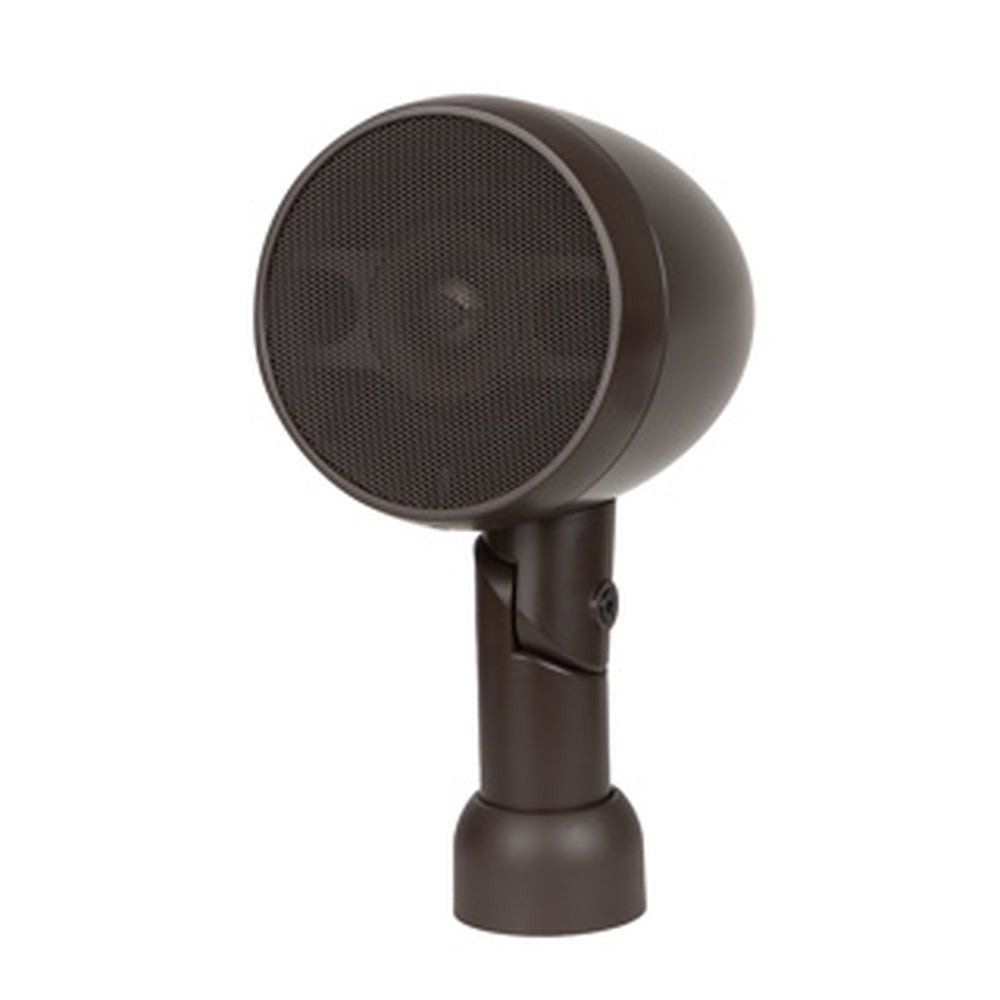

Episode ES-SS4 SurroundScape 4 Inch Outdoor Satellite Speaker

Discreet Landscape Audio with Flexible 70V or 8-Ohm Operation

The Episode ES-SS4 SurroundScape is a compact 4-inch outdoor satellite speaker designed for landscape audio systems covering patios, gardens, walkways, poolside seating areas, courtyards, hospitality spaces, and other outdoor listening zones.

It combines a 4-inch polypropylene woofer, 1-inch titanium tweeter, IP67-rated enclosure, selectable 70V transformer taps, an 8-ohm bypass mode, and a quick-connect mounting system that works with separately sold stake, surface, or conduit mounts.

Best Use Cases

• Landscape audio systems: Install several compact satellites throughout the property for more even coverage at moderate volume.
• Patios and outdoor seating areas: Direct sound toward tables, lounges, and conversation areas without placing large speaker cabinets on the building.
• Gardens and pathways: The brown enclosure blends more naturally with soil, mulch, shrubs, and other landscaping.
• Poolside listening areas: Provides weather-resistant audio around suitable poolside spaces without being installed in the water.
• Large residential properties: The 70V tap settings simplify systems with several speakers and longer cable runs.
• Commercial outdoor spaces: Suitable for restaurant patios, courtyards, hospitality properties, and other professionally designed distributed-audio systems.
• Smaller 8-ohm systems: The 8-ohm bypass setting supports compatible conventional amplifiers when only a limited number of speakers are required.

Who Should Buy This?

This is a strong choice if you want several discreet outdoor speakers distributed around a property instead of relying on one pair of speakers playing at high volume from a single location.

It makes particular sense when the project requires scalable 70V wiring, flexible mounting options, IP67 weather protection, replaceable or adjustable speaker locations, and a landscape subwoofer for deeper bass.

Who Should Not Buy This?

This is not a powered or wireless speaker. It requires outdoor-rated speaker cable and a compatible 70V or low-impedance amplifier. It does not include Bluetooth, Wi-Fi, a battery, or an internal amplifier.

This is also not normally intended to serve as a complete full-range outdoor system by itself. Its published response begins at 115Hz, so a compatible landscape subwoofer is recommended when music quality and bass reproduction matter.

If you only need a conventional left-and-right stereo pair mounted on a wall or beneath an eave, an Episode outdoor surface-mount speaker pair may be simpler to design and install.

The IP67 rating does not make the speaker suitable for permanent underwater installation. Do not install it inside a pool, fountain, or other continuously submerged location.

Sold Individually

The Episode ES-SS4 is sold as one satellite speaker. Landscape systems normally use several satellites positioned around the listening area, often together with one or more compatible outdoor subwoofers.

Mounting accessories are also sold separately. Order one compatible stake, surface, or conduit mount for each satellite speaker unless the project already includes suitable mounts.

70V or 8-Ohm: Choose the Correct Operating Mode

The ES-SS4 includes selectable 7.5W, 15W, 30W, and 60W transformer taps for 70V systems, plus an 8-ohm bypass setting for compatible low-impedance amplifiers.

• 70V operation: Best for systems with several speakers, long cable runs, or multiple outdoor listening areas connected to one compatible amplifier channel.
• 8-ohm operation: Best for smaller systems where the amplifier supports the total low-impedance speaker load and the required wiring configuration.

Set the transformer switch before connecting the speaker to the amplifier. Using an incorrect tap or impedance setting can overload the amplifier, damage equipment, or result in poor performance.

Planning a 70V System

In a 70V installation, add together the selected tap wattage of every speaker connected to the amplifier channel. The total speaker tap load must remain below the amplifier’s available 70V output, with additional headroom recommended for reliable operation.

For example, several ES-SS4 speakers set to lower tap values can provide broad background coverage, while higher tap settings provide greater output in louder or more distant listening areas.

Do not automatically set every speaker to the highest tap. Select the tap based on the desired coverage, distance, amplifier capacity, and overall system design.

Planning an 8-Ohm System

When using the 8-ohm bypass setting, calculate the combined impedance of all speakers connected to each amplifier channel. Connecting too many 8-ohm speakers in parallel can create a load below the amplifier’s supported minimum impedance.

Confirm the amplifier’s documentation before connecting multiple speakers. Speaker selectors, impedance-matching controls, series-parallel wiring, and other system components can change the load seen by the amplifier.

4-Inch Two-Way Speaker Design

The ES-SS4 uses a 4-inch polypropylene woofer and a 1-inch titanium tweeter in a two-way configuration.

The published frequency response is 115Hz to 20kHz. This makes the speaker well suited to vocals, instruments, and distributed outdoor coverage, but it does not provide the deep bass of a larger speaker or landscape subwoofer.

Why a Landscape Subwoofer Matters

Outdoor environments do not reinforce bass in the same way as enclosed indoor rooms. Low frequencies can dissipate quickly, especially across open lawns, patios, and large seating areas.

Pairing the ES-SS4 satellites with a compatible Episode landscape subwoofer allows the satellites to focus on midrange and high-frequency coverage while the subwoofer handles deeper musical bass.

A correctly designed satellite-and-subwoofer system will generally sound fuller and more balanced than using small satellites alone or forcing them to reproduce frequencies below their intended range.

IP67 Outdoor Protection

The ES-SS4 uses an IP67-rated enclosure designed to resist dust and water ingress in demanding outdoor environments.

The rating provides protection against temporary water exposure and occasional accidental submersion under the conditions defined by the manufacturer. It does not make the speaker an underwater audio product or approve permanent submersion.

Proper mounting, cable selection, drainage, connection protection, and maintenance remain essential for long-term outdoor reliability.

UV-Resistant Finish

The brown finish uses UV-resistant paint intended to reduce fading caused by long-term sun exposure.

UV resistance does not prevent all cosmetic changes. Placement away from constant direct irrigation, standing water, landscaping chemicals, and unnecessary physical contact can help preserve the enclosure and finish.

Quick-Connect Mounting System

The speaker uses a threaded aluminum quick-connect mounting system. Position the speaker on the compatible mount, move the threaded collar into place, and tighten it to secure the speaker.

The system avoids rotating the entire speaker and connected wiring during installation. The speaker angle can be adjusted after mounting by loosening the joint, aiming the enclosure toward the listening area, and retightening it.

Optional Mounting Choices

• ES-SS-STAKE: Ground stake for installation in soil or landscaped areas.
• ES-SS-SURFACE: Surface mount for decks, walls, posts, fences, and other suitable horizontal or vertical structures.
• ES-SS-CONDUIT: Conduit mount for projects that require protected underground cable routing and a raised speaker position.

Each mount is sold separately. Select the mount according to the installation surface, wiring method, drainage, landscaping, and risk of accidental impact.

Integrated Wiring Connector Block

The ES-SS4 uses an integrated screw-down connector block hidden inside the mounting shaft. This provides an organized connection point without leaving exposed wire nuts outside the speaker assembly.

Maintain correct positive-to-positive and negative-to-negative polarity throughout the system. Loose conductors, exposed copper, reversed polarity, or water entering an improperly completed connection can reduce performance and reliability.

Placement Guidance

Landscape systems usually perform best with several speakers distributed around the perimeter of the listening area and aimed inward toward the listeners.

Using more speakers at moderate volume generally provides smoother coverage than placing one or two speakers far away and operating them at very high volume.

Avoid aiming speakers directly toward neighboring properties, highly reflective walls, or open areas where the sound does not benefit the intended listening zone.

Consider landscaping growth when selecting locations. Plants, shrubs, furniture, walls, and other objects can block or alter sound coverage over time.

Amplifier and System Compatibility

• Speaker type: Passive two-way outdoor landscape satellite.
• Sold as: One speaker.
• Woofer: 4-inch polypropylene.
• Tweeter: 1-inch titanium.
• Frequency response: 115Hz to 20kHz.
• Nominal impedance: 8 ohms in bypass mode.
• 70V tap settings: 7.5W, 15W, 30W, and 60W.
• Power handling: 75W RMS.
• Peak power: 95W.
• Sensitivity: 84 dB.
• Crossover frequency: 3.3kHz.
• Woofer voice coil: 1 inch.
• Woofer excursion: 8mm peak to peak.
• Connector: Integrated screw-down connector block.
• Weather rating: IP67.
• Color: Brown.
• Internal amplifier: None; external amplification is required.
• Mount included: No; compatible mounting accessories are sold separately.

Dimensions and Weight

• Dimensions: Approximately 11.5 inches long, 5.6 inches wide, and 7.1 inches high.
• Product weight: Approximately 5.1 lb.
• Shipping weight: Approximately 6.1 lb.
• Warranty: Five-year limited manufacturer warranty, subject to current warranty terms and conditions.

Installation Considerations

Plan the complete speaker count, subwoofer quantity, amplifier capacity, transformer taps, wire paths, and mounting locations before beginning installation.

Set every speaker to the correct 70V tap or 8-ohm position before connecting the amplifier. Keep the silicone cover over the tap selector fully seated after adjustment.

Use outdoor-rated speaker cable appropriate for the installation method. Direct-burial cable, conduit, waterproof junction methods, and local electrical or building requirements may apply depending on the property.

After installation, listen from several locations, adjust speaker aim or tap settings when necessary, verify the total amplifier load, and operate the completed system long enough to confirm reliable performance.

When to Choose a Different SurroundScape Satellite

Choose the ES-SS6 when you need higher sensitivity, stronger midbass, more output, and a lower published frequency response from each satellite.

Choose the ES-SS8 when maximum satellite output and broader frequency capability are more important than compact dimensions and visual discretion.

Choose a conventional outdoor surface-mount speaker pair when the project only needs one stereo zone and does not require a distributed landscape layout.

Good Products to Pair With This Speaker

• Outdoor Speakers to compare landscape, surface-mount, and rock-speaker options.
• Episode Speakers for matching SurroundScape satellites, subwoofers, and outdoor audio products.
• Subwoofers for deeper low-frequency performance in outdoor audio systems.
• Amplifiers for compatible 70V, hybrid, and low-impedance amplification.
• Speaker Wires for correctly rated outdoor, in-wall, conduit, and direct-burial cable.
• Power Management Solutions to protect the amplifier, source equipment, network components, and control system.

Need Help Designing Your Landscape Audio System?

Send us the approximate outdoor-area dimensions, number of listening zones, cable distances, preferred volume, amplifier model, and whether you plan to use 70V or 8-ohm operation. We can help determine speaker quantity, tap settings, subwoofer requirements, amplifier capacity, and mounting accessories before installation.

Is the Episode ES-SS4 sold individually or as a pair?

It is sold individually. Most landscape systems use several satellite speakers distributed throughout the listening area.

Does the speaker include a ground stake?

No. The compatible ES-SS-STAKE ground stake is sold separately.

Which mounting options are available?

The ES-SS4 is compatible with the separately sold ES-SS-STAKE ground stake, ES-SS-SURFACE surface mount, and ES-SS-CONDUIT conduit mount.

Is this a powered speaker?

No. It is a passive speaker that requires outdoor-rated speaker cable and a compatible external amplifier.

Does it include Bluetooth or Wi-Fi?

No. Bluetooth, Wi-Fi, streaming, source selection, and app control must come from the connected amplifier or audio system.

Can it operate in a 70V system?

Yes. It includes selectable 7.5W, 15W, 30W, and 60W transformer taps for compatible 70V systems.

Can it operate with a conventional 8-ohm amplifier?

Yes. It includes an 8-ohm bypass setting. Confirm that the amplifier supports the combined impedance of every speaker connected to the channel.

Can it be used with a 100V amplifier?

The official specifications publish 70V tap settings and an 8-ohm bypass. They do not list 100V transformer taps for this model.

When should I use 70V instead of 8 ohms?

Use 70V for larger systems with several speakers or long cable runs. Use 8-ohm mode for smaller installations when the amplifier supports the total low-impedance load.

How do I select the correct 70V tap?

Select the tap according to the required volume, speaker location, total number of speakers, and available amplifier power. Add the tap wattage of every speaker on the channel and leave amplifier headroom.

Can I change the tap while the amplifier is operating?

No. Power down and disconnect the amplifier before changing transformer or impedance settings. An incorrect setting can damage the system.

What is the correct power rating?

The official specification lists 75W RMS and 95W peak power handling.

What is the frequency response?

The published frequency response is 115Hz to 20kHz.

Does the ES-SS4 need a subwoofer?

A compatible outdoor subwoofer is strongly recommended for balanced music reproduction. The ES-SS4 is a compact satellite and does not reproduce deep bass on its own.

What size woofer does it use?

It uses a 4-inch polypropylene woofer with a 1-inch voice coil.

What type of tweeter does it use?

It uses a 1-inch titanium tweeter.

What is the sensitivity?

The official published sensitivity is 84 dB.

What does IP67 mean?

IP67 indicates protection against dust ingress and temporary water exposure under the conditions defined by the rating. It does not make the speaker suitable for permanent underwater installation.

Can it be installed near a pool?

It can be used in an appropriately designed poolside listening area, but it should not be installed inside the pool or where it may remain submerged.

Can sprinklers spray directly onto the speaker?

The enclosure is designed for demanding outdoor conditions, but avoiding constant direct sprinkler exposure can reduce unnecessary water, mineral, and chemical buildup.

Is the speaker suitable for permanent outdoor installation?

Yes. It is designed as an outdoor landscape speaker with an IP67-rated enclosure and UV-resistant finish. Correct mounting, wiring, drainage, and maintenance remain important.

What is the integrated wiring block?

It is a screw-down speaker-wire connector concealed inside the mounting shaft. It provides an organized connection point without leaving ordinary wire nuts exposed outside the speaker assembly.

Can the speaker be aimed after installation?

Yes. Loosen the adjustment screw at the mounting joint, aim the speaker toward the listening area, and retighten the screw.

What color is available?

The ES-SS4 is offered in brown to help it blend with typical landscaping.

What are the dimensions?

It measures approximately 11.5 inches long, 5.6 inches wide, and 7.1 inches high.

How much does it weigh?

The speaker weighs approximately 5.1 lb before shipping packaging.

What is the warranty?

The official product specifications list a five-year limited manufacturer warranty, subject to the manufacturer’s current terms and conditions.

What should I check before ordering?

Check speaker quantity, desired coverage, subwoofer requirements, amplifier type, total 70V tap load or 8-ohm impedance, cable distances, mount selection, wiring method, and installation environment.
