Araknis AN-530-AP-I Wi-Fi 7 Indoor Access Point Tri-Band 10GbE

Tri-Band Wi-Fi 7 with 10GbE Backhaul

The Araknis AN-530-AP-I is a tri-band Wi-Fi 7 indoor access point designed for modern homes, offices, AV systems, and other networks that need faster wireless performance and a multi-gig wired uplink.

Part of the Araknis Networks family, it combines 2.4GHz, 5GHz, and 6GHz Wi-Fi, 320MHz channel support, WPA3 security, OvrC management, and a 10GbE Ethernet connection.

Tri-Band 2×2 Wi-Fi 7

• Wi-Fi 7 / IEEE 802.11be
• 2×2:2 radios on 2.4GHz, 5GHz, and 6GHz
• 2.4GHz peak PHY rate: 541.7Mbps
• 5GHz peak PHY rate: 2722.2Mbps
• 6GHz peak PHY rate: 5444.4Mbps
• 20, 40, 80, 160, and 320MHz channel widths
• OFDMA uplink and downlink
• Beamforming, BSS Coloring, and Target Wake Time

The listed wireless speeds are theoretical PHY rates, not guaranteed internet throughput. Actual performance depends on client capability, channel width, interference, network design, and internet service.

10GbE Wired Uplink

• 1 × 10GBASE-T RJ45 Ethernet port
• PoE input through the same Ethernet connection
• Up to 381 supported clients per access point
• Up to 26 SSIDs per access point

A compatible multi-gig network switch is recommended when you want to take full advantage of the 10GbE backhaul.

PoE++ Required for Full Functionality

• 802.3bt Class 6 PoE++: full functionality
• 12V DC, 3.5A: full functionality
• 802.3at Class 4 PoE+: limited functionality

This distinction is important. Standard PoE+ can power the access point, but Araknis limits radio operation under that power level. Use 802.3bt Class 6 PoE++ or the compatible DC supply when full Wi-Fi performance is required.

Wi-Fi Management and Security

• WPA3 and WPA3-SAE
• 802.11r/k/v roaming support
• 802.1Q VLAN support per BSSID
• Band Steering
• Wireless client isolation
• Rate limiting and Wi-Fi scheduling
• Device fingerprinting through OvrC

OvrC also provides Wi-Fi Optimization and Proximity View tools for monitoring coverage and RF conditions.

Bridge Mode and Mixed Wi-Fi 6 Deployments

Araknis supports Wireless Bridge Mode for locations where Ethernet is not practical. The current manufacturer data sheet also states that the AN-530-AP-I is backward compatible with existing Araknis Wi-Fi 6 access points, allowing mixed Wi-Fi 6 and Wi-Fi 7 deployments.

If you are comparing generations, see Bear's Araknis AN-820-AP-I Wi-Fi 6 access point.

Indoor Installation

• Ceiling mounting
• Dimensions: 7.33 × 7.33 × 1.56 inches
• Weight: approximately 2.03 lb
• Operating temperature: 32°F to 122°F
• 2-year limited manufacturer warranty

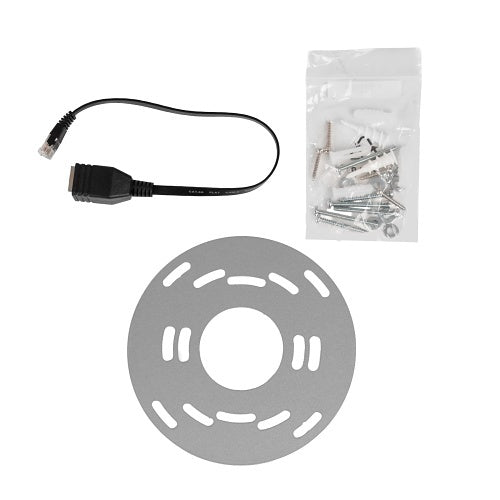

The optional Araknis in-ceiling mounting bracket and 12V DC power supply are sold separately.

Complete the Network

• Wireless access points
• Network switches
• Routers

Need Help Confirming Compatibility?

Send Bear Security Shop your router, switch model, internet speed, PoE capability, and number of access points. We can help confirm whether your network can provide the required 802.3bt power and multi-gig backhaul.

Is the AN-530-AP-I a Wi-Fi 7 access point?

Yes. It supports Wi-Fi 7 across 2.4GHz, 5GHz, and 6GHz bands with 2×2 radios on each band.

Does it support 320MHz channels?

Yes. Araknis specifies channel widths up to 320MHz for compatible Wi-Fi 7 operation.

Does it have a 10GbE port?

Yes. It has one 10GBASE-T RJ45 Ethernet port that also accepts PoE power.

Does PoE+ provide full performance?

No. Araknis specifies limited functionality with 802.3at PoE+. Full functionality requires 802.3bt Class 6 PoE++ or 12V DC power.

How many clients can it support?

Araknis specifies up to 381 clients and up to 26 SSIDs per access point.

Does it support WPA3 and roaming?

Yes. It supports WPA3 security and 802.11r/k/v roaming features.

Can it be used with Araknis Wi-Fi 6 access points?

Yes. The current Araknis data sheet specifically supports mixed deployments with existing Araknis Wi-Fi 6 access points.
