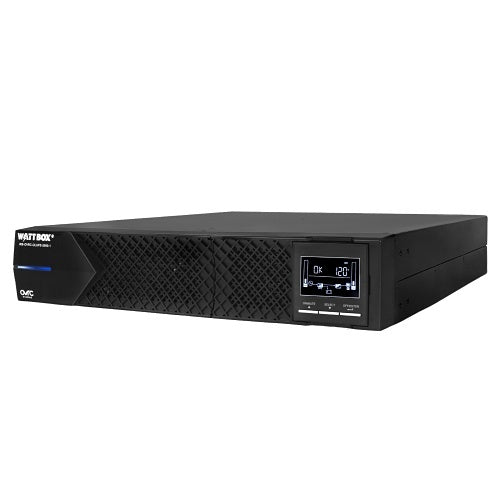

WattBox WB-OVRC-OLUPS-2000-1 Online Double Conversion UPS 2000VA

Online Double Conversion Backup Power for Critical Equipment

The WattBox WB-OVRC-OLUPS-2000-1 is a 2000VA online double conversion UPS made for larger AV, networking, security, and business-critical systems where even a brief power transfer delay is not acceptable.

It is a strong fit for AV racks, network closets, NVR systems, routers, switches, control processors, smart home systems, and sensitive electronics that need clean backup power, zero transfer time, and better runtime planning than a basic UPS can provide.

Best Use Cases

• AV racks: Helps protect processors, streamers, control systems, receivers, media servers, and supporting rack equipment.
• Network closets: Useful for routers, switches, modems, firewalls, access points, and core network devices that should stay stable during power events.
• Security camera systems: A strong fit for NVRs, DVRs, routers, switches, and surveillance support equipment that should not shut down suddenly.
• Smart home systems: Helps protect control processors, hubs, bridges, and automation equipment from outages and unstable voltage.
• Small business critical equipment: Good for offices, retail spaces, studios, and light commercial setups where downtime creates real problems.
• Extended runtime projects: Supports external battery packs when the system needs longer backup time than the internal battery alone can provide.

Who Should Buy This?

This UPS is a good choice if you are protecting equipment that needs continuous, clean power and cannot tolerate even a short switchover delay. It makes sense for critical network gear, NVR systems, control systems, AV racks, and small business equipment areas.

It is especially useful when you need online double conversion protection, pure sinewave output, expandable runtime, and OvrC visibility through a compatible WattBox IP power conditioner.

Who Should Not Buy This?

This is probably more UPS than you need if you only want to protect one router, one modem, or a small desktop setup. In those cases, a smaller line-interactive UPS may be simpler and more cost-effective.

This is also not the right choice if you only need surge protection or remote reboot. For surge protection, choose a WattBox surge protector or power conditioner. For outlet control and remote reboot, choose an IP-controlled WattBox power conditioner.

Do not use this UPS for heaters, appliances, laser printers, power tools, or other high-draw devices that do not belong on a critical electronics UPS.

Compatibility Notes

• UPS type: Online double conversion UPS for continuous conditioned backup power.
• Capacity: 2000VA / 2000W class UPS capacity.
• Transfer time: Zero transfer time from AC mode to battery mode.
• Output waveform: Pure sinewave output in battery mode.
• Output voltage support: Supports selectable output voltage options including 100V, 110V, 115V, 120V, 125V, and 127V AC.
• Rack size: 2U rack-mount form factor for standard rack-style installations.
• Management: Supports USB and RS-232 management connections.
• Network management: Optional SNMP support is available for network-based UPS management.
• OvrC compatibility: OvrC monitoring is available when the UPS is used with a compatible WattBox IP power conditioner setup.
• Runtime expansion: Supports up to five compatible extended battery packs for longer runtime planning.
• Best paired with: Compatible WattBox IP power conditioners, AV racks, network switches, routers, NVRs, and critical rack equipment.

Installation Considerations

Before ordering, list every device you want to protect and estimate the total load. UPS sizing is not only about VA rating. The connected wattage, runtime expectation, rack space, cooling, power path, and battery expansion plan all matter.

This model uses online double conversion technology, which is ideal for sensitive or critical systems, but it should still be planned properly. Make sure the UPS has enough ventilation, enough rack depth, and a connected load that stays within the supported rating.

If you plan to use OvrC visibility, connect the UPS through a compatible WattBox IP power conditioner as required by the WattBox setup. This can allow better monitoring of battery health, charge percentage, backup runtime, and supported load-shedding configuration.

Runtime Expectations

Runtime depends on the connected load. The official runtime chart lists estimated internal-battery runtime for the WB-OVRC-OLUPS-2000-1 at about 2 minutes and 26 seconds at 100% load, about 9 minutes and 34 seconds at 50% load, about 19 minutes and 17 seconds at 30% load, and about 68 minutes and 23 seconds at 10% load.

For most critical AV, networking, and security systems, the goal is not always to run everything for hours. The goal is to prevent hard shutdowns, ride through short outages, keep core equipment stable, and allow safer shutdown or load shedding when needed.

Why Online Double Conversion Matters

A basic UPS may need a short moment to transfer from wall power to battery power. For many devices, that is fine. For more sensitive or critical systems, even a brief interruption can cause lockups, resets, or dropped connections.

An online double conversion UPS continuously powers connected equipment through the inverter, which gives the system zero transfer time during an outage and helps isolate connected devices from input power fluctuations.

Why Extended Battery Support Matters

Some systems need more runtime than the internal battery can provide. This model supports up to five compatible extended battery packs, making it a better fit for projects where the router, switch, NVR, or control system needs to stay online longer.

External battery planning should be based on the actual connected load and the runtime goal, not only the number of devices in the rack.

Good Products to Pair With This Online UPS

• UPS Battery Backup to compare other UPS sizes and runtime options.
• WattBox Power Solutions for related WattBox UPS, power conditioners, and surge protection products.
• Smart Power Conditioners if you need OvrC remote reboot and outlet-level power control.
• Power Management Solutions for broader surge protection, UPS backup, and rack power planning.
• Network Switches if this UPS is supporting a wired or PoE network.
• Network Recorders NVRs if this UPS is part of a security camera recording system.
• Rack-Mount Power Strips & PDU for rack power distribution planning.

Need Help Sizing the UPS and Runtime?

If you are not sure whether this 2000VA online UPS is the right fit, send us the list of devices you want to protect, including routers, switches, NVRs, AV gear, control devices, and any planned battery packs. We can help you think through load, runtime, OvrC setup, and whether this model or another WattBox UPS makes more sense.

What is the WattBox WB-OVRC-OLUPS-2000-1 used for?

It is used to provide online double conversion battery backup for critical AV, network, security, control, and small business equipment that needs clean power and zero transfer time.

What is online double conversion?

Online double conversion means the UPS continuously converts incoming AC power to DC and then back to AC through the inverter. This gives connected equipment continuous conditioned power and zero transfer time during an outage.

Why is zero transfer time important?

Zero transfer time helps prevent sensitive equipment from seeing even a brief interruption when power drops. This is useful for routers, switches, NVRs, control systems, AV processors, and business-critical electronics.

Is this a pure sinewave UPS?

Yes. This model provides pure sinewave output in battery mode, which is preferred for sensitive electronics and modern power supplies.

Does this UPS work with OvrC?

Yes, but OvrC visibility is designed around using the UPS with a compatible WattBox IP power conditioner. That setup can provide monitoring details such as battery health, charge percentage, backup runtime, and supported load-shedding options.

Can I add external battery packs?

Yes. This model supports up to five compatible extended battery packs for longer runtime planning.

How long will it run during an outage?

Runtime depends on the connected load. The official chart lists about 2 minutes and 26 seconds at 100% load, about 9 minutes and 34 seconds at 50% load, about 19 minutes and 17 seconds at 30% load, and about 68 minutes and 23 seconds at 10% load.

Is this better than a regular line-interactive UPS?

For critical or sensitive systems, yes. An online double conversion UPS provides continuous inverter-backed power and zero transfer time, making it better suited for equipment that should not experience a switchover delay.

Can I use this with an NVR and camera system?

Yes. This is a strong use case, especially when the NVR, router, switch, and supporting network equipment need cleaner backup power and better uptime planning.

Can I use this for a router and network switch?

Yes. Routers, switches, firewalls, modems, and access points are common devices to protect with an online UPS when network uptime is important.

Does it support USB or RS-232 management?

Yes. This model supports USB and RS-232 management connections. Optional SNMP support is also available for network-based UPS management.

Can I plug appliances, heaters, or laser printers into it?

No. Avoid appliances, heaters, laser printers, power tools, and other high-draw devices. This UPS is intended for critical AV, network, security, control, and electronics equipment.

What should I check before ordering?

Check the connected load, runtime goal, rack space, ventilation, management needs, OvrC setup, and whether you need extended battery packs for longer backup time.
