WattBox WB-600-FP Rack Mountable Modular Faceplate Display

Front-Rack Monitoring and Control for Compatible WattBox Systems

The WattBox WB-600-FP is a modular 1U rack-mount faceplate designed to add front-facing monitoring, charging, and local control to compatible WattBox 600 and 700 Series power conditioners.

It allows the main power conditioner and its outlets to remain mounted at the rear of the rack while placing the voltage display, current display, diagnostic indicators, utility outlet, USB charging ports, and power control where they are easier to see and reach.

Best Use Cases

• AV racks: Adds visible power information and convenient front-panel access to compatible WattBox power systems.
• Network closets: Helps users and service teams check voltage, current draw, grounding, surge protection, and Safe Voltage status.
• Security system racks: Useful when NVRs, switches, routers, and supporting power equipment are installed in one serviceable rack.
• Smart home systems: Provides a cleaner front interface for compatible WattBox-managed control and automation racks.
• Commercial equipment rooms: Helps improve serviceability in offices, studios, conference rooms, retail spaces, and managed equipment installations.
• Rear-mounted power conditioners: Allows the outlet chassis to remain near connected equipment while moving monitoring and control to the front.

Who Should Buy This?

This is a good choice if you already have, or are planning to install, a compatible WattBox 600 or 700 Series power conditioner and want its important status information and local controls available at the front of the rack.

It is especially helpful for professional AV, networking, security, and smart home racks where the power conditioner is mounted at the rear for cleaner cable routing but still needs a visible front-panel interface.

Who Should Not Buy This?

This is not the right product if you need a standalone power conditioner, surge protector, power strip, PDU, or UPS. The WB-600-FP is an accessory display and control faceplate that requires a compatible WattBox power conditioner.

It is also not compatible with WattBox 800 or 820 Series products. Customers using newer WattBox systems should choose the correct faceplate or monitoring option designed for that specific series.

Do not order this product based only on the WattBox brand or outlet count. The exact connected power conditioner model must be confirmed first.

Compatibility Notes

• Product type: Modular rack-mount display and control faceplate accessory.
• Series compatibility: Designed only for compatible WattBox 600 and 700 Series power products.
• Not compatible with: WattBox 800 and 820 Series power conditioners.
• Documented models: The official manual documents use with the WB-600-VCE-10 and WB-600-SVCE-12.
• Rack size: Compact 1U rack-mount design.
• Voltage display: Includes a 3-digit LED voltage display.
• Current display: Includes a 2-digit LED current display.
• Status indicators: Displays Safe Voltage, surge protection, and grounding status from the connected compatible system.
• Power control: Front power button controls the switched outlets on the connected compatible power conditioner.
• USB charging: Includes two front USB charging ports.
• Utility outlet: Includes one front NEMA 5-15 utility outlet for convenient temporary power access.
• Display connection: Uses an RJ45 display communication link to the compatible power conditioner.
• Power connection: Uses an IEC C-14 display power connection.
• Power cord: Includes a 6-foot power cord.
• Line voltage: Designed for 120V, 60Hz electrical systems.
• Dimensions: Approximately 16.85 inches wide, 1.71 inches high, and 2.41 inches deep.
• Certifications: UL 60950-1 and UL 498.

Installation Considerations

Before ordering, confirm the exact WattBox power conditioner model and verify that it includes the required display communication and display power connections. The WB-600-FP is not a universal WattBox accessory.

The package includes the faceplate, a 6-foot power cord, a 6-foot RJ45 display link cable, pre-installed rack ears, and rubber feet. It can be mounted at the front of a rack or placed inside a cabinet when appropriate.

Plan the cable route between the faceplate and the rear-mounted power conditioner before installing the equipment. The display link and power cable must reach without crossing fans, sharp rack edges, or service areas.

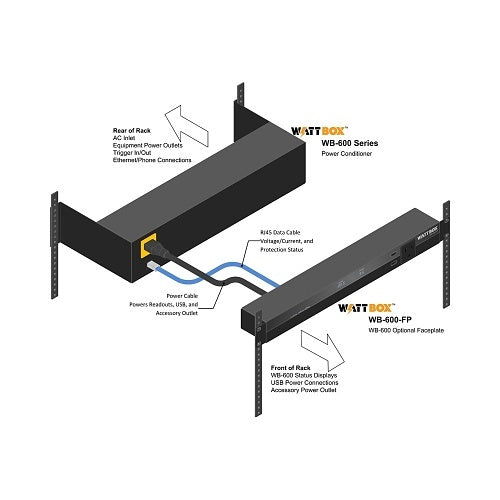

Why the Modular Design Matters

Traditional rack power products often combine the outlets and front display in the same chassis. That forces the display and the outlet locations to occupy the same position in the rack.

The WB-600-FP separates those functions. The compatible power conditioner can remain at the rear near the connected power cords, while the faceplate sits at the front where voltage, current, and diagnostic information are easier to see.

Front Voltage and Current Monitoring

The faceplate displays the incoming AC line voltage and the current draw of equipment connected through the compatible WattBox power conditioner. This gives users and service teams a quick way to review basic rack power conditions without accessing the rear of the cabinet.

The diagnostic indicators also provide visual feedback for Safe Voltage status, active surge protection, and proper grounding.

Utility Outlet and USB Charging

The front utility outlet provides convenient temporary power access for a laptop, service device, camera, game system, or other suitable equipment during installation and troubleshooting.

Two USB charging ports provide a convenient place to charge phones, tablets, and service devices without reaching behind the rack. Because published WattBox sources show different total USB-current specifications, avoid relying on this faceplate for devices with strict high-current charging requirements unless the current rating is confirmed.

When to Choose a Different WattBox Product

Choose a compatible WattBox power conditioner if you need the actual protected outlets, surge protection, filtering, Safe Voltage protection, sequencing, remote reboot, or managed power functionality.

Choose a WattBox UPS if the rack equipment needs battery backup during an outage. For WattBox 800 or 820 Series systems, select the monitoring or faceplate accessory specifically approved for that product family.

Good Products to Pair With This Faceplate

• Smart Power Conditioners for compatible WattBox managed power and remote-control options.
• WattBox Power Solutions for related power conditioners, UPS units, surge protection, and rack accessories.
• Power Management Solutions for complete rack power, protection, and backup planning.
• UPS Battery Backup if connected rack equipment needs to remain powered during outages.
• Rack-Mount Power Strips & PDU for additional rack power distribution options.
• Network Switches if this faceplate is part of a network rack or equipment closet.
• Network Recorders NVRs if the power system supports a security camera rack.

Need Help Confirming Compatibility?

If you are not sure whether the WB-600-FP works with your WattBox power conditioner, send us the exact power conditioner model number before ordering. We can help confirm compatibility and prevent you from purchasing a faceplate that does not connect to your system.

What is the WattBox WB-600-FP used for?

It adds front-facing voltage and current monitoring, diagnostic indicators, USB charging, a utility outlet, and local switched-outlet control to compatible WattBox 600 and 700 Series power conditioners.

Is the WB-600-FP a power conditioner?

No. It is an accessory faceplate and display. It requires a compatible WattBox power conditioner to provide the main power protection and outlet functions.

Is it a UPS battery backup?

No. The WB-600-FP does not provide battery backup or runtime during a power outage.

Does the faceplate provide surge protection?

The faceplate is part of a compatible WattBox power system, but it is not a standalone surge protector. The primary protection comes from the connected compatible power conditioner.

Which WattBox models are compatible?

It is designed only for compatible WattBox 600 and 700 Series products. The official manual specifically documents use with the WB-600-VCE-10 and WB-600-SVCE-12. Confirm the exact model before ordering.

Is it compatible with WattBox 800 or 820 Series products?

No. WattBox specifically states that the WB-600-FP is not compatible with 800 Series products. It should not be used with 800 or 820 Series power conditioners.

What does the display show?

The faceplate provides separate LED displays for incoming AC voltage and the current draw of equipment connected through the compatible power conditioner.

What do the diagnostic lights show?

The diagnostic LEDs provide status information for Safe Voltage, active surge protection, and proper grounding from the connected compatible system.

What does the front power button control?

The front power button controls the switched outlets on the connected compatible WattBox power conditioner.

Does it include USB charging?

Yes. It includes two front USB charging ports for phones, tablets, and service devices. WattBox documents list different total-current values, so confirm the required charging capacity for high-demand devices.

What is the front utility outlet used for?

The front NEMA 5-15 utility outlet provides convenient temporary power access for suitable service devices, laptops, cameras, gaming equipment, or other compatible electronics.

How does it connect to the power conditioner?

It uses an RJ45 display communication cable and a separate display power connection to a compatible WattBox power conditioner.

Can it be rack mounted?

Yes. It has a 1U rack-mount design with pre-installed rack ears. It can also be placed in a cabinet using the included rubber feet.

Does it include the connection cables?

Yes. The package includes a 6-foot display link cable and a 6-foot power cord.

What should I check before ordering?

Check the exact WattBox power conditioner model, required display ports, rack space, cable-routing distance, and whether you need this accessory faceplate or the actual power conditioner itself.
