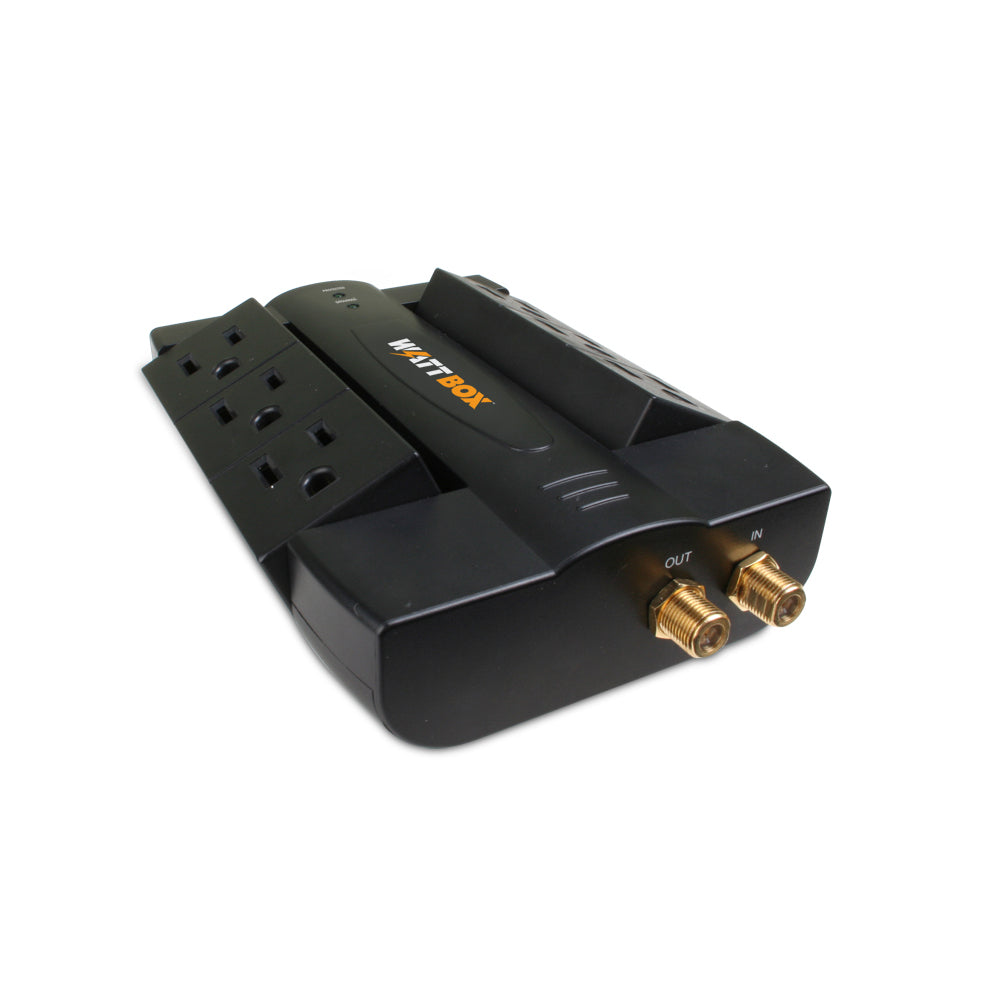

WattBox WB-200-6RWT Coax 6-Outlet Rotating Surge Protector Wall Tap

Compact Surge Protection for TVs and Media Equipment

The WattBox WB-200-6RWT is a 6-outlet rotating wall-tap surge protector designed for TVs, cable boxes, satellite receivers, streamers, game consoles, modems, and small media setups where a traditional floor-style surge strip would add unnecessary clutter.

It plugs directly into a grounded wall outlet and combines AC surge protection, coax protection, noise filtration, and rotating outlet access in a compact design that works well behind furniture, near entertainment centers, or around wall-mounted displays when adequate clearance is available.

Best Use Cases

• Bedroom TVs: Provides protected power for a TV, streamer, cable box, and other small entertainment devices.
• Family-room media setups: Useful for TVs, game consoles, streaming players, soundbars, and cable or satellite equipment.
• Cable and satellite systems: Adds coax-line surge protection while supporting high-bandwidth 3GHz signal connections.
• Behind furniture: Rotating outlets help direct plugs and cables away from the wall or toward the side where needed.
• Wall-mounted displays: A compact option when outlet placement and TV-mount clearance allow enough room for the wall tap and connected plugs.
• Bulky power adapters: Swiveling outlets make it easier to accommodate larger adapters without blocking nearby connections.

Who Should Buy This?

This is a good choice if you need protected power for several TV or media devices but do not want a loose surge strip sitting on the floor, behind a cabinet, or inside a media console.

It is especially useful when the setup includes a cable or satellite coax connection that should also pass through surge protection before reaching the connected equipment.

Who Should Not Buy This?

This is not the right product if you need battery backup. It is a surge protector, not a UPS, and it will not keep connected equipment running during an outage.

It is also not a smart power product. It does not include OvrC monitoring, remote reboot, app control, outlet scheduling, power metering, or individually controlled outlets.

This model does not include Ethernet or telephone-line protection. If your modem, router, or connected system also needs Ethernet-line protection, choose a WattBox product that specifically includes RJ45 protection.

For receivers, amplifiers, large AV racks, NVR systems, network racks, or business-critical equipment, a larger power conditioner or UPS may be a better fit.

Compatibility Notes

• Outlet count: Includes 6 rotating AC outlets.
• Current rating: Rated for up to 15A.
• Input power: Designed for 120V, 60Hz electrical systems.
• Surge rating: Provides 1200 joules of surge protection.
• Peak impulse current: Rated up to 60,000A.
• Noise filtration: Provides 40 dB EMI/RFI filtration from 100kHz to 1MHz.
• Coax protection: Includes 1 coax input and 1 coax output.
• Coax bandwidth: Supports coax signals up to 3GHz.
• Signal loss: Coax protection is rated at less than 1 dB attenuation.
• Satellite support: Supports pass-through voltage for compatible satellite systems.
• Status indicators: Separate indicators show grounded and protected status.
• Secure installation: Can plug directly into the wall outlet or use the supplied screw for a more secure attachment.
• Certifications: UL 498A, UL 1449, and UL 1363.
• Battery backup: Does not provide UPS runtime during an outage.
• Remote control: Does not include OvrC, Wi-Fi control, scheduling, or remote reboot.
• Indoor use: Intended for dry indoor locations with a properly grounded three-wire outlet.

Installation Considerations

Plug the WB-200-6RWT directly into a properly grounded wall outlet. Do not connect it through an extension cord, another surge protector, a non-grounded adapter, or a daisy-chained power strip.

If you are using the coax protection, route the incoming cable or satellite coax line into the surge protector first, then connect the protected coax output to the TV, cable box, satellite receiver, or other compatible equipment.

For wall-mounted TV installations, check the available space between the outlet, wall tap, connected plugs, TV mount, and back of the display. The wall tap is compact, but rotating outlets and large power adapters still require physical clearance.

Why Rotating Outlets Matter

Large power adapters can block neighboring outlets on a standard wall tap. The rotating outlet banks let you change the plug direction, making it easier to connect larger adapters and route cables around furniture, media cabinets, or display mounts.

The outlets can face outward for easier access or rotate closer to the wall for a flatter cable path, depending on the installation.

Why Coax Protection Matters

Protecting the AC plug alone may leave equipment exposed through an incoming cable or satellite coax line. If a surge reaches the system through coax, it can still damage the connected TV, receiver, cable box, or satellite equipment.

The WB-200-6RWT provides coax input and output protection while supporting bandwidth up to 3GHz and satellite pass-through voltage.

Why Noise Filtration Matters

Electrical interference can enter connected equipment through the AC power line. The built-in EMI/RFI filtration helps reduce unwanted line noise for TVs, audio equipment, streamers, cable boxes, and other connected electronics.

This makes the WB-200-6RWT a more complete option than a basic outlet expander that only adds additional receptacles.

When to Choose a Different WattBox Product

Choose a larger WattBox power conditioner if you need more outlets, stronger rack-level protection, Ethernet protection, Safe Voltage protection, or better organization for receivers, amplifiers, and multiple network devices.

Choose a smart WattBox IP power conditioner if you need OvrC monitoring, remote reboot, outlet scheduling, or individually controlled outlets. Choose a UPS if your TV, modem, router, NVR, or other critical equipment needs to stay powered during an outage.

Good Products to Pair With This Surge Protector

• WattBox Power Solutions for related surge protectors, power conditioners, and UPS products.
• Surge Protectors & Smart Power Strips to compare other outlet counts and protection options.
• Power Management Solutions for broader AV, network, and rack power planning.
• Smart Power Conditioners if you need remote reboot, OvrC monitoring, or managed outlets.
• UPS Battery Backup if connected equipment needs to remain powered during outages.
• TV Wall Mounts for clean display installations.
• HDMI Cables for TVs, cable boxes, game consoles, and streaming equipment.
• Media Players for streaming and entertainment setups.

Need Help Choosing the Right Protection?

If you are not sure whether this wall tap is enough, send us the devices you want to connect and let us know whether your setup uses coax, Ethernet, or battery backup. We can help you decide whether you need this compact surge protector, a larger power conditioner, a smart WattBox, or a UPS.

What is the WattBox WB-200-6RWT used for?

It is used to provide compact surge protection for TVs, cable boxes, satellite receivers, streaming devices, game consoles, soundbars, and other small media equipment.

How many outlets does it have?

It includes 6 rotating AC outlets.

Why do the outlets rotate?

The rotating outlets make it easier to connect large plugs and power adapters while helping route cables around furniture, media cabinets, or wall-mounted displays.

What is the surge rating?

The WB-200-6RWT provides 1200 joules of surge protection.

Does it protect coax cables?

Yes. It includes one coax input and one coax output for compatible cable, satellite, TV, and antenna connections.

What coax bandwidth does it support?

The coax connections support bandwidth up to 3GHz with less than 1 dB of signal attenuation.

Does it work with satellite systems?

Yes. The coax protection supports pass-through voltage for compatible satellite systems.

Does it protect Ethernet connections?

No. This model does not include Ethernet or telephone-line protection. Choose a WattBox model with RJ45 protection if those connections also need surge protection.

Does it provide noise filtration?

Yes. It provides 40 dB of EMI/RFI noise filtration from 100kHz to 1MHz.

What do the indicator lights show?

One indicator shows whether the wall outlet is properly grounded, while the other shows whether the surge-protection components are still active.

What happens if the protected indicator turns off?

The outlets may continue supplying power, but the unit may no longer be protecting the connected equipment from surges. Replace the surge protector if the protected indicator is no longer illuminated.

Is this a UPS battery backup?

No. This is a surge protector and wall-tap outlet expander. It will not keep equipment running during a power outage.

Does it include OvrC or remote reboot?

No. This model does not include OvrC monitoring, app control, outlet scheduling, power metering, or remote reboot.

Can it be used behind a wall-mounted TV?

Yes, when there is enough clearance between the wall outlet, surge protector, plugs, mounting hardware, and back of the display. Measure the available space before installation.

Can it be secured to the wall outlet?

Yes. It can plug directly into the wall outlet, and the supplied screw can be used for a more secure installation when the outlet configuration allows it.

Can I connect an extension cord or another power strip?

No. Plug the surge protector directly into a properly grounded wall outlet and avoid extension cords, adapters, or daisy-chained power strips.

Can I use it outdoors?

No. It is intended for dry indoor locations only.

When should I choose a larger power conditioner?

Choose a larger power conditioner when you need additional outlets, rack mounting, Ethernet protection, Safe Voltage protection, remote management, or protection for larger AV and network systems.
