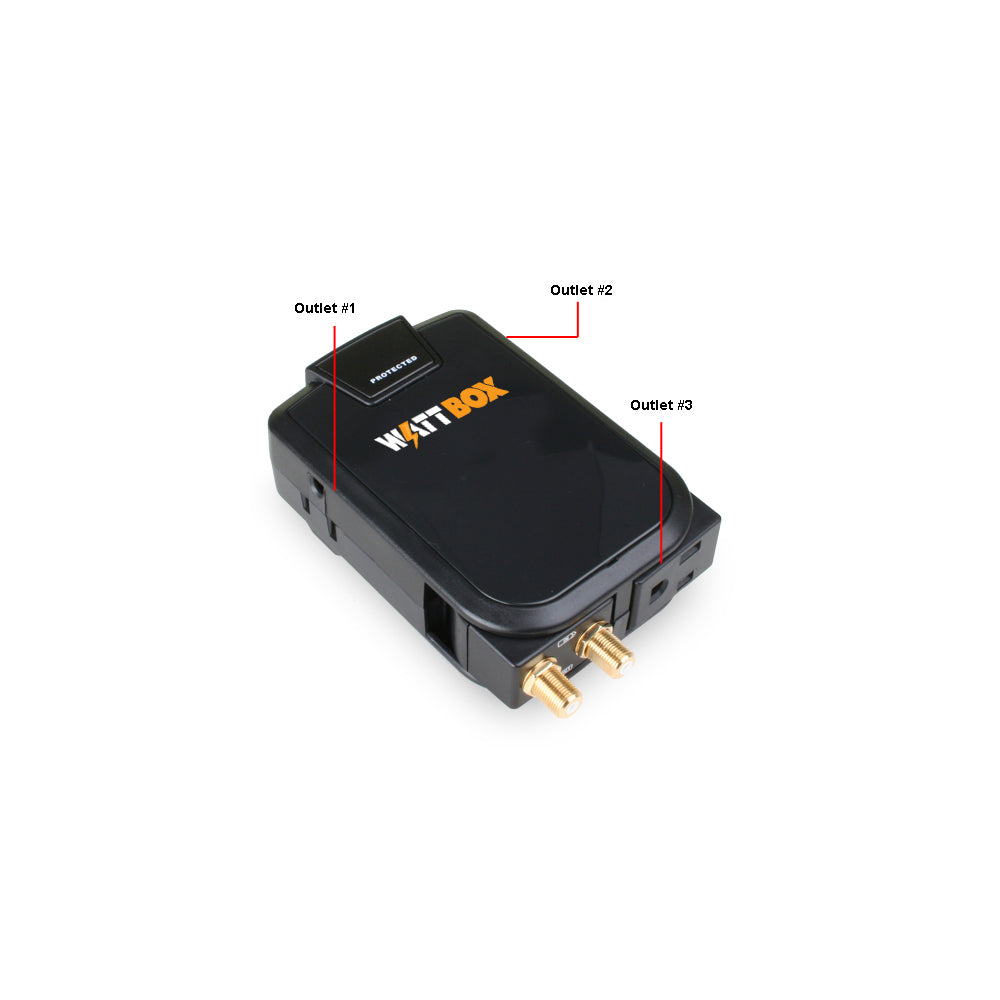

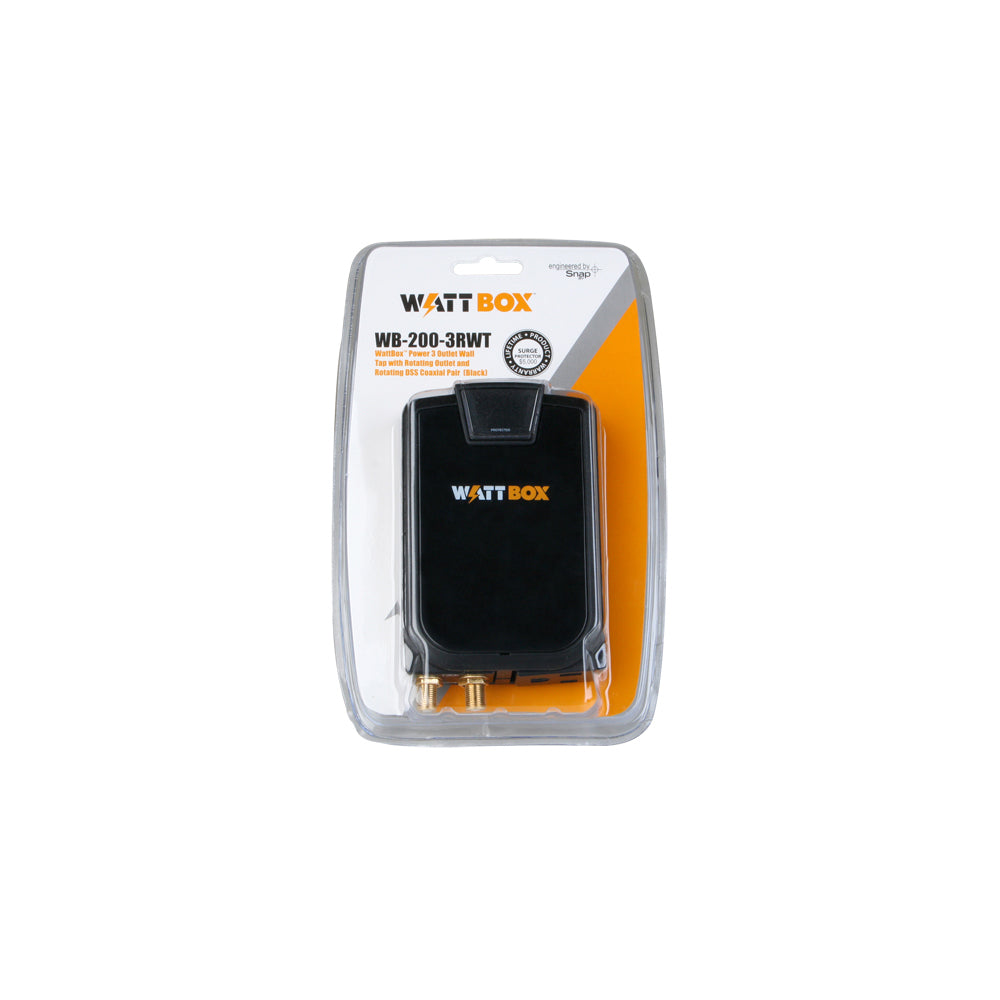

WattBox WB-200-3RWT Coax 3-Outlet Rotating Surge Protector Wall Tap

Compact Protection for TVs and Small Media Setups

The WattBox WB-200-3RWT is a compact 3-outlet rotating wall-tap surge protector designed for TVs, cable boxes, satellite receivers, streaming devices, powered speakers, and small media setups where a traditional power strip would add unnecessary clutter.

It plugs directly into a grounded wall outlet and combines AC surge protection, coax protection, noise filtration, and flexible plug positioning in a slim design that works well behind furniture, media consoles, and wall-mounted displays when adequate clearance is available.

Best Use Cases

• Wall-mounted TVs: Provides compact protected power without leaving a loose surge strip behind the display.
• Bedroom and guest-room TVs: A practical fit for a TV, streaming player, and cable or satellite receiver.
• Small media consoles: Useful for streamers, powered speakers, game systems, and other compact AV equipment.
• Cable and satellite systems: Adds coax-line surge protection with high-bandwidth signal support.
• Tight spaces: The rotating design helps direct plugs and cables around furniture, TV mounts, and cabinets.
• Bulky power adapters: Two spaced outlets help accommodate larger wall-wart adapters without blocking every connection.

Who Should Buy This?

This is a good choice if you need protected power for up to three TV or media devices and want a cleaner direct-to-wall installation than a standard surge strip.

It is especially useful when the system includes a cable or satellite coax connection that should also pass through surge protection before reaching the connected equipment.

Who Should Not Buy This?

This is not the right product if you need battery backup. It is a surge protector, not a UPS, and it will not keep connected equipment running during an outage.

It is also not a smart power product. It does not include OvrC monitoring, app control, outlet scheduling, remote reboot, individual outlet control, or power metering.

This model does not include Ethernet or telephone-line protection. Choose a WattBox model with RJ45 protection if those connections also need surge protection.

For receivers, amplifiers, AV racks, NVR systems, network racks, or larger equipment setups, a multi-outlet power conditioner or properly sized UPS will usually be a better choice.

Compatibility Notes

• Outlet count: Includes 3 AC outlets.
• Outlet design: Rotating design supports side-facing or downward-facing plug positioning.
• Adapter spacing: Two outlets are spaced to make room for larger power adapters.
• Current rating: Rated for up to 15A.
• Input power: Designed for 120V AC, 60Hz electrical systems.
• Surge rating: Provides 1080 joules of surge protection.
• Peak impulse current: Rated up to 72,000A.
• Surge components: Uses ceramic-encased Fireproof MOVs.
• Noise filtration: Provides 70 dB EMI/RFI filtration from 150kHz to 100MHz.
• Coax protection: Includes 1 coax input and 1 protected coax output.
• Coax bandwidth: Supports coax signals up to 2.2GHz.
• Signal attenuation: Less than 1 dB through the protected coax connection.
• Satellite support: Supports pass-through voltage for compatible satellite systems.
• Depth: Approximately 1.5 inches deep for tight-space installations.
• Secure mounting: Can be secured to a compatible wall outlet using the supplied screw.
• Certifications: UL 498, UL 498A, and UL 1449.
• Battery backup: Does not provide UPS runtime during an outage.
• Remote control: Does not include OvrC, Wi-Fi control, scheduling, or remote reboot.
• Indoor use: Intended for dry indoor locations with a properly grounded outlet.

Installation Considerations

Plug the WB-200-3RWT directly into a properly grounded wall outlet. Do not connect it through an extension cord, another surge protector, a non-grounded adapter, or a daisy-chained power strip.

If you are using coax protection, route the incoming cable or satellite coax line into the surge protector first. Connect the protected coax output to the TV, cable box, satellite receiver, or other compatible equipment.

For wall-mounted TV installations, confirm the available space between the wall outlet, wall tap, connected plugs, TV mount, and back of the display. The unit is slim, but larger power adapters and rotating plugs still require physical clearance.

Why the Rotating Design Matters

Direct-to-wall surge protectors can become difficult to use when furniture, TV brackets, or large adapters block the outlet area. The rotating design lets the connections face outward, sideways, or downward to better match the available space.

This can make cable routing cleaner and reduce pressure on plugs behind articulating TV mounts, entertainment centers, and dressers.

Why Coax Protection Matters

Protecting only the AC plug may leave the connected equipment exposed through an incoming cable or satellite coax line. Surge energy entering through coax can still reach a TV, receiver, cable box, or satellite device.

The WB-200-3RWT provides protected coax input and output while supporting signals up to 2.2GHz, less than 1 dB attenuation, and pass-through voltage for compatible satellite systems.

Why Noise Filtration Matters

AV equipment can be affected by electrical interference created by appliances and other electronics connected to the same electrical system.

The WB-200-3RWT includes 70 dB EMI/RFI filtration to help reduce unwanted line noise. This makes it a more complete protection option than a basic outlet expander that only adds receptacles.

When to Choose a Different WattBox Product

Choose the 6-outlet rotating wall tap if three outlets are not enough for the TV, streamer, soundbar, game console, and cable equipment in your setup.

Choose a larger WattBox power conditioner if you need more outlets, Ethernet protection, rack mounting, Safe Voltage protection, or broader AV-system protection.

Choose a smart WattBox IP power conditioner if you need OvrC monitoring, remote reboot, outlet scheduling, or managed outlets. Choose a UPS if critical equipment needs to remain powered during outages.

Good Products to Pair With This Surge Protector

• WattBox Power Solutions for related surge protectors, power conditioners, and UPS products.
• Surge Protectors & Smart Power Strips to compare other outlet counts and protection options.
• Power Management Solutions for broader AV, network, and rack power planning.
• Smart Power Conditioners if you need remote reboot, OvrC monitoring, or managed outlets.
• UPS Battery Backup if connected equipment needs to remain powered during outages.
• TV Wall Mounts for clean display installations.
• HDMI Cables for TVs, cable boxes, game consoles, and streaming equipment.
• Media Players for compact entertainment setups.

Need Help Choosing the Right Protection?

If you are not sure whether three outlets are enough, send us the devices you want to connect and let us know whether your setup uses coax, Ethernet, or battery backup. We can help you decide whether this compact wall tap, a 6-outlet version, a larger power conditioner, or a UPS is the better fit.

What is the WattBox WB-200-3RWT used for?

It provides compact surge protection for TVs, cable boxes, satellite receivers, streaming devices, powered speakers, and small media setups.

How many outlets does it have?

It includes 3 AC outlets.

Why does the wall tap rotate?

The rotating design lets the outlets and coax connections face outward, sideways, or downward, helping with plug access and cable routing in tight spaces.

Can it fit large power adapters?

Two outlets are spaced apart to help accommodate larger power adapters without blocking every connection.

What is the surge rating?

The WB-200-3RWT provides 1080 joules of surge protection.

Does it use Fireproof MOVs?

Yes. It uses ceramic-encased Fireproof MOVs to help contain heat generated during extreme surge conditions.

Does it protect coax cables?

Yes. It includes one coax input and one protected coax output for compatible cable, satellite, television, and antenna connections.

What coax bandwidth does it support?

The protected coax connection supports bandwidth up to 2.2GHz with less than 1 dB of signal attenuation.

Does it work with satellite systems?

Yes. The coax protection supports pass-through voltage for compatible satellite systems.

Does it protect Ethernet connections?

No. This model does not include Ethernet or telephone-line protection. Choose a WattBox model with RJ45 protection if those connections also need protection.

Does it provide noise filtration?

Yes. It provides 70 dB EMI/RFI filtration from 150kHz to 100MHz to help reduce unwanted AC-line interference.

Is this a UPS battery backup?

No. This is a surge protector and wall-tap outlet expander. It will not keep equipment running during a power outage.

Does it include OvrC or remote reboot?

No. This model does not include OvrC monitoring, app control, outlet scheduling, power metering, or remote reboot.

Can it be used behind a wall-mounted TV?

Yes, when there is enough clearance between the wall outlet, wall tap, connected plugs, TV mount, and back of the display. Measure the available space before installation.

How deep is the wall tap?

The unit is approximately 1.5 inches deep, making it suitable for many tight-space and behind-TV installations.

Can it be secured to the wall outlet?

Yes. It can plug directly into the wall outlet, and the supplied screw can be used for a more secure attachment when the outlet configuration allows it.

Can I connect an extension cord or another power strip?

No. Plug it directly into a properly grounded wall outlet and avoid extension cords, adapters, and daisy-chained power strips.

Can I use it outdoors?

No. It is intended for dry indoor locations only.

When should I choose the 6-outlet version?

Choose the 6-outlet wall tap when your setup includes more than three powered devices, such as a TV, streamer, soundbar, game console, cable box, and satellite receiver.
