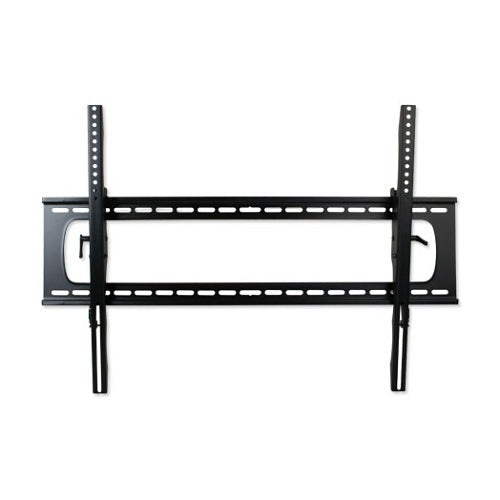

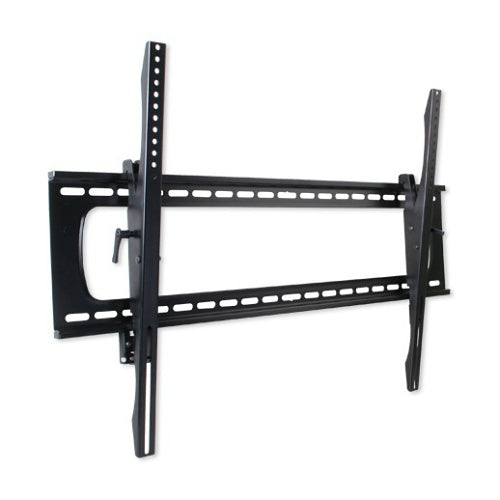

Strong SM-T-XL Heavy-Duty Tilt TV Mount 47–90 Inch

Heavy-Duty Tilt Support for Large TVs

The Strong SM-T-XL is a heavy-duty tilt wall mount for 47–90" TVs weighing up to 250 lb. Its low-profile 2.63" design keeps large displays close to the wall while providing forward and backward tilt, post-install leveling, and lockable mounting arms.

It is a strong choice for living rooms, media rooms, home theaters, offices, conference rooms, and other spaces where a large TV needs secure wall mounting with tilt adjustment but does not need swivel or extension.

Key Specifications

• TV size: 47–90"
• Maximum load: 250 lb (113.6 kg)
• Mount type: Tilt
• Tilt: 9° forward / 9° back per Strong's current product specifications
• Horizontal leveling: Approximately ±5° micro-adjustment
• Mounting depth: Approximately 2.63"
• VESA compatibility: Specific patterns through 1000 × 700 mm
• Construction: 3 mm steel
• Finish: Black powder coat
• Mount weight: Approximately 16.2 lb
• Warranty: Limited Lifetime Warranty

Who Should Choose the SM-T-XL?

Choose this mount when you have a large or heavy compatible TV and want tilt adjustment without the extra depth and moving arms of a full-motion mount. It is especially useful when the TV is mounted somewhat above eye level or where glare reduction is important.

If your TV needs to turn toward different seating positions or pull away from the wall, choose a full-motion mount instead. If no angle adjustment is needed, a fixed mount may provide a simpler option. You can compare alternatives in our TV Wall Mounts collection or browse more Strong mounting solutions.

TV and VESA Compatibility

Screen size alone does not confirm compatibility. Your TV must weigh no more than 250 lb and use one of the mounting patterns Strong lists for the SM-T-XL.

Strong currently lists 200 × 300, 300 × 200, 300 × 300, 400 × 200, 400 × 300, 400 × 400, 500 × 400, 500 × 500, 600 × 400, 600 × 500, 600 × 600, 700 × 500, 700 × 600, 700 × 700, 800 × 500, 800 × 600, 800 × 700, 900 × 700, and 1000 × 700 mm.

Confirm your TV's exact VESA pattern before ordering. Strong also notes that the supplied XL mounting hardware includes bolts only through M8. Some larger TVs may require M10 mounting bolts, which are not included and must be matched to the TV manufacturer's requirements.

Tilt and Post-Install Leveling

Strong's current product specifications list 9° forward and 9° backward tilt for the SM-T-XL. Ratcheting adjustment levers on the mounting arms are used to set and secure the viewing angle.

Adjustment screws at the top of each arm provide approximately ±5° of horizontal micro-adjustment so the TV can be fine-tuned after installation.

This leveling feature is intended for small alignment corrections, not general vertical repositioning of the entire display.

Low-Profile 3 mm Steel Construction

The XL model uses 3 mm powder-coated steel and sits approximately 2.63" from the wall. This gives a relatively shallow installation while maintaining the 250 lb rated load capacity.

Because the TV remains close to the wall, check power plugs, HDMI connectors, adapters, cable bend radius, and rear ventilation clearance before installation.

LokTight Locking Tabs

Built-in rotating locking tabs secure the TV arms to the wall plate after installation. A compatible locking device may also be added where additional access control is desired.

A padlock is not included.

Installation and Wall Requirements

The mounting surface must safely support the mount, TV, and all attached hardware. Strong's manual recommends using all six lag bolts across three wood studs for this XL wall plate.

For concrete installations, Strong specifies a minimum concrete density of 2000 psi. For concrete block, there must be at least 1-3/8" of usable concrete thickness for the supplied anchors, and anchors must not be installed into mortar joints.

Do not rely on drywall alone as the structural mounting surface. Strong also recommends installation by a qualified professional for this model because of the size and possible weight of the display.

What's Included?

• 1 wall plate
• 1 left tilt mounting arm
• 1 right tilt mounting arm
• M4, M5, M6, and M8 TV mounting bolts in multiple lengths
• TV washers and nylon spacers
• 6 M8 × 63 lag bolts
• 6 lag-bolt washers
• 6 concrete anchors
• 1 Allen key

The TV, AV cables, padlock, M10 TV bolts if required, in-wall wiring, and any installation-specific hardware not supplied with the mount are sold separately.

When to Choose Another Mount

Choose another model if your TV weighs more than 250 lb, falls outside the 47–90" range, uses a VESA pattern outside the supported list, requires unsupported mounting hardware, or needs side-to-side swivel or extension away from the wall.

Complete Your TV Setup

• Compare TV Wall Mounts
• Shop Soundbars
• Power Management Solutions

Need Help Confirming Compatibility?

Send Bear Security Shop your exact TV model number and tell us what type of wall you are mounting it to. We can help confirm TV weight, VESA compatibility, required mounting-bolt size, and whether the SM-T-XL is the right fit.

Is the Strong SM-T-XL sold individually?

Yes. One SM-T-XL is a complete tilt wall mount for one compatible TV. It includes the wall plate, left and right tilt arms, and mounting hardware.

What TV sizes does the SM-T-XL support?

Strong specifies 47–90" displays weighing no more than 250 lb. Your TV must also use one of the supported VESA mounting patterns.

What is the maximum TV weight?

The maximum rated display weight is 250 lb. Do not exceed this limit even if the screen size and mounting pattern otherwise fit.

How much does the SM-T-XL tilt?

Strong's current product specifications list 9° forward and 9° backward tilt. An older installation manual lists -8°/+13°, so Bear uses the current manufacturer specification.

Can the TV be leveled after installation?

Yes. Strong provides approximately ±5° of horizontal micro-adjustment using screws at the top of the mounting arms.

How close does the TV sit to the wall?

Strong's current specification lists a 2.63" profile. Rear clearance also depends on the TV cabinet, connectors, plugs, and cables.

What VESA patterns are supported?

The SM-T-XL supports specific patterns from 200 × 300 mm through 1000 × 700 mm. Confirm your TV's exact mounting pattern against Strong's supported list before ordering.

Are all TV mounting bolts included?

The supplied hardware includes M4, M5, M6, and M8 bolts in several lengths. Strong notes that some larger TVs may require M10 mounting bolts, which are not included.

Does this mount swivel or extend?

No. The SM-T-XL is a tilt mount. It does not provide side-to-side swivel or extension away from the wall.

Can it be mounted directly to drywall?

No. Drywall alone is not the structural mounting surface. The mount must be securely attached to suitable wood framing, concrete, or another supporting structure rated for the complete load.

Can the mount be locked?

Yes. Built-in LokTight rotating tabs lock the mounting arms to the wall plate. A compatible padlock or locking device may be added, but a padlock is not included.

Is this an outdoor TV mount?

The official manufacturer documentation reviewed does not specify an outdoor weather rating for the SM-T-XL. It should not be treated as an outdoor-rated mount.

How much does the mount weigh?

Strong's current specification lists the SM-T-XL at approximately 16.2 lb.

What should I confirm before ordering?

Confirm your TV model, 47–90" screen size, weight of 250 lb or less, exact VESA pattern, mounting-bolt size, wall structure, rear-port clearance, and whether tilt-only adjustment is enough for your setup.
