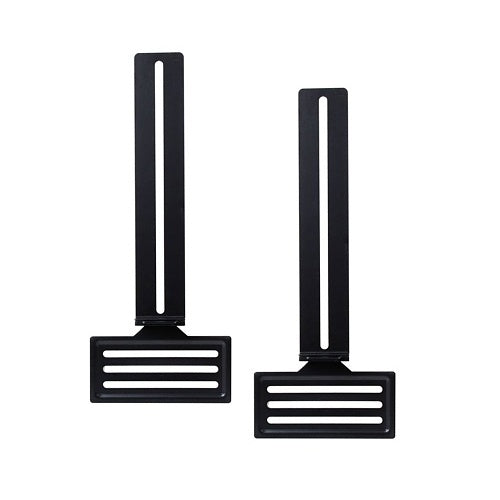

Strong SM-SBAR2-BKT-UNIV Universal TV Soundbar Mount Bracket

Keep Your Soundbar Aligned With the TV

The Strong SM-SBAR2-BKT-UNIV is a universal soundbar mounting bracket designed to attach between a compatible TV and its TV wall mount, allowing the soundbar to sit above or below the screen and move with the display when used with an articulating mount.

It is a useful choice for living rooms, media rooms, home theaters, covered or exposed outdoor entertainment areas, offices, and other TV setups where you want the soundbar visually aligned with the screen instead of mounted separately to the wall or placed on furniture.

Key Specifications

• Mount type: TV-attached universal soundbar bracket
• Soundbar position: Above or below the TV
• Vertical adjustment: Up to 13"
• Horizontal adjustment: Up to 5.5"
• Depth adjustment: Up to 1"
• Construction: 14-gauge steel and extruded aluminum
• Finish: Black satin, weather-resistant coating
• Product weight: 3.25 lb
• Use: Indoor or outdoor
• Warranty: Limited Lifetime Warranty

Who Should Choose This Bracket?

Choose the SM-SBAR2-BKT-UNIV if you want the soundbar attached to the TV rather than mounted independently to the wall. This is particularly useful with a full-motion TV mount because the soundbar can remain centered with the screen as the TV moves.

It can also be used with fixed or tilt TV mounts, or when the soundbar needs to sit above the television instead of below it.

Soundbar Compatibility

Strong designed this bracket to work with Episode soundbars, while also supporting many soundbars from other manufacturers. The adjustable tray provides up to approximately 5.5" of horizontal mounting-hole adjustment.

Strong specifically mentions compatibility with popular soundbar brands including Episode, SunBrite, and Sonos. Compatibility still depends on the exact mounting-hole arrangement, cabinet dimensions, and mounting hardware of the soundbar.

Important: When mounting a Sonos Playbar, Strong states that the Sonos wall mount kit must also be used.

Three-Axis Position Adjustment

The bracket allows the soundbar to be adjusted vertically, horizontally, and front-to-back so it can be aligned more closely with the edges and face of the TV.

• Vertical: Up to 13" of adjustment
• Horizontal: Up to 5.5"
• Depth: Up to 1"

The sliding tray brackets and adjustable hook brackets allow the final soundbar position to be fine-tuned after the basic bracket position has been established.

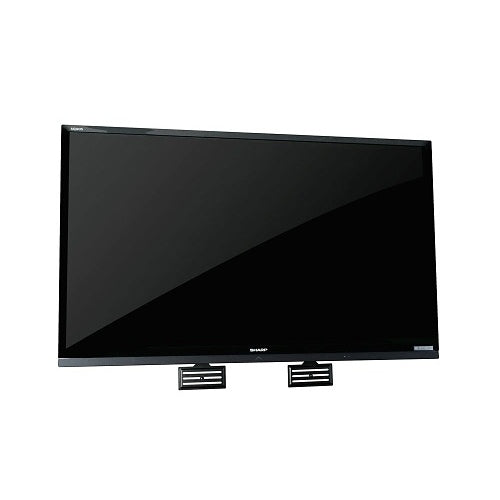

Above or Below the TV

The bracket can place the soundbar below the TV, which is common for wall-mounted displays, or above the TV when the room layout, furniture, display height, or soundbar design makes that arrangement more practical.

Before installation, check that the soundbar will not cover the TV screen, IR receiver, ambient-light sensor, buttons, ventilation areas, or other functional components.

Works With Moving TV Mounts

Because the bracket attaches with the TV rather than directly to the wall, the soundbar can move with the display when used with a compatible full-motion TV mount. This helps keep the speaker centered with the viewing direction as the TV swivels.

You can compare compatible mounting options in our TV Wall Mounts collection.

Indoor and Outdoor Use

Strong describes the SM-SBAR2-BKT-UNIV as an indoor/outdoor bracket and uses a weatherproof coating intended to resist rust and environmental exposure.

The bracket's outdoor capability does not make the attached TV, soundbar, connectors, or cabling weather rated. Every component in an outdoor system must be independently suitable for the intended environment.

Installation and Mounting

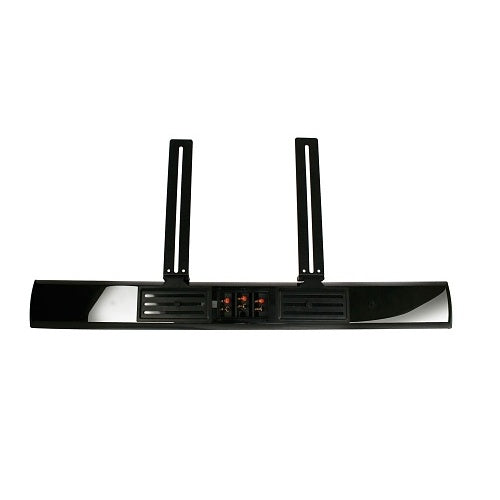

The hook brackets install behind the TV, between the display and its wall-mount hardware. The soundbar tray brackets then slide into the hook brackets so the soundbar height and depth can be adjusted.

Because TV mounting hardware, VESA layouts, TV cabinet shapes, and soundbar mounting points vary, confirm that the complete TV, wall mount, and soundbar combination can be assembled without obstructing mounting screws, connectors, ventilation, or cables.

What's Included?

• Soundbar mounting bracket assembly
• 2 adjustable hook brackets
• 2 sliding soundbar tray brackets
• Adjustable trim piece
• Bracket adjustment hardware

The TV, TV wall mount, soundbar, TV mounting hardware required by the specific display, and any soundbar-specific mounting hardware not supplied with the bracket are sold separately.

For Episode soundbars, Strong's current installation guide instructs the installer to secure the soundbar using the screws supplied with the Episode soundbar. Third-party soundbars may require different or additional hardware.

Important Weight Note

Strong's current official product specifications and installation guide reviewed for this model do not publish a maximum soundbar weight rating. Do not assume a load capacity based on another soundbar bracket. Confirm compatibility for unusually heavy soundbars before ordering.

Complete Your TV and Audio Setup

• Shop Soundbars
• TV Wall Mounts
• Power Management Solutions

Need Help Confirming Compatibility?

Send Bear Security Shop your exact TV model, soundbar model, TV mount model, and whether you want the soundbar above or below the screen. We can help you check mounting-hole compatibility, clearance, and the best mounting arrangement before you order.

Is the Strong SM-SBAR2-BKT-UNIV sold individually?

Yes. One SM-SBAR2-BKT-UNIV includes the bracket components needed to mount one compatible soundbar with a TV. The TV, soundbar, and TV wall mount are sold separately.

Can the soundbar mount above or below the TV?

Yes. Strong specifically supports both above-TV and below-TV installation.

Will the soundbar move with a full-motion TV?

Yes. Because the bracket mounts with the TV, the soundbar can remain aligned with the screen as a compatible full-motion TV mount swivels or changes position.

How much adjustment does the bracket provide?

Strong specifies up to 13" of vertical adjustment, 5.5" of horizontal adjustment, and 1" of front-to-back depth adjustment.

Will it fit any soundbar?

Strong describes it as universal and designed it to work with Episode soundbars as well as models from other manufacturers. Exact compatibility still depends on the soundbar's mounting-hole spacing, cabinet design, dimensions, and required hardware.

Does it work with Sonos soundbars?

Strong specifically mentions Sonos compatibility. For the Sonos Playbar, Strong states that the Sonos wall mount kit must also be used.

Does the bracket include a soundbar?

No. This product is the mounting bracket only. The soundbar, TV, and TV wall mount are separate products.

Does this replace the TV wall mount?

No. The SM-SBAR2-BKT-UNIV works with a compatible TV mounting setup. It is not itself a TV wall mount.

What is the maximum soundbar weight?

The current official Strong product specifications and installation guide reviewed do not publish a maximum soundbar weight rating for this model. Confirm compatibility before using it with an unusually heavy soundbar.

Can it be used outdoors?

Yes. Strong describes the bracket as suitable for indoor and outdoor use and applies a weatherproof coating. The TV, soundbar, cables, and other components must each have their own appropriate outdoor rating.

Is the bracket waterproof?

Strong describes the finish as weatherproof and suitable for permanent outdoor soundbar installations. That does not mean the complete TV and audio system is waterproof, and it does not provide an IP rating for the bracket in the current specifications reviewed.

What is the bracket made from?

Strong specifies 14-gauge steel and extruded aluminum construction with a black satin finish.

How much does the bracket weigh?

Strong's current specification lists a product weight of 3.25 lb.

What should I confirm before ordering?

Confirm your TV model, soundbar model, TV wall mount, soundbar mounting-hole spacing, desired above-or-below placement, cable clearance, and whether any soundbar-specific mounting kit is required.
