Strong SM-PROJ-XL Fine Adjust Universal Projector Ceiling Mount

Precise Ceiling Mounting for Larger Projectors

The Strong SM-PROJ-XL is a universal fine-adjust projector ceiling mount designed for projectors weighing up to 50 lb. Its longer mounting arms accommodate larger projector chassis, while independent fine-adjust controls make it easier to correct tilt, roll, and rotational alignment after the projector is mounted.

It is a strong choice for home theaters, media rooms, offices, conference rooms, classrooms, and other spaces where projector positioning needs to be accurate and stable.

Key Specifications

• Maximum projector weight: 50 lb (22.7 kg)
• Minimum mounting pattern: Approximately 50 × 50 mm
• Maximum mounting pattern: Approximately 450 × 450 mm
• Tilt adjustment: ±5°
• Roll adjustment: ±5°
• Rotational/yaw adjustment: ±5°
• Distance from ceiling: Approximately 5.2"
• Accessory interface: 1.5" NPT
• Product weight: 5.5 lb per current manufacturer specification
• Construction: Steel and plastic

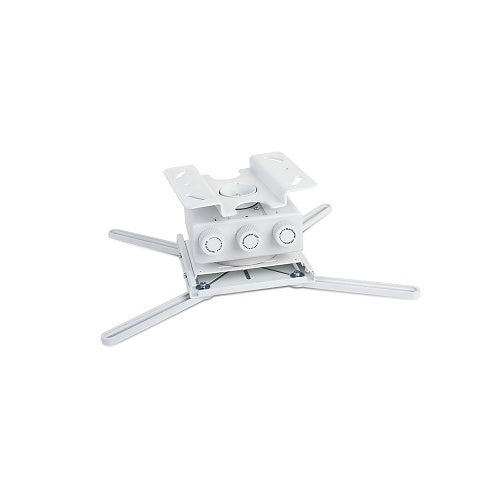

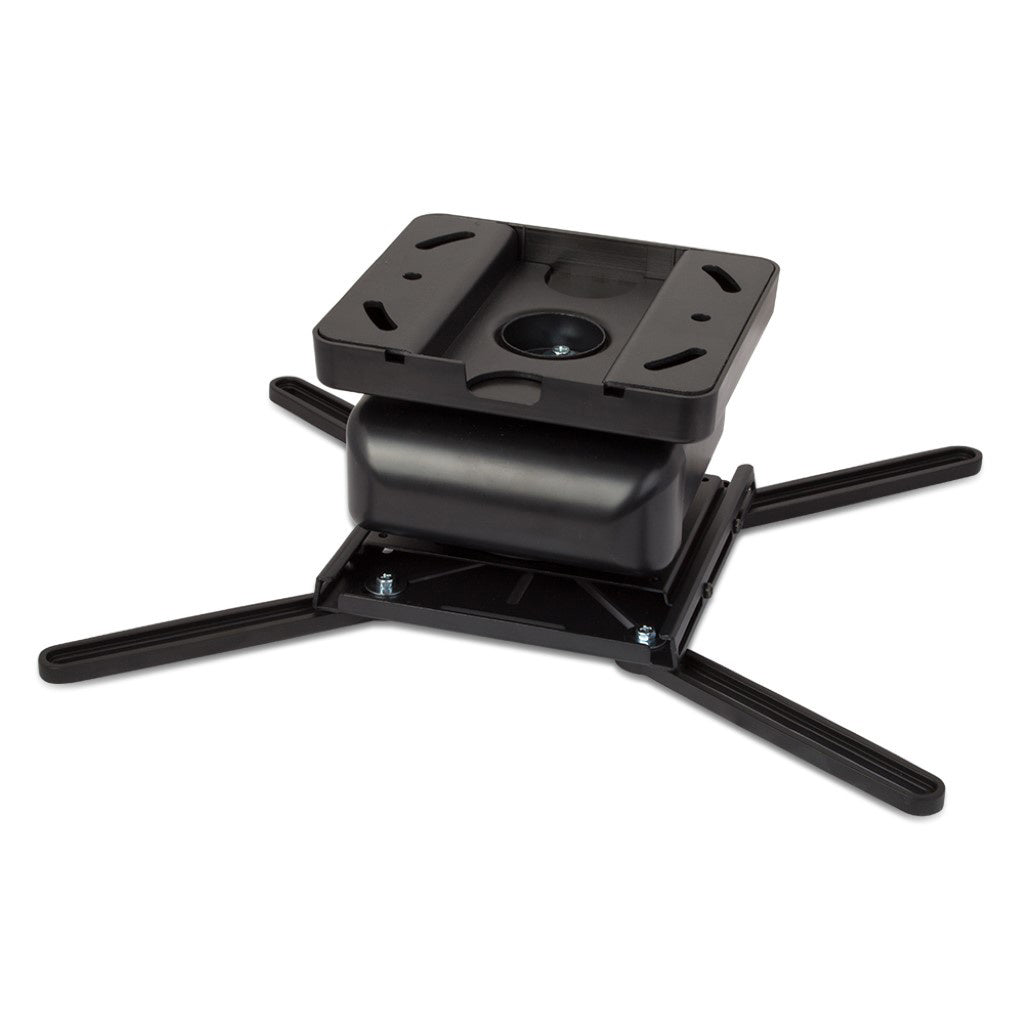

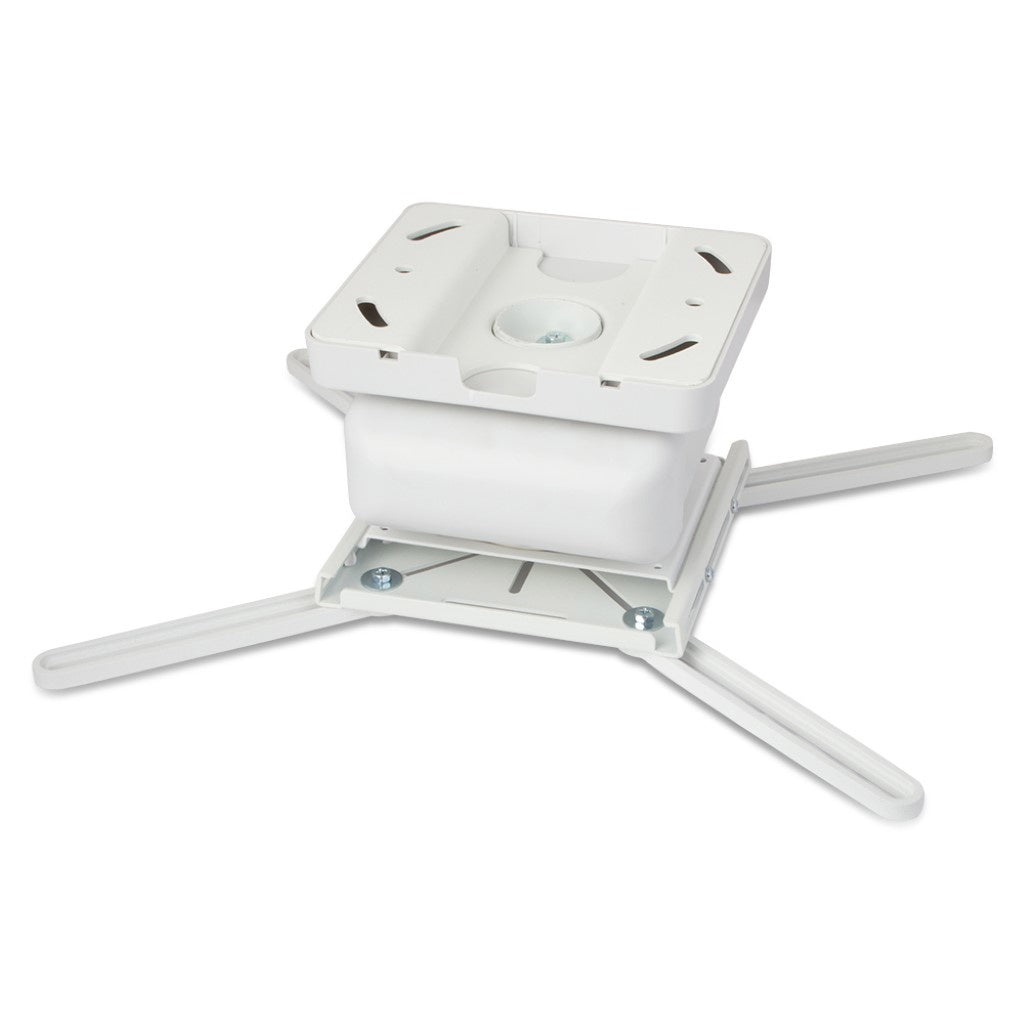

• Colors: Black or White
• Certification: UL
• Warranty: Limited Lifetime Warranty

Who Should Choose the SM-PROJ-XL?

Choose this mount if you have a larger projector weighing no more than 50 lb and need precise alignment after installation. The SM-PROJ-XL is particularly useful when small changes in pitch, roll, or rotation can affect how accurately the projected image lines up with the screen.

It is also a good option for larger projector bodies with wider mounting-hole spacing, including many home-theater projectors. Always confirm the exact mounting-hole pattern of your projector before ordering.

Projector Compatibility

The SM-PROJ-XL uses four adjustable mounting arms rather than a television-style VESA plate. Strong specifies a minimum mounting pattern of approximately 50 × 50 mm and a maximum of approximately 450 × 450 mm.

Projector mounting layouts vary considerably, so weight and overall mounting-pattern dimensions should both be checked. The arm slots allow flexible positioning, but compatibility should not be assumed solely because the projector falls below the 50 lb weight limit.

Tool-Less Fine Adjustment

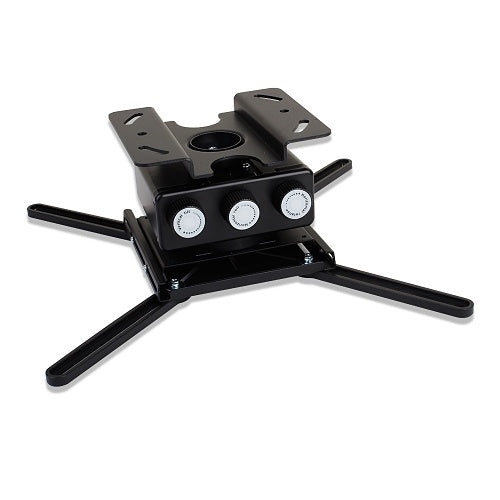

Three adjustment controls provide up to ±5° of tilt, roll, and rotational correction. These controls are intended for final image alignment after the projector has been mounted and roughly positioned.

If more than ±5° of correction is required, the mount position, ceiling attachment, extension arrangement, or projector position must be adjusted rather than relying on the fine-adjust controls alone.

Center-of-Gravity Adjustment

The mounting base can be repositioned relative to the projector arms so the projector's center of balance can be properly aligned. This helps reduce unwanted loading on the adjustment mechanism and improves stability once the projector is secured.

Ceiling Height and Extension Options

For direct mounting, the current manufacturer specification places the projector mount approximately 5.2" from the ceiling. The SM-PROJ-XL also uses standard 1.5" NPT threading, allowing it to work with compatible Strong extension poles and ceiling accessories when additional drop is required.

Strong currently lists compatible accessory categories including fixed or adjustable extension poles, cathedral-ceiling adapters, and suspended-ceiling accessories. A compatible Strong coupler is required for certain accessory combinations and is not included.

Compatible Strong Accessories

• Couplers: SM-CEILING-FFC or SM-CEILING-O
• Extension poles: SM-FIXPOLE or SM-ADJPOLE-U
• Cathedral ceiling adapter: SM-CEILING-C
• Suspended ceiling accessories: SM-CEILING-CT and SM-CEILING-S

Accessory availability and compatibility can change, so confirm the exact accessory combination before ordering an extension or specialty ceiling adapter.

Ceiling and Structural Requirements

The mount must attach to a ceiling structure capable of safely supporting the combined weight of the projector, mount, accessories, and attached hardware. Strong's manual provides installation methods for suitable wood-joist and concrete ceilings.

The manufacturer specifically states that the mount must not be attached to metal studs. For concrete installations, Strong specifies concrete with a minimum density of 2000 psi and at least 1-3/8" usable concrete thickness for the supplied anchors.

Do not assume standard drywall alone is an adequate structural attachment point. Confirm the ceiling structure and appropriate fastening method before installation.

Security Hardware

The mount includes security screws for attaching the projector to the mounting arms and securing the mounting assembly. This can help reduce accidental loosening and provides an additional level of tamper resistance in shared spaces.

What's Included?

• 1 ceiling plate
• 1 projector mount assembly
• 1 mounting base
• 4 adjustable projector mounting arms
• M3, M4, M5, and M6 security screws in multiple lengths
• Projector washers and spacers
• 4 M6 × 55 lag screws
• 4 concrete anchors
• Security Allen wrenches and standard Allen wrench
• Installation manual
• Mounting accessory guide

The projector, extension poles, specialty ceiling adapters, couplers, AV cables, power wiring, and other installation-specific accessories are sold separately unless specifically stated otherwise.

Dimensions and Weight

The current Strong specification lists approximately 5.2" distance from the ceiling and a product weight of 5.5 lb. The official installation manual specifies a maximum mounting footprint of approximately 17.71" × 17.71" when the mounting arms are fully extended.

When to Choose Another Mount

Choose another model if your projector weighs more than 50 lb, its mounting-hole pattern exceeds approximately 450 × 450 mm, or the ceiling structure cannot safely support the complete installation. A different Strong or projector-specific mount may also be a better choice when the mounting-hole layout falls outside the adjustable arm range.

Complete Your Projector Setup

• Projector Mounts
• Power Management Solutions
• AV Receivers & Surround Sound

Need Help Confirming Compatibility?

Send Bear Security Shop your exact projector model, projector weight, ceiling type, ceiling height, and desired projector drop. We can help you confirm the mounting pattern and determine whether an extension pole, coupler, or specialty ceiling adapter is required.

Is the Strong SM-PROJ-XL sold individually?

Yes. One SM-PROJ-XL is a complete universal projector mount for one compatible projector. It includes the ceiling plate, projector mount assembly, mounting base, four adjustable arms, security hardware, and ceiling mounting hardware.

What is the maximum projector weight?

The SM-PROJ-XL supports projectors weighing up to 50 lb. Do not exceed this limit even if the mounting-hole pattern otherwise fits.

What projector mounting patterns does it support?

Strong specifies a mounting pattern from approximately 50 × 50 mm up to 450 × 450 mm. Projectors do not use a universal TV-style VESA standard in the same way televisions do, so confirm your projector's actual mounting-hole layout before ordering.

Does the mount support JVC projectors?

Strong specifically markets the SM-PROJ-XL for larger projector bodies, including JVC models. Compatibility still depends on the exact projector weight and mounting-hole pattern, so confirm the exact model before ordering.

What does fine adjust mean?

The mount provides tool-less adjustment of up to ±5° for tilt, roll, and rotational alignment. These controls are intended for final image correction after the projector is mounted.

Can the projector rotate 360 degrees?

No. The SM-PROJ-XL fine-adjust system provides approximately ±5° of rotational correction. It should not be confused with projector mounts that provide full 360° swivel.

How far does the projector hang from the ceiling?

Strong's current specification lists approximately 5.2" distance from the ceiling when mounted directly. Extension poles and compatible ceiling accessories can be added when a greater drop is required.

Can I use an extension pole?

Yes. The mount uses standard 1.5" NPT threading and supports compatible Strong extension poles and ceiling accessories. A compatible coupler may also be required depending on the configuration.

Is the coupler included?

No. Strong specifically states that the coupler is not included. If your extension or ceiling-accessory configuration requires one, it must be purchased separately.

What couplers are compatible?

Strong currently lists SM-CEILING-FFC and SM-CEILING-O couplers for compatible accessory configurations.

Can it be mounted to a cathedral ceiling?

Yes, with the appropriate separately sold Strong ceiling adapter. Strong currently lists the SM-CEILING-C cathedral ceiling adapter for this mount.

Can I mount it directly to drywall?

The official installation manual provides structural mounting instructions for wood joists and concrete and states that the ceiling must safely support the full installation. Do not rely on ordinary drywall alone as the supporting structure unless the exact ceiling system and attachment method are specifically approved for the load.

Can it be attached to metal studs?

No. Strong's installation manual specifically states that the SM-PROJ-XL must not be mounted to metal studs.

What mounting hardware is included?

The package includes multiple M3, M4, M5, and M6 projector security screws, washers, spacers, lag screws, concrete anchors, and several Allen wrenches. Because projector mounting designs vary, verify that the supplied hardware is suitable for your exact projector.

Is it available in more than one color?

Yes. Strong offers the SM-PROJ-XL in Black and White versions.

What is the product weight?

Strong's current product page lists the mount at 5.5 lb. An older installation manual lists 5 lb, so the current 5.5 lb specification is the safer value to use for ordering and planning.

What should I confirm before ordering?

Confirm the projector model, weight of 50 lb or less, mounting-hole pattern within approximately 50 × 50 to 450 × 450 mm, ceiling structure, desired drop length, and whether you need an extension pole, coupler, or specialty ceiling adapter.
