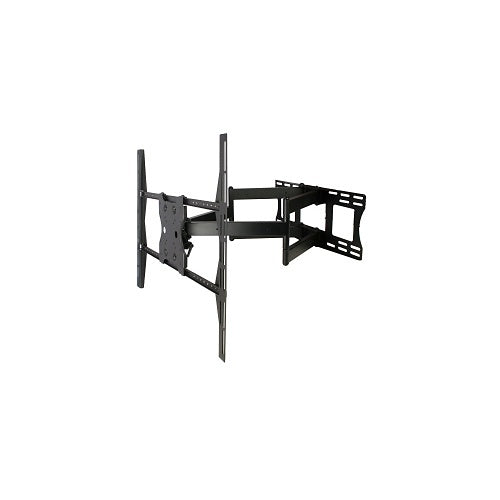

Strong SM-CS-ART2-XL Dual Arm Motion TV Wall Mount 47–90 Inch

Long-Reach Full-Motion Control for Large TVs

The Strong SM-CS-ART2-XL Contractor Series is a dual-arm articulating wall mount for 47–90" TVs weighing up to 150 lb. It extends more than 30" from the wall, swivels up to 180°, and provides +15°/-5° tilt for flexible viewing and easier access behind the display.

It works well in living rooms, media rooms, home theaters, offices, conference rooms, and other spaces where the TV needs to turn toward different seating positions or pull significantly away from the wall.

Key Specifications

• TV size: 47–90"
• Maximum load: 150 lb (68 kg)
• Mount type: Dual-arm full motion / articulating
• Maximum extension: 30.625" with adapter plate
• Retracted depth: 3.5" with adapter plate
• Swivel: Up to 180°
• Tilt: +15° / -5°
• Post-install leveling: Approximately ±5°
• Horizontal wall-position adjustment: Up to approximately 6"
• VESA compatibility: Specific patterns through 800 × 600 mm
• Construction: Steel
• Finish: Black
• Warranty: Limited Lifetime Warranty

Who Should Choose the SM-CS-ART2-XL?

Choose this mount when a compatible large TV needs significant extension and side-to-side positioning. Its dual-arm design is especially useful where viewers sit at different angles, where the screen needs to turn toward another part of the room, or where easier rear access is important.

If the TV will stay centered and only needs occasional downward angle adjustment, a tilt mount may be simpler. If the display will never need to move, a fixed mount can keep it closer to the wall. You can compare options in our TV Wall Mounts collection.

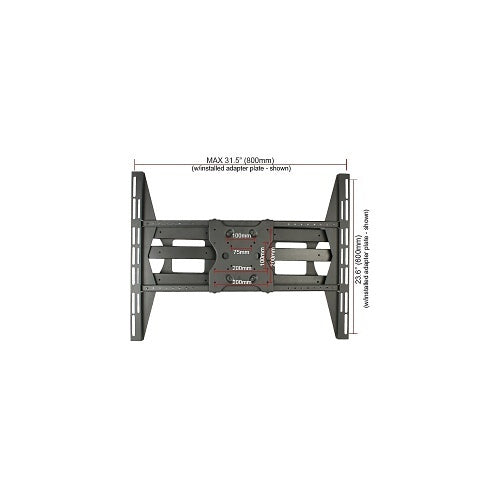

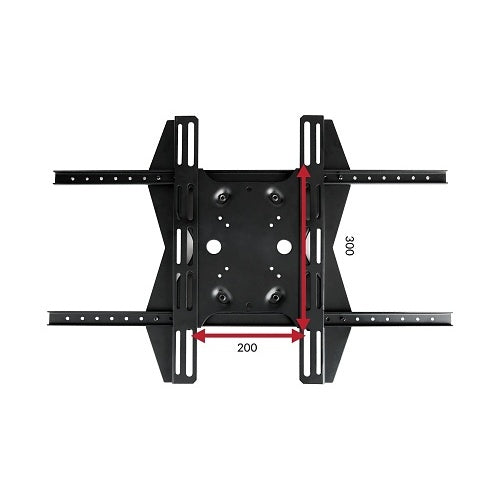

TV and VESA Compatibility

Screen size alone does not confirm fit. Your TV must weigh no more than 150 lb and use one of Strong's supported VESA mounting patterns.

For the SM-CS-ART2-XL, Strong currently lists 200 × 100, 200 × 200, 200 × 300, 300 × 200, 300 × 300, 400 × 200, 400 × 300, 400 × 400, 500 × 400, 500 × 500, 600 × 400, 600 × 500, 600 × 600, 700 × 500, 700 × 600, 700 × 700, 800 × 500, and 800 × 600 mm.

Confirm the exact VESA pattern and TV weight before ordering. Also check rear connector placement and cabinet shape so the adapter brackets do not obstruct power, HDMI, network, antenna, or ventilation areas.

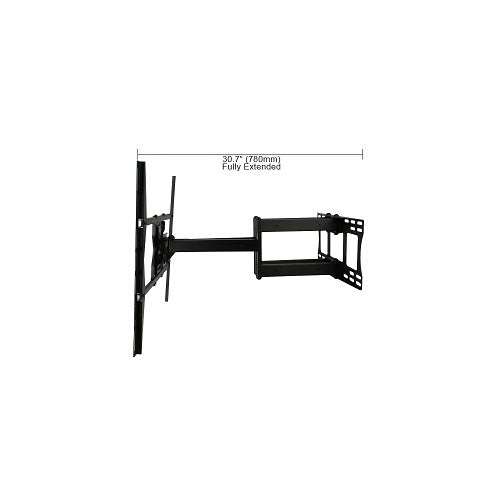

30-Inch-Plus Extension and 180° Swivel

The mount extends up to 30.625" from the wall when used with the adapter plate and retracts to approximately 3.5". The long reach can make it easier to angle a large display or reach connections behind it.

Strong specifies up to 180° swivel. Actual usable swivel depends on TV width, wall placement, nearby walls, furniture, and cable clearance. A large 80–90" TV will generally reach the wall or another obstruction before using the theoretical full swivel range.

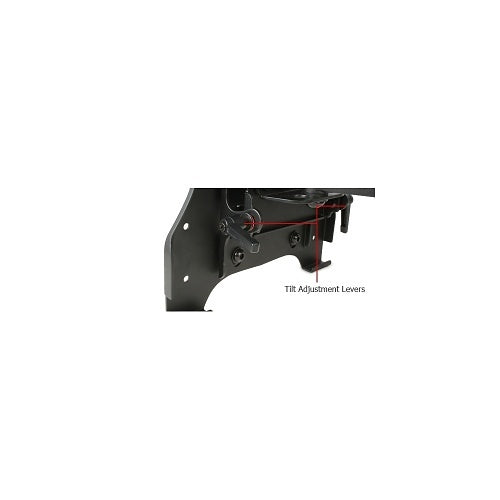

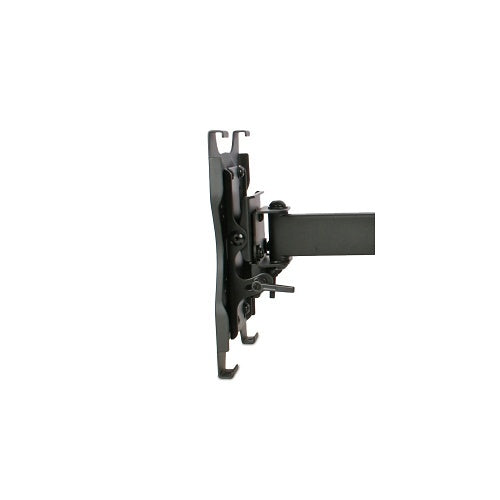

Tilt and Post-Install Leveling

The mounting head provides +15°/-5° tilt using locking adjustment levers. After installation, the display can also be rotated approximately ±5° for fine horizontal leveling.

This leveling adjustment is intended to correct minor alignment or droop after the display is mounted. It is not a substitute for properly leveling and securing the wall arm assembly.

Horizontal Wall-Position Adjustment

Multiple mounting slots in the back plate provide up to approximately 6" of horizontal positioning flexibility. This can help center the television when the ideal screen position does not align perfectly with the available wall studs.

Adjustable Arm Tension

The articulating joints provide tension adjustment so movement can be made firmer or easier depending on the display and installation. Once adjusted, the TV should move smoothly while remaining stable in the selected position.

Integrated Cable Management

Six cable covers route power and signal cables along the articulating arms. Leave enough cable slack for the complete extension, swivel, and tilt range so connectors are not pulled, crushed, or pinched as the TV moves.

Installation and Wall Requirements

The wall or supporting structure must safely carry the combined weight of the mount and display. Strong's installation manual provides mounting procedures for appropriate wood studs and concrete walls.

For concrete installations, Strong specifies a minimum concrete density of 2000 psi, at least 1-3/8" of usable concrete thickness for the supplied anchors, and mounting into solid concrete or suitable block rather than mortar joints.

A minimum of two people is required for installation. Do not rely on drywall alone as the structural mounting surface.

What's Included?

• 1 wall arm assembly
• 2 adapter brackets
• 1 adapter panel
• Mounting hardware kit
• M4, M5, M6, and M8 TV mounting screws in multiple lengths
• TV washers and spacers
• Lag bolts and washers
• Concrete anchors
• 6 wire management covers
• Mounting template
• Allen key

The TV, AV cables, electrical components, in-wall wiring, and any installation-specific hardware not supplied with the mount are sold separately.

When to Choose Another Mount

Choose another model if your TV weighs more than 150 lb, uses a VESA pattern outside the supported list, or does not need the long reach of an articulating dual-arm mount. A fixed or tilt model may provide a simpler and shallower installation when full motion is unnecessary.

Complete Your TV Setup

• Compare TV Wall Mounts
• Shop Soundbars
• Power Management Solutions

Need Help Confirming Compatibility?

Send Bear Security Shop your exact TV model number and tell us what type of wall you are mounting it to. We can help confirm TV weight, VESA compatibility, mounting requirements, and whether the long-reach SM-CS-ART2-XL is the right choice for your setup.

Is the Strong SM-CS-ART2-XL sold individually?

Yes. One SM-CS-ART2-XL is a complete dual-arm articulating mount for one compatible TV. It includes the wall arm assembly, adapter brackets and panel, mounting hardware, cable covers, and template.

What TV sizes does it support?

Strong specifies 47–90" displays weighing no more than 150 lb. The TV must also use one of the supported VESA mounting patterns.

How far does the mount extend?

Strong currently specifies 30.625" of extension with the adapter plate and approximately 3.5" depth when retracted.

How far can the TV swivel?

The mount is rated for up to 180° swivel. Actual movement depends on TV width, wall position, nearby surfaces, cables, and other obstructions.

How much tilt does it provide?

The SM-CS-ART2-XL provides +15°/-5° tilt using locking adjustment levers.

Can I level the TV after installation?

Yes. Strong provides approximately ±5° of horizontal leveling adjustment at the mounting head to correct minor alignment after installation.

What VESA patterns are supported?

Strong's current specifications list patterns from 200 × 100 mm through 800 × 600 mm, including specific 300, 400, 500, 600, 700, and 800 mm configurations. Confirm your exact TV pattern against the supported list before ordering.

What is the maximum TV weight?

The maximum supported display weight is 150 lb. Do not exceed this rating even if the screen size and VESA pattern otherwise fit.

Does the mount have cable management?

Yes. Six cable covers are supplied for routing cables along the articulating arms. Leave sufficient slack for the full movement of the mount.

Can I shift the TV sideways after choosing the wall position?

The wall plate provides multiple bolt slots that allow up to approximately 6" of horizontal mounting-position adjustment, which can help compensate for stud placement.

Can it be mounted directly to drywall?

No. The supporting wall structure must safely carry the complete load. Strong provides installation procedures for suitable wood studs and concrete surfaces.

How many people are required for installation?

Strong specifies a minimum of two people for installation, especially when lifting and attaching a large display to the articulating assembly.

Is this mount weather rated?

The manufacturer documentation reviewed does not specify an outdoor weather rating for the SM-CS-ART2-XL. It should not be treated as an outdoor-rated TV mount.

What should I confirm before ordering?

Confirm your TV model, 47–90" screen size, weight of 150 lb or less, supported VESA pattern, wall structure, required extension, and clearance for the screen and cables throughout the intended movement range.
