Strong SM-CB-T-XL Heavy-Duty Tilt TV Wall Mount 49–90 Inch

Low-Profile Tilt Support for Large TVs

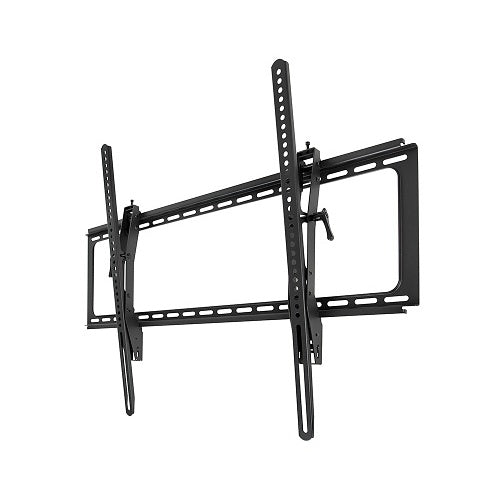

The Strong SM-CB-T-XL Carbon Series is a heavy-duty tilt wall mount for 49–90" TVs weighing up to 200 lb. It keeps a large display close to the wall while providing +12°/-5° tilt for glare reduction and viewing-angle adjustment, plus post-install leveling for fine alignment after the TV is mounted.

This is a strong choice for living rooms, media rooms, home theaters, offices, conference rooms, and other spaces where the TV will remain centered on the wall and does not need to pull outward or swivel toward different seating positions.

Key Specifications

• TV size: 49–90"
• Maximum load: 200 lb (90.7 kg)
• Mount type: Tilt
• Tilt range: +12° / -5°
• Post-install leveling: Up to 3/4"
• Mounting depth: Approximately 2.6" from the wall
• VESA compatibility: Supported patterns through 800 × 600 mm
• Certification: UL Certified
• Finish: Black
• Warranty: Limited Lifetime Warranty

Who Should Choose This Mount?

Choose the SM-CB-T-XL when you have a compatible large TV and want a secure, relatively low-profile installation with enough tilt to improve the viewing angle or reduce reflections from lighting and windows.

It is especially useful when the TV is mounted slightly above eye level, where downward tilt can improve comfort without requiring a full-motion articulating arm.

If you need to pull the TV away from the wall, turn it toward different seating areas, or use it in a corner-style setup, choose a full-motion model instead. You can compare options in our TV Wall Mounts collection.

TV and VESA Compatibility

Screen size alone does not confirm compatibility. Your TV must weigh no more than 200 lb and use a supported VESA mounting pattern.

Strong currently lists the following VESA patterns for the SM-CB-T-XL: 50 × 50, 50 × 100, 100 × 100, 100 × 200, 200 × 100, 200 × 200, 200 × 300, 300 × 100, 300 × 200, 300 × 300, 400 × 300, 400 × 400, 500 × 200, 500 × 300, 500 × 400, 500 × 500, 600 × 200, 600 × 300, 600 × 400, 600 × 500, 600 × 600, 700 × 300, 700 × 400, 700 × 500, 700 × 600, 800 × 300, 800 × 400, 800 × 500, and 800 × 600 mm.

Confirm your TV's exact VESA pattern and weight before ordering. Also check rear power, HDMI, network, antenna, and other connections because the display sits relatively close to the wall.

Tilt and Final Level Adjustment

The tilt mechanism provides up to 12° forward tilt and 5° in the opposite direction. Ratcheting adjustment handles on the TV arms secure the selected angle.

After installation, adjustment screws at the top of the arms allow fine horizontal leveling. Strong's current product specification lists up to 3/4" of post-install leveling adjustment, which can help compensate for small alignment differences without removing and reinstalling the wall plate.

Low-Profile Design and Outlet Access

The mount positions the TV approximately 2.6" from the wall. Strong uses a wide-open wall plate design to leave useful space around electrical outlets and in-wall AV connections behind the display.

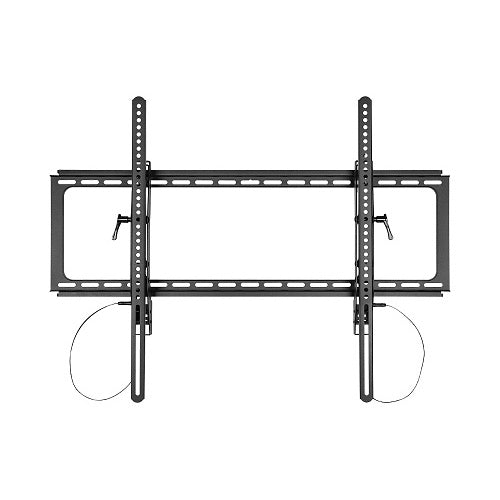

The locking system uses pull cords for releasing the TV arms from the wall plate, with magnetic ends that can be stored out of sight after installation.

Installation and Wall Requirements

The mounting structure must safely support the combined load of the TV, mount, and attached hardware. Strong's installation manual covers mounting to suitable wood studs and concrete construction.

For wood framing, Strong specifies a minimum 2" × 4" stud size with no more than 3/8" drywall covering the studs. The mount attaches across two studs. For concrete installations, the manual specifies concrete with a minimum density of 2500 psi and provides separate requirements for concrete block.

Do not rely on drywall alone as the structural mounting surface. Strong recommends installation by a qualified professional, particularly for large and heavy displays.

What's Included?

• 1 wall plate
• 1 left TV mounting arm
• 1 right TV mounting arm
• Mounting hardware kit
• M6 and M8 TV mounting screws
• TV spacers and washers
• Lag bolts and washers
• Concrete anchors
• Allen key

The TV, AV cables, in-wall wiring, electrical components, and any installation-specific hardware not supplied with the mount are sold separately.

Dimensions

Strong's technical drawing shows an overall mount width of approximately 34.3" and TV-arm height of approximately 25.6". The current manufacturer specification lists approximately 2.6" mounting depth from the wall. The current primary manufacturer documents reviewed do not provide a reliable packaged or net product weight, so no product-weight figure is stated here.

When to Choose Another Mount

Choose another model if your TV weighs more than 200 lb, falls outside the supported VESA patterns, or requires side-to-side swivel or extension away from the wall. A full-motion mount is better when viewing direction changes regularly.

Complete Your TV Setup

• Compare TV Wall Mounts
• Shop Soundbars
• Power Management Solutions

Need Help Confirming Compatibility?

Send Bear Security Shop your exact TV model number and tell us what type of wall you are mounting it to. We can help confirm TV weight, VESA compatibility, mounting requirements, and whether a tilt or full-motion mount makes more sense for your setup.

Is the Strong SM-CB-T-XL sold individually?

Yes. One SM-CB-T-XL is a complete tilt wall mount for one compatible TV. It includes the wall plate, left and right TV mounting arms, and mounting hardware.

What TV sizes does the SM-CB-T-XL support?

Strong specifies 49–90" displays with a maximum TV weight of 200 lb. Screen size alone is not enough to confirm fit, so your TV's VESA mounting pattern must also be compatible.

Is this a full-motion TV mount?

No. The SM-CB-T-XL is a tilt mount. It adjusts the screen angle up and down but does not extend away from the wall or swivel from side to side.

How much does the TV tilt?

The manufacturer specifies +12°/-5° tilt. The actual angle you choose will depend on viewing height, glare, and the clearance around your TV.

What VESA patterns does it support?

The SM-CB-T-XL supports numerous patterns from 50 × 50 mm through 800 × 600 mm. Because not every possible intermediate VESA combination is listed, confirm your TV's exact mounting-hole pattern against the manufacturer's supported list before ordering.

What is the maximum weight capacity?

The maximum supported display weight is 200 lb. Do not exceed this limit even though the mount undergoes UL strength testing beyond its rated capacity.

How far does the TV sit from the wall?

Strong's current specification lists approximately 2.6" of mounting depth. Allow additional practical clearance for the TV's rear connectors, power plug, HDMI cables, and ventilation requirements.

Can the TV be leveled after installation?

Yes. Adjustment screws at the top of the mounting arms provide fine horizontal leveling after the TV has been hung. Strong's current product information lists up to 3/4" of post-install adjustment.

Can I install the SM-CB-T-XL directly into drywall?

No. Drywall alone is not the structural mounting surface. The mount must be properly secured to suitable wood studs, concrete, or another structure capable of safely supporting the full load.

Is mounting hardware included?

Yes. The supplied hardware kit includes M6 and M8 TV screws, washers, spacers, lag bolts, concrete anchors, and an Allen key. Because TVs and wall construction vary, confirm that the supplied hardware is appropriate for your exact installation.

Does it support outdoor installations?

The manufacturer documentation reviewed does not specify an outdoor weather rating for the SM-CB-T-XL. It should not be treated as a weather-rated outdoor mount unless Strong specifically approves the intended environment.

What are the mount dimensions?

Strong's technical drawing shows an overall width of approximately 34.3" and arm height of approximately 25.6". The current published mounting depth is approximately 2.6" from the wall.

What should I confirm before ordering?

Confirm your exact TV model, 49–90" screen size, weight of 200 lb or less, supported VESA pattern, wall construction, rear-connection clearance, and whether you need tilt only or full-motion positioning.
