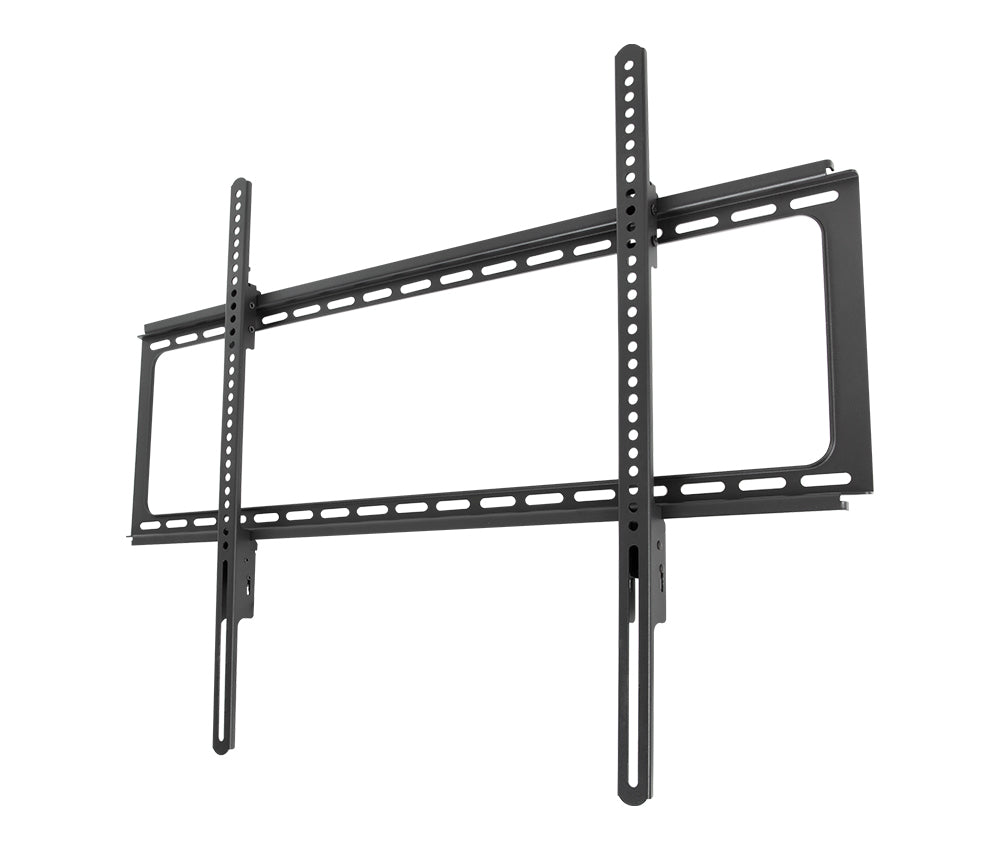

Strong SM-CB-F-XL Fixed Pro Wall Mount TV Bracket 49–90 Inch

Heavy-Duty, Low-Profile Mounting for Large TVs

The Strong SM-CB-F-XL Carbon Series is a fixed wall mount for 49–90" TVs weighing up to 200 lb. It keeps large displays approximately 1.65" from the wall for a clean, close-to-wall installation while providing post-install leveling for fine alignment after the TV is mounted.

This mount is a strong choice for living rooms, media rooms, home theaters, offices, conference rooms, and other spaces where the TV will remain in a straight-on viewing position and does not need tilt, swivel, or extension.

Key Specifications

• TV size: 49–90"
• Maximum load: 200 lb (90.7 kg)
• Mount type: Fixed
• Mounting depth: Approximately 1.65" from the wall
• Post-install leveling: Up to 3/4" for fine alignment
• VESA compatibility: Supported patterns through 800 × 600 mm
• Certification: UL Certified
• Finish: Black
• Warranty: Limited Lifetime Warranty

Who Should Choose the SM-CB-F-XL?

Choose this mount when you have a compatible large TV that will stay in one position and you want a strong, low-profile installation. A fixed mount is especially appropriate when the screen is installed at a comfortable viewing height and the main seating area is directly in front of it.

If the TV will be mounted high and needs downward angle adjustment, choose a tilt mount instead. If you need to pull the TV away from the wall or turn it toward different seating positions, choose a full-motion model. You can compare options in our TV Wall Mounts collection or browse more Strong mounting solutions.

TV and VESA Compatibility

Screen size alone does not confirm compatibility. Your TV must weigh no more than 200 lb and use one of the supported VESA mounting patterns.

Strong currently lists support for 50 × 50, 50 × 100, 100 × 100, 100 × 200, 200 × 100, 200 × 200, 200 × 300, 300 × 100, 300 × 200, 300 × 300, 400 × 300, 400 × 400, 500 × 200, 500 × 300, 500 × 400, 500 × 500, 600 × 200, 600 × 300, 600 × 400, 600 × 500, 600 × 600, 700 × 300, 700 × 400, 700 × 500, 700 × 600, 800 × 300, 800 × 400, 800 × 500, and 800 × 600 mm.

Confirm your TV's exact mounting pattern in the manufacturer specifications before ordering. Also check the location and depth of power, HDMI, network, antenna, and other rear-facing connections because the display sits close to the wall.

Low-Profile Fixed Design

The SM-CB-F-XL positions the display approximately 1.65" from the wall. Its wide-open back plate helps provide useful space around wall outlets and in-wall AV connections behind the TV.

Because this is a fixed mount, it does not tilt, swivel, or extend. If you regularly need access behind the TV, confirm that power plugs, HDMI connectors, adapters, streaming devices, and cable bend radius will fit comfortably within the available space.

Post-Install Leveling

Adjustment screws at the top of the mounting arms allow small corrections to the TV's horizontal level after installation. Strong's current product specifications list up to 3/4" of post-install leveling.

This feature is intended for fine alignment and should not be treated as general vertical TV repositioning or as a substitute for properly positioning and leveling the wall plate.

Locking Pull Cords and Outlet Access

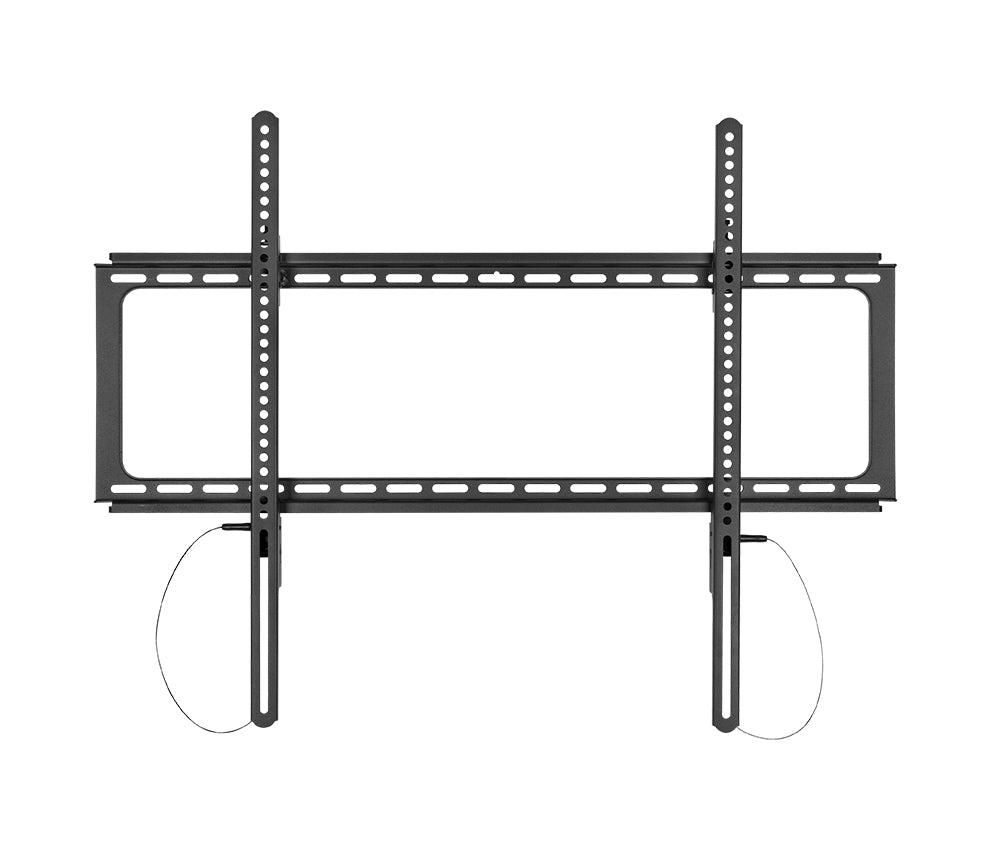

The TV arms lock onto the wall plate after the display is hung. Pull cords release the locking mechanism when the TV needs to be removed, and magnetic cord ends help keep the cords stored out of sight.

Strong also uses an open-back plate design intended to provide useful clearance around wall outlets and in-wall boxes.

Installation and Wall Requirements

The wall structure must safely support the combined weight of the mount, TV, and attached components. Strong's installation manual covers suitable wood-stud and concrete installations.

For wood-stud installations, Strong specifies mounting across two studs, with studs at least 2" × 4" and no more than 3/8" drywall covering them. For concrete installations, Strong specifies concrete with a minimum density of 2500 psi and provides separate requirements for concrete block.

Do not rely on drywall alone as the structural mounting surface. For a large display approaching the 200 lb rating, confirming the wall structure and fastening method before installation is especially important.

What's Included?

• 1 wall plate
• 1 left TV mounting arm
• 1 right TV mounting arm
• Mounting hardware kit
• M6 and M8 TV mounting screws
• TV spacers
• M6 and M8 washers
• Lag bolts and lag washers
• Concrete anchors
• Allen key

The TV, AV cables, electrical components, in-wall wiring, and any installation-specific hardware not supplied with the mount are sold separately.

When to Choose Another Mount

Choose another model if your TV weighs more than 200 lb, falls outside the 49–90" range, uses a VESA pattern outside the supported list, or needs tilt, swivel, or extension. A tilt or full-motion mount provides more viewing flexibility in those situations.

Complete Your TV Setup

• Compare TV Wall Mounts
• Shop Soundbars
• Power Management Solutions

Need Help Confirming Compatibility?

Send Bear Security Shop your exact TV model number and tell us what type of wall you are mounting it to. We can help confirm TV weight, VESA compatibility, rear-connection clearance, and whether a fixed, tilt, or full-motion mount is the right choice for your setup.

Is the Strong SM-CB-F-XL sold individually?

Yes. One SM-CB-F-XL is a complete fixed wall mount for one compatible TV. It includes the wall plate, left and right TV mounting arms, and mounting hardware.

What TV sizes does the SM-CB-F-XL support?

Strong specifies 49–90" TVs with a maximum display weight of 200 lb. Your TV must also use one of the supported VESA mounting patterns.

Does the SM-CB-F-XL tilt or swivel?

No. This is a fixed wall mount. It does not tilt, swivel, or extend away from the wall. Choose a tilt or full-motion mount if you need viewing-angle adjustment.

How close does the TV sit to the wall?

Strong specifies approximately 1.65" of mounting depth. Actual rear clearance also depends on the TV cabinet, recessed areas, plugs, connectors, adapters, and cables.

What VESA patterns are supported?

The SM-CB-F-XL supports specific VESA patterns from 50 × 50 mm through 800 × 600 mm, including many 400, 500, 600, 700, and 800 mm horizontal configurations. Confirm your exact TV mounting pattern against the supported list before ordering.

What is the maximum TV weight?

The maximum supported display weight is 200 lb. Do not exceed this rating even if the screen size and VESA pattern otherwise fit.

Can the TV be leveled after installation?

Yes. Adjustment screws at the top of the mounting arms allow fine horizontal-level corrections after the TV has been hung. Strong's current product specifications list up to 3/4" of post-install leveling.

Can I mount the SM-CB-F-XL directly into drywall?

No. Drywall alone is not the structural mounting surface. The mount must be secured to suitable wood studs, concrete, or another structure capable of safely supporting the complete load.

Is mounting hardware included?

Yes. Strong includes M6 and M8 TV screws, spacers, washers, lag bolts, concrete anchors, and an Allen key. Confirm that the supplied fasteners are suitable for your exact TV and wall construction.

What are the pull cords for?

The pull cords release the locking mechanism that secures the TV arms to the wall plate. Magnetic ends help keep the cords stored out of sight behind the TV.

Does the mount provide space around wall outlets?

Yes. Strong uses a wide-open back plate designed to provide useful space around electrical outlets and in-wall AV boxes. Because the display still sits only about 1.65" from the wall, cable and connector depth should be checked before installation.

Can this mount be used outdoors?

The manufacturer documentation reviewed does not specify an outdoor weather rating for the SM-CB-F-XL. It should not be treated as a weather-rated outdoor TV mount.

What should I confirm before ordering?

Confirm your exact TV model, 49–90" screen size, weight of 200 lb or less, supported VESA pattern, wall structure, outlet location, cable clearance, and whether a fixed mount provides enough viewing flexibility.
