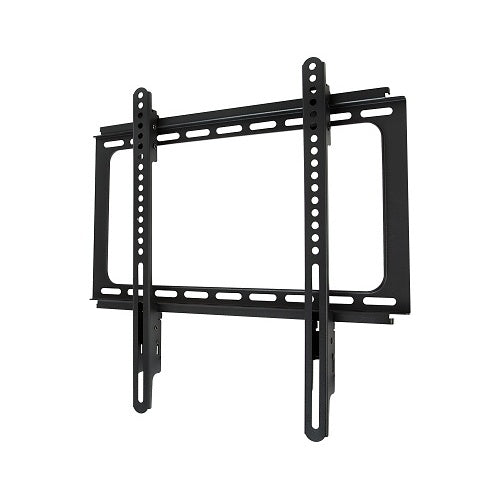

Strong SM-CB-F-M Low Profile Fixed TV Wall Mount 24–55 Inch

Clean, Close-to-Wall Mounting for Medium-Size TVs

The Strong SM-CB-F-M Carbon Series is a low-profile fixed wall mount for 24–55" TVs weighing up to 100 lb. It positions the display approximately 1.65" from the wall for a clean, streamlined installation while providing post-install leveling for fine alignment after the TV is mounted.

This mount works well in bedrooms, offices, kitchens, smaller living rooms, media spaces, and other locations where the TV will stay in a straight-on viewing position and does not need tilt, swivel, or extension.

Key Specifications

• TV size: 24–55"
• Maximum load: 100 lb (45.4 kg)
• Mount type: Fixed
• Mounting depth: Approximately 1.65" from the wall
• Post-install leveling: Up to 3/4" for fine alignment
• VESA compatibility: Supported patterns through 400 × 400 mm
• Certification: UL Certified
• Finish: Black
• Warranty: Limited Lifetime Warranty

Who Should Choose the SM-CB-F-M?

Choose this mount when your compatible TV will remain in one position and you want it to sit close to the wall. A fixed mount makes the most sense when the screen can be installed at a comfortable viewing height and the seating position is mainly straight ahead.

If your TV will be mounted higher and needs downward angle adjustment, choose a tilt mount instead. If you need to turn the TV toward different seating positions or pull it away from the wall, choose a full-motion model. You can compare options in our TV Wall Mounts collection or browse more Strong mounting solutions.

TV and VESA Compatibility

Screen size alone does not confirm compatibility. Your TV must weigh no more than 100 lb and use one of Strong's currently listed mounting patterns.

Strong currently lists support for 50 × 50, 50 × 100, 100 × 100, 100 × 200, 200 × 100, 200 × 200, 200 × 300, 300 × 100, 300 × 200, 300 × 300, 300 × 400, 400 × 100, 400 × 200, 400 × 300, and 400 × 400 mm.

Confirm your TV's exact VESA pattern in its manufacturer specifications before ordering. Also check the location of power, HDMI, network, antenna, and other rear-facing connections because this mount keeps the display close to the wall.

Low-Profile Fixed Design

The SM-CB-F-M positions the TV approximately 1.65" from the wall. Strong's open-back wall plate provides useful space around outlets and in-wall AV connections behind the display.

Because this is a fixed mount, it does not tilt, swivel, or pull away from the wall. If you regularly need access behind the TV, confirm that your power plug, HDMI connectors, adapters, streaming devices, and cable bend radius will fit comfortably within the available space.

Post-Install Leveling

Adjustment screws at the top of the mounting arms allow small corrections to the TV's horizontal level after installation. Strong's current product specifications list up to 3/4" of post-install leveling.

This feature is intended for fine alignment and should not be treated as general vertical TV repositioning or as a substitute for correctly locating and leveling the wall plate.

Locking Pull Cords and Outlet Access

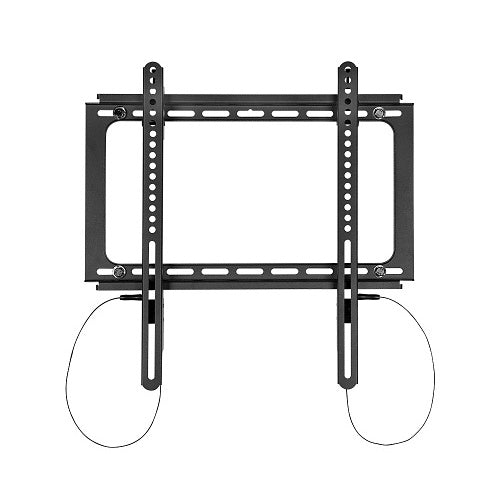

The TV arms lock onto the wall plate after the display is hung. Pull cords release the locking mechanism when the TV needs to be removed, while magnetic cord ends help keep the cords stored out of sight.

For the rest of your AV setup, you can also browse power management solutions and soundbars.

Installation and Wall Requirements

The wall structure must safely support the combined weight of the mount, TV, and attached components. Strong's installation manual provides instructions for suitable wood-stud and concrete mounting.

For wood-stud installations, Strong specifies mounting across two studs, with studs at least 2" × 4" and no more than 3/8" drywall covering them. For concrete installations, Strong specifies concrete with a minimum density of 2500 psi and provides separate requirements for concrete block.

Do not rely on drywall alone as the structural mounting surface. If you are unsure about the wall structure, fasteners, or load capacity, confirm the installation requirements before mounting the TV.

What's Included?

• 1 wall plate
• 1 left TV mounting arm
• 1 right TV mounting arm
• Mounting hardware kit
• M4, M6, and M8 TV mounting screws
• TV spacers
• M6 and M8 washers
• Lag bolts and lag washers
• Concrete anchors
• Allen key

The TV, AV cables, electrical components, in-wall wiring, and any installation-specific hardware not supplied with the mount are sold separately.

Dimensions

Strong's technical drawing shows approximately 18.58" overall width, 18.15" vertical arm height, and 1.65" mounting depth.

When to Choose Another Mount

Choose another model if your TV weighs more than 100 lb, falls outside the 24–55" range, uses a VESA pattern outside the supported list, or needs tilt, swivel, or extension. A tilt or full-motion mount will provide more viewing flexibility in those situations.

Complete Your TV Setup

• Compare TV Wall Mounts
• Shop Soundbars
• Power Management Solutions

Need Help Confirming Compatibility?

Send Bear Security Shop your exact TV model number and tell us what type of wall you are mounting it to. We can help confirm TV weight, VESA compatibility, rear-connection clearance, and whether a fixed, tilt, or full-motion mount makes the most sense for your setup.

Is the Strong SM-CB-F-M sold individually?

Yes. One SM-CB-F-M is a complete fixed wall mount for one compatible TV. It includes the wall plate, left and right TV mounting arms, and mounting hardware.

What TV sizes does the SM-CB-F-M support?

Strong specifies 24–55" TVs with a maximum display weight of 100 lb. Your TV must also use one of the supported VESA mounting patterns.

Does the SM-CB-F-M tilt or swivel?

No. This is a fixed wall mount. It does not tilt, swivel, or extend away from the wall. Choose a tilt or full-motion mount if you need viewing-angle adjustment.

How close does the TV sit to the wall?

Strong specifies approximately 1.65" of mounting depth. Actual rear clearance also depends on the TV cabinet, recessed areas, plugs, connectors, adapters, and cables.

What VESA patterns are supported?

Strong currently lists 50 × 50, 50 × 100, 100 × 100, 100 × 200, 200 × 100, 200 × 200, 200 × 300, 300 × 100, 300 × 200, 300 × 300, 300 × 400, 400 × 100, 400 × 200, 400 × 300, and 400 × 400 mm.

What is the maximum TV weight?

The maximum supported display weight is 100 lb. Do not exceed this rating even if the screen size and VESA pattern otherwise fit.

Can the TV be leveled after installation?

Yes. Adjustment screws at the top of the mounting arms allow fine horizontal-level corrections after the TV is hung. Strong's current product specifications list up to 3/4" of post-install leveling.

Can I install the SM-CB-F-M directly into drywall?

No. Drywall alone should not be used as the structural mounting surface. The mount must be properly secured to suitable wood studs, concrete, or another structure capable of safely supporting the complete load.

Is mounting hardware included?

Yes. Strong includes M4, M6, and M8 TV screws, spacers, washers, lag bolts, concrete anchors, and an Allen key. Confirm that the supplied fasteners are appropriate for your exact TV and wall construction.

What are the pull cords for?

The pull cords release the locking mechanism that secures the TV arms to the wall plate. Magnetic ends help keep the cords stored out of sight after installation.

Does the open wall plate help with outlets?

Yes. Strong uses an open-back design that provides useful space around electrical outlets and in-wall AV connections. Because the TV sits only about 1.65" from the wall, connector depth and cable bend radius should still be checked.

Can this mount be used outdoors?

The manufacturer documentation reviewed does not specify an outdoor weather rating for the SM-CB-F-M. It should not be treated as a weather-rated outdoor TV mount.

What are the mount dimensions?

Strong's technical drawing shows approximately 18.58" overall width, 18.15" vertical arm height, and 1.65" mounting depth.

What should I confirm before ordering?

Confirm your exact TV model, 24–55" screen size, weight of 100 lb or less, supported VESA pattern, wall structure, outlet location, cable clearance, and whether a fixed mount provides enough viewing flexibility.
