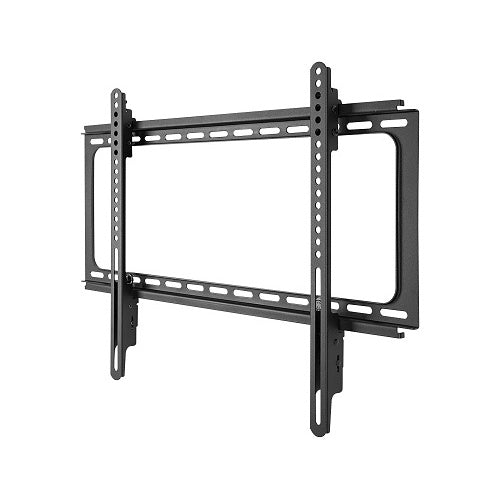

Strong SM-CB-F-L Low Profile Fixed TV Wall Mount 40–80 Inch

A Clean, Close-to-Wall Mount for Larger TVs

The Strong SM-CB-F-L Carbon Series is a low-profile fixed wall mount for 40–80" TVs weighing up to 150 lb. It positions the display approximately 1.65" from the wall for a clean, streamlined installation while providing post-install leveling to help fine-tune the screen after mounting.

This mount works well in living rooms, bedrooms, media rooms, offices, conference rooms, waiting areas, and other spaces where the TV will be viewed mostly straight on and does not need to tilt, swivel, or extend away from the wall.

Key Specifications

• TV size: 40–80"
• Maximum load: 150 lb (68 kg)
• Mount type: Fixed
• Mounting depth: Approximately 1.65" from the wall
• Post-install leveling: Up to 3/4" for fine alignment
• VESA compatibility: Supported patterns through 600 × 400 mm
• Certification: UL Certified
• Finish: Black
• Warranty: Limited Lifetime Warranty

Who Should Choose the SM-CB-F-L?

Choose this mount when your compatible TV will stay in one viewing position and you want it to sit as close to the wall as practical. A fixed mount is especially useful when seating is directly in front of the screen and the TV can be installed at a comfortable viewing height.

If you need downward tilt for a TV mounted higher on the wall, or if you want to turn the display toward different seating areas, consider another option in our TV Wall Mounts collection. You can also browse more Strong mounting solutions.

TV and VESA Compatibility

Screen size alone does not confirm compatibility. Your TV must weigh no more than 150 lb and use one of the supported mounting-hole patterns.

Strong currently lists the following VESA patterns for the SM-CB-F-L: 50 × 50, 50 × 100, 100 × 100, 100 × 200, 200 × 100, 200 × 200, 200 × 300, 300 × 100, 300 × 200, 300 × 300, 400 × 100, 400 × 200, 400 × 300, 400 × 400, 500 × 200, 500 × 300, 500 × 400, 600 × 200, 600 × 300, and 600 × 400 mm.

Check your TV manual or manufacturer specifications for the exact VESA pattern before ordering. Also confirm that the TV's power connection, HDMI ports, network connection, antenna input, and other rear-facing connectors will have sufficient clearance because this mount sits close to the wall.

Low-Profile Fixed Design

The SM-CB-F-L positions the display approximately 1.65" from the wall. Its wide-open wall plate leaves useful space around electrical outlets and in-wall AV connections while helping maintain a clean finished appearance.

Because this is a fixed mount, it does not tilt, swivel, or pull away from the wall. If you regularly need access behind your TV, make sure the shallow mounting depth is appropriate for your cables, adapters, streaming devices, and connectors before choosing a fixed design.

Post-Install Leveling

Adjustment screws at the top of the mounting arms allow small corrections to the TV's horizontal level after installation. Strong's current product specifications list up to 3/4" of post-install adjustment.

This feature is intended for fine alignment. It should not be treated as a substitute for correctly positioning and leveling the wall plate during installation.

Locking Pull Cords and Cable Access

The TV arms lock onto the wall plate after the display is hung. Pull cords release the locking mechanism when the TV needs to be removed, and magnetic cord ends help keep the cords stored out of sight.

For the rest of your AV setup, you can also browse power management solutions and soundbars.

Installation and Wall Requirements

The wall structure must safely support the combined weight of the mount, TV, and attached components. Strong's installation manual covers mounting to suitable wood studs and concrete construction.

For wood-stud installations, Strong specifies studs of at least 2" × 4" covered by no more than 3/8" drywall. The wall plate mounts across two studs. For concrete, the manual specifies a minimum concrete density of 2500 psi and provides separate requirements for concrete block.

Do not rely on drywall alone as the structural mounting surface. Strong highly recommends installation by a qualified professional, particularly for large or heavy displays.

What's Included?

• 1 wall plate
• 1 left TV mounting arm
• 1 right TV mounting arm
• Mounting hardware kit
• M6 and M8 TV mounting screws
• TV spacers and washers
• Lag bolts and washers
• Concrete anchors
• Allen key

The TV, AV cables, electrical components, in-wall wiring, and any installation-specific hardware not supplied with the mount are sold separately.

Dimensions

Strong's technical drawing shows an overall mount width of approximately 26.46", vertical TV-arm length of approximately 18.15", and mounting depth of approximately 1.65".

When to Choose Another Mount

Choose another model if your TV weighs more than 150 lb, uses a VESA pattern outside the supported list, will be mounted significantly above normal viewing height, or needs tilt, swivel, or extension. A tilt or full-motion mount will provide more viewing flexibility in those situations.

Complete Your TV Setup

• Compare TV Wall Mounts
• Shop Soundbars
• Power Management Solutions

Need Help Confirming Compatibility?

Send Bear Security Shop your exact TV model number and tell us what type of wall you are mounting it to. We can help confirm TV weight, VESA compatibility, rear-connection clearance, and whether a fixed, tilt, or full-motion mount makes the most sense for your setup.

Is the Strong SM-CB-F-L sold individually?

Yes. One SM-CB-F-L is a complete fixed wall mount for one compatible TV. It includes the wall plate, left and right TV mounting arms, and mounting hardware.

What TV sizes does the SM-CB-F-L support?

Strong specifies 40–80" TVs with a maximum display weight of 150 lb. Your TV must also use one of the supported VESA mounting patterns.

Does the SM-CB-F-L tilt or swivel?

No. This is a fixed wall mount. It does not tilt, swivel, or extend away from the wall. Choose a tilt or full-motion mount if you need viewing-angle adjustment.

How close does the TV sit to the wall?

Strong specifies approximately 1.65" of mounting depth. Actual clearance behind the TV also depends on the TV cabinet, recessed areas, connectors, cables, and adapters.

What VESA patterns are supported?

The SM-CB-F-L supports specific VESA patterns from 50 × 50 mm through 600 × 400 mm, including common 200, 300, 400, 500, and 600 mm horizontal configurations. Confirm your exact TV mounting pattern against the supported list before ordering.

What is the maximum weight capacity?

The maximum supported display weight is 150 lb. Do not exceed this rating even though the mount is UL tested beyond its listed capacity.

Can I level the TV after installation?

Yes. Adjustment screws at the top of the mounting arms allow small horizontal-level corrections after the TV has been hung. Strong's current specifications list up to 3/4" of post-install leveling.

Can the SM-CB-F-L be installed directly into drywall?

No. Drywall alone should not be treated as the structural mounting surface. The mount must be properly secured to suitable wood studs, concrete, or another structure capable of safely supporting the complete load.

Is mounting hardware included?

Yes. The supplied hardware kit includes M6 and M8 TV screws, spacers, washers, lag bolts, concrete anchors, and an Allen key. Always confirm that the supplied hardware is appropriate for your exact TV and wall construction.

Does the mount provide access around wall outlets?

Yes. The wall plate has an open-center design that provides useful space around outlets and in-wall connections. Because the TV sits only about 1.65" from the wall, connector depth and cable bend radius should still be checked before installation.

What are the pull cords for?

The pull cords release the locking mechanism that secures the TV arms to the wall plate. Magnetic ends allow the cords to be stored out of sight after installation.

Can this mount be used outdoors?

The manufacturer documentation reviewed does not specify an outdoor weather rating for the SM-CB-F-L. It should not be treated as a weather-rated outdoor TV mount.

What are the mount dimensions?

Strong's technical drawing shows approximately 26.46" overall width, 18.15" vertical TV-arm length, and 1.65" mounting depth.

What should I confirm before ordering?

Confirm your TV's exact model, 40–80" screen size, weight of 150 lb or less, supported VESA pattern, wall structure, outlet location, cable clearance, and whether you need a fixed or adjustable mount.
