Strong SM-CB-ART2-XL Full Motion Dual Arm TV Wall Mount 49–90 Inch

Full-Motion Support for Large TVs and Flexible Viewing

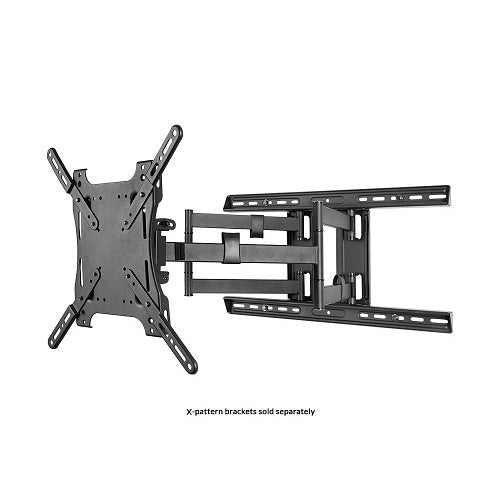

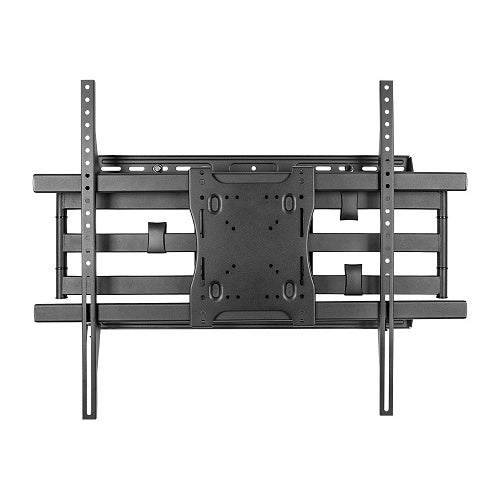

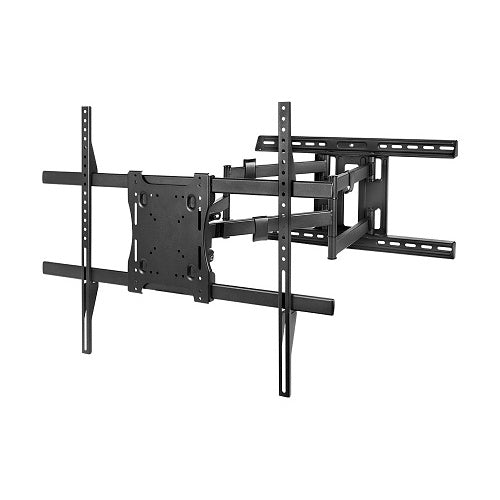

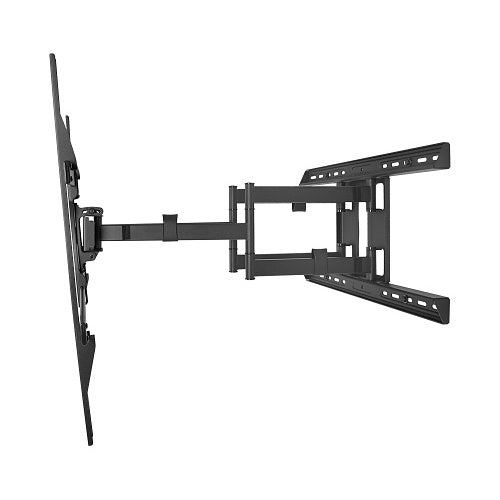

The Strong SM-CB-ART2-XL Carbon Series is a heavy-duty dual-arm articulating wall mount for 49–90" TVs weighing up to 200 lb. Its full-motion design lets you extend the display up to 28" from the wall, swivel it for different viewing positions, adjust tilt, and fine-tune the final level after installation.

It is a good fit for large TVs in living rooms, home theaters, media rooms, offices, conference rooms, and other spaces where a fixed or tilt-only mount does not provide enough positioning flexibility.

Why Choose the SM-CB-ART2-XL?

• Display size: Designed for 49–90" TVs
• Maximum load: 200 lb (90.71 kg)
• Extension: Up to 28" from the wall
• Retracted depth: Approximately 3.3"
• Swivel: Up to 180°, subject to TV size and installation conditions
• Tilt: +15° / -5°
• Level adjustment: ±5° roll for post-install alignment
• VESA compatibility: Supports a wide range of patterns through 800 × 600 mm
• Construction: Dual-arm articulating design
• Certification: UL Certified

Who Should Buy It?

Choose this mount when you have a compatible large TV and want to pull the display away from the wall, angle it toward different seating positions, improve access behind the TV, or make small leveling adjustments after installation. It is particularly useful for wide rooms and layouts where the TV is not always viewed straight on.

If your TV will remain in one position and does not need articulation, a fixed or tilt mount may provide a simpler, lower-profile alternative. You can compare other options in our TV Wall Mounts collection.

TV Compatibility

Screen size alone does not determine compatibility. Before ordering, confirm that your TV weighs no more than 200 lb and that its mounting-hole pattern matches one of the supported VESA configurations. The XL mounting system supports patterns through 800 × 600 mm.

Also check the position of your TV's power connection, HDMI ports, ventilation areas, and other rear connections to make sure the mounting hardware will not obstruct them.

Installation and Wall Requirements

The mounting surface must be capable of supporting the combined weight of the mount and display. Strong provides installation instructions for suitable wood-stud and concrete mounting conditions. The manual specifies wood studs of at least 2" × 4" with no more than 3/8" drywall covering them and provides separate requirements for concrete installations.

Do not rely on drywall alone to support this mount and a large TV. Wall construction, fastener placement, and structural capacity should be confirmed before drilling.

Strong specifies a minimum of two people for installation. This is especially important when lifting and attaching a large display to the articulating assembly.

Built-In Cable Management

Three cable management clips are installed on the articulating arms to help route power and signal cables as the TV moves. Leave enough cable slack for the full range of extension, swivel, and tilt so cables are not stretched or pinched.

For a complete AV setup, you can also explore power management solutions and AV receivers and surround sound equipment.

What's Included?

• 1 wall arm assembly
• 2 installed horizontal mounting bars
• 2 fixed TV brackets
• Installed adapter plate
• 3 installed cable clips
• Mounting hardware kit
• Wall mounting template
• Installation tool specified in the supplied hardware kit

The television, in-wall cabling, electrical components, and any installation-specific hardware not supplied with the mount are not included. Always verify that the supplied fasteners are appropriate for your wall construction and TV.

Dimensions and Weight

Strong's current published specifications identify approximately 3.3" retracted depth and up to 28" extension for the XL version. The manufacturer documentation reviewed does not provide a reliable overall product weight, so no mount weight is stated here.

Warranty

Strong Mounts carry a Lifetime Limited Warranty covering parts and labor for components found defective in material or workmanship under normal use. The manufacturer's warranty excludes products that have been abused, modified, or disassembled.

Complete Your TV and AV Setup

• Compare TV Wall Mounts
• Power Management Solutions
• Soundbars

Need Help Confirming Compatibility?

Send Bear Security Shop your exact TV model number and tell us what type of wall you are mounting it to. We can help you check screen size, TV weight, VESA pattern, and mounting requirements before you order.

Will the Strong SM-CB-ART2-XL fit my TV?

It is designed for 49–90" displays weighing no more than 200 lb and supports VESA mounting patterns through 800 × 600 mm. Screen size alone is not enough to confirm compatibility, so check your TV's exact weight and VESA pattern before ordering.

Is the SM-CB-ART2-XL sold individually?

Yes. One SM-CB-ART2-XL is a complete wall-mount assembly for one compatible TV. The package includes the wall arm assembly, TV mounting components, hardware kit, cable clips, and mounting template.

How far can the TV extend from the wall?

Strong's current product specifications list up to 28" of extension for the XL model and approximately 3.3" retracted depth.

How much can the mount swivel and tilt?

The published specifications list up to 180° of swivel, +15°/-5° tilt, and ±5° roll adjustment for post-install leveling. Actual usable swivel can be reduced by the width of the TV, wall position, cables, and nearby surfaces.

What is the maximum TV weight?

The maximum supported display weight is 200 lb (90.71 kg). Do not exceed this rating, even if the TV's screen size and VESA pattern otherwise fit the mount.

Can I mount it directly to drywall?

No. The wall or mounting structure must safely support the combined load of the mount and TV. The manufacturer's instructions cover appropriate wood-stud and concrete installations; drywall alone should not be treated as the structural mounting surface.

Does the mount include TV mounting hardware?

A hardware kit with multiple M6 and M8 TV fasteners, washers, spacers, lag hardware, and concrete anchors is supplied. Because TV and wall designs vary, confirm that the supplied hardware is appropriate for your specific display and mounting surface before installation.

Does it include cable management?

Yes. Three cable management clips are installed on the articulating arms. Cables still need enough slack to accommodate the TV's full movement without being stretched or pinched.

Is this an outdoor TV mount?

The manufacturer documentation reviewed does not specify an outdoor weather rating for the SM-CB-ART2-XL. Do not treat it as a weather-rated outdoor mount unless Strong specifically approves the intended installation environment.

How many people are needed to install it?

Strong specifies a minimum of two people for installation. The mounting surface, anchors, TV weight, VESA pattern, and cable routing should all be confirmed before mounting the display.

What should I confirm before ordering?

Confirm your exact TV model, 49–90" screen size, weight of 200 lb or less, compatible VESA pattern, wall construction, desired viewing position, and sufficient clearance for the TV to articulate without hitting nearby walls or objects.
