Sonos Port WiFi Network Streamer Built-in DAC

Add Sonos Streaming to the Audio System You Already Own

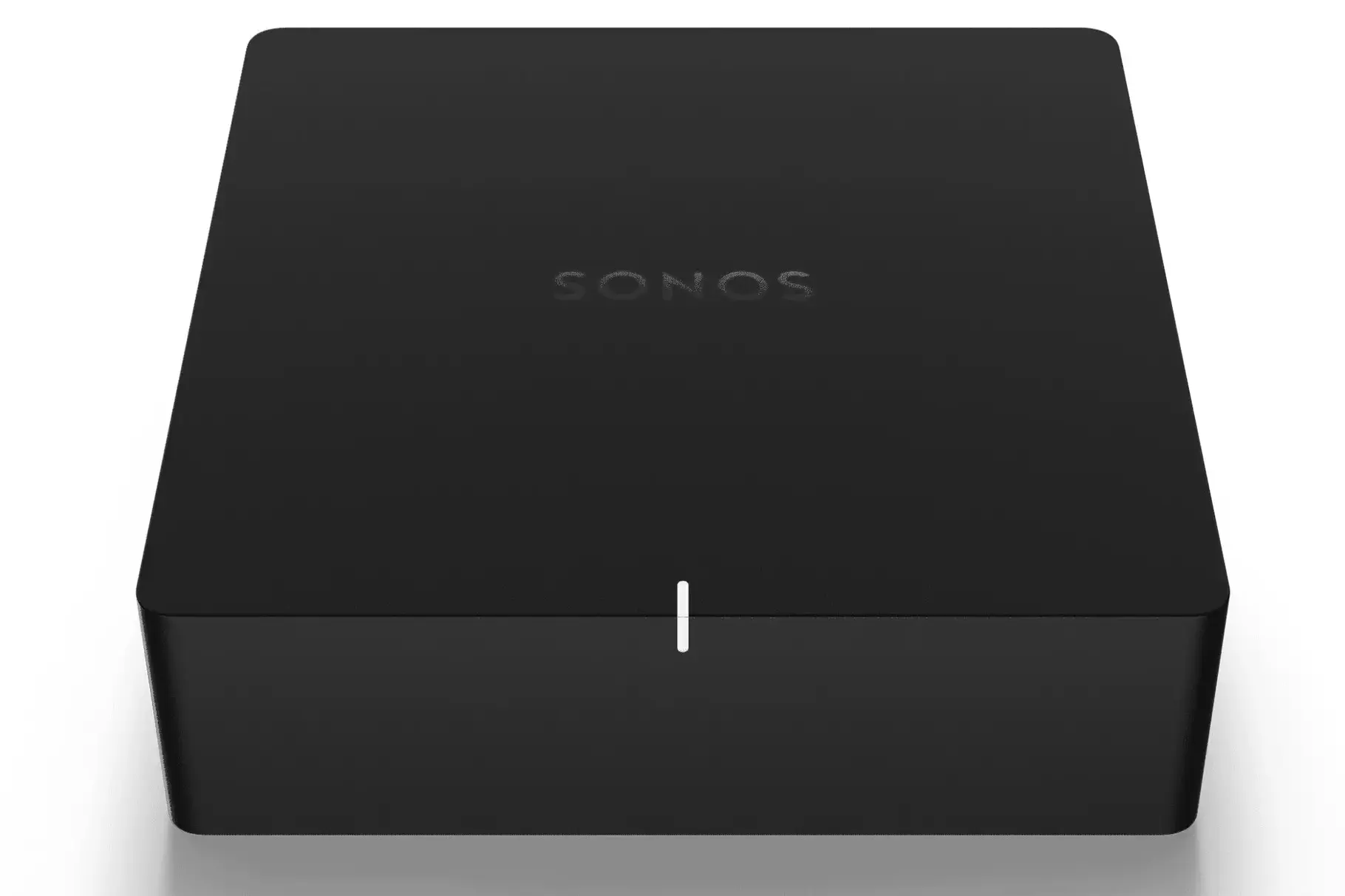

The Sonos Port PORT1US1BLK is a compact network audio streamer designed to bring Sonos streaming, multi-room playback, and app control to an existing stereo receiver, integrated amplifier, powered speakers, or other amplified audio system.

Port provides analog RCA input and output, digital coaxial output, Apple AirPlay 2, Wi-Fi, dual Ethernet ports, and an automatic 12V trigger for compatible amplifiers.

Key Specifications

• Product type: Network audio streamer / Sonos component
• Amplification: None, external amplified equipment required
• Audio output: Stereo or dual mono
• Analog input: Auto-detecting stereo RCA line-in
• Analog output: Stereo RCA line-out
• Digital output: Coaxial digital
• Line-out modes: Fixed, Variable, or Pass-Through
• Amplifier control: 12V trigger output, 200 mA
• Networking: Wi-Fi and dual 10/100 Ethernet ports
• Streaming: Sonos app and Apple AirPlay 2
• EQ: Adjustable bass, treble, and loudness

Who Should Choose Sonos Port?

Choose Port when you already have an amplifier, receiver, stereo system, or powered speakers that you want to keep, but you want to add Sonos streaming and multi-room control.

It is particularly useful for traditional Hi-Fi systems, turntable setups, rack-based audio systems, and existing whole-home audio zones where replacing the amplifier or speakers is unnecessary.

Port Does Not Power Passive Speakers

Sonos Port is a source component, not a power amplifier. Passive speakers still require a compatible receiver or amplifier.

If you need a Sonos component that directly powers passive speakers, Sonos Amp is the more appropriate choice.

Analog RCA and Digital Coax Outputs

Connect Port to an existing amplifier or receiver using its stereo RCA analog line output, or use the digital coaxial output when your downstream equipment has a compatible digital input.

The analog output uses Port's internal digital-to-analog conversion, while the coaxial connection allows compatible downstream equipment to handle digital conversion.

Fixed, Variable, or Pass-Through Output

Port provides three line-out operating modes:

• Fixed: Volume is controlled by the connected amplifier or receiver.
• Variable: Volume can be controlled from the Sonos app.
• Pass-Through: Port remains at fixed output while compatible downstream equipment receives volume commands.

This flexibility makes Port useful with both conventional stereo systems and integrated control setups.

RCA Line-In for Turntables and Other Sources

The auto-detecting stereo RCA input lets you connect compatible analog sources such as CD players, audio components, or a turntable with a built-in or external phono preamp.

Once connected, the line-in source can be selected in the Sonos app and played through Port or shared with other compatible Sonos rooms.

Automatic 12V Trigger

Port includes a 12V trigger output rated at 200 mA. When connected to a compatible amplifier's trigger input, it can bring the amplifier out of standby automatically when playback begins.

This reduces the need to manually power on compatible downstream amplification before listening.

Wi-Fi, Ethernet, and AirPlay 2

Port connects to your network through Wi-Fi or either of its two 10/100 Ethernet ports. Apple AirPlay 2 is supported from compatible Apple devices.

Use the Sonos app to access supported music services, group rooms, manage playback, and integrate Port with other Sonos products.

No Built-In Voice Assistant

Port does not include a microphone or built-in voice assistant. Voice control can be added through another compatible voice-enabled Sonos or smart-home device.

Dimensions and Weight

• Height: 1.61" (41 mm)
• Width: 5.43" (138 mm)
• Depth: 5.43" (138 mm)
• Weight: 1.04 lb (0.47 kg)
• Finish: Matte Black

Its compact chassis can sit on a shelf or be incorporated into a larger AV or whole-home audio rack.

What's Included?

• 1 Sonos Port
• Power adapter
• RCA audio cable
• Setup and warranty documentation

An amplifier or receiver, powered speakers, passive speakers, digital coaxial cable, turntable phono preamp, and other system cables are sold separately unless otherwise specified.

Complete Your Audio System

• Amplifiers
• Streaming Audio Players
• Sonos

Need Help Integrating Sonos Port?

Send Bear Security Shop your amplifier, receiver, powered-speaker, or turntable model and tell us how many rooms or zones you want to connect. We can help determine the best analog or digital connection and whether Port or Sonos Amp is the better fit.

Does Sonos Port power passive speakers?

No. Port is a network audio streamer with line-level outputs. It requires an amplifier, receiver, or powered speakers for audio output.

What outputs does Sonos Port have?

Port provides stereo analog RCA output and a digital coaxial output.

Does Sonos Port have an optical output?

No. Its digital audio output is coaxial, not optical.

Can I connect a turntable?

Yes. Port includes stereo RCA line-in. A turntable must have a built-in phono preamp or connect through an external phono preamp before Port.

Can a line-in source play in other Sonos rooms?

Yes. A source connected to Port's line-in can be selected through the Sonos app and played through compatible Sonos rooms.

Can Sonos Port control my amplifier's power?

Yes, if the amplifier has a compatible 12V trigger input. Port provides a 12V trigger output rated at 200 mA.

Can I control volume from the Sonos app?

Yes when the line-out level is set to Variable. Fixed mode leaves volume control to the amplifier, while Pass-Through supports compatible downstream volume-control systems.

Does Sonos Port support AirPlay 2?

Yes. Compatible Apple devices can stream audio to Port using Apple AirPlay 2.

Does Sonos Port have Ethernet?

Yes. Port includes two 10/100 Ethernet ports in addition to Wi-Fi connectivity.

Does Sonos Port have built-in voice control?

No. Port has no built-in microphone or voice assistant. Voice control requires another compatible voice-enabled device.

Does Port include a phono preamp?

No. A turntable without a built-in phono preamp requires an external phono preamp before connecting to Port's RCA line-in.

What are the dimensions?

Port measures approximately 5.43" wide × 5.43" deep × 1.61" high and weighs approximately 1.04 lb.
