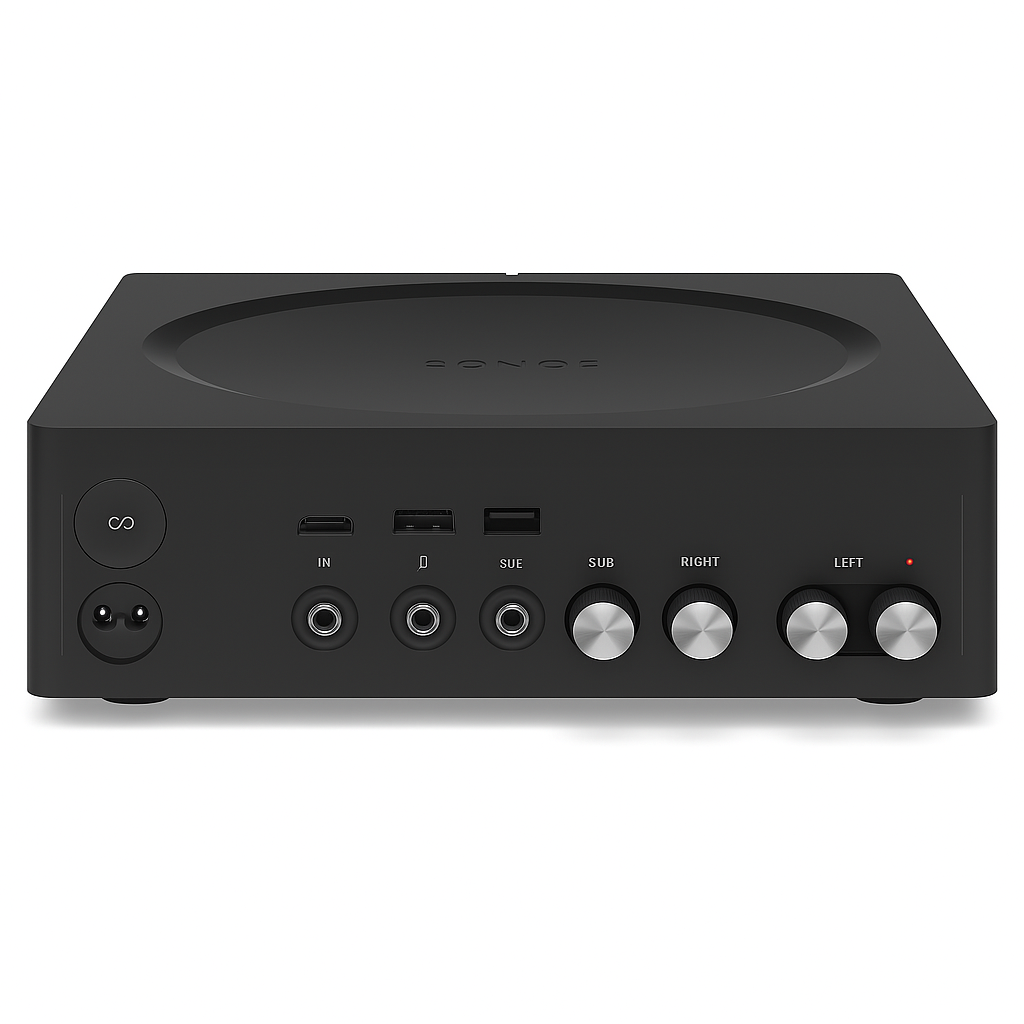

Sonos Amp 125W/Ch Streaming Amplifier with HDMI ARC

Power Passive Speakers and Bring Them Into Sonos

Sonos Amp AMPG1US1BLK is a two-channel streaming amplifier for passive speakers, whole-home audio zones, outdoor systems, stereo listening, and TV sound. It delivers 125 watts per channel into 8-ohm speakers while adding Sonos app control, Wi-Fi streaming, Apple AirPlay 2, HDMI ARC, analog line-in, and a dedicated subwoofer output.

Use it with bookshelf, floorstanding, in-wall or in-ceiling speakers, or outdoor speakers while keeping the source and amplification in one compact component.

Key Specifications

• Amplifier type: Class-D digital amplifier
• Power at 8 ohms: 125W per channel
• Power at 6 ohms: 187.5W per channel
• Power at 4 ohms: 250W per channel
• Minimum speaker impedance: 4 ohms nominal
• Output modes: Stereo or dual mono
• TV connection: HDMI ARC
• Analog input: Stereo RCA line-in
• Subwoofer output: Auto-detecting RCA with adjustable 50–110Hz crossover
• Networking: Wi-Fi and dual 10/100 Ethernet ports
• Streaming: Sonos app, supported music services, Apple AirPlay 2
• Power: 100–240V AC, 50/60Hz

Who Should Choose Sonos Amp?

Choose Sonos Amp when you want to keep passive speakers but add modern streaming, app control, multi-room playback, and TV integration without using a traditional AV receiver.

It works particularly well for architectural speakers, outdoor zones, stereo systems, and rooms where a clean two-channel TV setup is preferred.

125W per Channel at 8 Ohms

Sonos rates Amp at 125 watts per channel into 8-ohm speakers. Sonos also publishes 187.5 watts per channel into 6 ohms and 250 watts per channel into 4 ohms.

Amp supports speakers with a nominal impedance of 4 ohms or higher. Do not connect speakers rated below 4 ohms.

Speaker Compatibility and Multiple Pairs

Sonos recommends speakers rated for at least 125W when using 8-ohm models and at least 200W when using 4-ohm models.

Two pairs of conventional 8-ohm speakers can be connected in parallel. Compatible Sonos Architectural by Sonance speakers have different supported multi-speaker configurations when used with Sonos Amp.

Use appropriate speaker wire and confirm total speaker load before connecting multiple pairs.

HDMI ARC for TV Audio

Connect Amp to a compatible TV through HDMI ARC to play TV audio through your passive speakers and control volume from a compatible TV remote.

Amp provides two front audio channels for TV playback. It is not a Dolby Atmos amplifier and does not provide multichannel amplification by itself.

Supported TV Audio Formats

• Stereo PCM
• Dolby Digital
• DTS Digital Surround

Sonos Amp does not support the broader Dolby Atmos, Dolby TrueHD, or multichannel PCM feature set available on newer Sonos soundbars.

Optical TV Compatibility

If your TV does not have HDMI ARC but provides optical digital audio, Sonos supports connection through the optional Sonos Optical Audio Adapter attached to an HDMI cable.

The optical adapter is sold separately.

RCA Line-In for Turntables and Other Sources

Amp includes stereo RCA line-in for compatible analog sources such as CD players, audio components, and turntables with a built-in or external phono preamp.

The RCA inputs are line-level inputs and do not include a built-in phono preamp.

Dedicated Subwoofer Output

The RCA subwoofer output automatically detects a connected powered subwoofer and provides a user-adjustable crossover from 50Hz to 110Hz.

This allows Sonos Amp to integrate with many powered subwoofers, not only Sonos Sub models.

Sonos Streaming and Multi-Room Audio

Sonos Amp connects to the Sonos app for streaming services, room grouping, volume control, EQ, and multi-room playback.

Apple AirPlay 2 is also supported from compatible Apple devices.

Voice Control Requires Another Device

Sonos Amp does not contain a built-in microphone or voice assistant. Hands-free control requires a compatible voice-enabled Sonos speaker or another supported voice-control device in the system.

Trueplay With Sonos Architectural Speakers

Trueplay tuning on Sonos Amp is available when Amp is paired with supported Sonos Architectural by Sonance speakers and a compatible iOS device.

Trueplay should not be presented as a universal room-calibration feature for every passive speaker connected to Amp.

Dimensions and Placement

• Height: 2.52" (64 mm)
• Width: 8.54" (217 mm)
• Depth: 8.54" (217 mm)
• Weight: 4.63 lb (2.1 kg)
• Finish: Matte Black

When installed on a shelf, Sonos recommends placing Amp near the front and maintaining approximately 3" of clearance around the unit for ventilation.

What's Included?

• 1 Sonos Amp
• 6 ft power cable
• 2 Sonos banana plugs
• Setup guide and warranty documentation

Passive speakers, speaker wire, HDMI cable, optical adapter, third-party powered subwoofer, and source cables are sold separately.

Complete Your Sonos Audio System

• In-Wall & In-Ceiling Speakers
• Outdoor Speakers
• Speaker Wire

Need Help Matching Speakers to Sonos Amp?

Send Bear Security Shop your speaker model, impedance, quantity, room or outdoor-area size, and intended use. We can help confirm speaker load, wiring, amplification, subwoofer integration, and whether one Sonos Amp is enough for your system.

How much power does Sonos Amp provide?

Sonos specifies 125W per channel into 8-ohm speakers, 187.5W per channel into 6 ohms, and 250W per channel into 4 ohms.

What speaker impedance does Sonos Amp support?

Sonos Amp supports passive speakers with a nominal impedance of 4 ohms or higher. Do not connect speakers rated below 4 ohms.

Can Sonos Amp power more than one pair of speakers?

Yes. Two pairs of conventional 8-ohm speakers wired in parallel are supported. Compatible Sonos Architectural speakers may support additional configurations when used according to Sonos requirements.

Can Sonos Amp connect to a TV?

Yes. Connect a compatible TV through HDMI ARC. Amp then powers passive speakers as the front left and right channels.

Does Sonos Amp support Dolby Atmos?

No. Its supported home theater formats include Stereo PCM, Dolby Digital, and DTS Digital Surround.

Does Sonos Amp support optical TV audio?

Yes, with the optional Sonos Optical Audio Adapter when the TV provides optical digital audio but no HDMI ARC connection.

Can I connect a turntable?

Yes, through the RCA line-in if the turntable has a built-in phono preamp or is connected through an external phono preamp.

Can I connect a third-party powered subwoofer?

Yes. Amp includes an auto-detecting RCA subwoofer output with a user-adjustable crossover from 50Hz to 110Hz.

Does Sonos Amp have built-in voice control?

No. Hands-free voice control requires a compatible voice-enabled Sonos speaker or another supported voice-control device.

Does Trueplay work with any passive speaker?

No. Sonos specifies Trueplay tuning with supported Sonos Architectural by Sonance speakers and a compatible iOS device.

Does Sonos Amp support AirPlay 2?

Yes. Compatible Apple devices can stream directly to Sonos Amp using Apple AirPlay 2.

What are the dimensions?

Sonos Amp measures approximately 8.54" wide × 8.54" deep × 2.52" high and weighs 4.63 lb.
