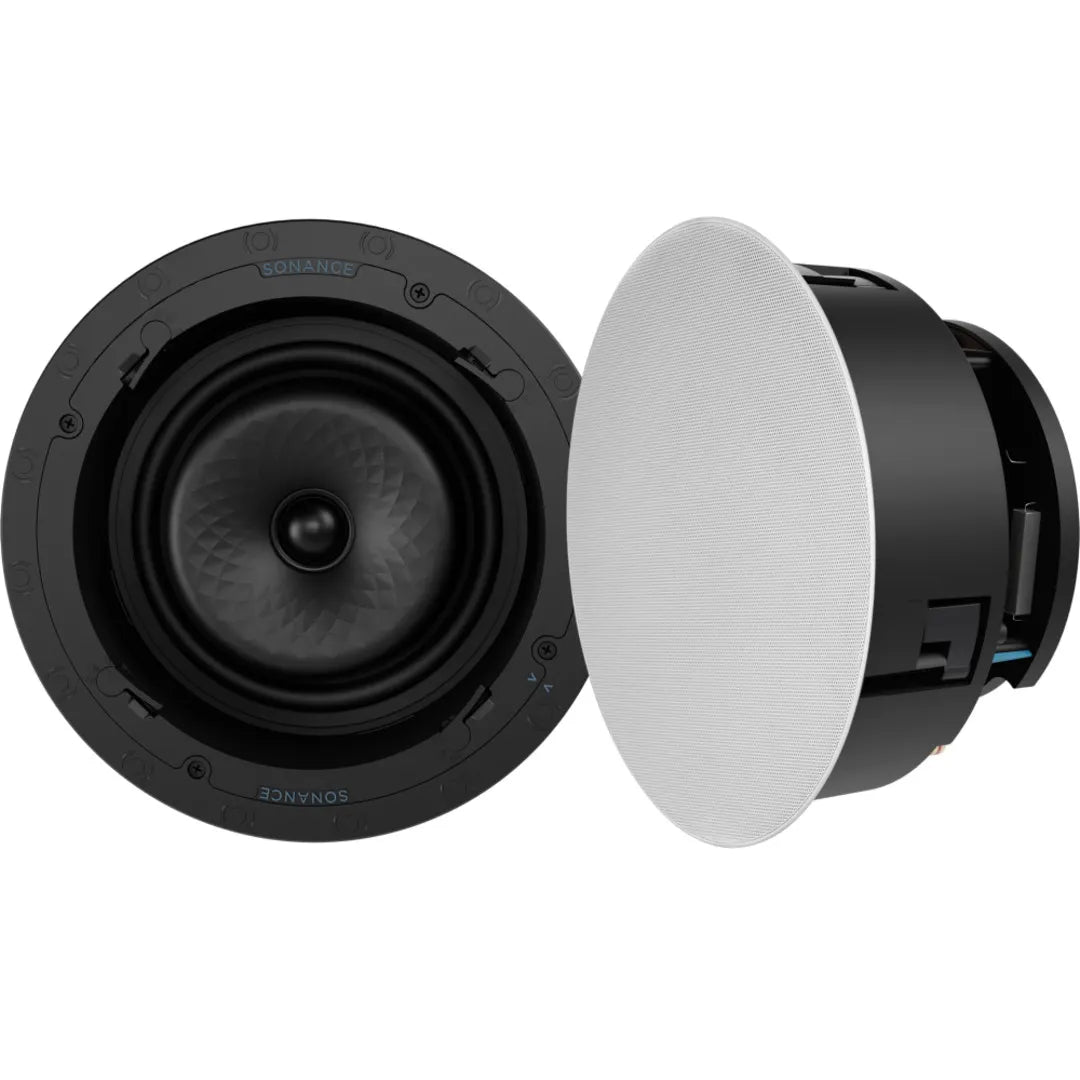

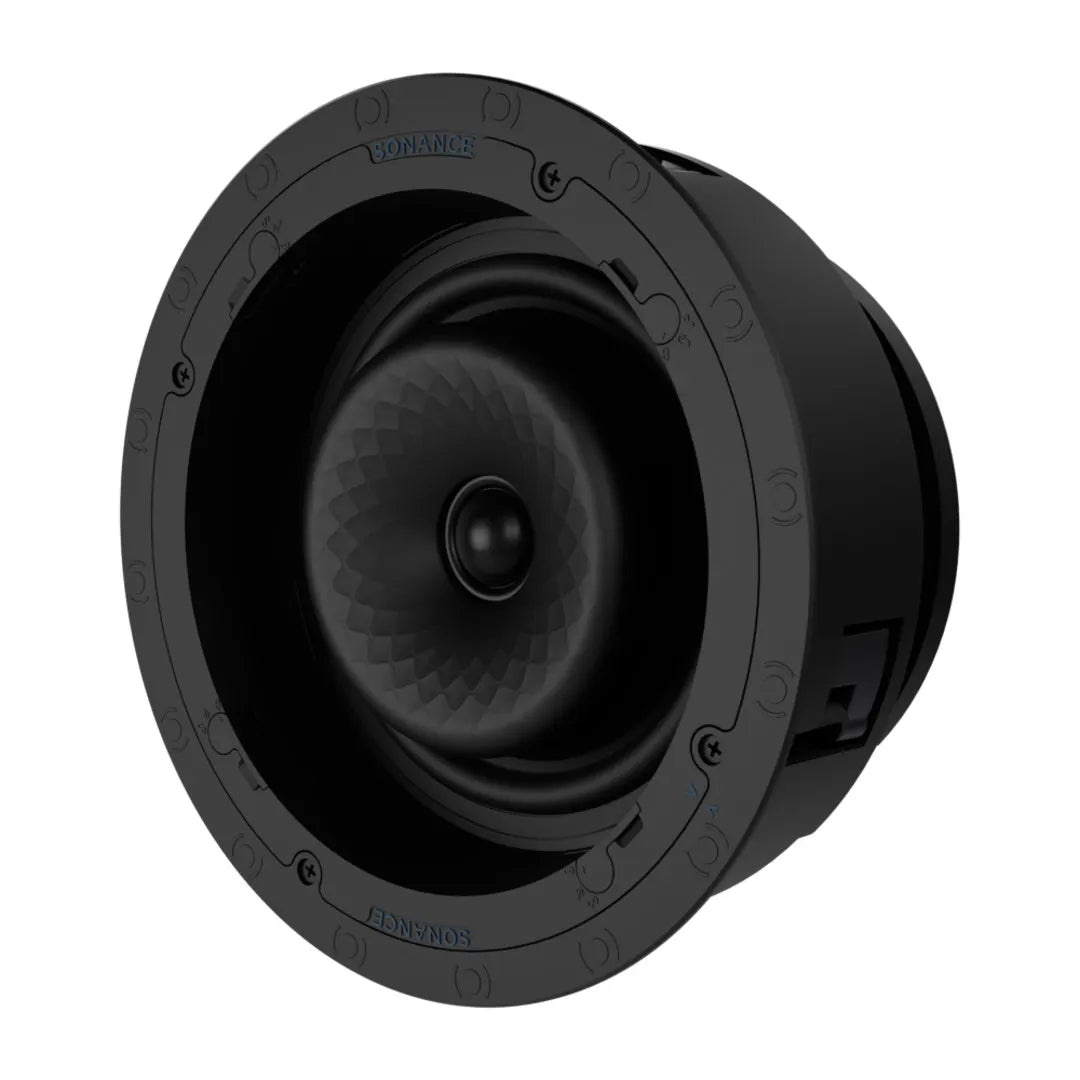

Sonance VX82R 8" In-Ceiling Speaker Pair

The Sonance VX82R is a pair of 8-inch round in-ceiling speakers from the Visual Experience Series, designed for customers who want fuller built-in sound without adding visible speakers to the room. The larger 8-inch woofer makes the VX82R well suited for living rooms, kitchens, media spaces, and whole-home audio zones where balanced coverage and stronger low-frequency performance are important.

Each speaker uses an 8-inch textured polypropylene woofer with rubber surround and a 1.2-inch cloth-dome tweeter. The woofer and tweeter pivot together, allowing the sound to be aimed toward the main listening area after the speaker is installed. Sonance's Sinusoidal Textured Waveguide is designed to provide smooth, consistent coverage across the room.

The VX82R has a frequency response of 38Hz to 20kHz and a sensitivity of 90dB. Its impedance is 8 ohms nominal and 6 ohms minimum, with Sonance specifying RMS power handling from 5 watts minimum to 125 watts maximum. This makes it compatible with a wide range of properly matched home audio amplifiers and receivers.

Installation Requirements

Before ordering, confirm that your ceiling has enough clearance. Each VX82R requires a 10.125-inch (257mm) round cutout and approximately 5.51 inches (140mm) of mounting depth. Sonance uses four RotoLock clamps with its Flex Frame mounting system for either standard one-stage installation or an optional two-stage installation process.

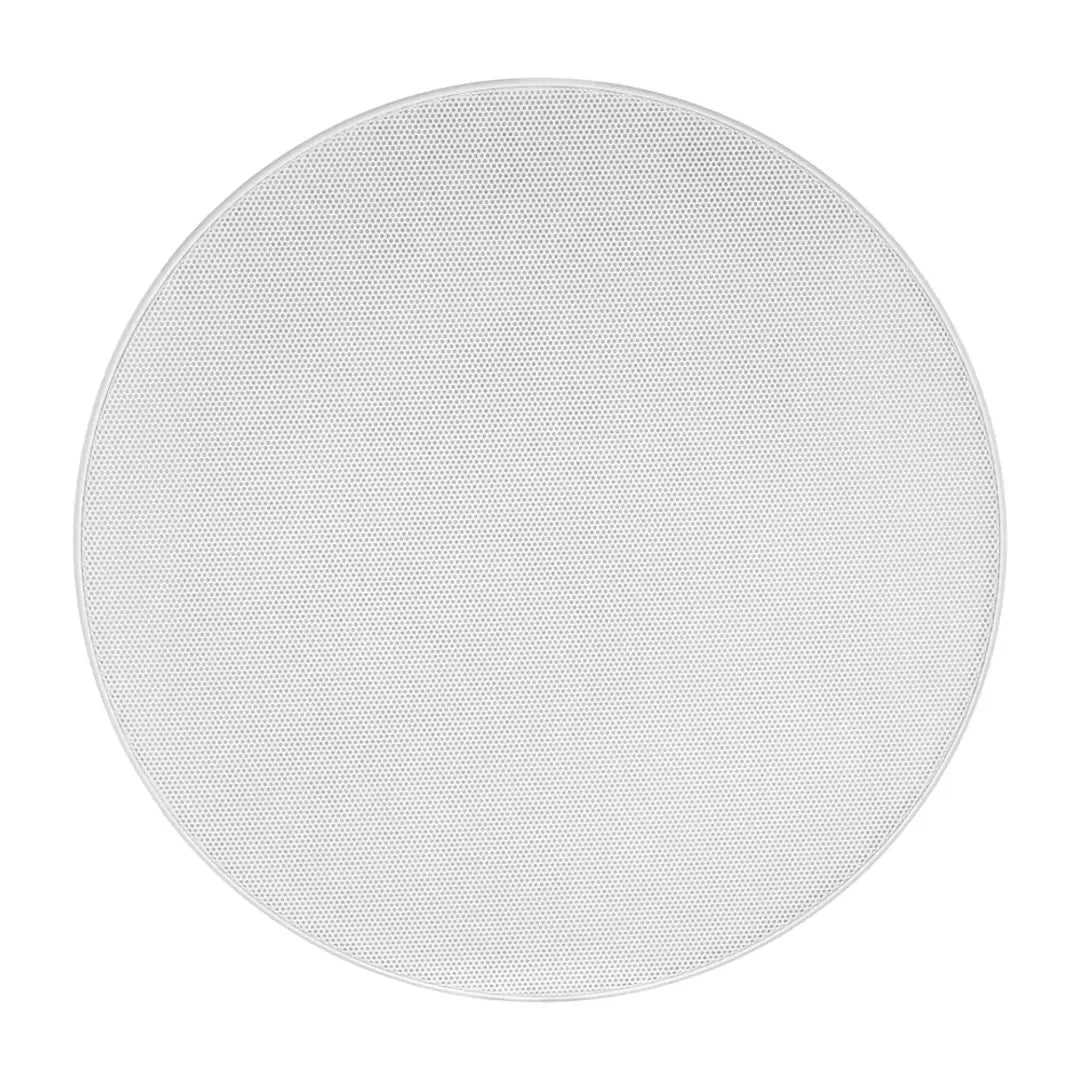

The included round Micro Trim grille measures approximately 11.52 inches in diameter and provides a clean architectural appearance once installed. Optional trimless, square, enclosure, and pre-construction accessories are available separately for installations that require a different finish or mounting method.

Choosing an Amplifier

The VX82R is a passive speaker and requires an external amplifier or AV receiver. When selecting amplification, match the amplifier to the speaker's 8-ohm nominal impedance, the number of speakers being powered, and the listening level you expect. Sonance rates the VX82R for 5 to 125 watts RMS.

For multi-room systems, also consider how many speaker pairs will share each amplifier channel and whether the amplifier supports the resulting speaker load. Browse our audio amplifiers if you need a compatible power source.

Complete Your Audio Setup

Browse more in-wall and in-ceiling speakers, or connect the VX82R using quality speaker wire. For longer runs, the Wirepath 14AWG 2-conductor speaker wire is one option for building a complete wired audio system.

Is the Sonance VX82R sold individually or as a pair?

The VX82R, SKU 96016, is sold as a pair of in-ceiling speakers.

What size ceiling cutout does the VX82R require?

Each speaker requires a 10.125-inch (257mm) diameter ceiling cutout.

How much mounting depth does the VX82R need?

The speaker requires approximately 5.51 inches (140mm) of mounting depth. Check the space above the ceiling before cutting the opening.

What amplifier should I use with the Sonance VX82R?

The VX82R is an 8-ohm nominal passive speaker with Sonance-rated power handling from 5 to 125 watts RMS. Choose an amplifier or AV receiver that is compatible with an 8-ohm speaker load and appropriate for the number of speakers and listening levels in your system.

Can the VX82R speakers be aimed toward the listening area?

Yes. The VX82R uses a pivoting woofer and tweeter assembly, allowing the speaker to be directed toward the primary listening area after installation.

What is the frequency response of the VX82R?

Sonance specifies a frequency response of 38Hz to 20kHz, ±3dB.

Does the VX82R include a grille?

Yes. The standard VX82R includes a white round Micro Trim grille. Sonance also offers optional trimless and square grille configurations separately.
