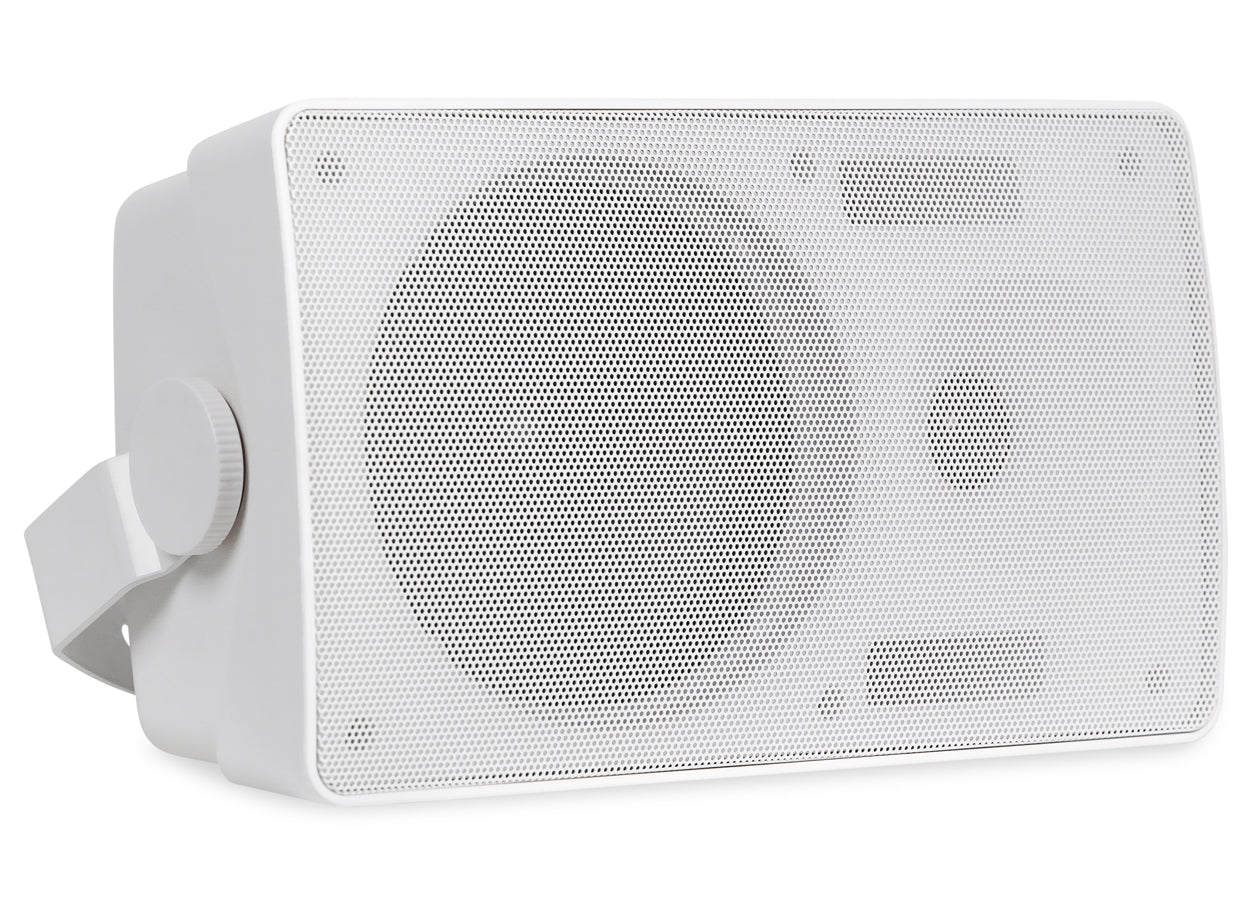

Pure Resonance S6 6.5" All-Weather Surface Mount 70V Speaker

Flexible Indoor and Outdoor Audio from One Surface-Mount Speaker

The Pure Resonance Audio S6 is a 6.5-inch two-way surface-mount speaker designed for indoor and outdoor background music, foreground music, paging, and general-purpose audio. Its built-in transformer supports 70V and 100V distributed systems, while an 8-ohm bypass allows use with compatible conventional amplifiers.

Best Uses

• Patios, covered outdoor areas, and pool surroundings
• Restaurants, cafés, bars, and retail spaces
• Offices, schools, fitness facilities, and meeting areas
• Background music and paging systems
• 70V or 100V systems requiring multiple speakers over longer cable runs

70V, 100V, and 8-Ohm Compatibility

• 70V taps: 3.75W, 7.5W, 15W, 30W, 60W
• 100V taps: 7.5W, 15W, 30W, 60W
• Low-impedance mode: 8-ohm bypass
• Power handling: 60W RMS, 180W peak

For 70V or 100V systems, add the selected tap wattage of every speaker connected to the amplifier. Leave amplifier headroom rather than designing the system at the amplifier's maximum rated output.

When using the 8-ohm bypass, connect the S6 only to an amplifier designed for conventional low-impedance speakers.

Speaker Performance

• 6.5-inch polypropylene woofer
• 1-inch silk tweeter
• Frequency response: 80 Hz to 18 kHz
• Sensitivity: 92 dB at 1W/1m
• Maximum SPL: 111 dB
• Coverage: 110° horizontal × 110° vertical

Outdoor and Weather Resistance

The S6 uses a UV-protected ABS enclosure and carries an IP65 weather-resistance rating. IP65 provides protection against dust and water jets, making the speaker suitable for many outdoor installations.

IP65 does not mean waterproof or suitable for permanent underwater installation. Avoid submersion and install the speaker and wiring connections according to the manufacturer's outdoor-installation guidance.

Mounting and Connections

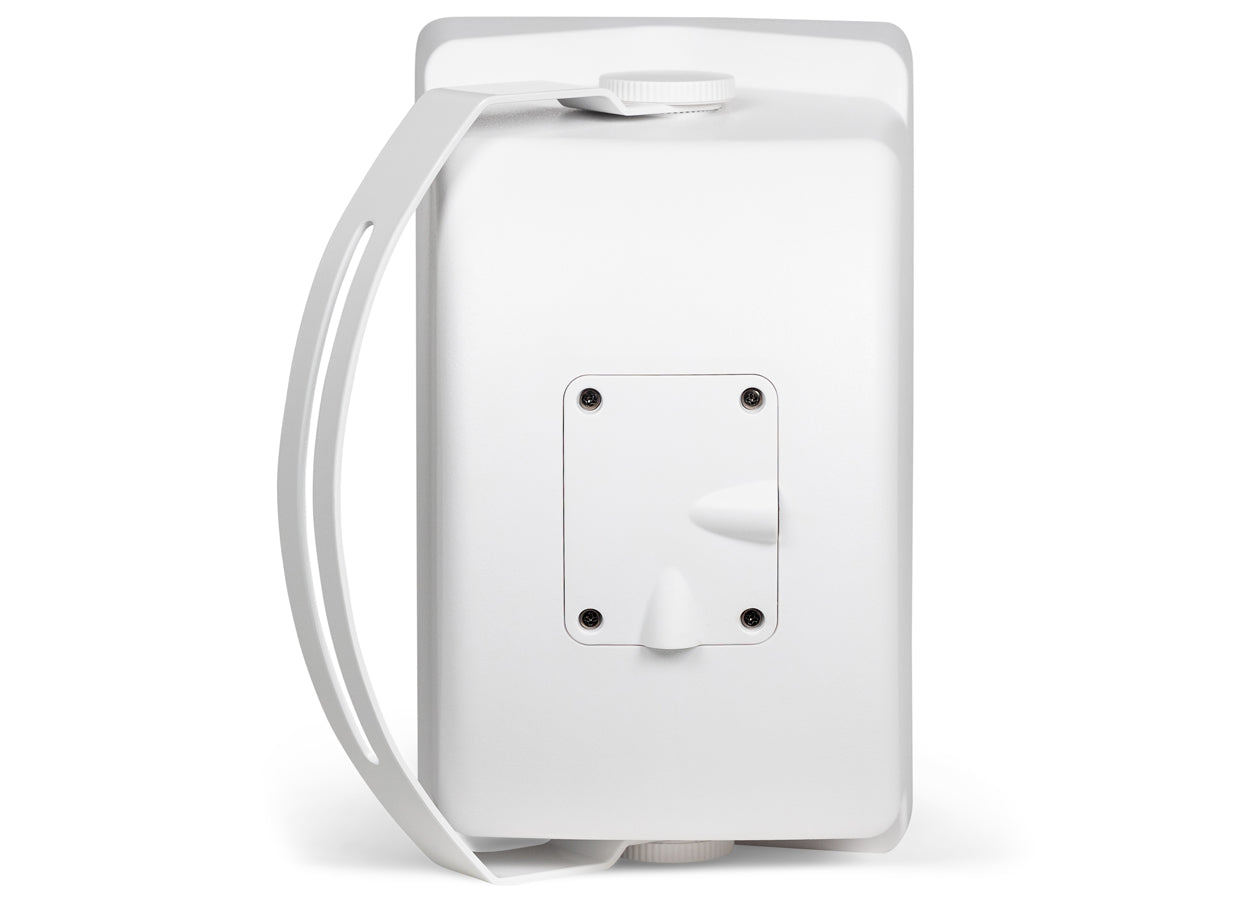

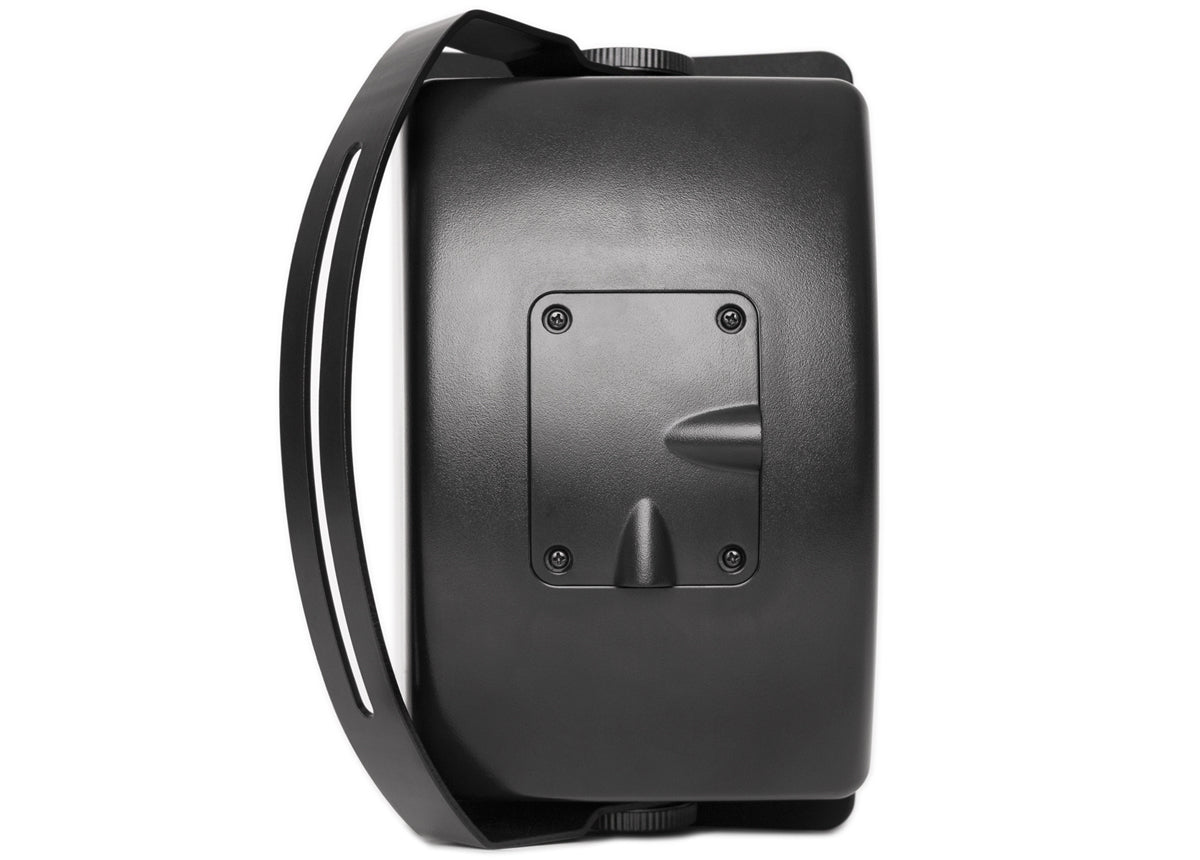

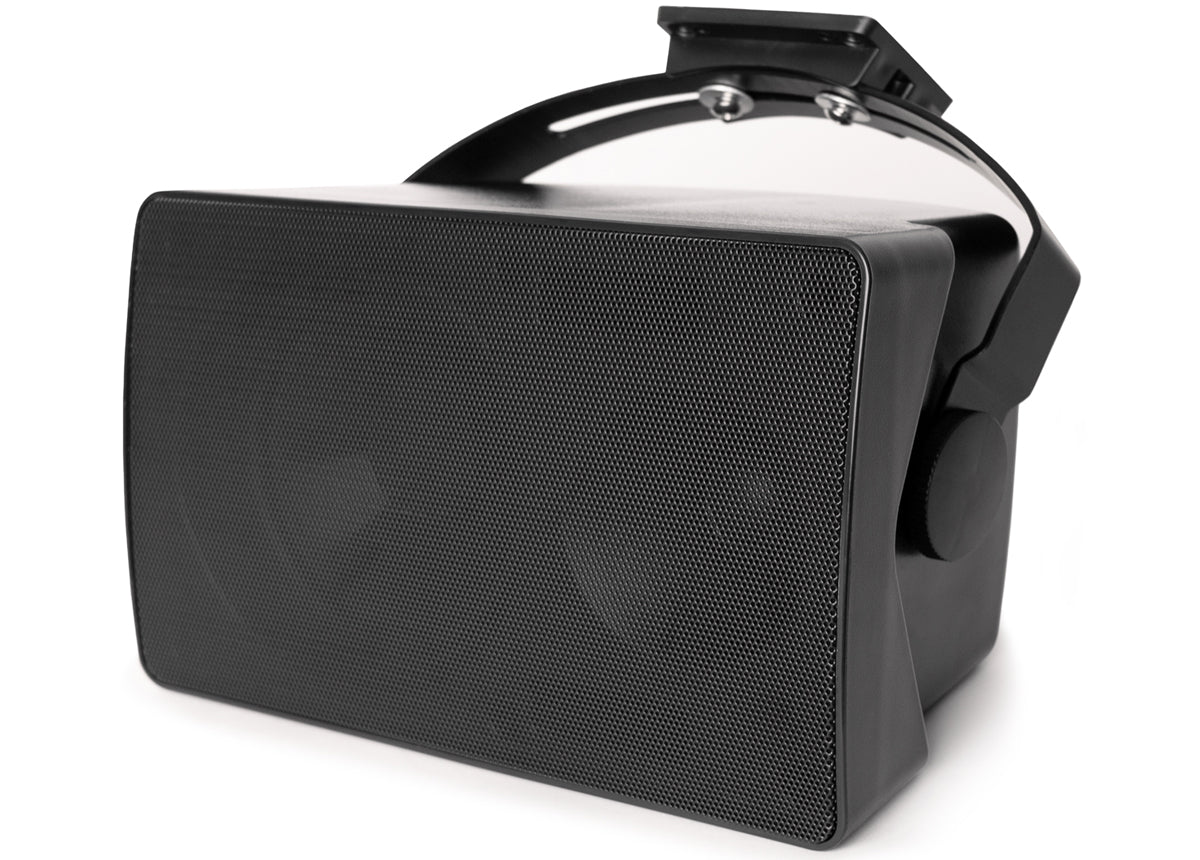

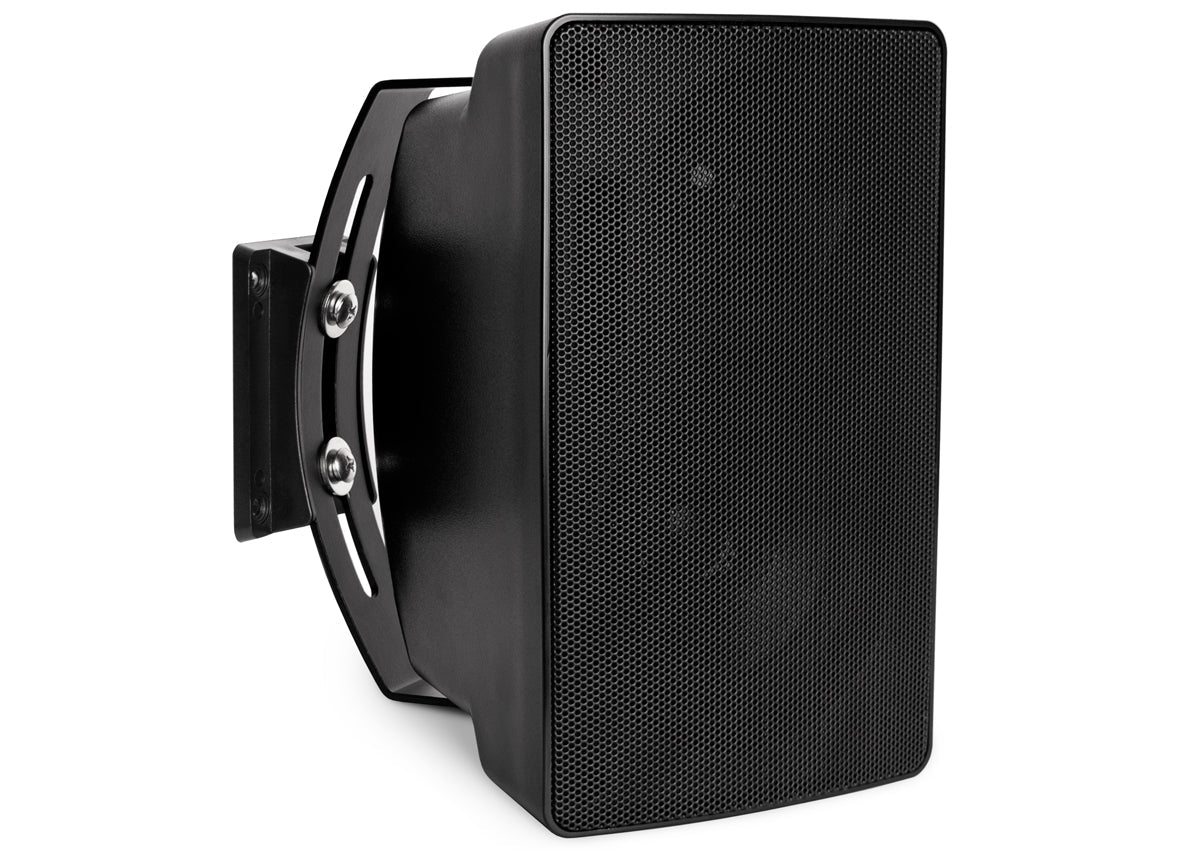

• Included 180-degree surface-mount bracket
• Suitable for walls, awnings, overhangs, and similar structures

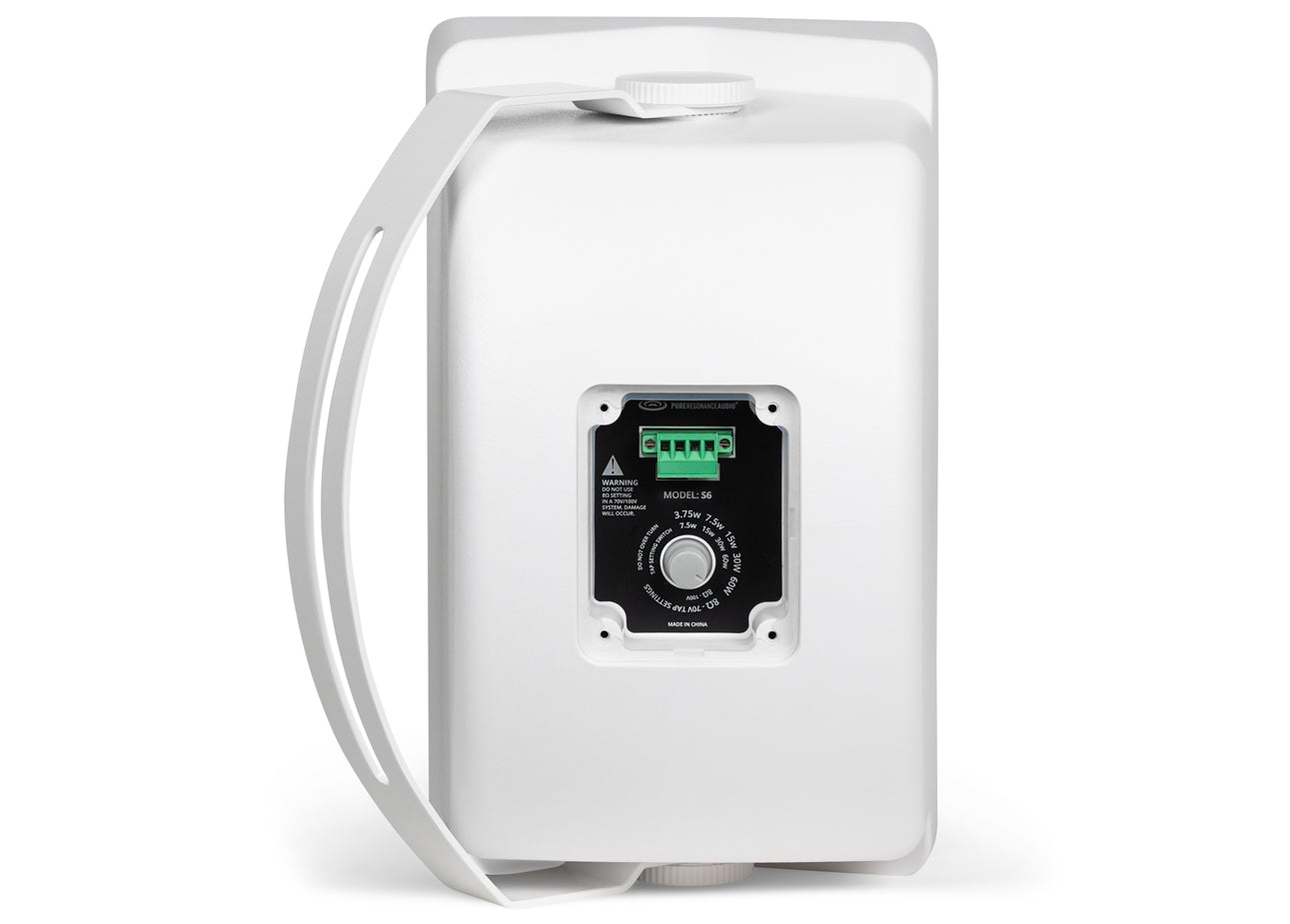

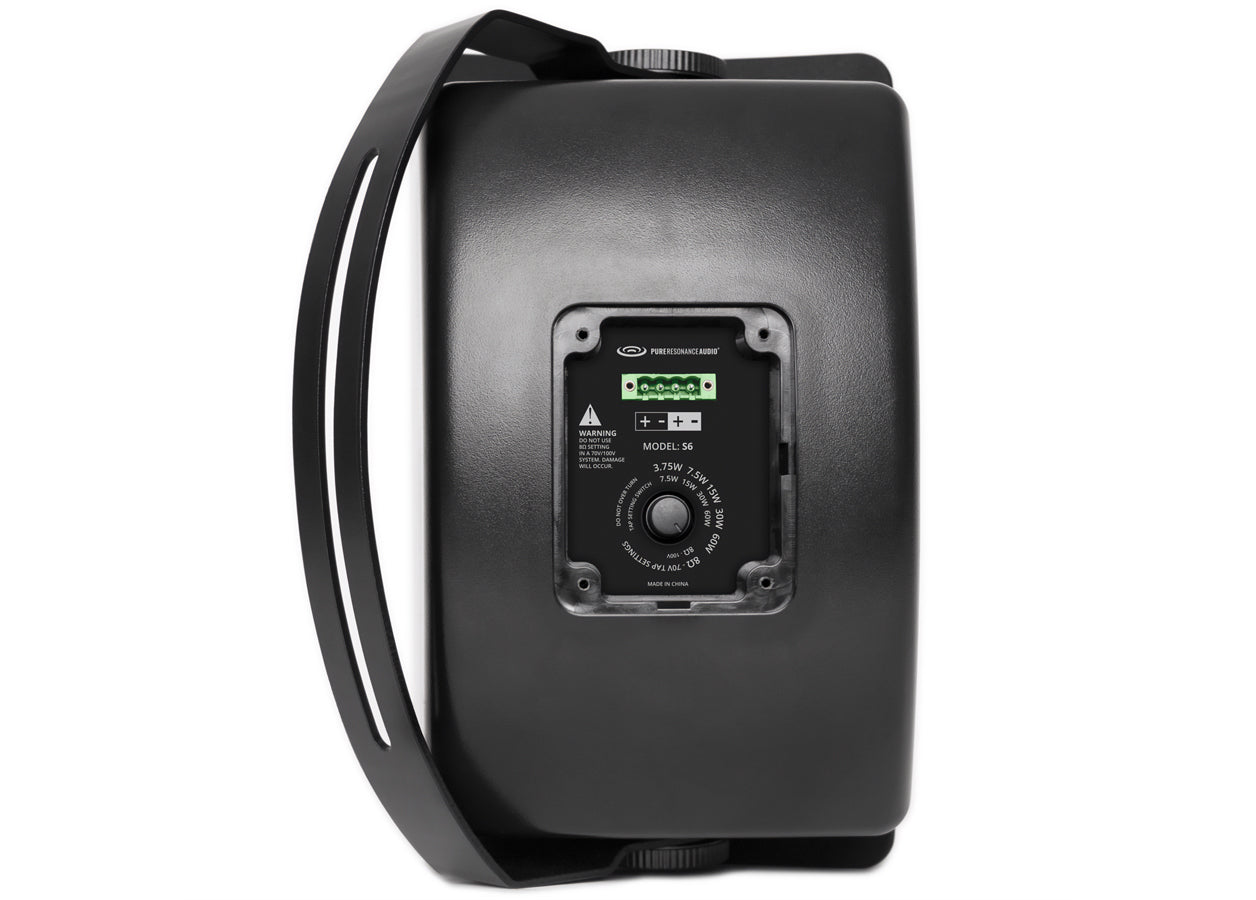

• 4-pin Phoenix Euroblock screw-terminal connection

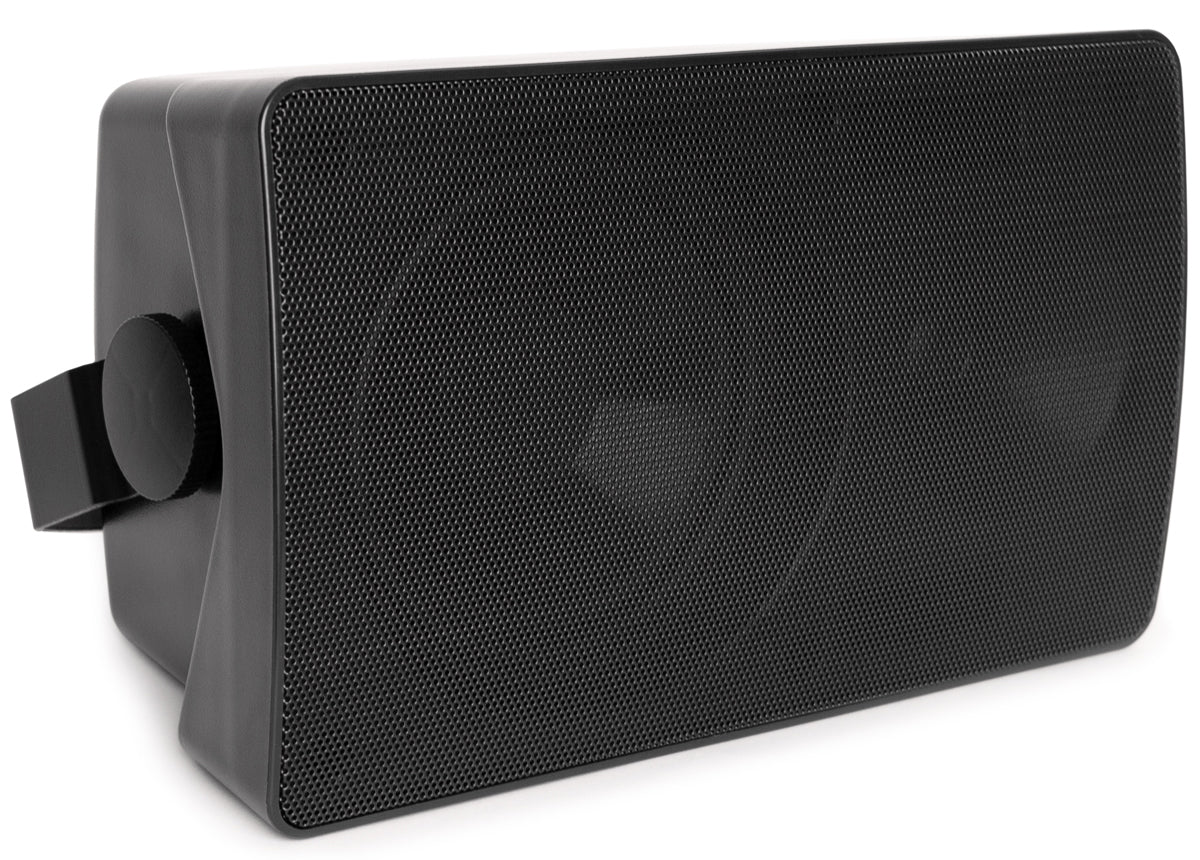

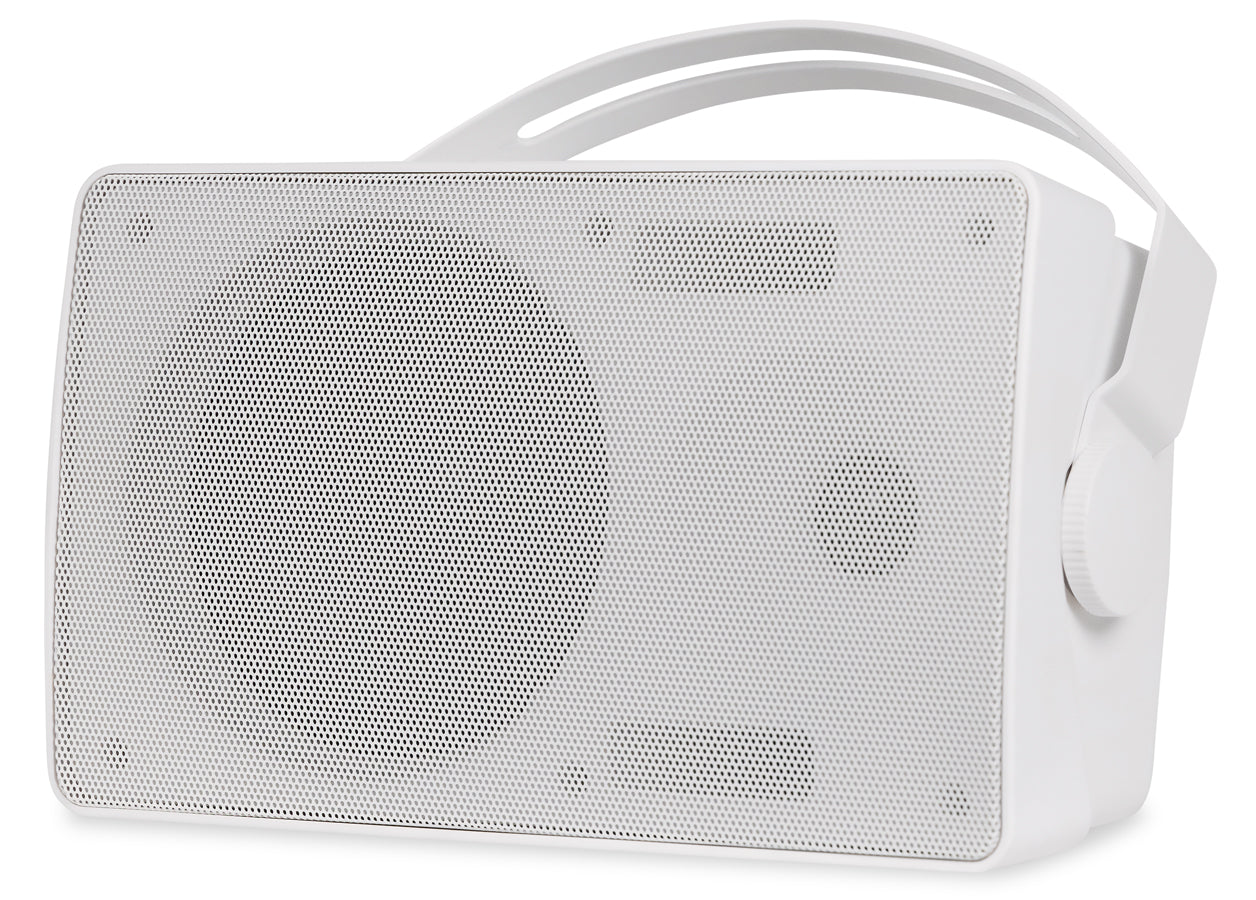

• Metal grille
• Black UV-protected ABS enclosure

What Is Included

• One Pure Resonance Audio S6 speaker
• One surface-mount bracket

Sold Separately

• Compatible 70V, 100V, or 8-ohm amplifier
• Speaker wire
• Audio source, mixer, streamer, or controller

The S6 is a passive speaker. It does not include Bluetooth, Wi-Fi, streaming, app control, PoE, or a built-in amplifier. These functions depend on the separately purchased audio source and amplifier.

Dimensions and Weight

• Without bracket: 11.63 × 7.5 × 7.5 inches
• With bracket: 11.63 × 7.5 × 9.63 inches
• Weight: 7.9 lb

Need Help Planning Your Speaker System?

Send Bear Security Shop your amplifier model, number of speakers, cable-run lengths, listening area, and preferred 70V, 100V, or 8-ohm configuration. We will help confirm tap settings, amplifier capacity, and system compatibility.

Is the Pure Resonance Audio S6 sold individually or as a pair?

It is sold individually. Each purchase includes one S6 speaker and one surface-mount bracket.

Is the S6 powered or passive?

It is passive and requires a separate amplifier.

Does it support 70V systems?

Yes. The selectable 70V taps are 3.75W, 7.5W, 15W, 30W, and 60W.

Does it support 100V systems?

Yes. The selectable 100V taps are 7.5W, 15W, 30W, and 60W.

Can it be used with a regular 8-ohm amplifier?

Yes. The S6 includes an 8-ohm bypass for use with compatible conventional amplifiers.

How many S6 speakers can I connect to a 70V amplifier?

Add the selected wattage tap of every speaker. The total should remain below the amplifier's rated 70V output, with additional headroom recommended for reliable operation.

Does the S6 have Bluetooth or Wi-Fi?

No. Bluetooth, Wi-Fi, streaming, and app control depend on the separate amplifier or audio source.

Is the S6 waterproof?

No. It is IP65 rated and designed to resist dust and water jets, but it should not be submerged or described as waterproof.

Can it be installed outdoors?

Yes. The IP65-rated, UV-protected enclosure is designed for indoor and outdoor installations when properly mounted and wired.

What are the dimensions and weight?

The speaker measures 11.63 × 7.5 × 7.5 inches without the bracket and weighs 7.9 lb.

What should I confirm before ordering?

Confirm your amplifier type, 70V or 100V tap plan or 8-ohm configuration, number of speakers, cable length, mounting location, and required sound level.
