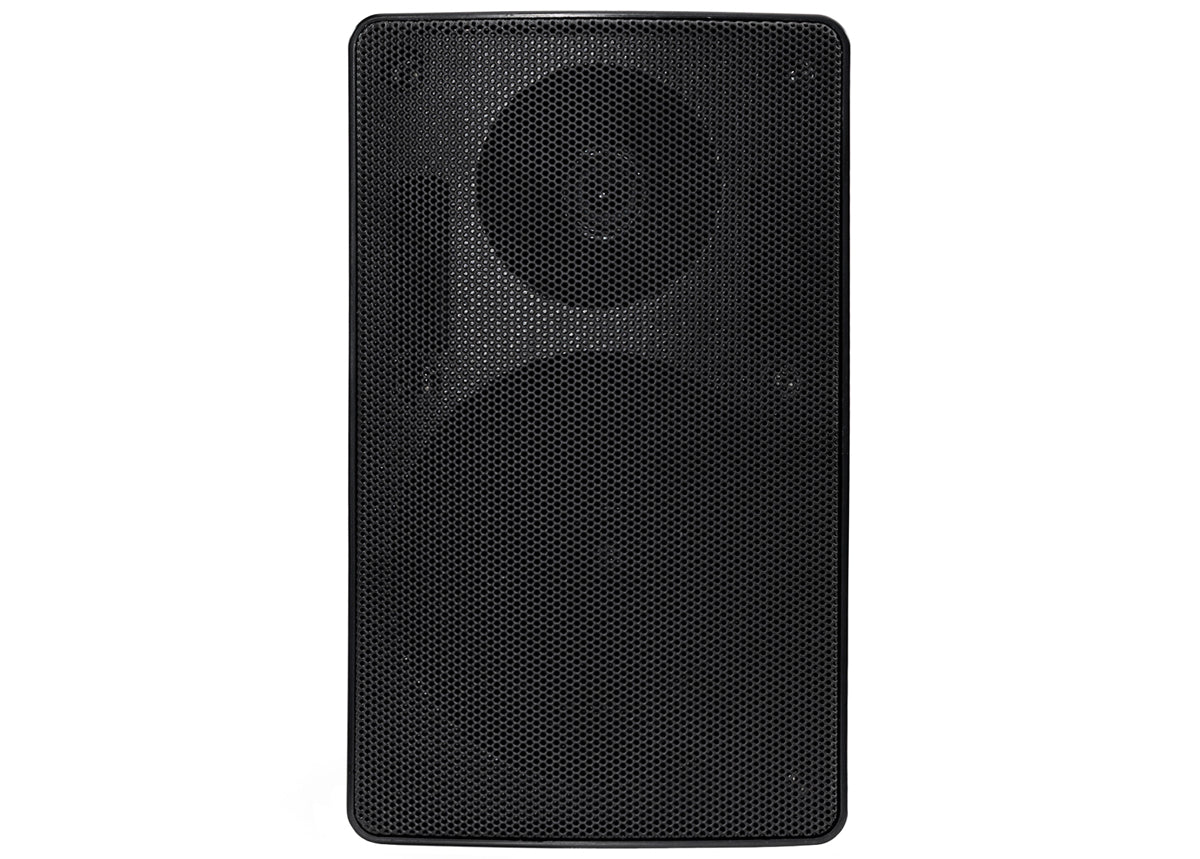

Pure Resonance Audio S5 4.5 Inch Outdoor Surface Mount Speaker

Compact Indoor/Outdoor Sound for Music and Paging

The Pure Resonance Audio S5 is a compact 4.5" two-way surface-mount speaker designed for background music, paging, and general-purpose audio in indoor or outdoor spaces. Its small enclosure is easy to place under overhangs, on walls, or in tighter areas where a larger surface-mount speaker would be unnecessary.

The S5 supports 70V and 100V distributed-audio systems and also includes an 8-ohm bypass for compatible low-impedance amplifiers.

Key Specifications

• Product type: Passive 2-way indoor/outdoor surface-mount speaker
• Sold as: Single speaker
• Woofer: 4.5" polypropylene
• Tweeter: 0.75" silk
• Power handling: 40W RMS / 120W peak
• Frequency response: 90Hz–16kHz (±10dB)
• Sensitivity: 92dB at 1W/1m
• Maximum SPL: 102dB
• Dispersion: 110° horizontal × 110° vertical
• 70V taps: 2.5W, 5W, 10W, 20W, 40W
• 100V taps: 5W, 10W, 20W, 40W
• Low-impedance mode: 8-ohm bypass
• Weather protection: IP65
• Connection: 4-pin Euroblock

Who Should Choose the S5?

Choose the S5 when you need a compact surface-mount speaker for patios, walkways, retail stores, classrooms, gyms, restaurants, hospitality areas, or smaller residential outdoor zones where clear music and paging matter more than deep bass or very high output.

Its wide 110° × 110° dispersion makes it useful for covering smaller areas with fewer directional constraints than a narrow-dispersion speaker.

4.5-Inch Two-Way Design

The S5 uses a 4.5" polypropylene woofer and 0.75" silk tweeter for full-range music and voice reproduction.

Pure Resonance Audio specifies a 90Hz–16kHz frequency response, 92dB sensitivity, and a maximum SPL of 102dB.

40W RMS Power Handling

The S5 is rated for 40W RMS and 120W peak power handling.

These are speaker power-handling specifications. The S5 is passive and requires a compatible amplifier.

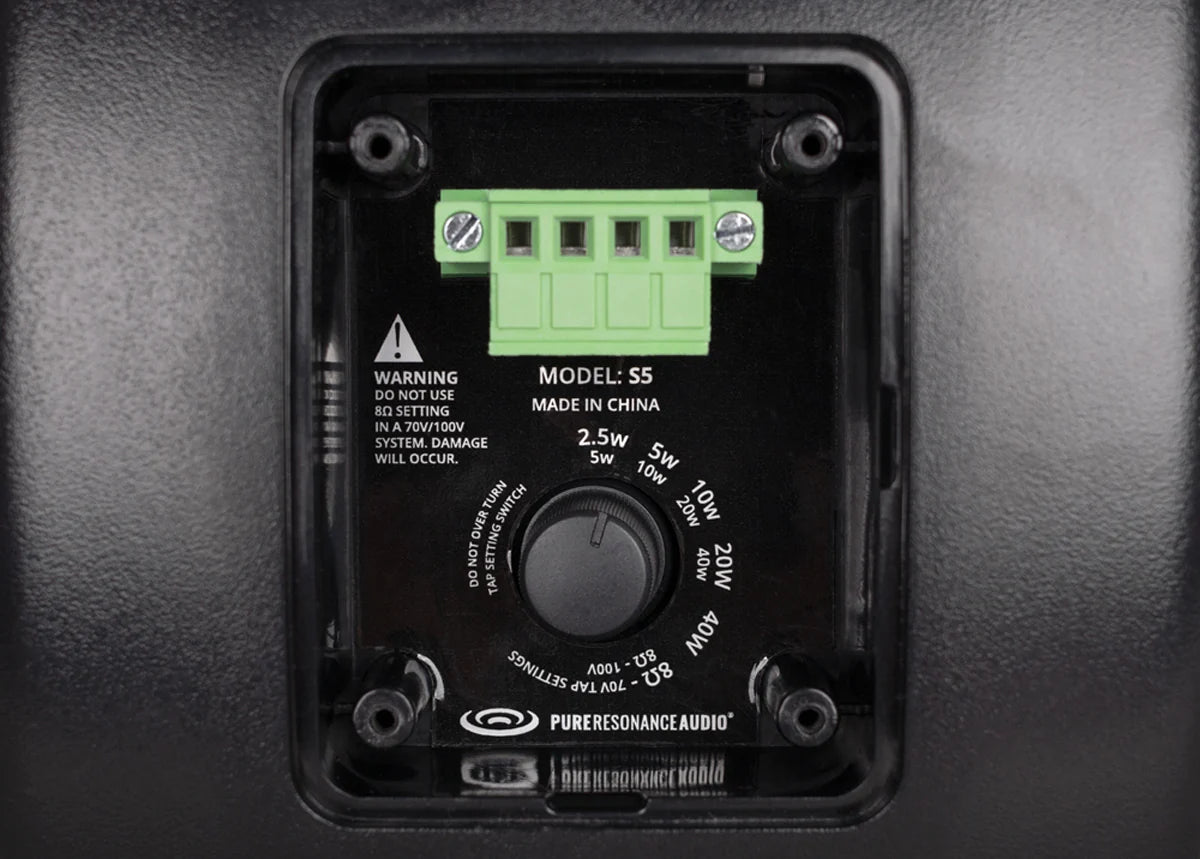

70V and 100V Distributed-Audio Compatibility

The built-in transformer provides selectable taps for distributed-audio systems:

• 70V: 2.5W, 5W, 10W, 20W, or 40W
• 100V: 5W, 10W, 20W, or 40W

When using multiple speakers on a constant-voltage amplifier, add the selected tap wattages and allow appropriate amplifier headroom.

8-Ohm Bypass

The S5 can also operate in 8-ohm mode with a compatible low-impedance amplifier. Confirm total speaker load and amplifier compatibility before using bypass mode.

IP65 Weather Protection

The S5 uses a UV-protected ABS enclosure with IP65 weather resistance for suitable indoor and outdoor installations.

IP65 protects against dust and water exposure but does not mean the speaker is designed for submersion.

110° × 110° Coverage

The S5 provides a wide 110° horizontal × 110° vertical dispersion pattern. Actual coverage depends on mounting height, aiming, room or outdoor acoustics, and listener distance.

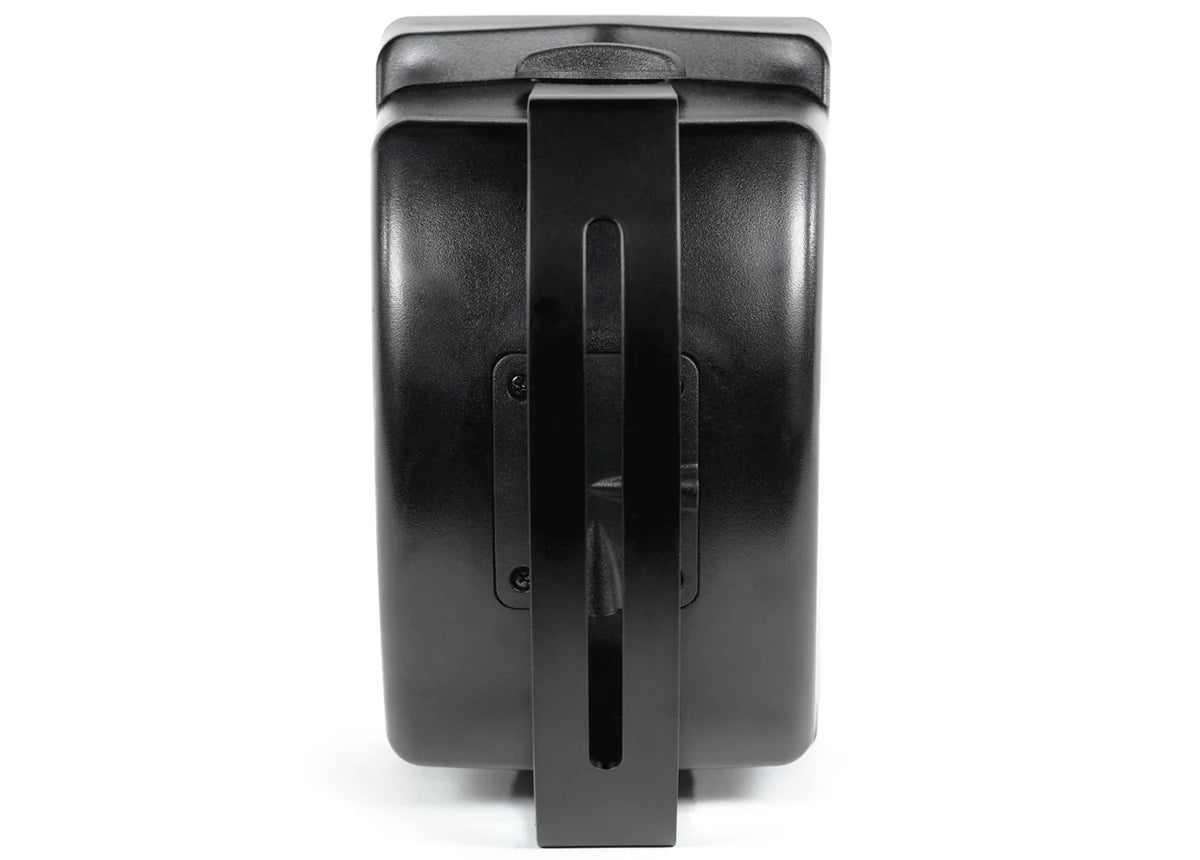

180° Surface-Mount Bracket

The included 180° bracket allows flexible aiming on walls, under overhangs, or in other surface-mount locations.

The speaker also includes a mounting plate for installation.

Euroblock Connection

A 4-pin Euroblock screw terminal provides the speaker connection for distributed-audio and low-impedance wiring.

Use appropriately rated speaker wire for the amplifier type, cable length, and installation environment.

Dimensions and Weight

• Height: 9.45" (240 mm)
• Width: 5.71" (145 mm)
• Depth: 5.63" (143 mm)
• Weight: 4.85 lb (2.2 kg)

What's Included?

• 1 Pure Resonance Audio S5 speaker
• 1 180° mounting bracket
• 1 mounting plate

The amplifier, speaker wire, and additional installation hardware are sold separately.

Complete Your Audio System

• Pure Resonance Audio
• Outdoor Speakers
• Speaker Wire

Need Help Matching the Amplifier?

Send Bear Security Shop your speaker quantity, cable lengths, amplifier model, and whether you plan to use 70V, 100V, or 8-ohm operation. We can help confirm tap settings, amplifier power, and wiring.

Is the Pure Resonance Audio S5 sold individually or as a pair?

The S5 is sold individually.

Does the S5 support 70V systems?

Yes. Available 70V taps are 2.5W, 5W, 10W, 20W, and 40W.

Does it support 100V systems?

Yes. Available 100V taps are 5W, 10W, 20W, and 40W.

Can I use the S5 with an 8-ohm amplifier?

Yes. It includes an 8-ohm bypass for compatible low-impedance amplifiers.

What is the power handling?

Pure Resonance Audio specifies 40W RMS and 120W peak power handling.

What drivers does the S5 use?

It uses a 4.5" polypropylene woofer and a 0.75" silk tweeter.

What is the frequency response?

The specified frequency response is 90Hz–16kHz at ±10dB.

What is the coverage pattern?

The manufacturer specifies 110° horizontal × 110° vertical dispersion.

Is the S5 suitable for outdoor use?

Yes. It has an IP65 weather-resistant enclosure designed for suitable outdoor installations. It is not designed for submersion.

What connection does it use?

The S5 uses a 4-pin Euroblock screw terminal.

Is the mounting bracket included?

Yes. The speaker includes a 180° mounting bracket and mounting plate.
