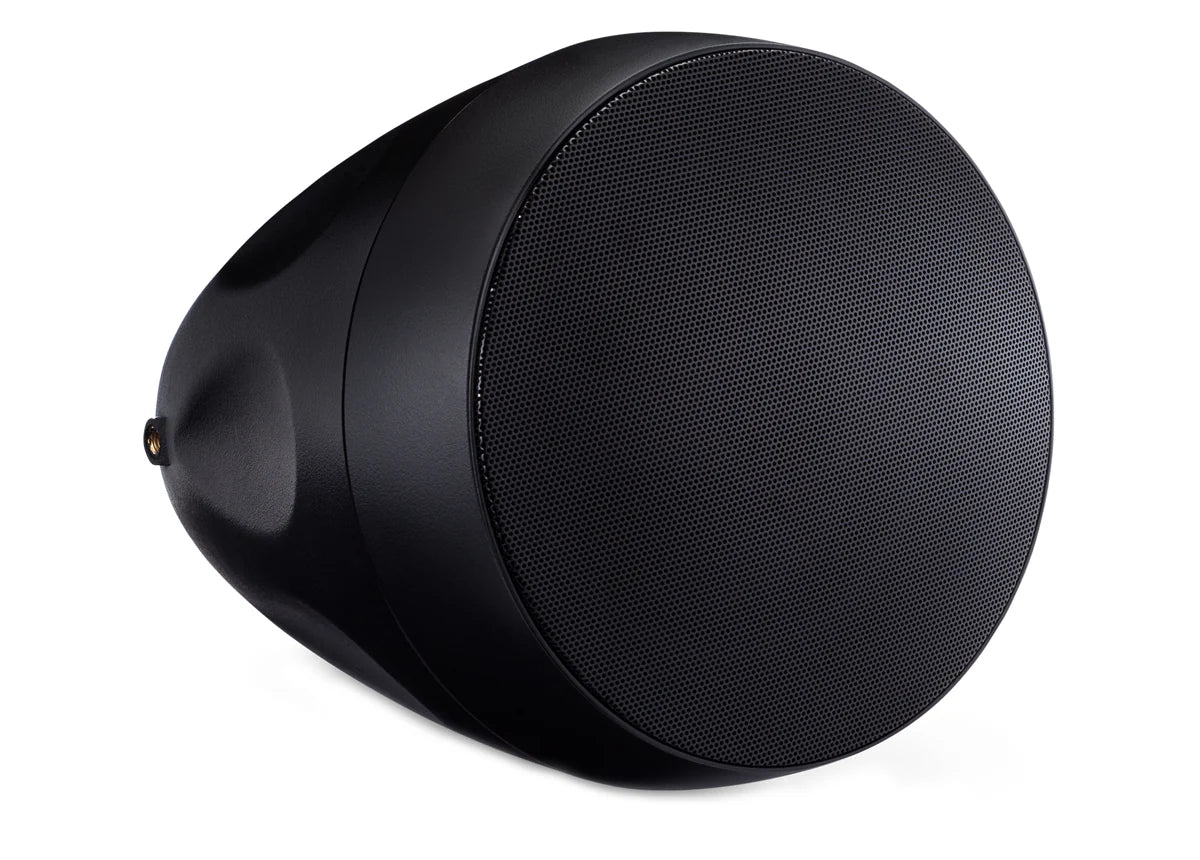

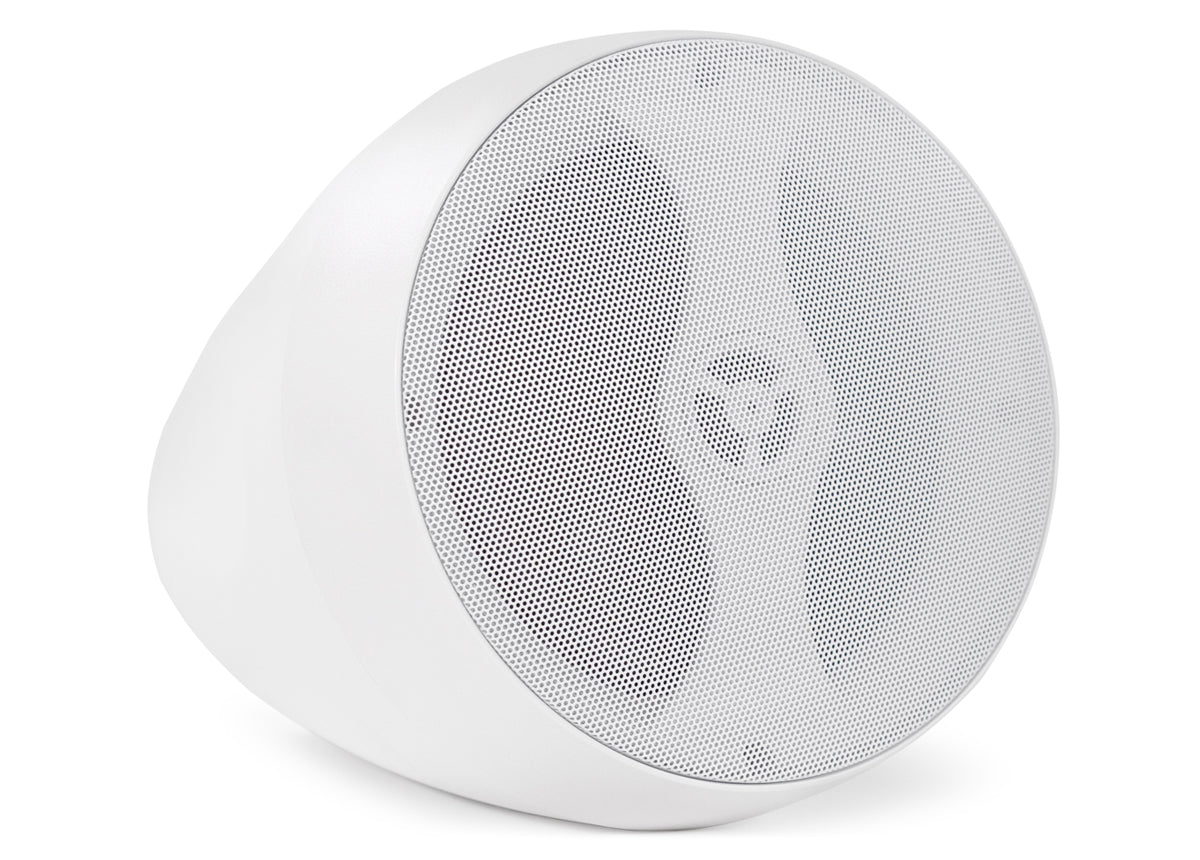

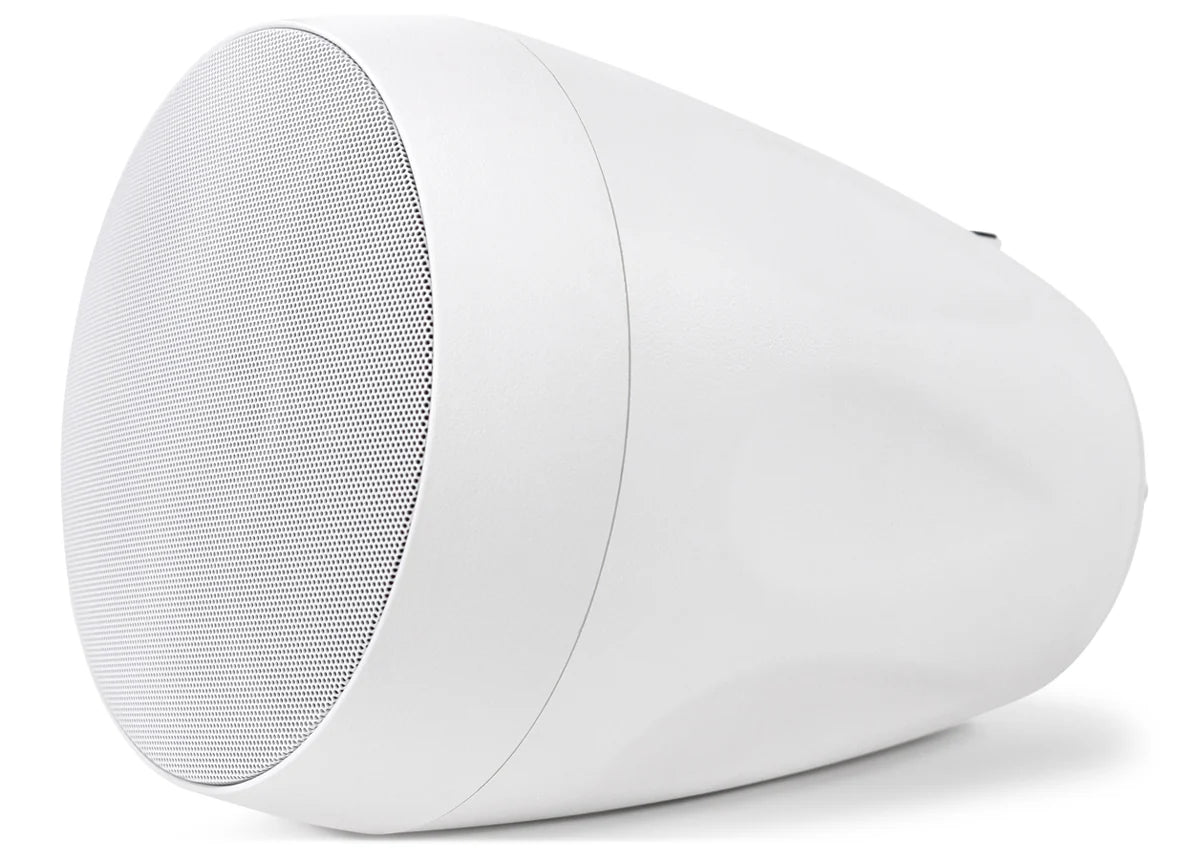

Pure Resonance Audio PD6 6.5 Inch 70V Pendant Speaker

Wide-Coverage Pendant Speaker for Open-Ceiling Spaces

The Pure Resonance Audio PD6 is a 6.5" two-way pendant speaker designed for background music, foreground music, paging, announcements, and sound reinforcement in open-ceiling spaces. Sold individually, it combines wide coverage, flexible distributed-audio compatibility, and included suspension hardware for restaurants, retail spaces, offices, warehouses, fitness facilities, hospitality environments, and other open-architecture installations.

The PD6 uses a 6.5" polypropylene woofer and 1" black-silk tweeter with a down-firing design that provides broad 150° conical coverage.

Key Specifications

• Model: PD6
• Product type: 2-way pendant loudspeaker
• Sold as: Single speaker
• Woofer: 6.5" polypropylene
• Tweeter: 1" black silk
• Power handling: 30W RMS / 70W peak
• Frequency response: 65Hz–20kHz (±10dB)
• Sensitivity: 87dB at 1W/1m
• Maximum SPL: 101dB
• Dispersion: 150° conical
• Nominal impedance: 8 ohms in bypass mode

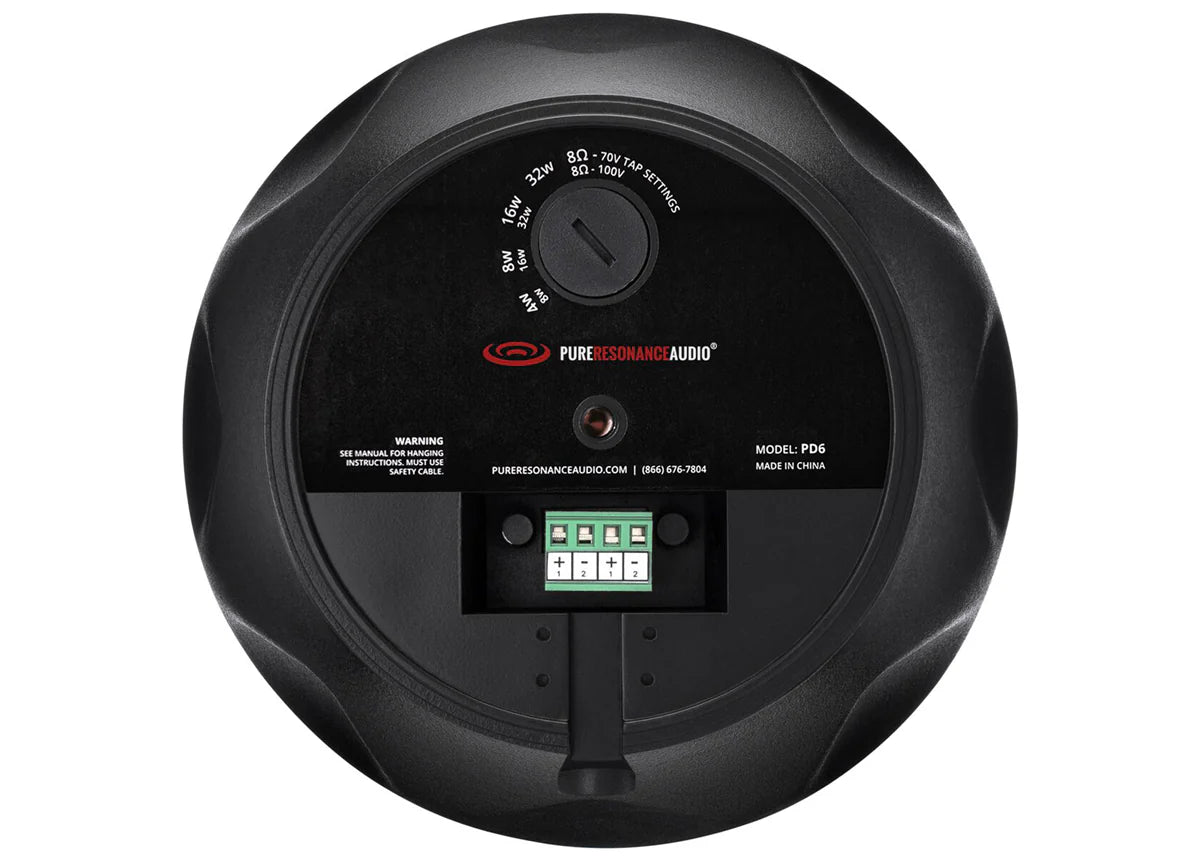

• 70V taps: 4W, 8W, 16W, or 32W
• Transformer: Designed for 70V/100V distributed-audio systems
• Connection: 4-pin Euroblock screw terminal
• Grille: Powder-coated aluminum

Who Should Choose the PD6?

Choose the PD6 when conventional flush-mount ceiling speakers are not practical and you need suspended speakers for an exposed, vaulted, or open-plenum ceiling.

Its wide dispersion and flexible transformer operation make it especially useful for distributed music and paging systems where consistent overhead coverage matters.

6.5-Inch Two-Way Design

The PD6 combines a 6.5" polypropylene woofer with a 1" black-silk tweeter for clear music and speech reproduction.

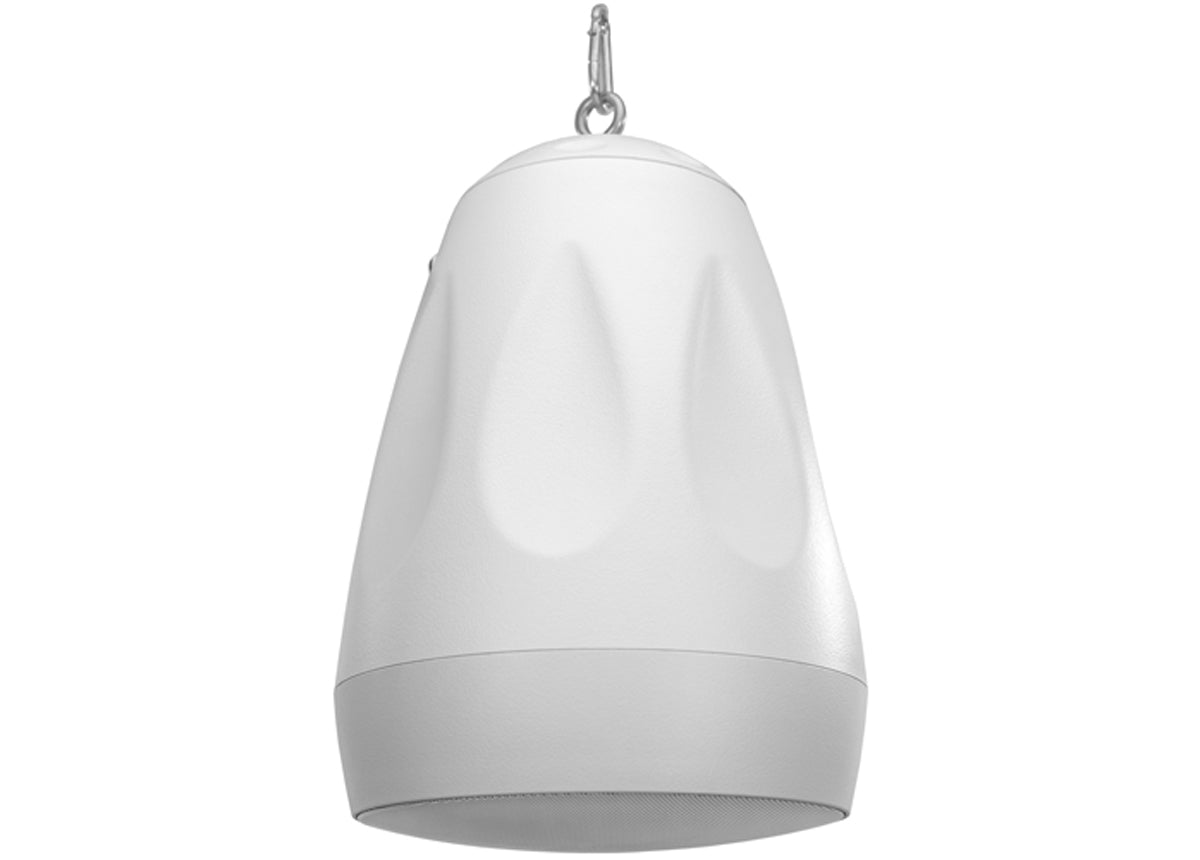

The down-firing design directs sound toward the listening area while keeping the speaker suspended above occupied spaces.

30W RMS / 70W Peak Power

Pure Resonance Audio rates the PD6 at 30W RMS and 70W peak power handling.

The speaker requires a compatible external amplifier and does not contain built-in amplification.

70V and 100V Distributed Audio

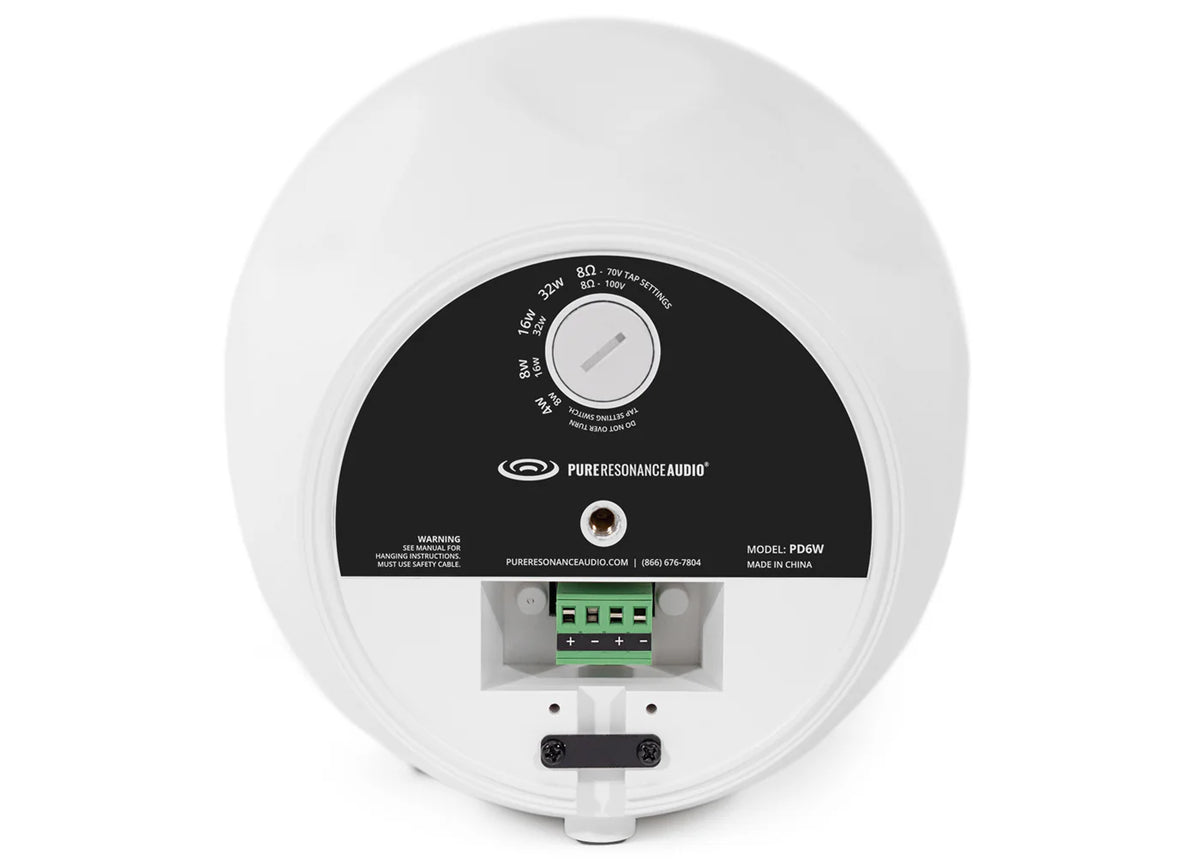

The PD6 includes a multi-tap transformer designed for 70V and 100V distributed-audio systems.

Pure Resonance Audio publishes selectable 70V taps of 4W, 8W, 16W, and 32W. When using multiple speakers, add the selected tap wattages and allow appropriate amplifier headroom.

Selectable 8-Ohm Bypass

The PD6 can also operate in 8-ohm bypass mode with a compatible low-impedance amplifier.

Confirm total speaker impedance before connecting multiple speakers to the same amplifier channel.

150° Conical Coverage

Pure Resonance Audio specifies a wide 150° conical dispersion pattern to help provide even coverage across open listening areas.

Actual speaker spacing depends on suspension height, room geometry, background noise, and required listening level.

65Hz–20kHz Frequency Response

The PD6 is rated for a 65Hz–20kHz frequency response at ±10dB, with 87dB sensitivity and maximum output of approximately 101dB.

This makes it suitable for paging, announcements, sound masking, and foreground or background music.

Weather-Resistant Construction

Treated drivers and a two-layer powder-coated aluminum grille provide weather-resistant construction for appropriate indoor and outdoor pendant installations.

The manufacturer does not publish an IP rating for the PD6, so it should not be described as waterproof or submersible.

4-Pin Euroblock Connection

The PD6 uses a 4-pin Euroblock screw-terminal connector for secure speaker wiring.

Use appropriately rated speaker wire based on the amplifier type, transformer setting, cable length, and installation environment.

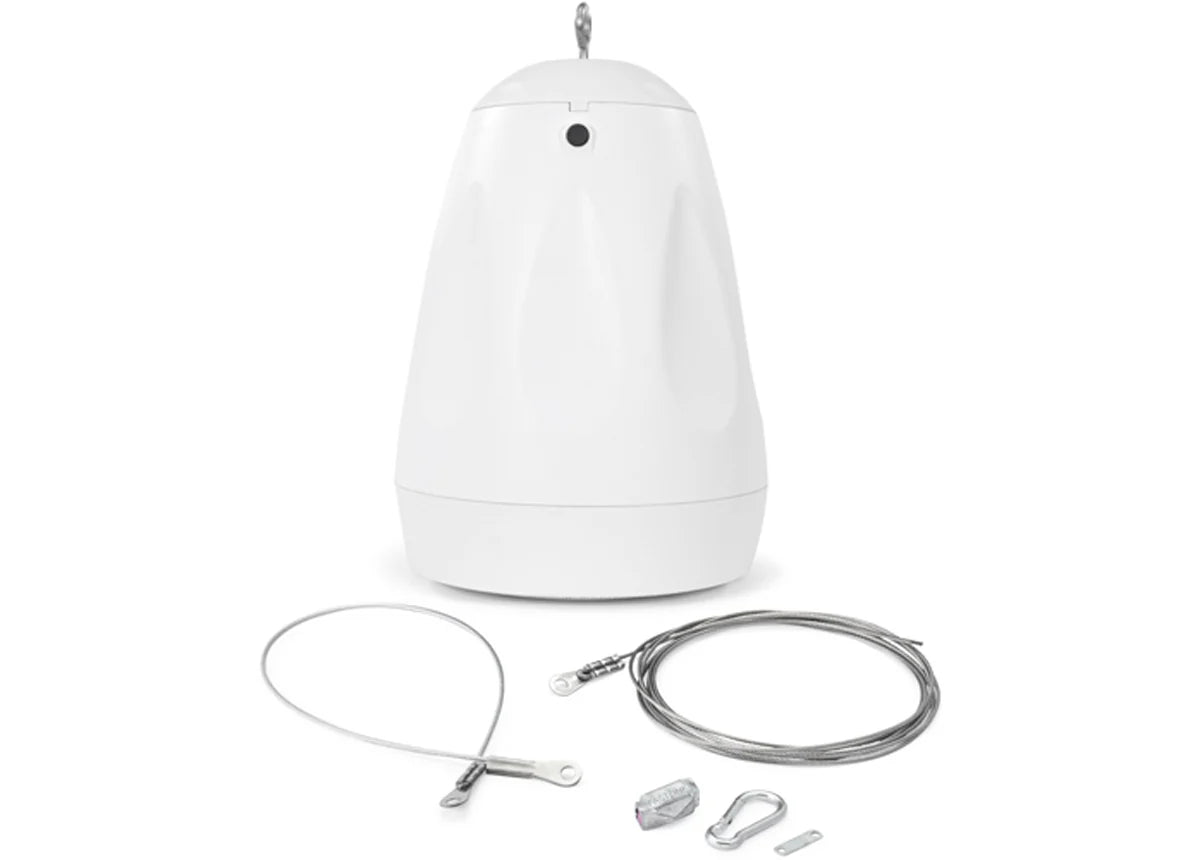

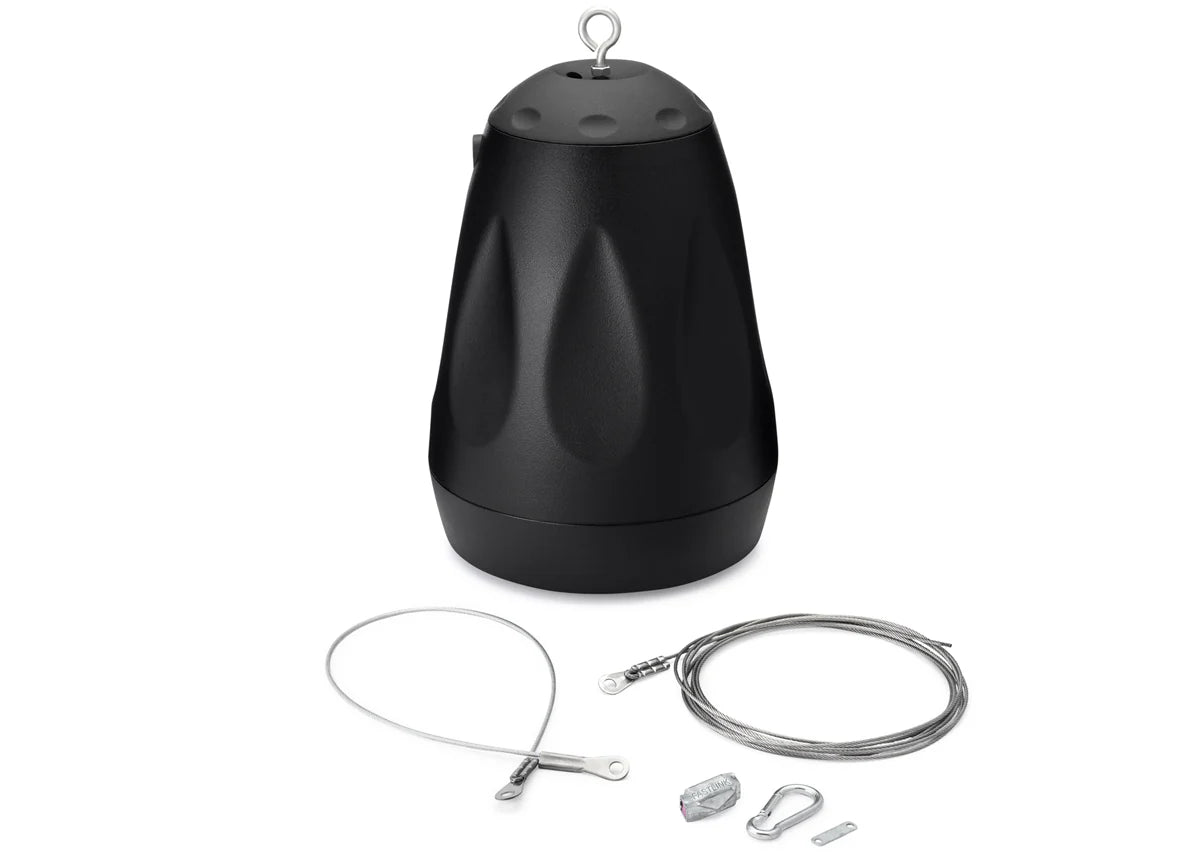

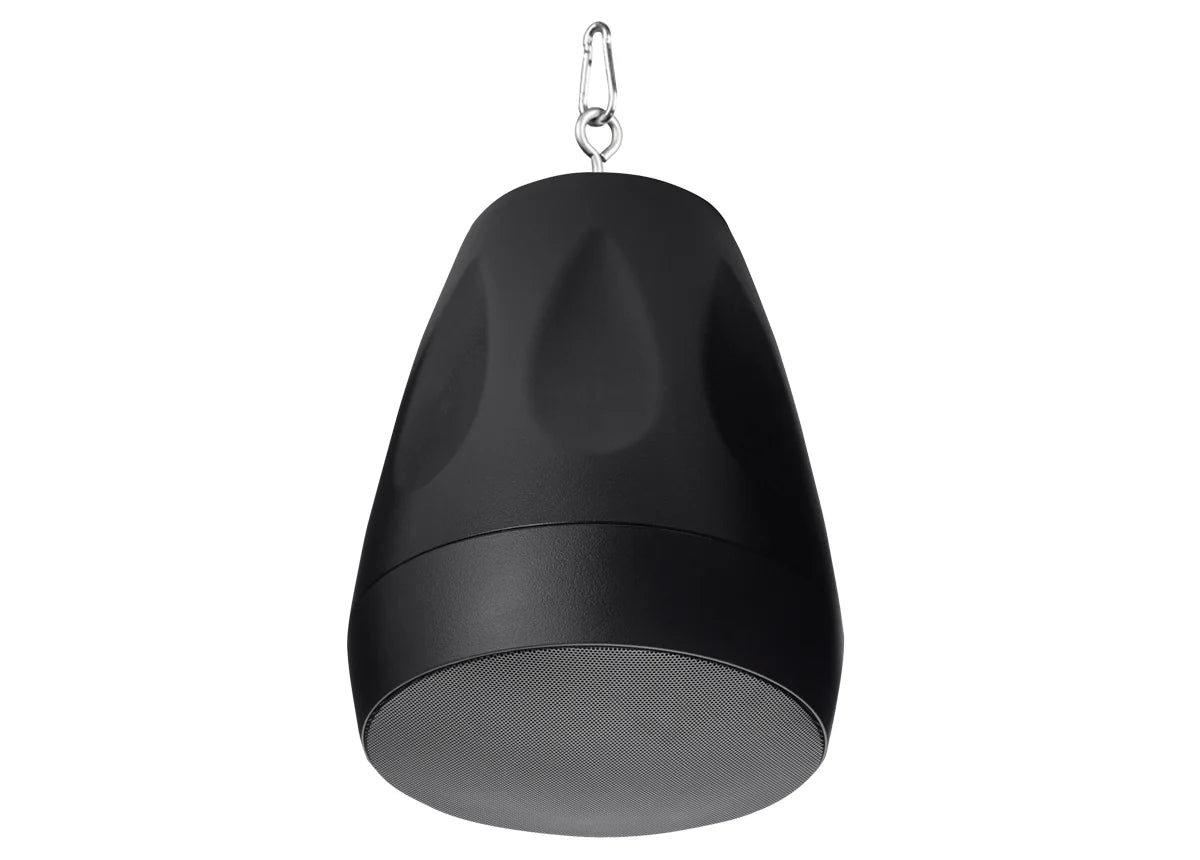

Included Suspension Hardware

The PD6 includes the hardware needed for a standard pendant installation, including separate hanging and safety cables.

• 2 × 10 ft steel cables
• 2 carabiners
• 2 Fastlink wire joiners
• 1 wire-retention plate

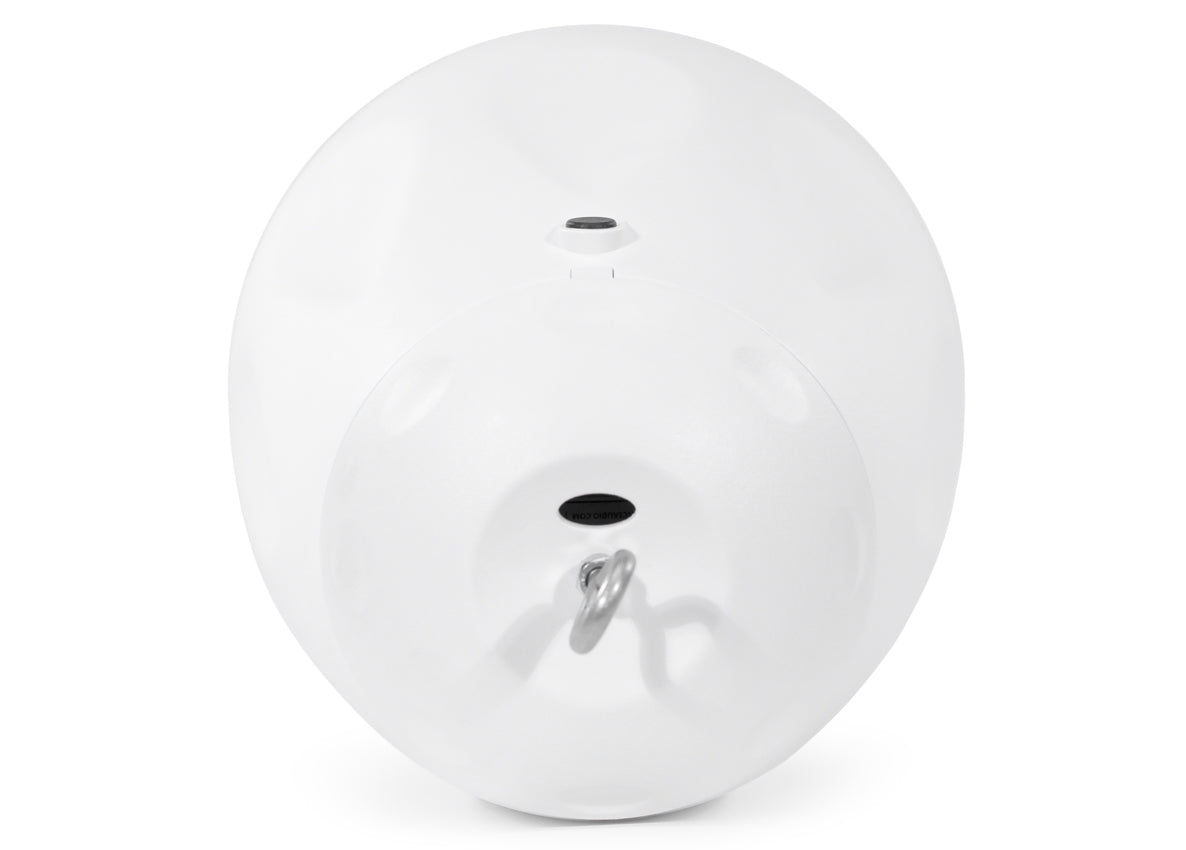

• Rear cover with eyebolt opening
• Eyebolt and nuts

Dimensions and Weight

• Height: 10.3" (285 mm)
• Diameter: 8.1" (207 mm)
• Weight: 6.35 lb (2.88 kg)

What's Included?

• 1 Pure Resonance Audio PD6 pendant speaker
• Rear cover
• Eyebolt and nuts
• 2 × 10 ft steel suspension cables
• 2 carabiners
• 2 Fastlinks
• Wire-retention plate

Complete Your Pendant Audio System

• Pure Resonance Audio
• Pendant Ceiling Speakers
• Speaker Wire

Need Help Planning Your Pendant Speaker System?

Send Bear Security Shop your ceiling height, room dimensions, speaker quantity, and amplifier model. We can help confirm transformer tap settings, amplifier power, and speaker spacing.

Is the Pure Resonance Audio PD6 sold individually or as a pair?

The PD6 is sold individually.

What size drivers does the PD6 use?

The PD6 uses a 6.5" polypropylene woofer and a 1" black-silk tweeter.

What is the power handling?

Pure Resonance Audio rates the PD6 at 30W RMS and 70W peak power handling.

Does the PD6 support 70V systems?

Yes. Available 70V taps are 4W, 8W, 16W, and 32W.

Does the PD6 support 100V systems?

Yes. Pure Resonance Audio identifies the transformer as compatible with 70V/100V distributed-audio systems. The current specification table publishes the individual tap values for 70V operation.

Can I use the PD6 with an 8-ohm amplifier?

Yes. The PD6 includes an 8-ohm bypass setting for use with a compatible low-impedance amplifier.

What is the frequency response?

Pure Resonance Audio specifies a 65Hz–20kHz frequency response at ±10dB.

What is the sensitivity?

The PD6 is rated at 87dB sensitivity at 1W/1m.

What is the maximum SPL?

Pure Resonance Audio specifies approximately 101dB maximum SPL.

What is the coverage pattern?

The PD6 provides a wide 150° conical dispersion pattern.

Can the PD6 be used outdoors?

It uses weather-resistant treated drivers and a powder-coated aluminum grille for appropriate outdoor installations. Pure Resonance Audio does not publish an IP rating, so it should not be considered waterproof.

What type of speaker connection does it use?

The PD6 uses a 4-pin Euroblock screw-terminal connection.

Is suspension hardware included?

Yes. The package includes two 10 ft steel cables, carabiners, Fastlinks, a wire-retention plate, rear cover, eyebolt, and mounting hardware.
