Pure Resonance Audio MX84 Multi-Zone 8-Channel 4-Zone Mixer

Independent Music and Paging Control for Four Audio Zones

The Pure Resonance Audio MX84 is an 8-channel, 4-zone analog mixer designed to manage microphones, music, and announcements across multiple rooms or listening areas. It combines flexible input routing, independent zone controls, and priority paging in a 2U rack-mount chassis.

Use the MX84 to manage sound in restaurants, retail stores, offices, schools, houses of worship, hospitality spaces, and larger homes with multiple audio zones. Each zone can receive its own assigned sources and feeds a compatible external amplifier or powered-speaker system.

Key Specifications

• Product type: 8-channel, 4-zone analog audio mixer
• Microphone/line channels: 4 balanced XLR/TRS input channels
• Additional line channels: 4 TRS/RCA input channels
• Audio zones: 4 independently controlled outputs
• Input EQ: 3-band high, mid, and low controls
• Zone EQ: 2-band high and low controls
• Phantom power: Individually switchable on channel 1; shared switch for channels 2–4
• Priority functions: Channel 1 ducking, priority mute input, and compatible remote paging microphone support
• Monitoring: Built-in speaker with zone selection and pre/post-fader monitoring
• Frequency response: 20Hz–20kHz, ±1dB
• Signal-to-noise ratio: Greater than 90dB
• Total harmonic distortion: Less than 0.01%
• Rack height: 2U

Who Should Choose the MX84?

Choose the MX84 when several areas need separate music or announcement control from a centralized audio system. For example, a restaurant can assign music and microphones to its dining room, bar, patio, and private event area without treating the entire property as one listening zone.

The MX84 is particularly useful when your system already has, or will include, separate audio amplifiers for the speakers in each zone.

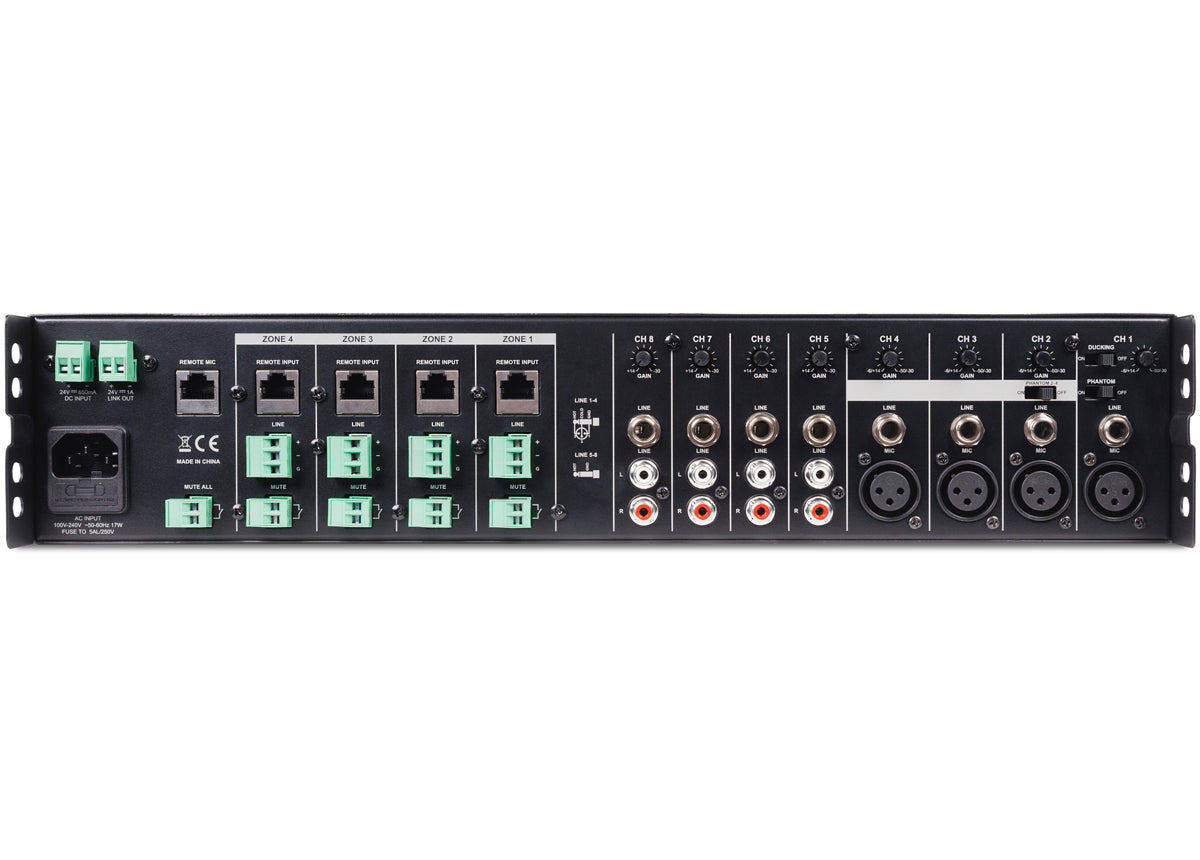

Four Microphone/Line Channels and Four Additional Line Channels

Channels 1–4 provide balanced XLR and 1/4" TRS inputs for compatible microphones or line-level sources. Channel 1 has individual phantom-power and priority-ducking switches, while channels 2–4 share a phantom-power switch.

Channels 5–8 provide TRS and RCA connections for additional line-level sources such as music players, audio receivers, and other compatible equipment.

Each channel includes gain adjustment and routing controls, allowing you to select which zones receive that source.

Independent Four-Zone Audio Routing

The MX84 allows input channels to be assigned to individual zones or multiple zones. Each of the four outputs has its own level control, mute function, and two-band EQ.

This makes it possible to manage different audio needs across a property from one mixer, rather than sending the same mix at the same level to every room.

Three-Band Input EQ and Two-Band Zone EQ

The mixer provides three-band EQ for shaping microphone and line-input signals, plus separate high and low EQ controls for each zone.

Input EQ operates at 12kHz for high frequencies, 2.5kHz for midrange, and 80Hz for bass. Zone EQ provides high-frequency adjustment at 10kHz and low-frequency adjustment at 100Hz.

Priority Paging and Announcement Control

Channel 1 includes a priority-ducking function for applications where announcements need to take precedence over other audio sources.

The MX84 also includes a priority mute input for integration with an appropriately designed external system. Its remote paging microphone connection supports zone-selectable announcements when used with the compatible Pure Resonance Audio MX8-PM paging microphone, sold separately.

The MX8-PM connection uses RJ45, but it is a dedicated paging microphone interface, not a standard Ethernet or PoE network port.

Built-In Zone Monitoring Speaker

A built-in speaker allows you to monitor individual audio zones directly from the MX84. Zone selection, monitoring volume, and pre/post-fader controls help you check audio without relying only on the speakers installed throughout the property.

Optional Remote Wall Control

The MX84 supports the compatible Pure Resonance Audio MX8-WP wall control panel, sold separately. This provides an additional control location for supported installations.

Browse audio mixers and signal processors when comparing system-control options.

External Amplification Required

The MX84 provides balanced line-level outputs, not amplified speaker outputs. It cannot directly power passive 8-ohm, 70V, or 100V speakers.

Connect its zone outputs to compatible power amplifiers or powered speakers. For distributed-audio systems, choose an amplifier that matches the connected speakers and required power for each zone.

2U Rack-Mount Design

• Height: 3.5" (89 mm)
• Width: 19" (483 mm)
• Depth: 11.25" (286 mm)
• Net weight: 19.84 lb (9 kg)
• Power: AC 100–240V, 50/60Hz

Allow sufficient rack space for the 2U chassis, cable connections, and ventilation.

What's Included?

• 1 Pure Resonance Audio MX84 mixer
• 1 power cord

Amplifiers, microphones, paging accessories, audio cables, and speakers are sold separately.

Complete Your Multi-Zone Audio System

• Pure Resonance Audio
• Audio Amplifiers
• Paging Microphones & Accessories

Need Help Planning Your Four-Zone Audio System?

Send Bear Security Shop your microphone and music-source requirements, speaker models, number of zones, and amplifier details. We can help confirm the connections and equipment needed for your system.

Is the Pure Resonance Audio MX84 an amplifier?

No. The MX84 is a line-level audio mixer. Passive speakers require compatible external power amplification.

How many microphones can I connect?

The MX84 provides four microphone/line channels with balanced XLR and TRS inputs. Channels 5–8 are intended for line-level audio sources.

Can different zones play different audio sources?

Yes. The mixer allows input channels to be assigned to individual zones or multiple zones, with independent output controls for each of its four zones.

Does the MX84 provide phantom power?

Yes. Channel 1 has its own phantom-power switch, while channels 2–4 share a phantom-power switch.

Does it support priority paging?

Yes. The MX84 provides channel 1 priority ducking, a priority mute input, and support for the optional MX8-PM paging microphone.

Can I select which zones receive an announcement?

Yes. The compatible MX8-PM paging microphone supports zone-selectable announcements through the mixer's dedicated remote microphone connection.

Does it have built-in zone monitoring?

Yes. A built-in speaker allows monitoring of individual zones, with zone selection, pre/post-fader switching, and monitoring volume control.

Does the MX84 have Bluetooth or USB music playback?

No built-in Bluetooth or USB media player is specified for the MX84. A compatible external music source can connect to its line-level inputs.

Can I connect 70V speakers directly?

No. The MX84 provides line-level outputs. Connect each zone to an appropriately rated 70V amplifier before connecting the speakers.

How much rack space does it require?

The MX84 is a 2U rack-mount mixer measuring approximately 19" wide, 3.5" high, and 11.25" deep.

What comes in the box?

The manufacturer lists one MX84 mixer and one power cord. Amplifiers, microphones, audio cables, and speakers are sold separately.
