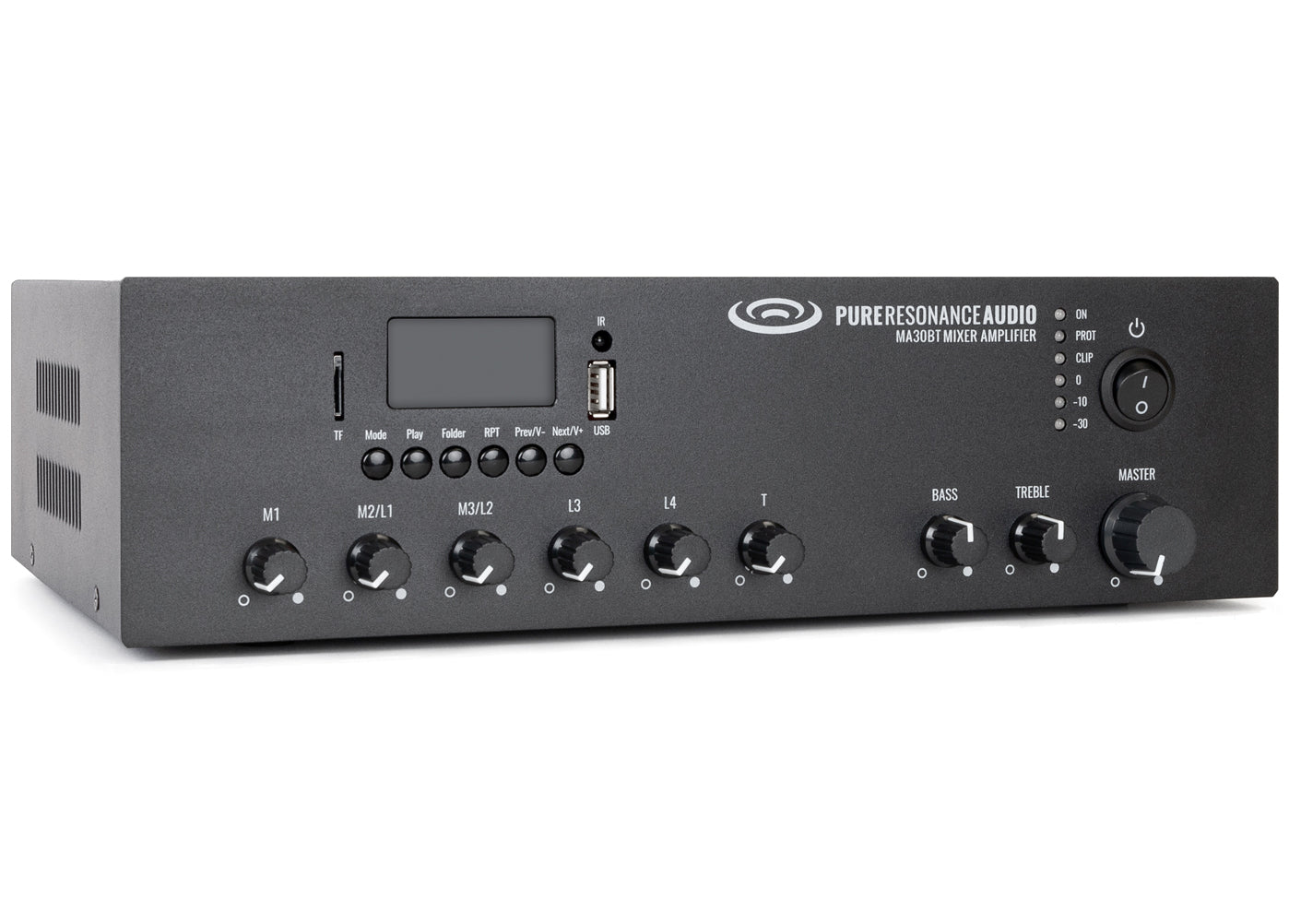

Pure Resonance MA30BT Mixer Amplifier 30W Bluetooth 70V/100V Paging

Compact Paging and Background Music Control in One Amplifier

The Pure Resonance Audio MA30BT is a compact 30W mixer amplifier designed for background music, paging, announcements, and small distributed-audio systems. It supports 70V and 100V speaker systems as well as conventional 4-ohm, 8-ohm, and 16-ohm speaker loads.

Best Uses

• Offices and reception areas
• Retail stores and cafés
• Classrooms and waiting rooms
• Small restaurants and hospitality spaces
• Background music and paging systems

Speaker Output Options

• Rated output: 30W
• 70V distributed-speaker output
• 100V distributed-speaker output
• 4-ohm, 8-ohm, and 16-ohm low-impedance outputs

For 70V or 100V systems, add the selected wattage tap of every connected speaker and keep the total below the amplifier's 30W rating. Leaving approximately 20% headroom is a practical design target, so a total speaker load around 24W or less is preferable.

Do not connect 70V or 100V speakers and low-impedance speakers to different amplifier outputs at the same time unless the manufacturer specifically approves that configuration.

Bluetooth and Media Playback

• Built-in Bluetooth audio streaming
• USB media playback
• TF card playback
• Built-in FM radio
• Included IR remote control

Bluetooth is used for audio streaming from compatible phones, tablets, and computers. It is not Wi-Fi streaming, app-based multi-room audio, AirPlay, or network audio.

The manufacturer notes that FM reception can vary with location and interference and does not recommend FM radio as the primary audio source for critical installations.

Microphone and Line Inputs

• MIC 1 balanced XLR input with phantom power
• MIC 2 and MIC 3 switchable mic/line 1/4-inch inputs
• Two stereo RCA line inputs
• RCA line output
• Front-panel source, microphone, bass, treble, and master controls

The MA30BT can mix paging microphones with music sources, making it suitable for systems where announcements and background audio share the same speakers.

Additional Connections

The amplifier supports telephone paging and Music On Hold functionality as part of its commercial audio feature set. Confirm telephone-system compatibility and wiring requirements before installation.

What Is Included

• One Pure Resonance Audio MA30BT mixer amplifier
• One IR remote control
• One AC power cord

Sold Separately

• 70V, 100V, or compatible low-impedance speakers
• Speaker wire
• Microphones
• External audio sources
• Telephone or paging-system interface hardware when required

Performance and Protection

• Frequency response: 60 Hz to 15 kHz, ±3 dB
• Line signal-to-noise ratio: 85 dB or greater
• Microphone signal-to-noise ratio: 72 dB or greater
• Total harmonic distortion: less than 0.5%
• Short-circuit protection
• Clip protection
• Overload protection
• High-temperature protection

Power Requirements

• 115V AC, 60 Hz
• 24V DC power option
• 60W rated power consumption

Dimensions and Weight

• Dimensions: 3.54 × 12.6 × 8.27 inches
• Weight: 7.9 lb

When to Choose Another Model

Choose a higher-powered mixer amplifier if the total 70V or 100V speaker taps exceed the MA30BT's available output. Choose a separate stereo amplifier or receiver if you need true left/right stereo speaker playback rather than a mono distributed-audio system.

Need Help Planning Your Speaker Load?

Send Bear Security Shop your speaker models, quantity, transformer tap settings, room size, and audio sources. We will help confirm whether the MA30BT provides enough power and which output configuration is appropriate.

Is the correct model MA30 or MA30BT?

The current manufacturer model is MA30BT. The BT designation identifies the built-in Bluetooth version.

How much power does the MA30BT provide?

It provides 30W of rated amplifier output.

Does it support 70V speakers?

Yes. It supports 70V distributed-speaker systems.

Does it support 100V speakers?

Yes. The manufacturer also provides a 100V speaker output.

Can it power regular 8-ohm speakers?

Yes. The amplifier provides 4-ohm, 8-ohm, and 16-ohm low-impedance outputs in addition to 70V and 100V outputs.

How many 70V speakers can I connect?

Add the wattage tap of each speaker. Keep the total below 30W, with approximately 24W or less recommended to maintain operating headroom.

Does it have Bluetooth?

Yes. Bluetooth is built in for wireless audio streaming from compatible phones, tablets, and computers.

Does it support Wi-Fi or AirPlay?

No. Bluetooth is the built-in wireless audio method. Wi-Fi, AirPlay, network streaming, and app-based multi-room audio are not specified.

Does it have microphone inputs?

Yes. MIC 1 uses a balanced XLR input with phantom power, while MIC 2 and MIC 3 use switchable mic/line 1/4-inch inputs.

Can it play music from USB or a memory card?

Yes. The built-in media player supports USB and TF card playback.

Does it include an FM tuner?

Yes, but the manufacturer notes that FM reception is affected by interference and location and does not recommend FM as the primary source for critical use.

What is included?

The package includes one MA30BT amplifier, one IR remote control, and one power cord. Speakers, microphones, speaker wire, and external sources are sold separately.

What should I confirm before ordering?

Confirm your speaker type, total transformer-tap load, required paging inputs, audio sources, and whether 30W provides enough capacity for the planned system.
