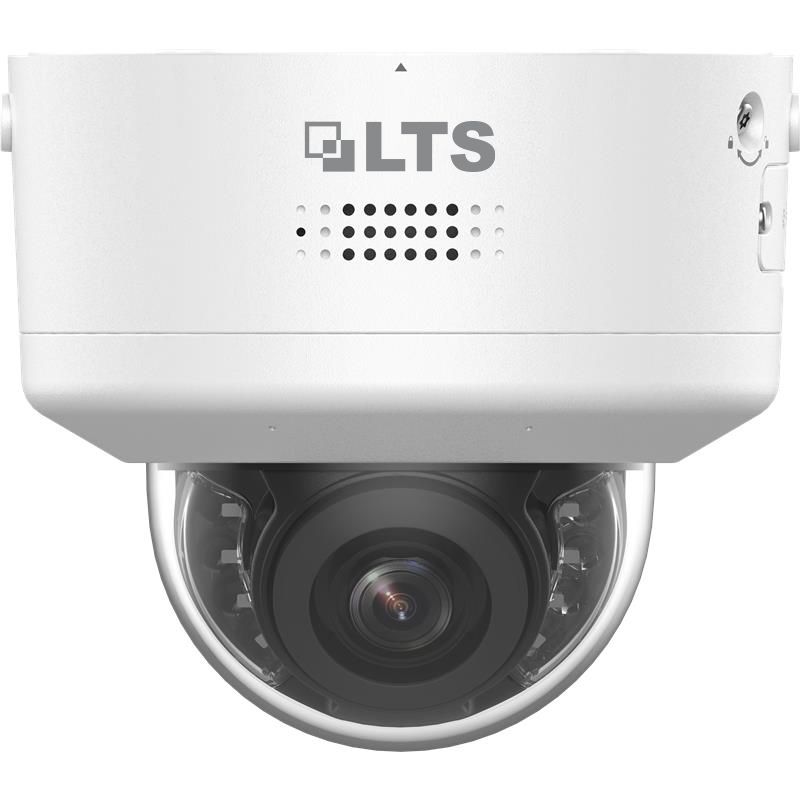

4MP Color 24/7 InstaDome camera with remote lens positioning, motorized optical adjustment, intelligent detection, two-way audio, and active deterrence.

The LTS CMIP7C43WI-SDLQ is designed for locations where the viewing angle may need to be adjusted after the camera is mounted. Its motorized 2.8mm to 12mm lens and remotely controlled pan, tilt, zoom, and rotation functions let you refine coverage through the compatible LTS interface without physically repositioning the camera. Color 24/7 imaging, hybrid illumination, intelligent detection, and a vandal-resistant dome housing make it a flexible option for demanding home and business environments.

Why installers choose this InstaDome camera

• Remote viewing-angle adjustment: Pan, tilt, zoom, and rotation can be refined remotely, reducing the need to physically reopen or reposition the camera.
• Flexible 2.8mm to 12mm coverage: The motorized varifocal lens can provide wide-area monitoring or a tighter view of entrances, gates, counters, and other important zones.
• Detailed 4MP video: Records at up to 2688 x 1520 resolution and 30 frames per second for clear everyday surveillance.
• Color 24/7 imaging: Captures useful color detail in low-light conditions with support from hybrid infrared and white-light illumination.
• Smarter event detection: VCA 2.0 human and vehicle classification helps reduce alerts caused by irrelevant movement.
• Active deterrence: A built-in white strobe light and speaker can help discourage unwanted activity when properly configured.
• Two-way audio: Two built-in microphones and one speaker support listening and communication through a compatible LTS system.
• Clearer high-contrast scenes: 120dB WDR improves detail near bright windows, entrances, headlights, and shadowed areas.
• Optional edge recording: Supports MicroSD cards up to 512GB for local recording or additional video redundancy.
• Built for exposed locations: IP66 weather protection and IK10 impact resistance support demanding indoor and outdoor installations.

Best use cases

• Residential entrances, driveways, garages, yards, and side gates
• Retail stores, offices, warehouses, and reception areas
• Locations where the final viewing angle may need remote adjustment
• Entrances requiring both wide coverage and closer identification
• Areas with changing daylight, shadows, or strong backlighting
• Properties that need intelligent alerts, visible deterrence, and two-way communication

Recommended with this product

• LTS DeepVision NVRs for centralized recording, playback, and compatible intelligent video features.
• Surveillance hard drives for continuous local recording and longer video retention.
• PoE network switches for powering the camera through a compatible wired network.
• LTS camera mounts and accessories for compatible wall, pendant, pole, or corner mounting.

Quick guidance

This camera is a strong choice when you need a vandal-resistant dome with remotely adjustable positioning and a flexible zoom range. Use the wider lens setting for general area coverage and zoom in when more focused identification is required. Face capture and other advanced functions depend on the connected recorder and system configuration. The camera is sold individually. For help confirming NVR, mount, storage, or PoE compatibility, contact us.

1. Can the CMIP7C43WI-SDLQ viewing angle be adjusted remotely?
Yes. The camera supports remote pan, tilt, zoom, and rotation adjustment through a compatible LTS system. This allows the viewing angle and zoom level to be refined without manually repositioning the camera.

2. What coverage does the 2.8mm to 12mm lens provide?
The 2.8mm setting provides a wider view for general area coverage, while the 12mm setting creates a narrower and more focused view for entrances, gates, counters, or other specific targets.

3. Can this camera record without an NVR?
The camera supports a MicroSD card up to 512GB for local edge recording. An NVR is still recommended for centralized recording, easier playback, longer retention, and access to compatible system-level features.
