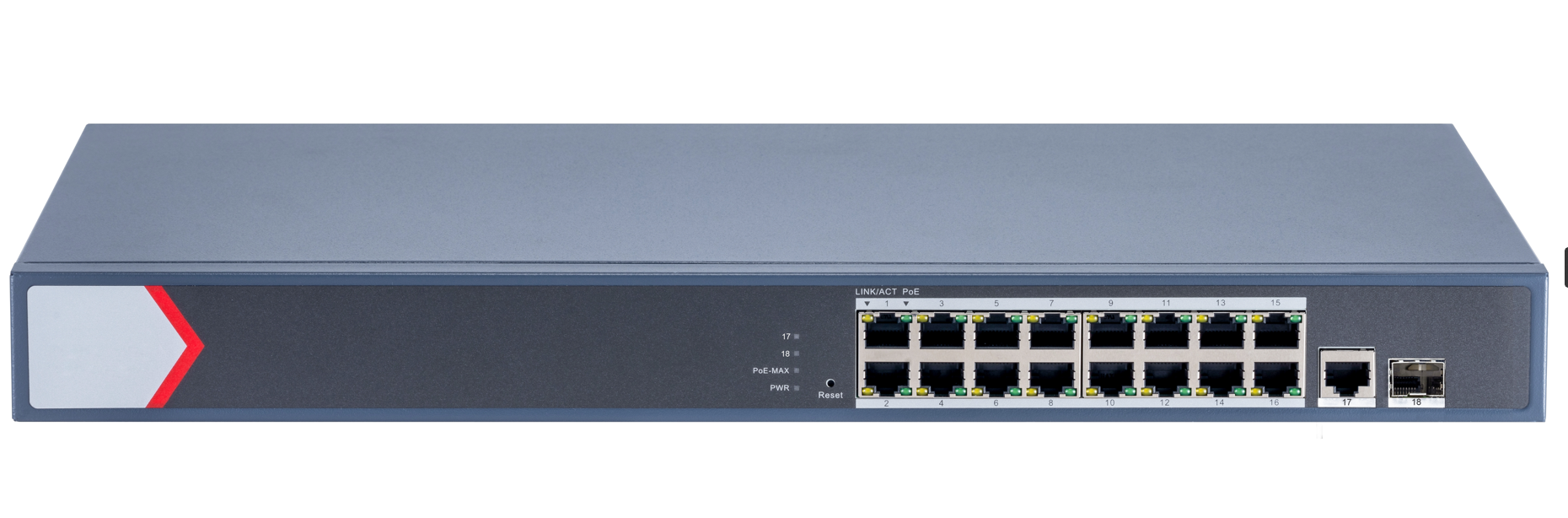

LTS POE-SWC1601G 16-Port Cloud-Managed Gigabit PoE Switch

Power and Manage Up to 16 PoE Devices from One Switch

The LTS LTPOE-SWC1601G is a managed Gigabit PoE switch with 16 powered Ethernet ports, a 230W total PoE budget, remote management, network monitoring, VLAN support, and additional copper and fiber network connectivity.

16 Gigabit PoE+ Ports

• 16 × Gigabit PoE RJ45 ports
• IEEE 802.3af PoE and 802.3at PoE+ support
• Maximum power per PoE port: 30W
• Total PoE power budget: 230W
• Ports 1–16 support PoE

Check the maximum power requirement of every connected device and keep the combined load within the switch's 230W PoE budget.

Additional Network Connections

• 1 × additional Gigabit RJ45 port
• 1 × Gigabit fiber optic port
• Switching capacity: 56Gbps
• Packet forwarding rate: 41.66 Mpps
• 8K MAC address table

Cloud and Remote Management

LTS supports one-click activation and remote management through Guarding Master, allowing supported system information and controls to be accessed remotely.

• View individual port rate
• Monitor port bandwidth utilization
• Monitor PoE power usage
• View network topology
• View alarm status
• Restart ports and connected devices remotely
• Enable long-range mode remotely
• Perform remote device upgrades
• Local device management through a web interface

PoE Watchdog

PoE Watchdog can automatically detect supported cameras that stop responding and restart the affected PoE port, helping restore connectivity without manually power-cycling the camera.

Long-Range PoE

Ports 1 through 16 support long-range PoE transmission up to 300 meters, or approximately 985 feet, under supported conditions.

Actual long-range performance depends on the connected camera and cable condition, so the full 985-foot distance should not be assumed for every device and cable combination.

VLAN and Network Management

• IEEE 802.1Q VLAN support
• VLAN IDs from 1–4094
• Up to 32 VLANs
• Access and Trunk port modes
• Port isolation for PoE ports 1–16
• IEEE 802.1D STP
• IEEE 802.1w RSTP
• Static link aggregation
• Up to 8 aggregation groups
• DHCP client support

Power and Protection

• Input power: 100–240V AC, 50/60Hz
• Maximum input: 4A
• Maximum system power consumption: 250W
• Idle power consumption: 20W
• 6kV surge protection

Rack-Mount Design

• Metal enclosure
• Rack installation with mounting ears
• Dimensions: 17.32 × 8.69 × 1.73 inches
• Net weight: approximately 6.28 lb
• Operating temperature: 32°F to 113°F

This model is intended for controlled indoor network or equipment locations. It does not have an outdoor IP weather-resistance rating.

Complete the Network

• Network switches
• IP security cameras
• Network video recorders
• Power management solutions

Need Help Confirming Compatibility?

Send Bear Security Shop your camera or PoE device models, device quantity, cable lengths, and network layout. We can help calculate the required PoE budget and confirm whether the LTPOE-SWC1601G fits your system.

How many PoE devices can the LTPOE-SWC1601G power?

It has 16 Gigabit PoE ports and can power up to 16 compatible devices, provided their combined power requirement stays within the 230W total PoE budget.

Does it support PoE+?

Yes. It supports IEEE 802.3af PoE and IEEE 802.3at PoE+, with up to 30W available per port.

Does every port get 30W at the same time?

No. Individual ports can supply up to 30W, but the combined power available across all 16 PoE ports is limited to 230W.

How far can it transmit PoE?

LTS specifies long-range operation up to 300 meters, or approximately 985 feet, on ports 1–16. Actual performance depends on the camera and cable condition.

Does it have a fiber connection?

Yes. It includes one Gigabit fiber optic port in addition to one additional Gigabit RJ45 network port.

What is PoE Watchdog?

PoE Watchdog monitors supported connected cameras and can automatically restart a PoE port when a camera stops responding.

Can I manage the switch remotely?

Yes. LTS specifies Guarding Master remote management plus local web-based device management.

Does it support VLANs?

Yes. It supports IEEE 802.1Q VLANs, Access and Trunk modes, VLAN IDs from 1–4094, and up to 32 VLANs.

Does it support port isolation?

Yes. PoE ports 1–16 can be isolated from each other while retaining communication with ports outside the isolation group.

Can it be rack mounted?

Yes. LTS specifies rack installation and includes mounting ears.

Is this an outdoor switch?

No outdoor IP rating is specified. The operating range is 32°F to 113°F, so it should be installed in a suitable indoor network or equipment location.
