LTS Platinum LTN8616D-P16N 16CH 8K PoE NVR H.265+ Smart Search

Manage Up to 16 IP Cameras from One Recorder

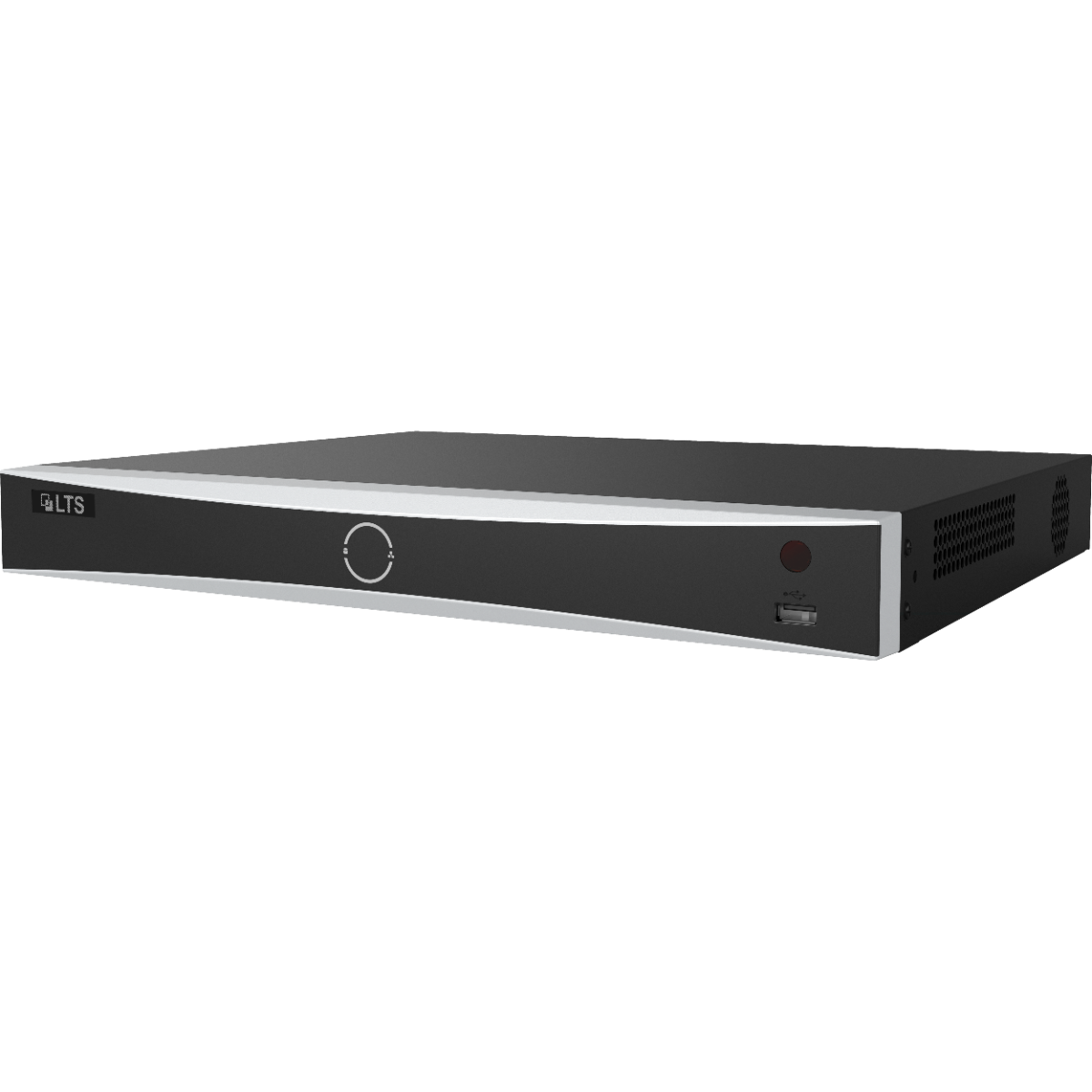

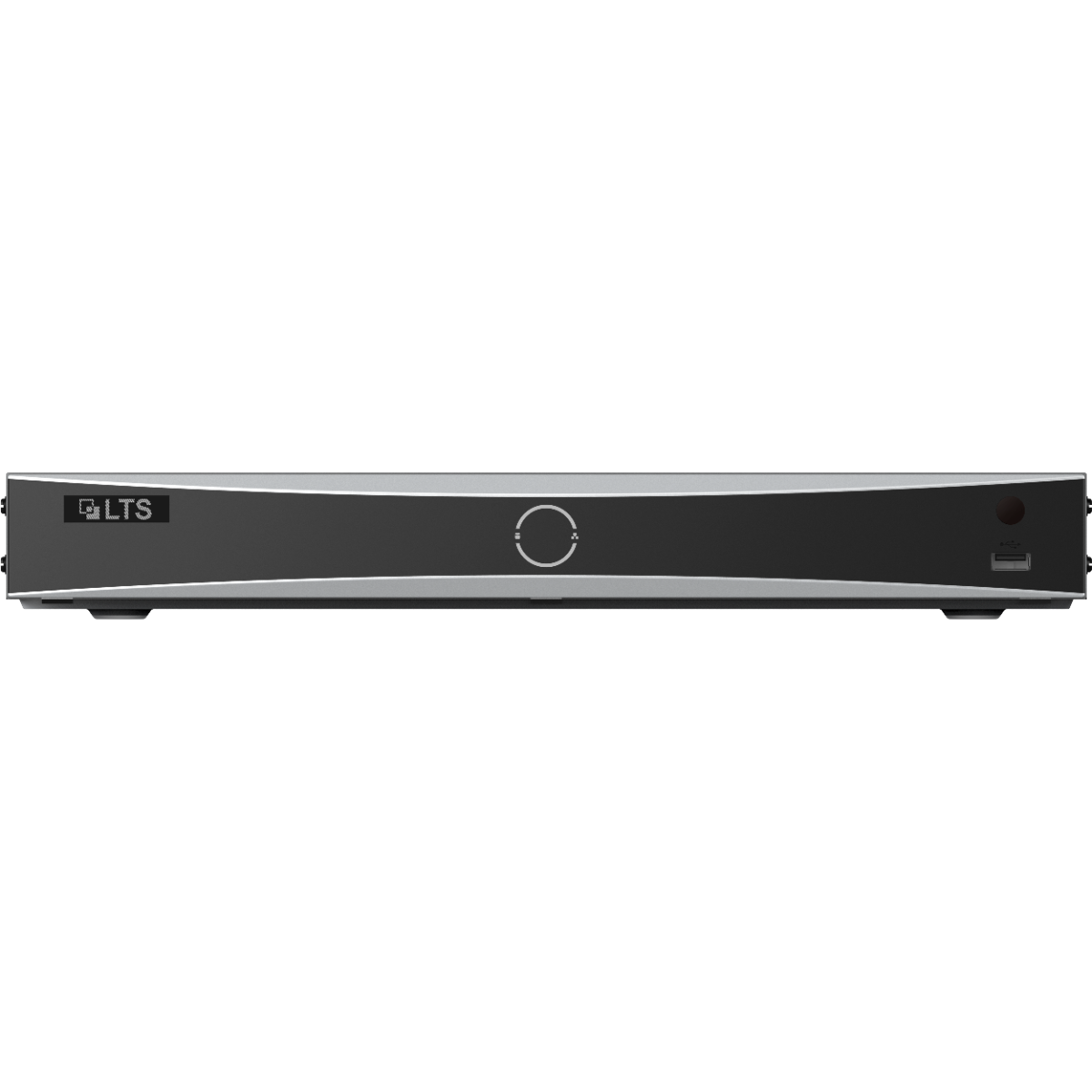

The LTS LTN8616D-P16N is a Platinum Plus 16-channel network video recorder with 16 built-in PoE ports, high-resolution recording, AI/VCA functions, smart search, and two internal SATA bays for local surveillance storage.

Camera and Recording Capacity

• Up to 16 IP camera inputs
• Supports recording resolutions up to 32MP
• Up to four 32MP or 24MP IP video inputs under supported configurations
• 160Mbps incoming bandwidth
• 256Mbps outgoing bandwidth
• H.265+, H.265, H.264+, and H.264 compression
• 16-channel synchronous playback

16 Built-In PoE Ports

• 16 independent RJ45 10/100Mbps PoE interfaces
• IEEE 802.3af/at PoE support
• Maximum total PoE power budget: 200W

The built-in PoE ports can provide network connectivity and power to compatible PoE cameras without requiring a separate PoE switch. Camera power requirements should still be checked against the recorder's total 200W PoE budget.

Important 8K vs. 4K Clarification

LTS markets the LTN8616D-P16N as an 8K-series NVR and supports recording from cameras up to 32MP. However, the recorder's HDMI display output is limited to 4K at 30Hz. It should not be described as providing 8K HDMI output.

• HDMI: up to 3840 × 2160 at 30Hz
• 2K: up to 2560 × 1440 at 60Hz
• 1080p: up to 1920 × 1080 at 60Hz
• VGA: up to 1920 × 1080 at 60Hz
• Independent HDMI and VGA output

AI, VCA, and Smart Search

• Deep-learning-based intelligent analytics
• Up to 4-channel VCA by the NVR
• Human and vehicle recognition under supported VCA configurations
• Facial recognition support under supported configurations
• Smart search within selected areas of recorded video
• Smart playback
• POS information overlay and POS-triggered recording/alarm support

Available analytics depend on the connected camera, recorder configuration, firmware, and whether the function is processed by the NVR or camera.

Storage

• 2 internal SATA interfaces
• Up to 16TB per hard drive
• Up to 32TB total internal storage

Hard drives are not included unless specifically stated with the selected configuration. Surveillance-rated HDDs are recommended for continuous recording.

Network and System Connectivity

• 1 Gigabit RJ45 10/100/1000Mbps LAN interface
• ONVIF Profiles S and G
• RTSP support
• LTS Connect remote access
• DDNS support
• Up to 128 remote connections
• Up to 8 compatible IP speakers
• 1 RCA two-way audio connection
• 4 alarm inputs and 1 alarm output

Physical and Power Specifications

• 1U chassis
• Dimensions: 15.2 × 12.5 × 2.0 inches
• Weight: up to approximately 5.5 lb without HDDs
• Power input: 100–240VAC, 50/60Hz
• NVR consumption: up to 30W without HDDs and with PoE off
• Operating temperature: 14°F to 131°F

What You Need to Complete the System

• Compatible IP security cameras
• One or two surveillance hard drives for local recording
• Cat5e/Cat6 network cabling
• Display and HDMI/VGA cable if local viewing is required
• Internet/network connection for remote access

Complete Your Security System

• IP security cameras
• Network recorders and NVRs
• Recording accessories
• Power management solutions

Need Help Confirming Compatibility?

Send Bear Security Shop your camera models, camera quantity, desired recording time, and storage requirements. We can help confirm camera compatibility, PoE capacity, hard-drive sizing, and recorder configuration.

How many cameras can the LTN8616D-P16N support?

It supports up to 16 IP camera channels and includes 16 built-in PoE ports.

Does the LTN8616D-P16N output 8K video over HDMI?

No. LTS markets this model as an 8K-series NVR and it supports recording resolutions up to 32MP, but its HDMI output is limited to 4K 3840 × 2160 at 30Hz.

What is the maximum supported camera resolution?

The recorder supports recording resolutions up to 32MP. LTS specifies support for up to four 32MP or 24MP IP video inputs under supported configurations.

How much storage can it support?

It has two SATA bays supporting hard drives up to 16TB each, for up to 32TB of total internal storage.

Are hard drives included?

Hard drives are not included unless specifically stated with the selected configuration. A compatible surveillance hard drive is required for local recording.

Does it have built-in PoE?

Yes. It includes 16 IEEE 802.3af/at PoE ports with a maximum total PoE power budget of 200W.

What are the network bandwidth limits?

LTS specifies up to 160Mbps incoming bandwidth and 256Mbps outgoing bandwidth.

Does it support human and vehicle analytics?

Yes. The recorder supports VCA and human/vehicle recognition under supported configurations. Available functions depend on the connected cameras and how the analytics are configured.

Does it support facial recognition?

Yes. LTS specifies facial recognition capabilities, with channel limits depending on whether recognition is performed from video streams or face-picture data.

Does it work with third-party IP cameras?

LTS lists compatibility with third-party network cameras and supports ONVIF. Available analytics and advanced functions may vary by camera manufacturer and model.

Can I view the cameras remotely?

Yes. The recorder supports LTS Connect and network remote-access functions when properly connected and configured.

Is this recorder Wi-Fi capable?

No. Network connectivity is through wired Ethernet. Wi-Fi cameras or wireless networking would require compatible external network equipment.
