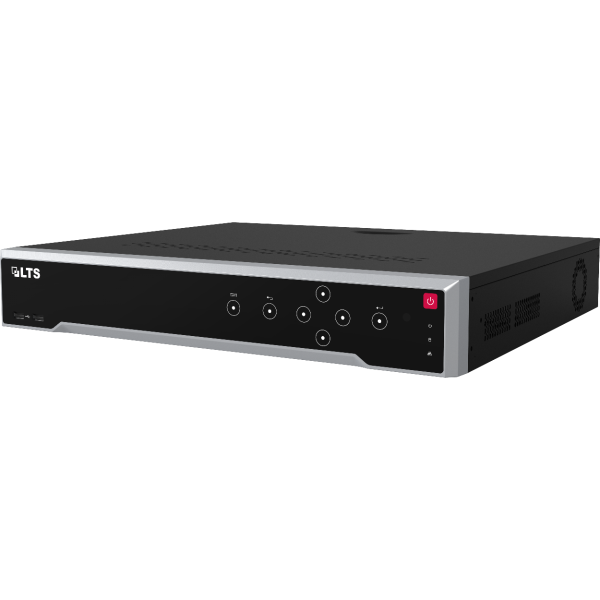

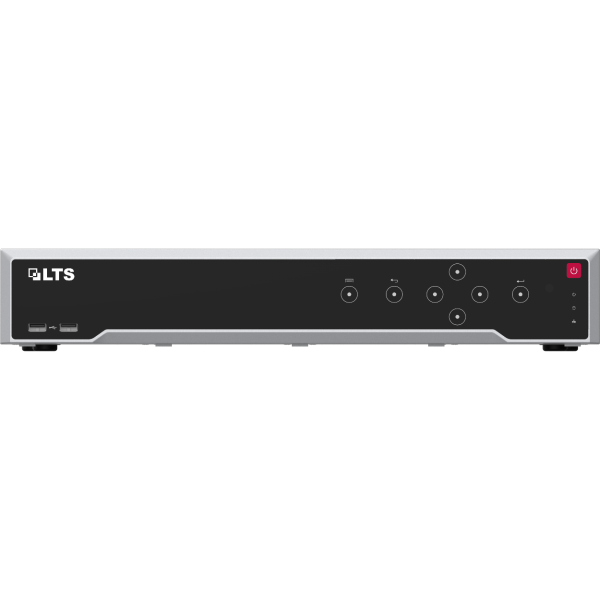

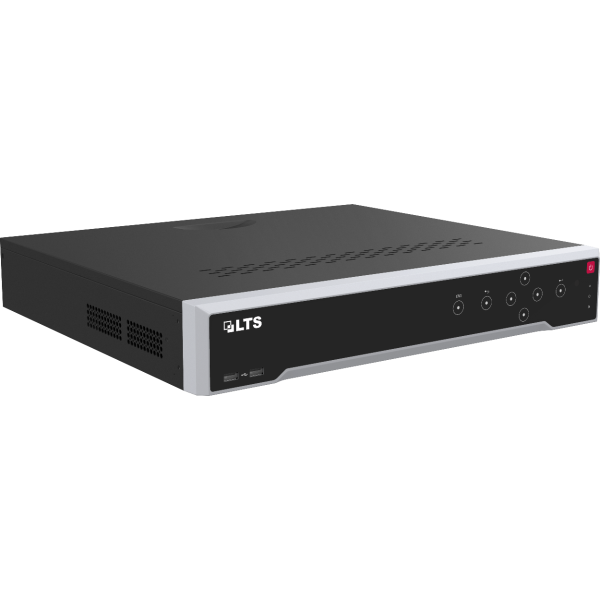

LTS LTN8932DV-P16 32-Channel DeepVision 4K PoE NVR

Manage and Search Video Across Up to 32 Cameras

The LTS LTN8932DV-P16 is a 32-channel Platinum Plus DeepVision network video recorder designed for larger home, retail, office, warehouse, and multi-building camera systems. It combines high recording bandwidth with DeepVision semantic search, Direct Search, facial recognition, built-in PoE, and expandable local storage.

Camera and Recording Capacity

• Up to 32 IP camera inputs
• Recording resolution up to 32MP
• 384Mbps incoming bandwidth
• 256Mbps outgoing bandwidth
• H.265+, H.265, H.264+, H.264, and MPEG4 decoding
• 16-channel synchronous playback

16 Built-In PoE Ports

• 16 × RJ45 10/100Mbps PoE camera interfaces
• IEEE 802.3af and 802.3at support
• Maximum total PoE budget: 200W

The recorder supports 32 IP camera channels but only 16 cameras can connect directly to its built-in PoE ports. Cameras 17 through 32 require a compatible external PoE switch or network connection.

DeepVision Semantic Search

DeepVision helps reduce manual footage review by allowing supported recorded video to be searched using descriptive English search terms.

• DeepVision support across all channels with compatible cameras
• Up to 300,000 modeled targets per day
• Search language: English

For DeepVision, LTS specifies cameras that support MD 2.0 technology with Direct Search enabled. Compatibility should be confirmed by exact camera model when DeepVision is a required feature.

Direct Search

With compatible cameras supporting MD 2.0 and Direct Search enabled, the NVR supports Direct Search across all channels and can model up to 300,000 targets per day.

Facial Recognition

• Up to 8-channel face-picture comparison
• Up to 16 face-picture libraries
• Up to 50,000 face pictures total
• Up to 4-channel human face capture by the NVR with supported cameras up to 8MP

LTS lists two AI processing engines: one for face-picture and Direct Search functions and one for DeepVision.

AI Features from Compatible Cameras

• Facial recognition
• Perimeter protection
• Video structuralization
• Direct Search
• Motion Detection 2.0
• ANPR
• People counting
• DeepVision

These camera-side AI features are not automatically provided to every connected camera. The connected camera must support the required analytics.

Local Display and Decoding

• HDMI 1: up to 4K 3840 × 2160 at 30Hz
• HDMI 2: up to 1920 × 1080 at 60Hz
• VGA: up to 1920 × 1080 at 60Hz
• Independent HDMI and VGA output
• Up to 32 × 1080p/30 fps decoding with NVR AI disabled
• Up to 20 × 1080p/30 fps decoding with NVR AI enabled

Storage

• Up to 4 internal SATA interfaces
• Up to 20TB per supported hard drive
• Up to 80TB potential internal storage with four supported 20TB drives

Hard drives are sold separately unless the selected configuration specifically states that storage is included. Surveillance-rated drives are recommended for continuous recording.

Network, Audio, and Alarm Connections

• 1 × Gigabit RJ45 10/100/1000Mbps LAN interface
• 1-channel RCA audio output
• 1-channel RCA two-way audio connection
• 16 alarm inputs and 9 alarm outputs
• 2 × RS-485 interfaces
• 1 × RS-232 interface
• 2 × USB 2.0 ports on front
• 1 × USB 3.0 port on rear
• eSATA interface
• LTS Connect and DDNS support

Physical Specifications

• 1.5U chassis
• Dimensions: 17.32 × 15.39 × 2.81 inches
• Weight: up to approximately 11.02 lb without HDDs
• Recorder consumption: up to 50W
• PoE power budget: up to 200W
• Operating temperature: 14°F to 131°F

What You Need to Complete the System

• Compatible IP security cameras
• Surveillance hard drive or drives for recording
• Cat5e or Cat6 Ethernet cabling
• External PoE switch if connecting more than 16 directly powered cameras
• Display and HDMI/VGA cable if local viewing is required
• Network connection for remote access

Complete Your Security System

• IP security cameras
• Network video recorders
• PoE network switches
• Recording accessories
• Power management solutions

Need Help Confirming Compatibility?

Send Bear Security Shop your camera models, camera quantity, desired recording retention, and the AI search features you want to use. We can help confirm DeepVision compatibility, PoE capacity, storage requirements, and recorder configuration.

How many cameras can the LTN8932DV-P16 support?

It supports up to 32 IP camera channels.

Does it have 32 built-in PoE ports?

No. It has 16 built-in PoE ports. Cameras 17 through 32 require a compatible external PoE switch or network connection.

What is DeepVision?

DeepVision is LTS's semantic video-search technology for locating supported recorded footage using descriptive English search terms.

Will DeepVision work with every IP camera?

No. LTS specifies compatible cameras using MD 2.0 technology with Direct Search enabled. Confirm your exact camera model if DeepVision is required.

What language does DeepVision support?

LTS currently specifies English for DeepVision search.

What is Direct Search?

Direct Search uses compatible camera analytics to help locate matching targets across recorded video. LTS specifies support across all channels when compatible cameras are used and Direct Search is enabled.

Does it support facial recognition?

Yes. It supports up to 8-channel face-picture comparison, up to 16 face libraries, and up to 50,000 stored face pictures under supported configurations.

What is the maximum camera recording resolution?

The recorder supports camera recording resolutions up to 32MP.

What are the bandwidth limits?

LTS specifies up to 384Mbps incoming bandwidth and 256Mbps outgoing bandwidth.

What is the PoE power budget?

The 16 built-in IEEE 802.3af/at PoE ports share a maximum 200W total PoE power budget.

How much storage can it support?

The current LTS specification table lists four SATA interfaces with support for drives up to 20TB each, providing up to 80TB potential internal storage.

Are hard drives included?

Hard drives are sold separately unless the selected configuration specifically states otherwise.

What is the maximum HDMI output?

The primary HDMI output supports up to 4K 3840 × 2160 at 30Hz.

Does it support two-way audio?

Yes. The NVR includes one RCA two-way audio interface. Camera-side audio capability still depends on the connected camera.

Does it work with third-party IP cameras?

LTS specifies compatibility with third-party network cameras. Advanced AI features such as DeepVision, Direct Search, ANPR, and people counting require compatible camera capabilities.
