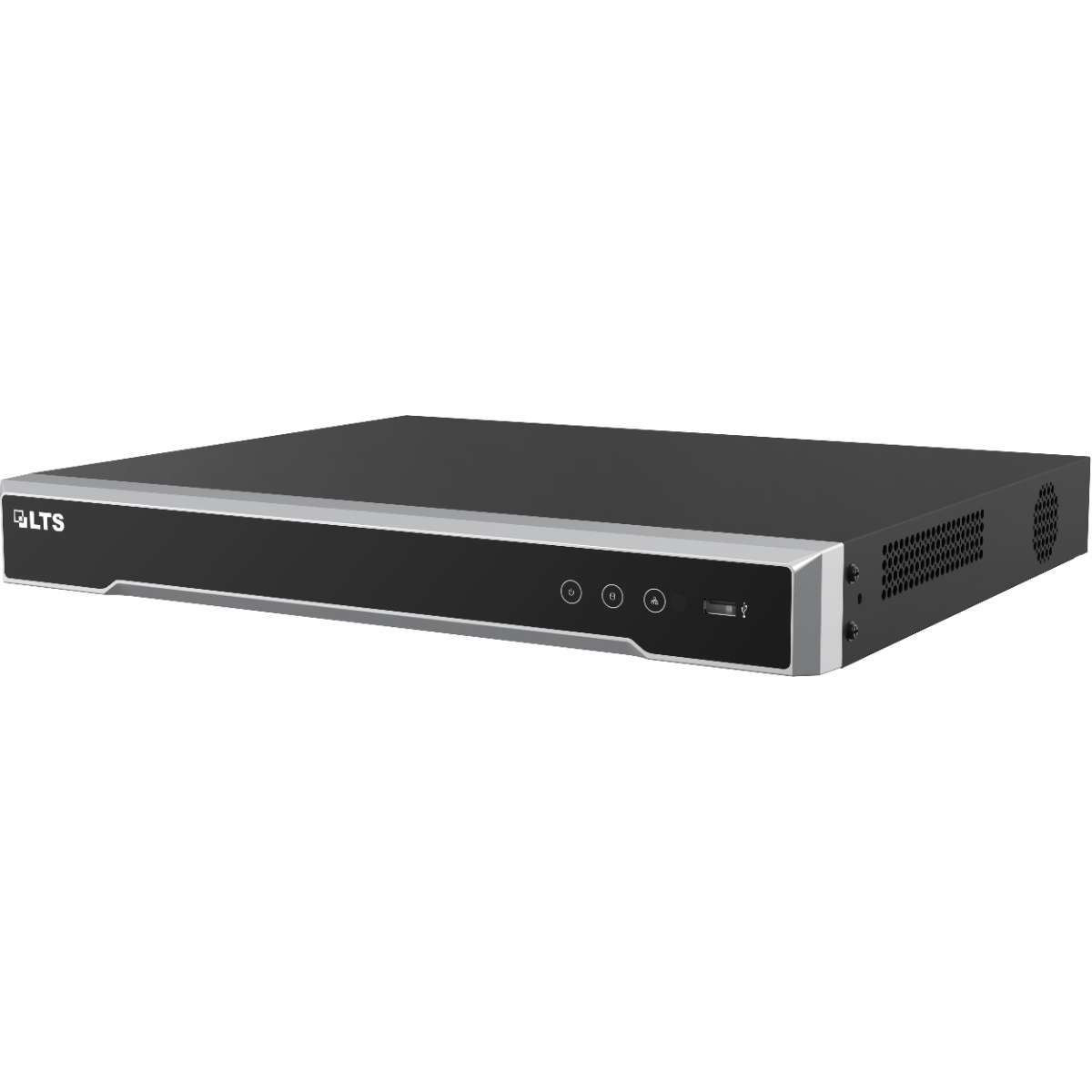

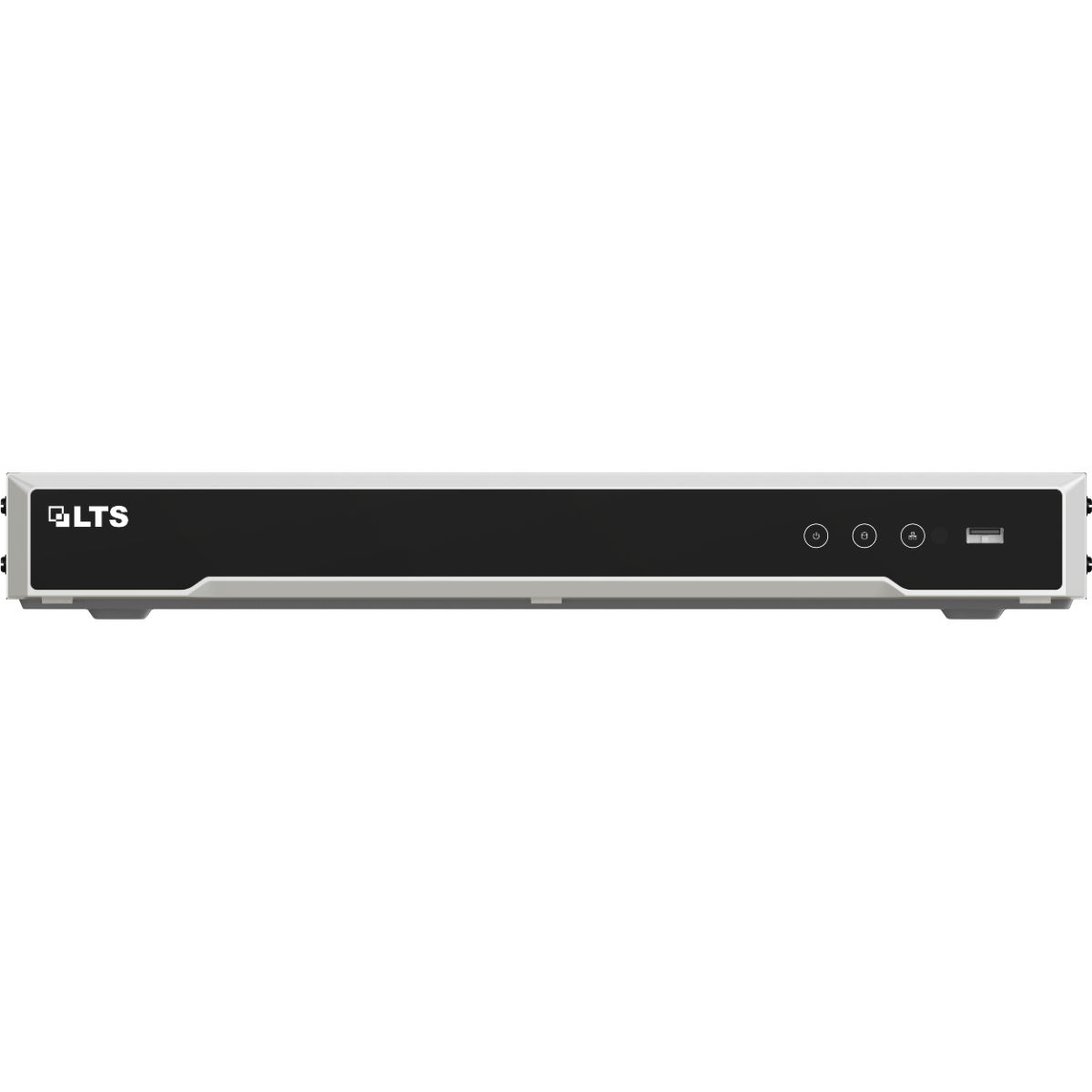

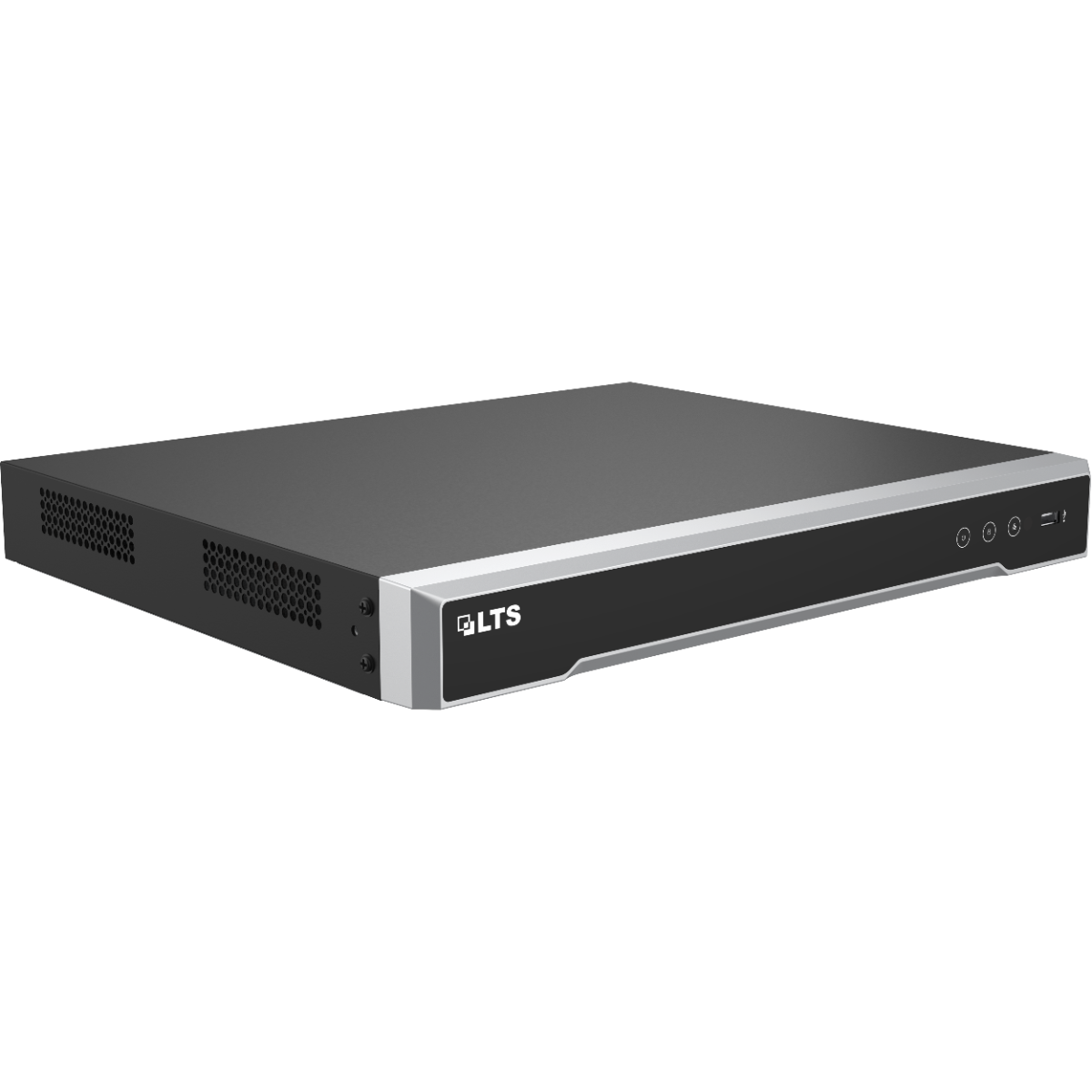

LTS LTN8616DV-P16 16-Channel DeepVision PoE NVR

Find Important Video Faster Across Up to 16 Cameras

The LTS LTN8616DV-P16 is a 16-channel Platinum Plus DeepVision NVR designed for larger home and business security systems. It combines 16 built-in PoE camera ports with semantic video search, Direct Search, facial recognition, high-resolution recording, and expandable local storage.

Camera and Recording Capacity

• Up to 16 IP camera inputs
• Recording resolution up to 32MP
• 192Mbps incoming bandwidth
• 256Mbps outgoing bandwidth
• H.265+, H.265, H.264+, and H.264 support
• 16-channel synchronous playback

DeepVision Semantic Search

DeepVision lets you search supported recorded video using descriptive text instead of manually reviewing long sections of footage.

• DeepVision support across up to 16 channels under compatible configurations
• Models up to 300,000 targets per day
• Search language: English

DeepVision requires compatible cameras supporting VCA 2.0 or newer technology with Direct Search enabled. Camera compatibility should be confirmed before purchasing the system specifically for DeepVision.

Direct Search

With compatible Direct Search cameras connected and the function enabled, the NVR can search for matching targets across recorded channels and model up to 300,000 targets per day.

Facial Recognition

• Up to 16 face-picture libraries
• Up to 50,000 face pictures total
• Up to 8-channel face-picture comparison with compatible face-capture cameras
• Up to 4-channel human face capture by the NVR with supported network cameras up to 8MP

Important: The NVR's built-in facial recognition cannot operate simultaneously with Direct Search or DeepVision.

16 Built-In PoE Ports

• 16 RJ45 10/100Mbps PoE camera interfaces
• IEEE 802.3af/at support
• Maximum total PoE budget: 200W

Check the combined power requirements of all connected cameras against the recorder's 200W PoE budget, especially when using cameras with heaters, active deterrence, or other higher-power features.

Local Display and Decoding

• HDMI output up to 4K 3840 × 2160 at 30Hz
• 2K output up to 2560 × 1440 at 60Hz
• VGA output up to 1920 × 1080 at 60Hz
• Independent HDMI and VGA output
• Up to 16 channels at 4MP/30 fps decoding with NVR AI disabled
• Up to 10 channels at 4MP/30 fps decoding with NVR AI enabled

Storage

• 2 internal SATA interfaces
• Up to 20TB per hard drive
• Up to 40TB total internal storage

Hard drives are sold separately unless the selected configuration specifically states that storage is included. Surveillance-rated HDDs are recommended for continuous recording.

Network, Audio, and Alarm Connections

• 1 Gigabit RJ45 10/100/1000Mbps LAN interface
• 1-channel RCA audio output
• 1-channel RCA two-way audio connection
• 4 alarm inputs and 1 alarm output
• Front USB 2.0 port
• Rear USB 3.0 port
• LTS Connect and DDNS support
• Compatible with supported third-party IP cameras

Physical Specifications

• 1U chassis
• Dimensions: 15.12 × 12.48 × 2.03 inches
• Weight: up to 6.6 lb
• Operating temperature: 14°F to 131°F

What You Need to Complete the System

• Compatible IP security cameras
• Surveillance hard drive or drives for local recording
• Cat5e or Cat6 Ethernet cabling
• Display and HDMI/VGA cable if local viewing is required
• Network connection for remote access

Complete Your Security System

• IP security cameras
• Network video recorders
• Recording accessories
• Power management solutions

Need Help Confirming Compatibility?

Send Bear Security Shop your camera models, camera quantity, desired retention time, and the AI search features you want to use. We can help confirm DeepVision compatibility, PoE capacity, storage requirements, and recorder configuration.

How many cameras can the LTN8616DV-P16 support?

It supports up to 16 IP cameras and includes 16 built-in PoE camera ports.

What is DeepVision?

DeepVision is LTS's semantic video-search function. It allows supported recorded footage to be searched using descriptive text instead of manually reviewing the full timeline.

Will DeepVision work with any IP camera?

No. LTS specifies camera-side requirements for DeepVision. Compatible cameras must support the required VCA technology and Direct Search configuration, so compatibility should be confirmed by exact camera model.

What language does DeepVision search support?

LTS currently specifies English as the DeepVision search language.

What is Direct Search?

Direct Search uses compatible cameras to find matching targets across recorded footage. LTS specifies support across all channels when compatible Direct Search cameras are connected and the feature is enabled.

Can facial recognition and DeepVision run at the same time?

No. LTS states that the NVR's built-in facial recognition cannot be used simultaneously with Direct Search or DeepVision.

What is the maximum recording resolution?

The NVR supports recording resolutions up to 32MP.

Does it have built-in PoE?

Yes. It includes 16 IEEE 802.3af/at PoE ports with a maximum combined PoE budget of 200W.

How much storage can it support?

It has two SATA bays supporting hard drives up to 20TB each, for up to 40TB of total internal storage.

Are hard drives included?

Hard drives are sold separately unless the selected configuration specifically states that storage is included.

What is the maximum HDMI output resolution?

The HDMI output supports up to 4K 3840 × 2160 at 30Hz.

What are the network bandwidth limits?

LTS specifies up to 192Mbps incoming bandwidth and 256Mbps outgoing bandwidth.

Does it support two-way audio?

Yes. The NVR provides one RCA two-way audio connection. Camera-side audio capability still depends on the connected camera.

Does it work with third-party IP cameras?

LTS specifies compatibility with third-party network cameras, but advanced AI functions such as DeepVision and Direct Search require compatible camera capabilities.
