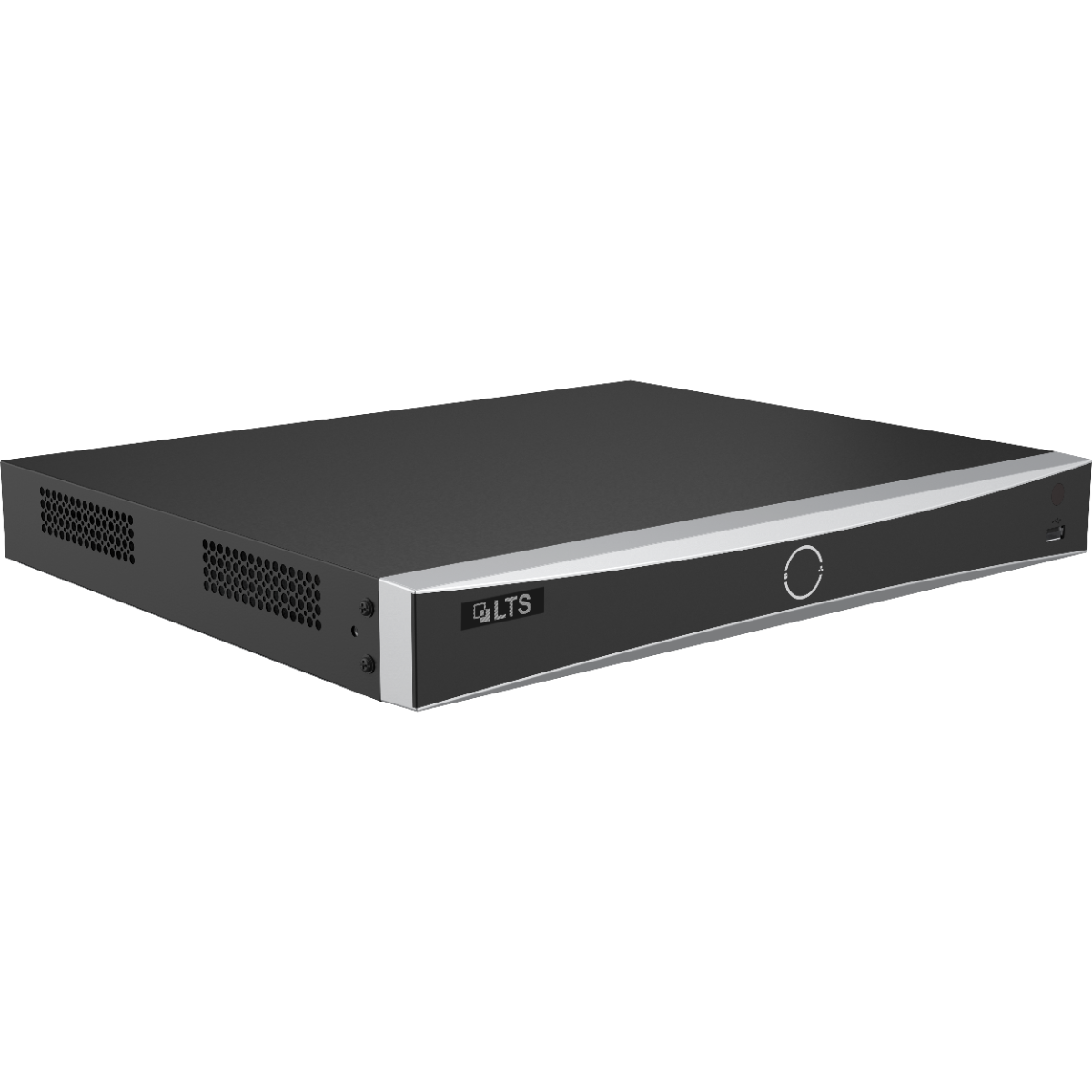

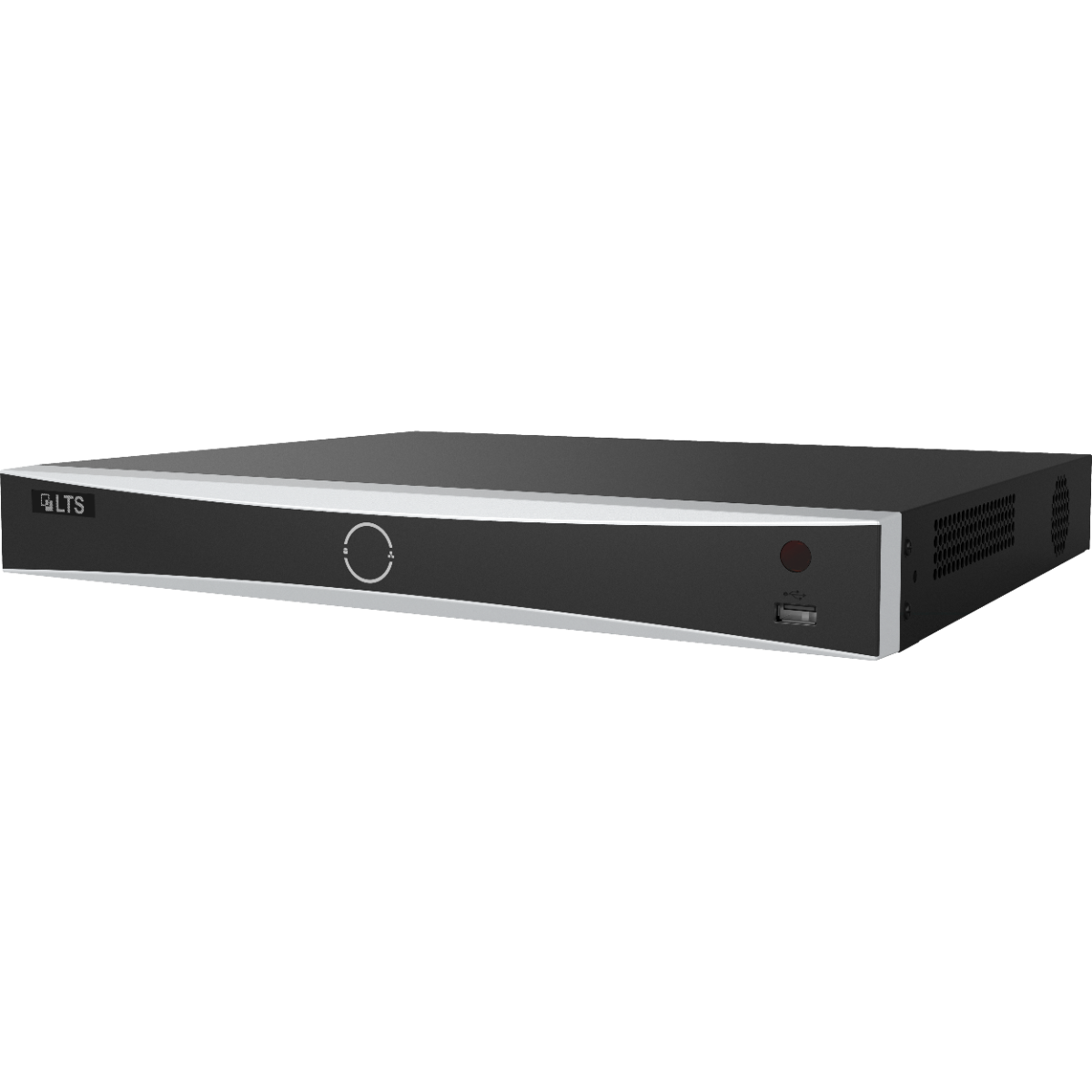

LTS LTN8608D-P8N Platinum 8 Channel 8K NVR Smart Search Recording

Manage Up to 8 IP Cameras from One Recorder

The LTS LTN8608D-P8N is a Platinum Plus 8-channel network video recorder with eight built-in PoE ports, high-resolution recording, intelligent analytics, smart search, and two SATA bays for local surveillance storage.

Camera and Recording Capacity

• Up to 8 IP camera inputs
• Recording resolutions up to 32MP
• Supports up to four 32MP or 24MP IP video inputs under supported configurations
• 80Mbps incoming bandwidth
• 256Mbps outgoing bandwidth
• H.265+, H.265, H.264+, and H.264 compression
• 8-channel synchronous playback up to 1080p

8 Built-In PoE Ports

• 8 independent RJ45 10/100Mbps PoE interfaces
• IEEE 802.3af/at PoE support
• Maximum total PoE power budget: 150W

The built-in PoE ports can provide network connectivity and power to compatible cameras. Check the combined power requirements of all connected cameras against the recorder's 150W PoE budget.

Important 8K vs. 4K Clarification

LTS markets the LTN8608D-P8N as an 8K-series NVR and it can record supported cameras at resolutions up to 32MP. Its local HDMI display output, however, is limited to 4K and should not be described as 8K HDMI output.

• HDMI: up to 3840 × 2160 at 30Hz
• 2K: up to 2560 × 1440 at 60Hz
• 1080p: up to 1920 × 1080 at 60Hz
• VGA: up to 1920 × 1080 at 60Hz
• Independent HDMI and VGA output

AI, VCA, and Smart Search

• Deep-learning-based intelligent analytics
• Up to 4-channel VCA processed by the NVR
• Human and vehicle recognition under supported VCA configurations
• Motion Detection 2.0
• Facial recognition under supported configurations
• Smart search within selected areas of recorded video
• Smart playback
• POS overlay, triggered recording, and alarm support

Important: The NVR's built-in facial recognition cannot be used at the same time as Direct Search or VCA. Available AI functions also depend on the connected camera and system configuration.

Storage

• 2 internal SATA interfaces
• Up to 16TB per hard drive
• Up to 32TB total internal storage

Hard drives are not included unless specifically stated with the selected configuration. Surveillance-rated HDDs are recommended for continuous recording.

Network and System Connections

• 1 Gigabit RJ45 10/100/1000Mbps LAN interface
• ONVIF Profiles S and G
• RTSP support
• LTS Connect and DDNS remote access
• Up to 128 remote connections
• 1-channel RCA two-way audio
• 4 alarm inputs and 1 alarm output
• Front USB 2.0 and rear USB 3.0 ports

Physical and Power Specifications

• 1U chassis
• Dimensions: 15.2 × 12.5 × 2.0 inches
• Weight: up to approximately 5.5 lb without HDDs
• Power input: 100–240VAC, 50/60Hz
• NVR consumption: up to 30W without HDDs and with PoE off
• Operating temperature: 14°F to 131°F

What You Need to Complete the System

• Compatible IP security cameras
• Surveillance hard drive or drives for local recording
• Cat5e or Cat6 network cabling
• Display and HDMI/VGA cable if local viewing is required
• Network connection for remote access

Complete Your Security System

• IP security cameras
• Network recorders and NVRs
• Recording accessories
• Power management solutions

Need Help Confirming Compatibility?

Send Bear Security Shop your camera models, camera quantity, desired recording time, and storage requirements. We can help confirm camera compatibility, PoE capacity, hard-drive sizing, and recorder configuration.

How many cameras can the LTN8608D-P8N support?

It supports up to 8 IP camera channels and includes 8 built-in PoE ports.

Does the LTN8608D-P8N output 8K over HDMI?

No. LTS markets it as an 8K-series NVR and it supports recording resolutions up to 32MP, but its HDMI output is limited to 4K 3840 × 2160 at 30Hz.

What is the maximum supported camera resolution?

The recorder supports recording resolutions up to 32MP. LTS specifies support for up to four 32MP or 24MP IP video inputs under supported configurations.

How much storage can it support?

It has two SATA bays supporting hard drives up to 16TB each, for up to 32TB total internal storage.

Are hard drives included?

No hard drive should be assumed to be included unless the selected product configuration specifically states otherwise.

Does it have built-in PoE?

Yes. It includes 8 IEEE 802.3af/at PoE ports with a maximum combined PoE power budget of 150W.

What are the network bandwidth limits?

LTS specifies 80Mbps incoming bandwidth and 256Mbps outgoing bandwidth.

Does it support human and vehicle detection?

Yes. Supported VCA and Motion Detection 2.0 configurations can identify human and vehicle targets. Capabilities depend on the camera and system configuration.

Does it support facial recognition?

Yes, under supported configurations. The NVR's built-in facial recognition cannot operate simultaneously with Direct Search or VCA.

Does it work with third-party IP cameras?

Yes. LTS specifies third-party network camera compatibility and ONVIF support. Advanced analytics and other features may vary by camera.

Can I access the recorder remotely?

Yes. It supports LTS Connect and DDNS when connected and configured for network access.

Does the NVR have Wi-Fi?

No. Its network connection is wired Ethernet. Wireless networking would require compatible external network equipment.
