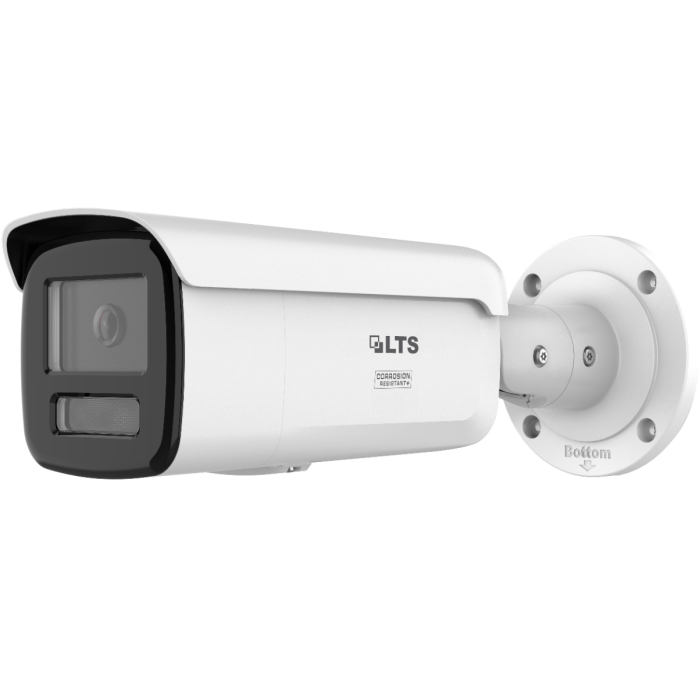

LTS LTCMIP9CD82WI-28AISP 8MP AI Ultra HD Color Bullet Camera

8MP Detail with Long-Range Color 24/7 Monitoring

The LTS LTCMIP9CD82WI-28AISP is an 8MP AI Color 24/7 bullet IP camera designed for driveways, parking areas, entrances, yards, and perimeter locations where detailed video and longer supplemental-light range are important.

Image and Lens

• Maximum resolution: 3840 × 2160 at up to 30 fps
• 1/1.8-inch Progressive Scan CMOS sensor
• 2.8mm fixed F1.0 lens
• 108.8° horizontal field of view
• 56.4° vertical field of view
• 134.3° diagonal field of view
• 130dB Wide Dynamic Range
• BLC, HLC, 3D DNR, distortion correction, defog, and EIS

Color 24/7 and Smart Hybrid Light

The F1.0 lens helps capture more available light in dark scenes. Smart Hybrid Light combines infrared and white supplemental illumination with three selectable lighting modes.

• IR and white supplemental lighting
• Maximum supplemental-light range: 196 ft / 60 m
• 850nm infrared wavelength
• Minimum color illumination: 0.0005 lux at F1.0 with AGC on
• 0 lux with supplemental light

AI Detection and Smart Events

• Human and vehicle classification
• Motion detection with human/vehicle target filtering
• Line crossing detection
• Intrusion detection
• Region entrance detection
• Region exiting detection
• Face capture
• Scene change detection

Analytics performance depends on camera placement, target size, lighting, scene conditions, and configuration.

Recording and Network

• H.265+, H.265, H.264+, and H.264 compression
• Up to three video streams under supported settings
• microSD/microSDHC/microSDXC storage up to 512GB
• NAS storage with Auto Network Replenishment support
• ONVIF Profiles S, T, and G
• RJ45 10/100 Ethernet
• LTS Connect, NVMS V3, and X-VMS support

A compatible LTS NVR is recommended for the most complete support of analytics, recording, and event functions. Third-party ONVIF functionality can vary by recorder.

Power Requirements

• PoE: IEEE 802.3af, Class 3, maximum 12.5W
• Alternative power: 12V DC ±25%, maximum 10W

This is a wired Ethernet camera and does not include Wi-Fi.

Outdoor Protection

• IP67 dust and water ingress protection
• NEMA 4X anti-corrosion protection
• LTS anti-corrosion classification: Moderate Protection
• Metal front cover, body, and mounting bracket
• Operating temperature: -22°F to 140°F

IP67 does not mean the camera is intended for permanent underwater use. LTS classifies this model for moderate anti-corrosion environments rather than its highest corrosion-protection category.

Dimensions and Mounting

• Dimensions: 11.3 × 3.7 × 3.6 inches
• Metric dimensions: 286.7 × 93.3 × 91.2 mm
• Weight: approximately 2.7 lb
• Pan adjustment: 0° to 360°
• Tilt adjustment: 0° to 90°
• Rotation: 0° to 360°

LTS lists the LTB801 junction box, LTB378 vertical pole mount, and LTB379 corner mount as compatible accessories. Mounting accessories and microSD card are sold separately.

Complete the System

• AI Color 24/7 cameras
• Network video recorders
• Security camera accessories
• Network switches

Need Help Confirming Compatibility?

Send Bear Security Shop your NVR model, camera quantity, installation location, and cable-run details. We can help confirm recorder compatibility, PoE capacity, storage, and mounting accessories.

What resolution does the LTCMIP9CD82WI-28AISP support?

It supports up to 3840 × 2160 8MP resolution at 30 fps in a 60Hz configuration.

What lens does it use?

It uses a fixed 2.8mm F1.0 lens with a 108.8° horizontal field of view.

How far does the Smart Hybrid Light reach?

LTS specifies a maximum supplemental-light range of approximately 196 feet, or 60 meters.

Does it provide color video at night?

It is designed for Color 24/7 imaging and combines an F1.0 lens with infrared and white supplemental lighting. Actual nighttime color performance depends on available light and camera settings.

Does it detect people and vehicles?

Yes. AI analytics support human and vehicle classification for motion and perimeter events.

Does it support two-way audio?

Two-way audio is not documented in the current official LTS specification sheet for this exact model, so it should not be assumed.

Does it support a microSD card?

Yes. It supports microSD, microSDHC, and microSDXC cards up to 512GB. The card is sold separately.

Does it require PoE+?

No. LTS specifies standard IEEE 802.3af Class 3 PoE with maximum PoE consumption of 12.5W.

Does it have Wi-Fi?

No. This is a wired Ethernet IP camera.

Will it work with a third-party NVR?

It supports ONVIF Profiles S, T, and G. Basic interoperability may be available, but analytics and event functions can vary by recorder.

Is it waterproof?

It is IP67 rated for dust and water ingress protection but is not intended for permanent underwater installation.

Which mounting accessories does LTS list?

LTS lists the LTB801 junction box, LTB378 vertical pole mount, and LTB379 corner mount.
