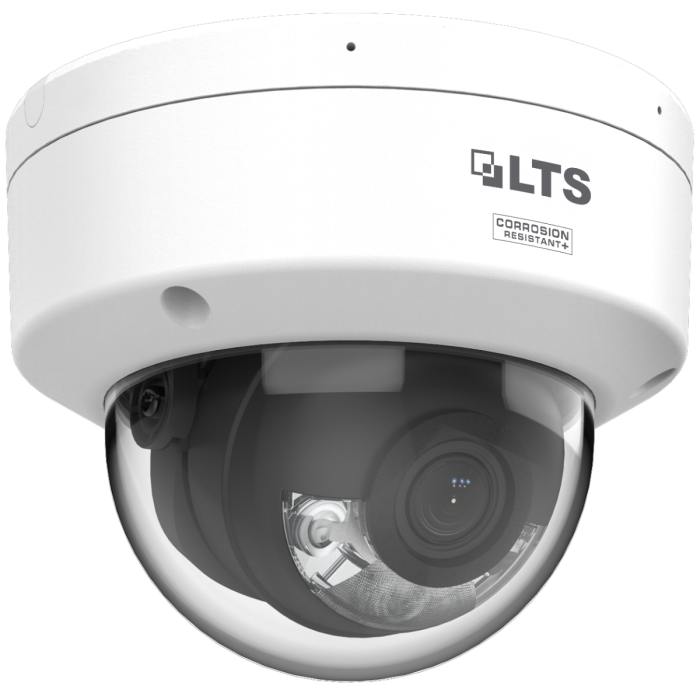

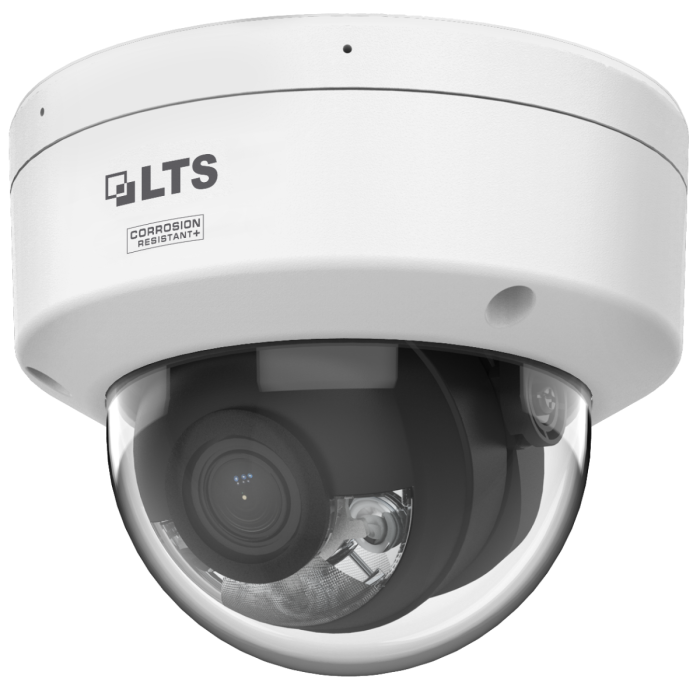

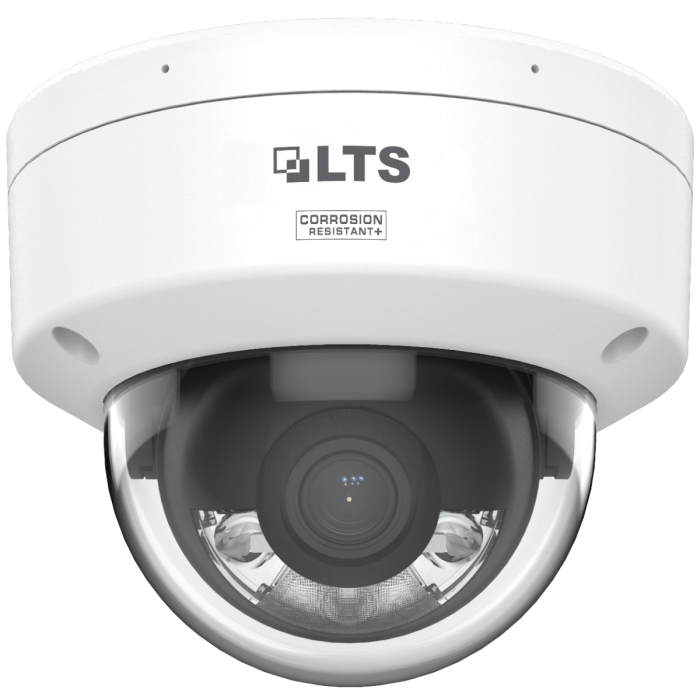

LTS LTCMIP7CD82WI-28AISP 8MP AI Dome Camera IK10 Rated Dual Audio

8MP Detail with Color 24/7 and Vandal-Resistant Protection

The LTS LTCMIP7CD82WI-28AISP is an 8MP AI dome IP camera designed for entrances, lobbies, storefronts, garages, and other indoor or outdoor locations where detailed video and IK10 impact resistance are important.

Image and Lens

• Maximum resolution: 3840 × 2160
• 1/1.8-inch Progressive Scan CMOS sensor
• 2.8mm fixed F1.0 lens
• 108.8° horizontal field of view
• 56.4° vertical and 134.3° diagonal field of view
• 130dB Wide Dynamic Range
• Smart Hybrid IR and white supplemental lighting up to 98 ft

AI Detection

• Human and vehicle classification
• Line crossing detection
• Intrusion detection
• Region entrance and exiting detection
• Face capture
• Scene change detection

Two-Way Audio

The camera includes arrayed dual microphones and a built-in speaker, allowing compatible two-way audio operation. It also provides separate audio input and output connections.

Recording and Network

• microSD/microSDHC/microSDXC support up to 512GB
• RJ45 10/100 Ethernet
• H.265+, H.265, H.264+, and H.264 compression
• Compatible with supported LTS recording systems

A compatible LTS NVR is recommended for the most complete analytics, audio, and event integration.

Power Requirements

• PoE: IEEE 802.3af, Class 3, maximum 10.5W
• Alternative power: 12V DC ±25%, maximum 9W

This is a wired Ethernet camera and does not include Wi-Fi.

Outdoor and Vandal Protection

• IP67 dust and water ingress protection
• IK10 impact-resistant dome housing
• NEMA 4X anti-corrosion design
• Aluminum-alloy base and cover
• Operating temperature: -22°F to 140°F

IP67 does not mean the camera is intended for permanent underwater installation.

Dimensions

• Dimensions: 4.78-inch diameter × 3.84 inches high
• Weight: approximately 1.3 lb

The LTB347H junction box is listed by LTS as a compatible mounting accessory. Other mounting accessories should be confirmed by exact model before ordering.

Complete the System

• AI Color 24/7 cameras
• Network video recorders
• Security camera accessories
• Network switches

Need Help Confirming Compatibility?

Send Bear Security Shop your NVR model, camera quantity, mounting location, and cable-run details. We can help confirm recorder compatibility, PoE capacity, storage, and mounting accessories.

What resolution does the LTCMIP7CD82WI-28AISP support?

It supports up to 3840 × 2160 8MP resolution.

What lens does it use?

It uses a fixed 2.8mm F1.0 lens with a 108.8° horizontal field of view.

Does it provide color video at night?

Yes. It is designed for Color 24/7 imaging and includes Smart Hybrid Light with infrared and white supplemental illumination up to 98 feet.

Does it detect people and vehicles?

Yes. AI analytics support human and vehicle classification for motion and perimeter events.

Does it support two-way audio?

Yes. It has arrayed dual microphones and a built-in speaker.

Does it support a microSD card?

Yes. It supports microSD cards up to 512GB. The card is sold separately.

Does it require PoE+?

No. LTS specifies standard IEEE 802.3af Class 3 PoE, with maximum PoE consumption of 10.5W.

Does it have Wi-Fi?

No. It is a wired Ethernet IP camera.

Is it vandal resistant?

Yes. The dome housing is IK10 rated for impact resistance.

Is it waterproof?

It is IP67 rated for dust and water ingress protection but is not intended for permanent underwater use.
