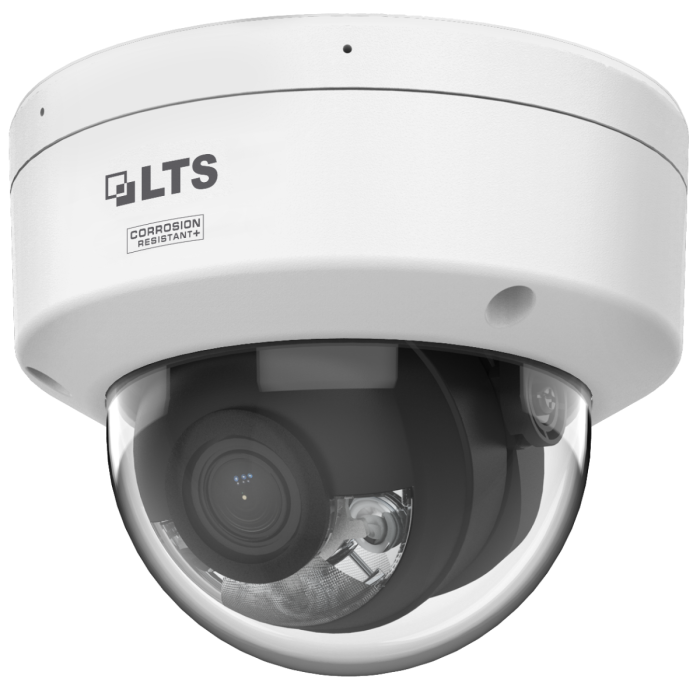

LTS LTCMIP7CD42WI-28AISP 4MP AI Color Night Vision Dome Camera

Detailed Color Video with a Vandal-Resistant Dome Design

The LTS LTCMIP7CD42WI-28AISP is a 4MP AI Color 24/7 dome IP camera designed for entrances, lobbies, storefronts, offices, garages, and other areas where discreet appearance and IK10 impact resistance are important.

Image and Lens

• Maximum resolution: 2688 × 1520 at up to 30 fps
• 1/1.8-inch Progressive Scan CMOS sensor
• 2.8mm fixed F1.0 lens
• 111.1° horizontal field of view
• 57.6° vertical and 138.5° diagonal field of view
• 130dB Wide Dynamic Range
• BLC, HLC, 3D DNR, distortion correction, defog, and EIS

Color 24/7 and Smart Hybrid Light

The F1.0 lens helps capture more available light for detailed color video in low-light scenes. Smart Hybrid Light combines infrared and white supplemental illumination with three lighting modes and a specified range of up to 98 feet.

AI Detection

• Human and vehicle classification
• Motion detection with target filtering
• Line crossing detection
• Intrusion detection
• Region entrance and exiting detection
• Face capture
• Scene change detection

AI performance depends on camera placement, lighting, target size, scene conditions, and configuration.

Two-Way Audio

• Arrayed dual built-in microphones
• Built-in speaker
• Two-way audio capability
• Separate audio input and output
• Environmental noise filtering

Recording and Network

• H.265+, H.265, H.264+, and H.264 compression
• microSD/microSDHC/microSDXC storage up to 512GB
• NAS storage support
• ONVIF Profiles S, G, and T
• RJ45 10/100 Ethernet
• LTS Connect, NVMS V3, and X-VMS support

A compatible LTS NVR is recommended for the most complete support of analytics, audio, recording, and event functions. Third-party ONVIF functionality can vary by recorder.

Power Requirements

• PoE+: IEEE 802.3at, Class 4, up to 17W
• Alternative power: 12V DC ±25%

This is a wired Ethernet camera and does not include Wi-Fi. Make sure the connected PoE equipment can provide the required power.

Outdoor and Vandal Protection

• IP67 dust and water ingress protection
• IK10 impact-resistant dome housing
• NEMA 4X anti-corrosion protection
• Metal cover and main body
• Operating temperature: -22°F to 140°F

LTS classifies this model as having Moderate Protection against corrosion. IP67 does not mean the camera is intended for permanent underwater use.

Dimensions and Mounting

• Dimensions: approximately 5.4-inch diameter × 4.5 inches high
• Weight: approximately 1.8 lb
• Compatible accessories include LTB742-120 wall mount, LTB731 pendant mount, LTB378 pole mount, LTB379 corner mount, and LTB347H junction box

Mounting accessories, microSD card, NVR, network cable, and PoE equipment are sold separately.

Warranty

LTS lists Platinum cameras with a 5-year manufacturer warranty, subject to current warranty terms and exclusions.

Complete the System

• AI Color 24/7 cameras
• Network video recorders
• Security camera accessories
• Network switches

Need Help Confirming Compatibility?

Send Bear Security Shop your NVR model, camera quantity, mounting location, and cable-run details. We can help confirm recorder compatibility, PoE capacity, storage, and mounting accessories.

What resolution does the LTCMIP7CD42WI-28AISP support?

It supports up to 2688 × 1520 4MP resolution at 30 fps in a 60Hz configuration.

What lens does it use?

It uses a fixed 2.8mm F1.0 lens with a 111.1° horizontal field of view.

Does it provide color video at night?

Yes. It is designed for Color 24/7 imaging and includes Smart Hybrid Light with infrared and white supplemental illumination up to 98 feet.

Does it detect people and vehicles?

Yes. AI analytics support human and vehicle classification for motion and perimeter events.

Does it support two-way audio?

Yes. Current LTS documentation specifies arrayed dual microphones and a built-in speaker.

Does it support a microSD card?

Yes. It supports microSD, microSDHC, and microSDXC cards up to 512GB. The card is sold separately.

How is the camera powered?

Current LTS documentation specifies IEEE 802.3at PoE+ or 12V DC power.

Does it have Wi-Fi?

No. This is a wired Ethernet IP camera.

Is it vandal resistant?

Yes. The dome housing is IK10 rated for impact resistance.

Is it waterproof?

It is IP67 rated for dust and water ingress protection but is not intended for permanent underwater use.

Will it work with a third-party NVR?

It supports ONVIF Profiles S, G, and T. Basic interoperability may be available, but analytics, audio, events, and configuration features can vary by recorder.
