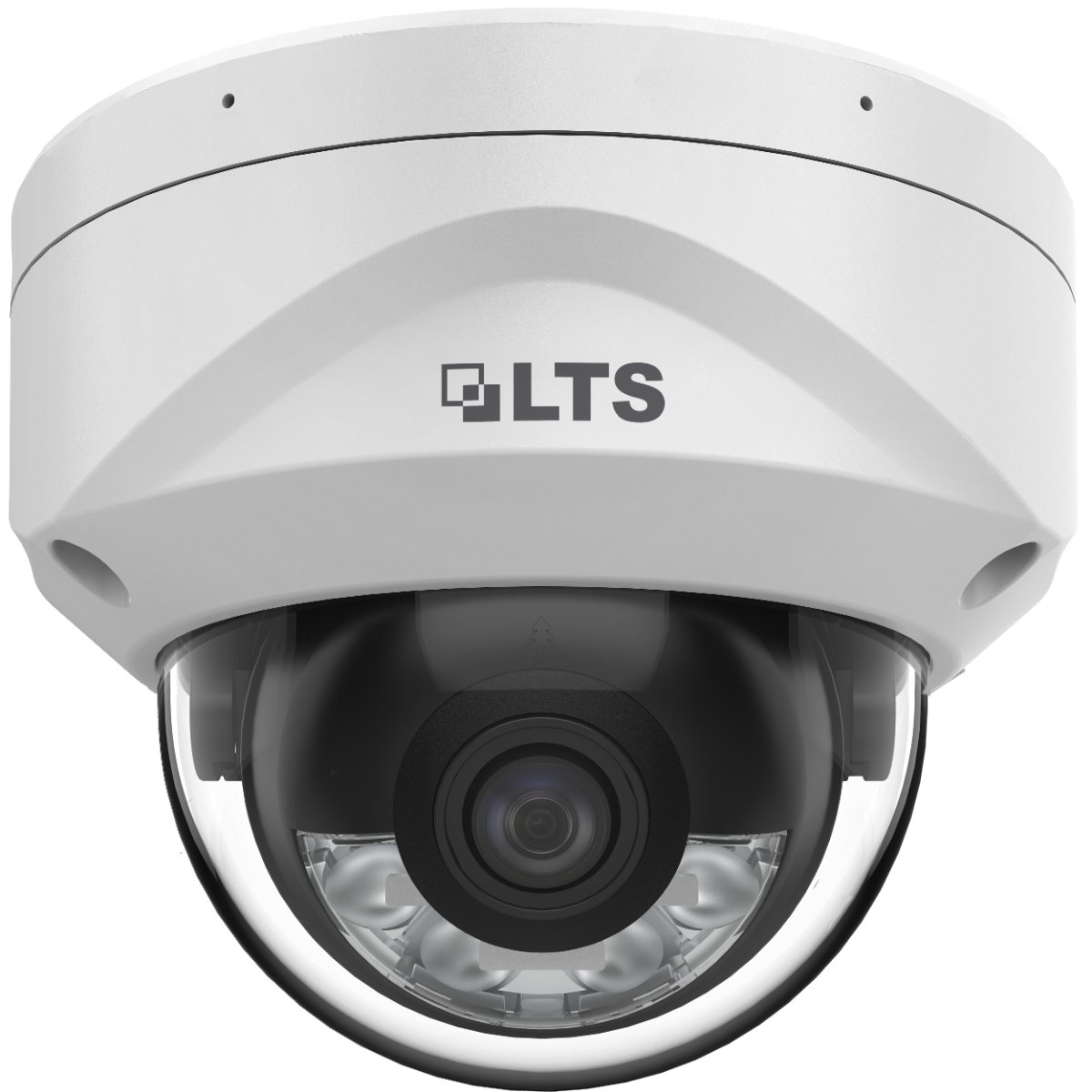

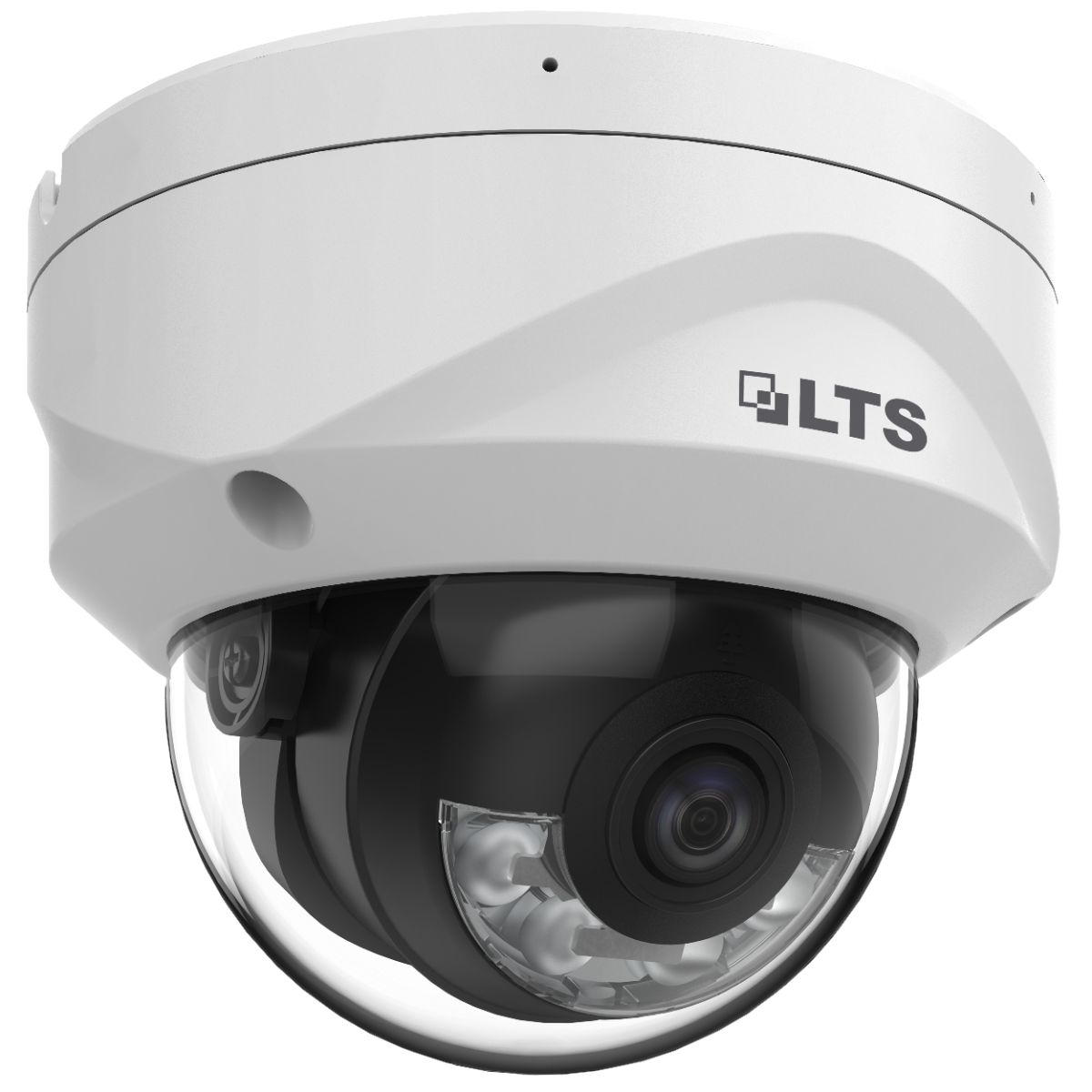

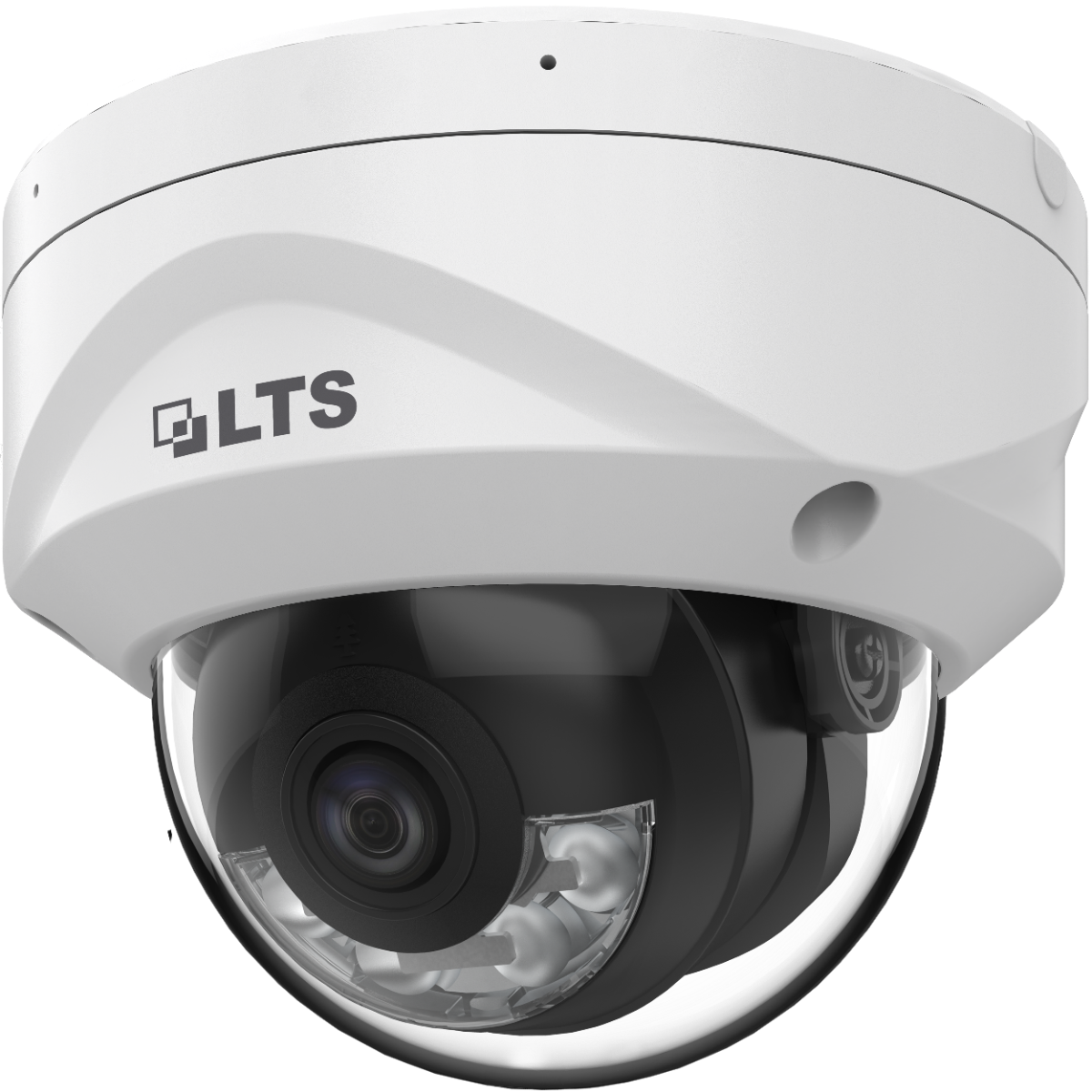

LTS LTCMIP7342WI-28MDA 4MP Smart Hybrid Light Dome Network Camera

Smarter 4MP Monitoring in a Vandal-Resistant Dome

The LTS LTCMIP7342WI-28MDA is a 4MP dome IP camera designed for entrances, lobbies, storefronts, garages, walkways, and other locations where discreet appearance, smart event filtering, audio capture, and IK10 impact resistance are useful.

Image and Lens

• Maximum resolution: 2688 × 1520 at up to 30 fps
• 1/2.9-inch Progressive Scan CMOS sensor
• 2.8mm fixed lens
• F1.6 aperture
• 104° horizontal field of view
• 57° vertical and 122° diagonal field of view
• 120dB True WDR
• BLC, HLC, and 3D DNR image enhancement

Smart Hybrid Light

Smart Hybrid Light combines infrared and white supplemental illumination with four lighting modes for flexible nighttime monitoring.

• IR and white supplemental lighting
• Maximum illumination range: 98 ft / 30 m
• 850nm infrared wavelength
• Minimum color illumination: 0.005 lux at F1.6 with AGC on
• 0 lux with supplemental light

Human and Vehicle Detection

• Human and vehicle classification
• Motion detection with human/vehicle target filtering
• Line crossing detection
• Intrusion detection

Detection accuracy depends on camera placement, lighting, target size, scene conditions, and configuration.

Built-In Audio

• Arrayed dual built-in microphones
• Environmental noise filtering
• 1 line-level audio input
• 1 line-level audio output

The camera does not include a built-in speaker. Audio monitoring is available through the built-in microphones. Two-way communication requires a compatible external audio device connected to the camera's audio output.

Recording and Network

• H.265+, H.265, H.264+, and H.264 compression
• Up to three video streams under supported settings
• microSD/microSDHC/microSDXC storage up to 512GB
• NAS storage and Auto Network Replenishment support
• ONVIF Profiles S and G
• RJ45 10/100 Ethernet
• NVMS V3, LTS Connect, and XVMS support
• 1 alarm input and 1 alarm output

A compatible LTS NVR is recommended for the most complete integration of recording, analytics, and event functions. Third-party ONVIF functionality can vary by recorder.

Power Requirements

• PoE: IEEE 802.3af, Class 3, maximum 8.5W
• Alternative power: 12V DC ±25%, maximum 7.2W

This is a wired Ethernet camera and does not include Wi-Fi.

Outdoor and Vandal Protection

• IP67 dust and water ingress protection
• IK10 impact-resistant housing
• Aluminum-alloy base and cover
• Operating temperature: -22°F to 140°F

IP67 does not mean the camera is intended for permanent underwater installation.

Dimensions and Mounting

• Dimensions: 4.78-inch diameter × 3.84 inches high
• Weight: approximately 1.3 lb
• Pan adjustment: 0° to 355°
• Tilt adjustment: 0° to 75°
• Rotation: 0° to 355°

LTS lists the LTB742-120 and LTB742-120B wall mounts, LTB731 pendant mount, LTB378 vertical pole mount, LTB379 corner mount, and LTB347H junction box as compatible accessories.

Mounting accessories, microSD card, NVR, network cable, and external audio equipment are sold separately.

Complete the System

• IP security cameras
• Network video recorders
• Security camera accessories
• Network switches

Need Help Confirming Compatibility?

Send Bear Security Shop your NVR model, camera quantity, mounting location, and cable-run details. We can help confirm recorder compatibility, PoE capacity, storage, and mounting accessories.

What resolution does the LTCMIP7342WI-28MDA support?

It supports up to 2688 × 1520 4MP resolution at 30 fps in a 60Hz configuration.

What lens does it use?

It uses a fixed 2.8mm F1.6 lens with a 104° horizontal field of view.

How far does the Smart Hybrid Light reach?

LTS specifies infrared and white supplemental illumination up to approximately 98 feet, or 30 meters.

Does it detect people and vehicles?

Yes. Deep-learning analytics support human and vehicle classification for motion, line-crossing, and intrusion events.

Does it have built-in audio?

Yes. It includes an arrayed dual-microphone system with environmental noise filtering.

Does it have a built-in speaker?

No. LTS specifies built-in dual microphones plus line-level audio input and output, but no built-in speaker.

Does it support two-way audio?

Two-way communication requires a compatible external speaker or audio device connected to the camera's line-level audio output. The camera itself does not have a built-in speaker.

Does it support a microSD card?

Yes. It supports microSD, microSDHC, and microSDXC cards up to 512GB. The card is sold separately.

Does it require PoE+?

No. LTS specifies standard IEEE 802.3af Class 3 PoE with maximum consumption of 8.5W.

Does it have Wi-Fi?

No. It is a wired Ethernet IP camera.

Is it vandal resistant?

Yes. The housing carries an IK10 impact-resistance rating.

Is it waterproof?

It is IP67 rated for dust and water ingress protection but is not intended for permanent underwater use.

Which mounting accessories are compatible?

LTS lists the LTB742-120 and LTB742-120B wall mounts, LTB731 pendant mount, LTB378 pole mount, LTB379 corner mount, and LTB347H junction box.
