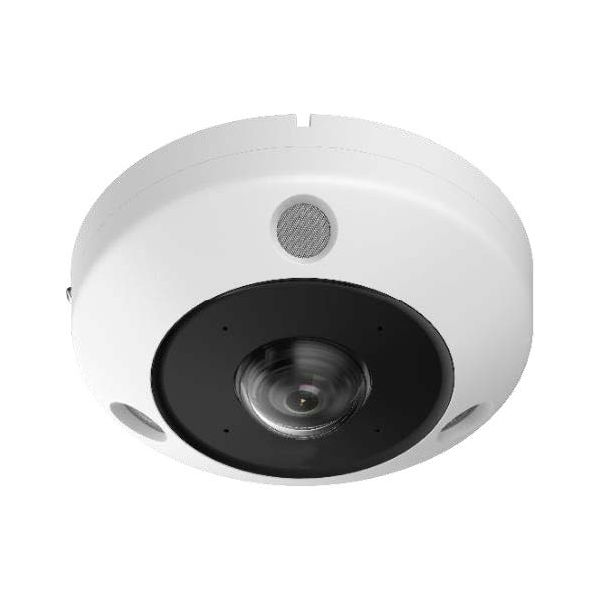

LTS LTCMIP7112F-SE 12MP 360° AI Fisheye PoE Camera

Monitor a Wide Area from One Camera Position

The LTS CMIP7112F-SE is a 12MP fisheye IP camera designed for rooms, lobbies, offices, retail floors, garages, warehouses, and other areas where broad situational coverage is more important than long-distance identification.

12MP Fisheye Imaging

• Maximum resolution: 3504 × 3504 at up to 30 fps
• 1.29mm fixed fisheye lens
• F2.2 aperture
• 180° horizontal lens field of view
• 180° vertical lens field of view
• 360° panoramic scene coverage with appropriate mounting and viewing mode
• Digital WDR
• BLC, HLC, 3D DNR, distortion correction, and defog

Dewarped Views and Virtual PTZ

The fisheye image can be digitally dewarped into easier-to-view layouts instead of displaying only the original circular image.

• Up to 20 live-view display modes
• Display modes designed for three mounting types
• Multi-dewarping support
• Digital PTZ-style navigation within the captured fisheye image

Virtual PTZ is digital navigation inside the recorded fisheye image. The camera does not physically pan, tilt, or zoom.

50-Foot IR Night Vision

• Three independently controlled IR lights
• IR range: approximately 50 ft / 15 m
• Designed for low-light and zero-light monitoring

Heat Mapping and People Analytics

• Heat mapping
• People counting
• Queue management
• Motion detection
• Line crossing detection
• Intrusion detection

Heat mapping can visualize activity based on visitor count or dwell time. People counting and queue-management features are useful for locations where traffic patterns and occupancy behavior matter.

Built-In Two-Way Audio

• Four built-in microphones
• One built-in speaker
• One audio input
• One audio output
• Two-way audio support
• Two alarm inputs and two alarm outputs

Local and NVR Recording

• H.265+, H.265, H.264+, and H.264 compression
• Built-in microSD/microSDHC/microSDXC card slot
• Manufacturer data sheet specifies cards up to 256GB
• Wired Ethernet network connection

A compatible LTS NVR is recommended for centralized recording, remote viewing, and the most complete support of fisheye dewarping and analytics. The microSD card is sold separately.

Power Requirements

• PoE: IEEE 802.3af, Class 3, maximum 12.5W
• Alternative power: 12V DC ±20%, maximum 11.5W

This is a wired network camera and does not include Wi-Fi.

Outdoor and Impact Protection

• IP67 dust and water ingress protection
• IK10 impact-resistant housing
• Metal construction
• Operating temperature: -40°F to 140°F

IP67 does not mean the camera is intended for permanent underwater installation.

Dimensions and Mounting

• Dimensions: Ø5.5 × 2.3 inches
• Metric dimensions: Ø140.3 × 59.4 mm
• Weight: approximately 1.58 lb / 715 g
• Compatible LTB342-140 wall mount
• Compatible LTB342-140B wall mount
• Compatible LTB378 vertical pole mount
• Compatible LTB379 corner mount

Mounting accessories, microSD card, NVR, network cable, and other system components are sold separately.

When to Choose Another Camera

Choose a conventional bullet, turret, varifocal, or PTZ camera when you need a tighter view of distant faces, license plates, gates, or property boundaries. The CMIP7112F-SE is designed primarily for broad situational coverage.

Complete the System

• IP security cameras
• Network video recorders
• Security camera accessories
• Network switches

Need Help Confirming Compatibility?

Send Bear Security Shop your NVR model, mounting location, and the viewing modes or analytics you need. We can help confirm recorder compatibility, dewarping support, PoE capacity, storage, and mounting accessories.

What resolution does the CMIP7112F-SE support?

It records up to 3504 × 3504 12MP resolution at 30 fps.

What lens does the camera use?

Current LTS documentation specifies a fixed 1.29mm F2.2 fisheye lens with 180° horizontal and vertical fields of view.

Can one camera provide 360° coverage?

Yes. When installed and configured appropriately, the fisheye camera provides a 360° panoramic view of the surrounding scene.

Does the camera physically pan and tilt?

No. PTZ-style navigation is digital within the fisheye image. There are no motors that physically move the camera lens.

Does it support dewarped viewing?

Yes. LTS supports multiple dewarping layouts and up to 20 live-view display modes designed for different mounting positions.

How far does the IR night vision reach?

LTS specifies three independently controlled IR lights with a range of approximately 50 feet, or 15 meters.

Does it support heat mapping?

Yes. Heat mapping can visualize activity based on visitor count or dwell time within a configured area.

Does it support people counting?

Yes. People counting is a manufacturer-specified analytics feature.

Does it support queue management?

Yes. LTS specifies queue-management functionality with configurable detection regions.

Does it support two-way audio?

Yes. It includes four built-in microphones and one built-in speaker, plus separate audio input and output connections.

Does it detect humans and vehicles?

The current model-specific LTS documentation confirms motion, line-crossing, intrusion, people counting, heat mapping, and queue-management analytics. Human/vehicle classification should not be assumed unless confirmed by the firmware and recorder configuration being used.

Does it support a microSD card?

Yes. The current model-specific LTS data sheet specifies microSD, microSDHC, and microSDXC cards up to 256GB. The card is sold separately.

Does it require PoE+?

No. LTS specifies IEEE 802.3af Class 3 PoE with maximum PoE consumption of 12.5W.

Is it suitable for outdoor use?

It carries IP67 dust and water ingress protection and an IK10 impact-resistance rating. It is not intended for permanent underwater use.
