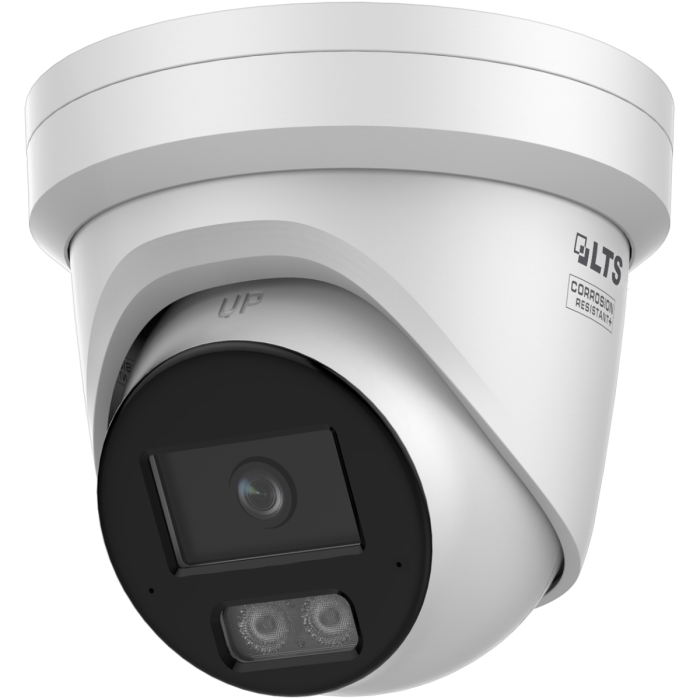

LTS LTCMIP3CD82WI-28AISP 8MP Dual Mics AI Color Turret Camera

Capture 8MP Detail with Smarter Day and Night Monitoring

The LTS LTCMIP3CD82WI-28AISP is an 8MP AI Color 24/7 turret IP camera designed for entrances, driveways, yards, garages, and perimeter areas. Its F1.0 lens, AI image processing, Smart Hybrid Light, dual microphones, and human/vehicle analytics provide detailed video with useful event filtering.

Image and Lens

• 8MP resolution up to 3840 × 2160 at 30 fps
• 1/1.8-inch Progressive Scan CMOS sensor
• 2.8mm fixed F1.0 lens
• 108.8° horizontal field of view
• 56.4° vertical and 134.3° diagonal field of view
• 130dB Wide Dynamic Range
• BLC, HLC, 3D DNR, defog, distortion correction, and EIS

Color 24/7 and Smart Hybrid Light

The F1.0 lens is designed to capture more available light in dark scenes. Smart Hybrid Light combines infrared and white supplemental illumination with three lighting modes and a maximum specified range of 98 feet.

AI Detection

• Human and vehicle classification
• Motion detection with target filtering
• Line crossing detection
• Intrusion detection
• Region entrance and exiting detection
• Scene change detection
• Face capture

Detection performance depends on camera placement, lighting, target size, scene conditions, and configuration.

Built-In Audio

The camera includes arrayed dual microphones with environmental noise filtering for mono audio recording.

There is no built-in speaker. This model does not provide two-way talk or active audio deterrence.

Recording and Network

• H.265+, H.265, H.264+, and H.264 compression
• Up to three video streams under supported settings
• microSD/microSDHC/microSDXC storage up to 512GB
• NAS storage support
• ONVIF Profiles S, G, and T
• RJ45 10/100 Ethernet

A compatible LTS NVR is recommended for the most complete integration of recording, analytics, and audio. Third-party ONVIF functionality may vary by recorder.

Power Requirements

• PoE: IEEE 802.3af, Class 3, maximum 11W
• Alternative power: 12V DC ±25%, maximum 8.5W

This is a wired IP camera and does not include Wi-Fi.

Outdoor Protection

• IP67 dust and water ingress protection
• NEMA 4X anti-corrosion protection
• LTS anti-corrosion classification: Moderate Protection
• Metal cover and main body
• Operating temperature: -22°F to 140°F

IP67 does not mean the camera is designed for permanent underwater use.

Dimensions and Mounting

• Dimensions: 5.4-inch diameter × 4.5 inches high
• Weight: approximately 1.7 lb
• Compatible accessories: LTB342-140 wall mount, LTB701/LTB701BK junction box, LTB341 pendant mount, LTB378 pole mount, and LTB379 corner mount

Mounting accessories and microSD card are sold separately.

Complete the System

• IP security cameras
• Network video recorders
• Security camera accessories
• Network switches

Need Help Confirming Compatibility?

Send Bear Security Shop your NVR model, camera quantity, mounting location, and cable-run details. We can help confirm recorder compatibility, PoE capacity, storage, and mounting accessories.

What resolution does the LTCMIP3CD82WI-28AISP support?

It supports up to 3840 × 2160 8MP resolution at 30 fps in a 60Hz configuration.

What lens does it use?

The -28AISP model uses a fixed 2.8mm F1.0 lens with a 108.8° horizontal field of view.

Does it provide color video at night?

It is designed for Color 24/7 imaging and includes Smart Hybrid Light with infrared and white supplemental illumination. Actual nighttime results depend on scene lighting and the selected illumination mode.

How far does the supplemental light reach?

LTS specifies up to 98 feet, or 30 meters.

Does it detect people and vehicles?

Yes. AI analytics support human and vehicle classification for motion and perimeter events.

Does it record audio?

Yes. It includes arrayed dual microphones with environmental noise filtering.

Does it support two-way audio?

No. It has built-in microphones but no built-in speaker.

Does it support a microSD card?

Yes. It supports microSD, microSDHC, and microSDXC cards up to 512GB. The card is sold separately.

How is it powered?

It supports IEEE 802.3af Class 3 PoE or 12V DC power.

Does it have Wi-Fi?

No. This is a wired Ethernet IP camera.

Will it work with a third-party NVR?

It supports ONVIF Profiles S, G, and T. Basic interoperability may be available, but analytics, audio, events, and configuration features can vary by recorder.

Is it waterproof?

It is IP67 rated for outdoor dust and water ingress protection, but it is not intended for permanent underwater use.
