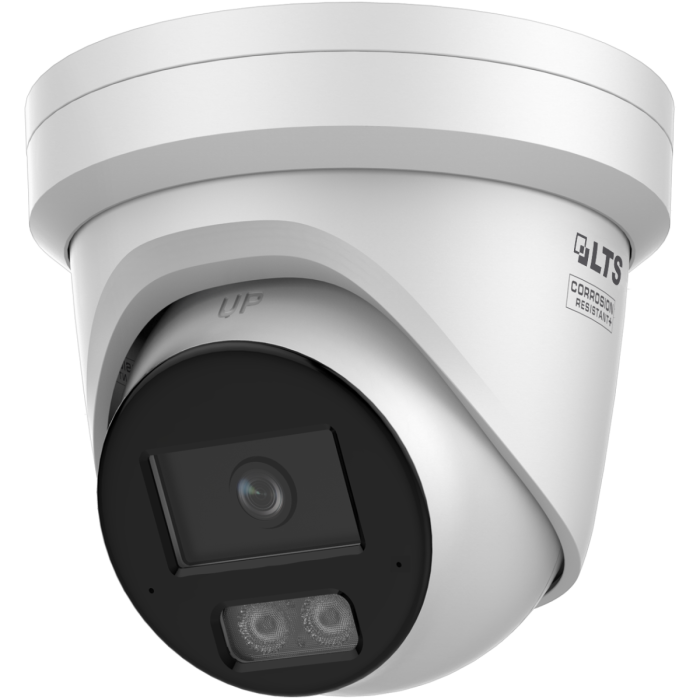

LTS LTCMIP3CD42WI-28AISP 4MP AI Full-Color 24/7 Turret Camera

Capture Detailed Color and Smarter Events Day or Night

The LTS LTCMIP3CD42WI-28AISP is a 4MP AI turret IP camera designed for entrances, driveways, garages, walkways, yards, and business perimeter areas. Its F1.0 lens, AI image processor, Smart Hybrid Light, dual microphones, and human/vehicle analytics provide detailed video with flexible day and night monitoring.

Image and Lens

• Maximum resolution: 2688 × 1520 at up to 30 fps
• 1/1.8-inch Progressive Scan CMOS sensor
• 2.8mm fixed lens
• F1.0 aperture
• 111.1° horizontal field of view
• 57.6° vertical field of view
• 138.5° diagonal field of view
• 130dB Wide Dynamic Range
• BLC, HLC, 3D DNR, defog, distortion correction, and EIS

Color 24/7 and Smart Hybrid Light

The F1.0 lens and AI image processor help preserve color and detail in low-light scenes. Smart Hybrid Light combines 850nm infrared and white supplemental lighting with three lighting modes, allowing the camera to adapt illumination to the scene and configuration.

• IR and white supplemental light
• Lighting range: up to 98 ft / 30 m
• Minimum color illumination: 0.0001 lux at F1.0 with AGC on
• 0 lux with supplemental light

AI Detection and Smart Events

• Human and vehicle classification
• Motion detection with target filtering
• Line crossing detection
• Intrusion detection
• Region entrance detection
• Region exiting detection
• Scene change detection
• Face capture

AI filtering can help reduce irrelevant motion events, but detection accuracy still depends on camera placement, scene conditions, target size, and configuration.

Built-In Audio

The camera includes an arrayed dual-microphone system with environmental noise filtering for mono audio recording.

This model does not include a built-in speaker. It should not be described as supporting two-way talk or active audio deterrence.

Recording and Network Compatibility

• H.265+, H.265, H.264+, and H.264 compression
• Up to three video streams under supported settings
• microSD, microSDHC, or microSDXC storage up to 512GB
• NAS storage support
• ONVIF Profiles S, G, and T
• RJ45 10/100 Ethernet
• LTS Connect, NVMS V3, and X-VMS support

A compatible LTS NVR is recommended when you want the most complete integration of recording, analytics, audio, and event functions. Third-party ONVIF recorders may support basic interoperability, but available features can vary.

Power Requirements

• PoE: IEEE 802.3af, Class 3
• Maximum PoE power: 11W
• Alternative power: 12V DC ±25%
• Maximum 12V DC power: 8.5W

This is a wired IP camera and does not include Wi-Fi. Use a compatible PoE NVR, PoE switch, or 12V DC power supply.

Outdoor Protection

• IP67 dust and water ingress protection
• NEMA 4X anti-corrosion design
• Metal cover and metal main body
• Operating temperature: -22°F to 140°F

LTS classifies this model as providing moderate anti-corrosion protection. IP67 does not mean the camera is intended for permanent underwater installation.

Dimensions and Mounting

• Dimensions: 5.4-inch diameter × 4.5 inches high
• Weight: approximately 1.7 lb
• Pan adjustment: 0° to 360°
• Tilt adjustment: 0° to 75°
• Rotation: 0° to 360°

Compatible LTS accessories include the LTB342-140 wall mount, LTB701 junction box, LTB341 pendant mount, LTB378 vertical pole mount, and LTB379 corner mount.

Complete the System

• AI Color 24/7 cameras
• Network video recorders
• Security camera accessories
• Network switches

Need Help Confirming Compatibility?

Send Bear Security Shop your NVR model, camera quantity, installation location, cable-run details, and recording requirements. We can help confirm NVR compatibility, PoE capacity, storage, and mounting accessories.

What resolution does the LTCMIP3CD42WI-28AISP support?

It records up to 2688 × 1520 at 30 fps in a 60Hz configuration.

What lens does this model use?

The -28AISP model uses a fixed 2.8mm F1.0 lens with a 111.1° horizontal field of view.

Does it provide color video at night?

It is designed for Color 24/7 imaging and uses an F1.0 lens with Smart Hybrid Light. The camera includes both infrared and white supplemental illumination with three selectable lighting modes.

How far does the supplemental light reach?

LTS specifies a maximum supplemental-light range of approximately 98 feet, or 30 meters. Actual performance depends on the scene and installation.

Does it detect people and vehicles?

Yes. AI analytics support human and vehicle classification for motion and perimeter events.

Does it record audio?

Yes. It includes an arrayed dual-microphone system with environmental noise filtering.

Does it support two-way audio?

No. This model includes microphones but no built-in speaker, so it should not be considered a two-way-talk camera.

Does it support a microSD card?

Yes. The built-in card slot supports microSD, microSDHC, and microSDXC cards up to 512GB. The card is sold separately.

How is the camera powered?

It supports IEEE 802.3af Class 3 PoE or 12V DC power.

Does it have Wi-Fi?

No. This is a wired Ethernet IP camera.

Will it work with a third-party NVR?

The camera supports ONVIF Profiles S, G, and T. Basic interoperability may be possible, but analytics, audio, events, and configuration features can vary by recorder.

Is it waterproof?

It is IP67 rated for outdoor dust and water ingress protection. It is not intended for permanent underwater use.

What mounting accessories are compatible?

LTS lists the LTB342-140 wall mount, LTB701 junction box, LTB341 pendant mount, LTB378 vertical pole mount, and LTB379 corner mount.
