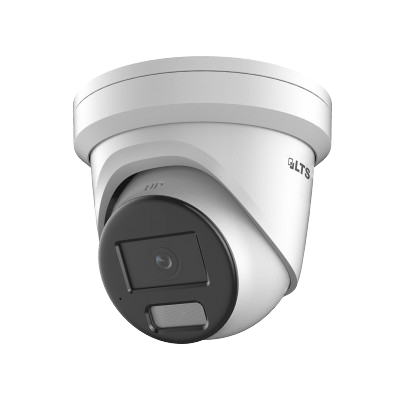

LTS LTCMIP3C82NW-28MDA Turret IP Camera 8MP Built-in Mic MD 2.0

Capture Detailed Color Video Day and Night

The LTS LTCMIP3C82NW-28MDA is an 8MP fixed-lens turret IP camera designed for homes, businesses, entrances, driveways, garages, and perimeter areas. Color 24/7 imaging, a 2.8mm F1.0 lens, built-in microphone, and human/vehicle detection help provide more useful video and event filtering.

Imaging and Lens

• 8MP resolution up to 3840 × 2160 at 20 fps
• 2.8mm fixed lens with F1.0 aperture
• 104° horizontal, 55° vertical, and 127° diagonal field of view
• Color 24/7 imaging
• White supplemental light up to 98 ft
• 130dB True WDR
• 3D DNR, BLC, and HLC image enhancement
• H.265+, H.265, H.264+, and H.264 compression

Smart Detection

• Motion Detection 2.0 with human and vehicle classification
• Line crossing detection
• Intrusion detection
• Region entrance and region exiting detection
• Scene change detection

Human and vehicle classification helps filter supported events by target type. Detection performance still depends on camera placement, scene conditions, configuration, and the connected recording system.

Audio and Recording

A built-in microphone captures mono audio together with video. The camera does not include a built-in speaker, so it should not be described as providing two-way talk.

• Built-in microSD/microSDHC/microSDXC slot up to 256GB
• Supports NAS network storage
• Supports recording and event linkage to compatible recording systems

A microSD card is not required when recording to a compatible NVR, but it can provide local edge storage when desired.

Network and NVR Compatibility

• RJ45 10/100 Ethernet connection
• Open Network Video Interface Profiles S, G, and T
• RTSP and common IP-network protocols
• Up to three video streams

For the most complete feature integration, pair the camera with a compatible LTS NVR. Third-party ONVIF compatibility may provide basic video functions, but analytics, audio, event handling, and configuration support can vary by recorder.

Power Requirements

• PoE: IEEE 802.3af, Class 3
• PoE power consumption: up to 10.5W
• Alternative power: 12V DC ±25%

This is a wired IP camera. It does not include Wi-Fi or operate wirelessly. A PoE NVR, PoE switch, or suitable 12V DC power source is required.

Outdoor Installation

The IP67-rated housing is designed for outdoor exposure to dust and weather when properly installed. IP67 does not mean the camera is intended for permanent underwater use.

• Operating temperature: -22°F to 140°F
• Dimensions: approximately 5.4-inch diameter × 4.5 inches high
• Weight: approximately 1.7 lb

Optional LTS wall, junction-box, pole, corner, and pendant mounting accessories are available separately when required by the installation.

Complete the System

• LTS security products
• IP security cameras
• Network video recorders
• Network switches

Need Help Confirming Compatibility?

Send Bear Security Shop your NVR model, camera quantity, mounting location, cable-run details, and recording requirements. We can help confirm recorder compatibility, PoE capacity, storage, and mounting accessories before you order.

Is the LTCMIP3C82NW-28MDA sold individually?

Yes. It is sold as one turret IP camera. NVR, PoE switch, microSD card, network cable, and optional mounting accessories are separate.

What resolution does it record?

It supports up to 3840 × 2160 8MP resolution at 20 frames per second.

What lens does it use?

This -28MDA model uses a fixed 2.8mm F1.0 lens with approximately a 104° horizontal field of view.

Does it provide color video at night?

Yes. It uses Color 24/7 imaging with white supplemental illumination rated up to 98 feet. Available ambient light, mounting position, and scene conditions affect actual nighttime performance.

Does it detect people and vehicles?

Yes. Motion Detection 2.0 supports human and vehicle classification. Supported smart events also include line crossing, intrusion, region entrance, and region exiting detection.

Does it record audio?

Yes. A built-in microphone captures mono audio. The camera does not include a built-in speaker and should not be considered a two-way-audio camera.

Does it need an NVR?

An NVR is recommended for centralized recording and management, but the camera also supports a microSD card up to 256GB and compatible NAS storage.

How is the camera powered?

It supports IEEE 802.3af PoE or 12V DC power. PoE allows network data and power to travel over the same Ethernet cable.

Does it have Wi-Fi?

No. This is a wired Ethernet IP camera.

Is it waterproof?

It is IP67 rated for dust and water protection when properly installed. It is suitable for outdoor use but is not intended for permanent underwater installation.

Will it work with a third-party NVR?

The camera supports ONVIF Profiles S, G, and T. Basic interoperability may be possible with compatible recorders, but analytics, audio, event handling, and other features can vary. Confirm compatibility before ordering.

What should I confirm before ordering?

Confirm your NVR compatibility, available PoE power, desired field of view, mounting location, network cabling, storage requirements, and whether a junction box or other mounting accessory is needed.
