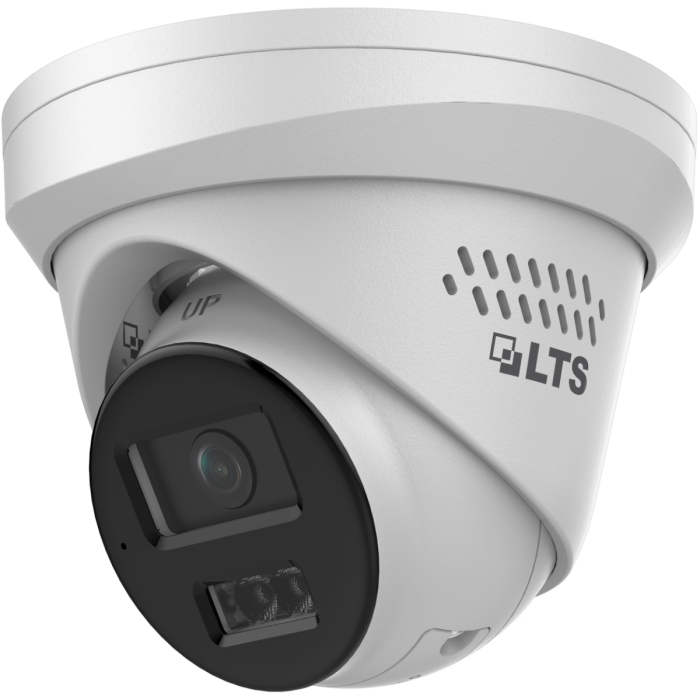

LTS LTCMIP3382WI-28SDL 8MP Active Deterrence Turret Network Camera

8MP Monitoring with Active Visual and Audio Deterrence

The LTS LTCMIP3382WI-28SDL is an 8MP turret IP camera that combines human and vehicle detection with Smart Hybrid Light, red and blue warning lights, dual microphones, and a built-in speaker for two-way audio.

8MP Image and Lens

• Maximum resolution: 3840 × 2160 at 20 fps
• 1/1.8-inch Progressive Scan CMOS sensor
• 2.8mm fixed lens
• F1.6 aperture
• 108° horizontal field of view
• 59° vertical field of view
• 127° diagonal field of view
• 120dB True WDR
• H.265+ compression support

Lower resolutions support higher frame rates, but full 3840 × 2160 recording is specified at 20 fps.

Smart Hybrid Light

Smart Hybrid Light combines infrared and white supplemental illumination for flexible nighttime monitoring.

• IR and white supplemental lighting
• Maximum illumination range: 98 ft / 30 m
• Minimum color illumination: 0.005 lux at F1.6 with AGC on
• 0 lux with supplemental light

Active Deterrence

• Red and blue flashing warning lights
• Built-in speaker for audible warnings
• Human and vehicle-triggered event support
• Visual and audible response to configured events

Human and Vehicle Detection

Deep-learning analytics focus motion events on human and vehicle targets, helping reduce irrelevant alerts. Detection performance depends on placement, lighting, target size, scene conditions, and configuration.

Built-In Two-Way Audio

• Arrayed dual built-in microphones
• Environmental noise filtering
• Built-in speaker
• Speaker rated up to 110dB at 10 cm
• Two-way audio through compatible LTS software and recording systems

Recording and Network

• microSD/microSDHC/microSDXC support up to 512GB
• H.265+, H.265, H.264+, and H.264 compression
• Wired Ethernet network connection
• Compatible with supported LTS NVR systems

A compatible LTS NVR is recommended for the most complete integration of recording, human/vehicle analytics, two-way audio, and active-deterrence events.

Power Requirements

• PoE+: IEEE 802.3at, Class 4
• Maximum PoE consumption: 18W
• 12V DC power option

This is a wired IP camera and does not include Wi-Fi. Make sure the connected NVR or PoE switch supports 802.3at PoE+.

Outdoor Protection

• IP67 dust and water ingress protection
• Metal housing
• Operating temperature: -22°F to 140°F

IP67 does not mean the camera is intended for permanent underwater installation.

Dimensions and Mounting

• Dimensions: approximately 5.0-inch diameter × 3.8 inches high
• Weight: approximately 1.1 lb
• LTB03-W junction box
• LTB378 vertical pole mount
• LTB379 corner mount

Mounting accessories, microSD card, NVR, network cable, and PoE equipment are sold separately.

Complete the System

• IP security cameras
• Network video recorders
• Security camera accessories
• Network switches

Need Help Confirming Compatibility?

Send Bear Security Shop your NVR model, camera quantity, mounting location, and cable-run details. We can help confirm recorder compatibility, PoE+ capacity, storage, and mounting accessories.

What resolution does the LTCMIP3382WI-28SDL support?

It records up to 3840 × 2160 8MP resolution at 20 fps. Lower resolutions support higher frame rates.

What lens does it use?

It uses a fixed 2.8mm F1.6 lens with approximately 108° horizontal field of view.

What makes this an active-deterrence camera?

It includes red and blue flashing warning lights plus a built-in speaker for audible warnings that can respond to configured events.

Does it detect people and vehicles?

Yes. Deep-learning analytics support human and vehicle classification.

Does it support two-way audio?

Yes. It includes arrayed dual microphones and a built-in speaker for compatible two-way audio operation.

How far does the Smart Hybrid Light reach?

LTS specifies infrared and white supplemental illumination up to approximately 98 feet, or 30 meters.

Is this a Color 24/7 camera?

No. This model uses an F1.6 lens with Smart Hybrid IR and white illumination. It should not be confused with LTS Color 24/7 models that use F1.0 optics.

Does it support a microSD card?

Yes. It supports microSD, microSDHC, and microSDXC cards up to 512GB. The card is sold separately.

Does it require PoE+?

Yes when powered through Ethernet. LTS specifies IEEE 802.3at Class 4 PoE+ with maximum consumption of 18W.

Does it have Wi-Fi?

No. This is a wired Ethernet IP camera.

Is it waterproof?

It is IP67 rated for dust and water ingress protection but is not intended for permanent underwater use.

Which mounting accessories does LTS list?

LTS lists the LTB03-W junction box, LTB378 vertical pole mount, and LTB379 corner mount among the compatible accessories.
