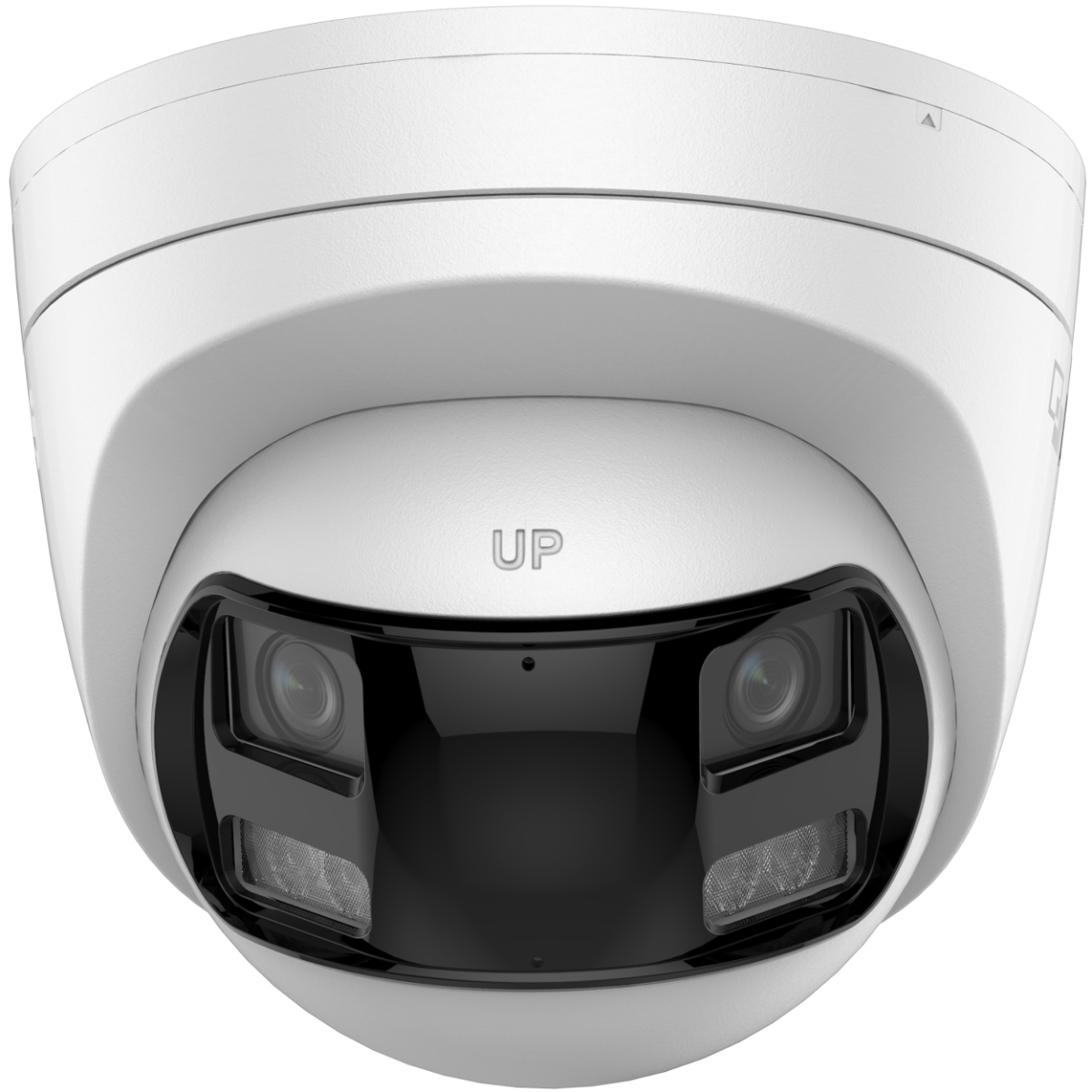

LTS LTCMHT3C5PW-28L 5MP Dual-Lens Color Panoramic Turret Camera

Cover a Wide 180° Area from One Camera Position

The LTS LTCMHT3C5PW-28L is a 5MP dual-lens HD-TVI turret camera that stitches its two camera views into a seamless 180° panoramic image. It is designed for wide entrances, driveways, yards, storefronts, parking approaches, and building fronts where broad horizontal coverage is more useful than a narrow camera view.

Panoramic Image and Lens

• Maximum resolution: 3328 × 1504
• Frame rate: 3K at 20 fps
• Dual-lens design with built-in image stitching
• 2.8mm fixed focal lenses
• F1.0 aperture
• 180° horizontal field of view
• 75° vertical field of view
• 130dB True WDR
• 3D digital noise reduction

Color 24/7 and Smart Hybrid Light

The F1.0 optics are designed to capture more available light for color imaging in low-light scenes. The camera also includes both infrared and white supplemental lighting.

• IR illumination up to 131 ft / 40 m
• White supplemental light up to 131 ft / 40 m
• Minimum illumination: 0.0005 lux at F1.0 with AGC on
• 0 lux with white supplemental light

Built-In Audio over Coax

A built-in microphone captures audio and sends it through the camera's coaxial connection. Audio recording requires a compatible DVR that supports audio over coax for this camera.

This model does not include a built-in speaker and should not be described as supporting two-way audio.

HD-TVI DVR Compatibility

This is an HD analog camera, not an IP camera. It uses one HD analog video output and must be connected to a compatible DVR rather than directly to an IP NVR.

LTS currently recommends the LTD85D series with firmware 4.83.300 or newer and the LTD83D series with the required supporting firmware.

Power Requirements

• 12V DC ±25%
• Maximum power consumption: 8.9W
• No PoE support

LTS recommends one power adapter per camera. For high-impedance cable runs such as the 18 m extension cable referenced in the manufacturer documentation, LTS specifies a 15V DC adapter.

Outdoor Protection

• IP67 dust and water ingress protection
• Metal main body
• Plastic enclosure
• Operating temperature: -40°F to 140°F

IP67 does not mean the camera is intended for permanent underwater installation.

Dimensions and Mounting

• Dimensions: 5.12-inch diameter × 4.3 inches high
• Weight: approximately 1.26 lb
• Pan adjustment: 0° to 360°
• Tilt adjustment: 0° to 75°
• Rotation: 0° to 360°

LTS lists the LTB342-140 wall mount and LTB701 junction box as compatible accessories. Mounting accessories and power supply are sold separately unless specifically included by the selected package.

Complete the Setup

• LTS security products
• Security camera accessories
• Power management solutions

Need Help Confirming Compatibility?

Send Bear Security Shop your DVR model and existing camera system details. We can help confirm HD-TVI compatibility, audio-over-coax support, power requirements, and the correct mounting accessories.

What resolution does the LTCMHT3C5PW-28L support?

It supports a maximum resolution of 3328 × 1504, with LTS specifying 3K video at 20 fps.

How does the 180° panoramic view work?

The camera uses two lenses and an internal stitching algorithm to combine both views into one seamless 180° panoramic image.

What lens does it use?

It uses dual 2.8mm fixed lenses with an F1.0 aperture and provides a 180° horizontal field of view.

Does it provide color video at night?

It is designed for Color 24/7 imaging using F1.0 optics and also includes infrared and white supplemental lighting for darker scenes.

How far does the night illumination reach?

LTS specifies both infrared and white-light illumination up to approximately 131 feet, or 40 meters.

Does it record audio?

Yes. It has a built-in microphone that sends audio over the coaxial connection when used with a compatible DVR.

Does it support two-way audio?

No. LTS specifies a built-in microphone but no built-in speaker.

Can I connect it to an IP NVR?

No. This is an HD-TVI analog camera with an HD analog output. It is designed for compatible DVR systems rather than direct connection to an IP NVR.

Which DVRs does LTS recommend?

LTS recommends the LTD85D series with firmware 4.83.300 or newer and the LTD83D series with the required supporting firmware.

Does this camera use PoE?

No. It requires 12V DC power and consumes up to 8.9W.

Is it waterproof?

It is IP67 rated for dust and water ingress protection but is not intended for permanent underwater use.

Which mounting accessories are compatible?

LTS lists the LTB342-140 wall mount and LTB701 junction box.
