Keep Camera Connections Concealed and Organized

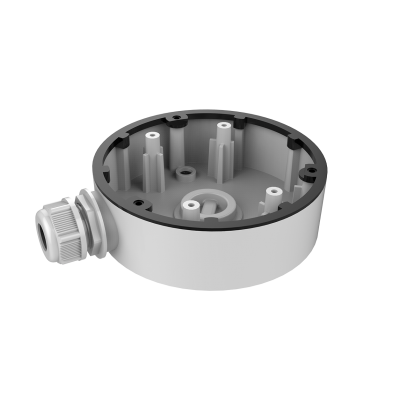

The LTS LTB347H is a white aluminum-alloy junction box designed for compatible LTS security cameras. It provides space for camera connections and supports both bottom and side cable entry for flexible wall or ceiling installations.
Compatible Camera Models
- CMIP7042W-28MA
- CMIP73XXMDA series
- CMIP7382W-28SH
This is not a universal camera junction box. Confirm your exact camera model before ordering.
Specifications
- Material: Aluminum alloy with surface treatment
- Color: White
- Dimensions: 4.72-inch diameter × 1.46 inches high
- Weight: 0.55 lb
- Maximum load: 9.92 lb
- Cable entry: Bottom or side outlet
- Installation: Indoor or outdoor
Outdoor Installation
LTS allows outdoor use but specifically requires waterproof rubber for outdoor applications. Install the box on a flat surface and properly seal cable entries and penetrations against moisture.
The mounting surface must support at least three times the combined weight of the camera and junction box.
Sold Separately
- Security camera
- Network and power cabling
- Conduit and fittings when required
- Surface-specific anchors and fasteners
Complete the Installation
Need Help Confirming Compatibility?
Send Bear Security Shop your exact LTS camera model. We can help confirm whether the LTB347H is the correct junction box before you order.
Constructed from durable aluminum alloy with surface spray treatment
Supports both bottom and side outlet for flexibility
Suitable for both indoor and outdoor conditions
Perfectly compatible with CMIP7042W-28MA,
CMIP73XXMDA, and CMIP7382W-28SH cameras
Requires a flat surface for installation
Needs waterproof rubber for outdoor applications
Supports a maximum load capacity of 4.5 kg (9.92 lb.)
Which cameras are compatible with the LTB347H?
LTS lists the CMIP7042W-28MA, CMIP73XXMDA series, and CMIP7382W-28SH.
Is the LTB347H sold individually?
Yes. One junction box is included. The camera and installation components are sold separately.
Can cables enter from the side?
Yes. The LTB347H supports both bottom and side cable outlets.
Can it be installed outdoors?
Yes. LTS specifies indoor and outdoor use but requires waterproof rubber for outdoor applications and proper sealing of cable entries.
What is the maximum load?
The manufacturer specifies a maximum load capacity of 9.92 lb, or 4.5 kg.
What are the dimensions?
It measures approximately 4.72 inches in diameter × 1.46 inches high and weighs 0.55 lb.
What should I confirm before ordering?
Confirm your exact LTS camera model, mounting surface, cable-entry method, and any outdoor sealing materials required.
