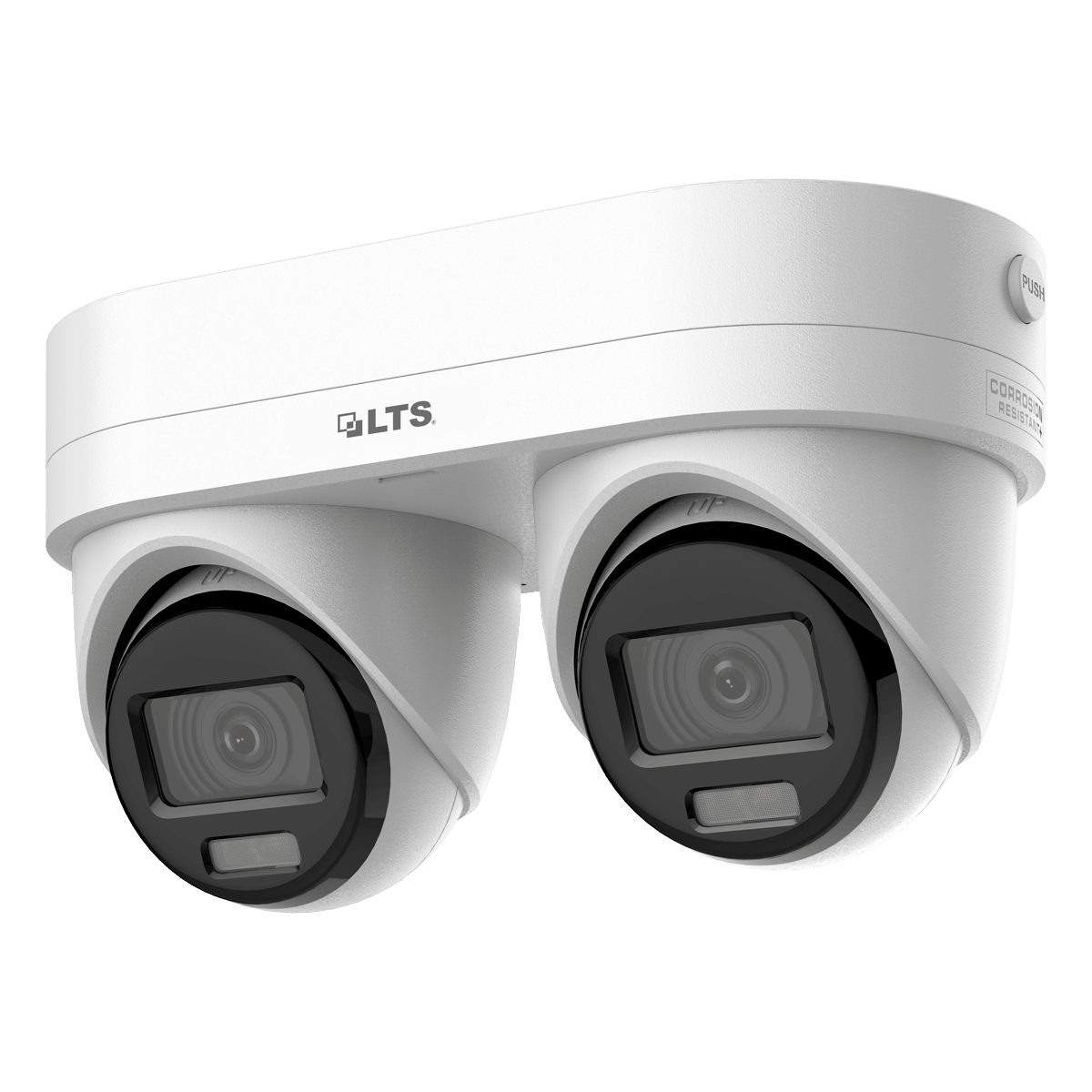

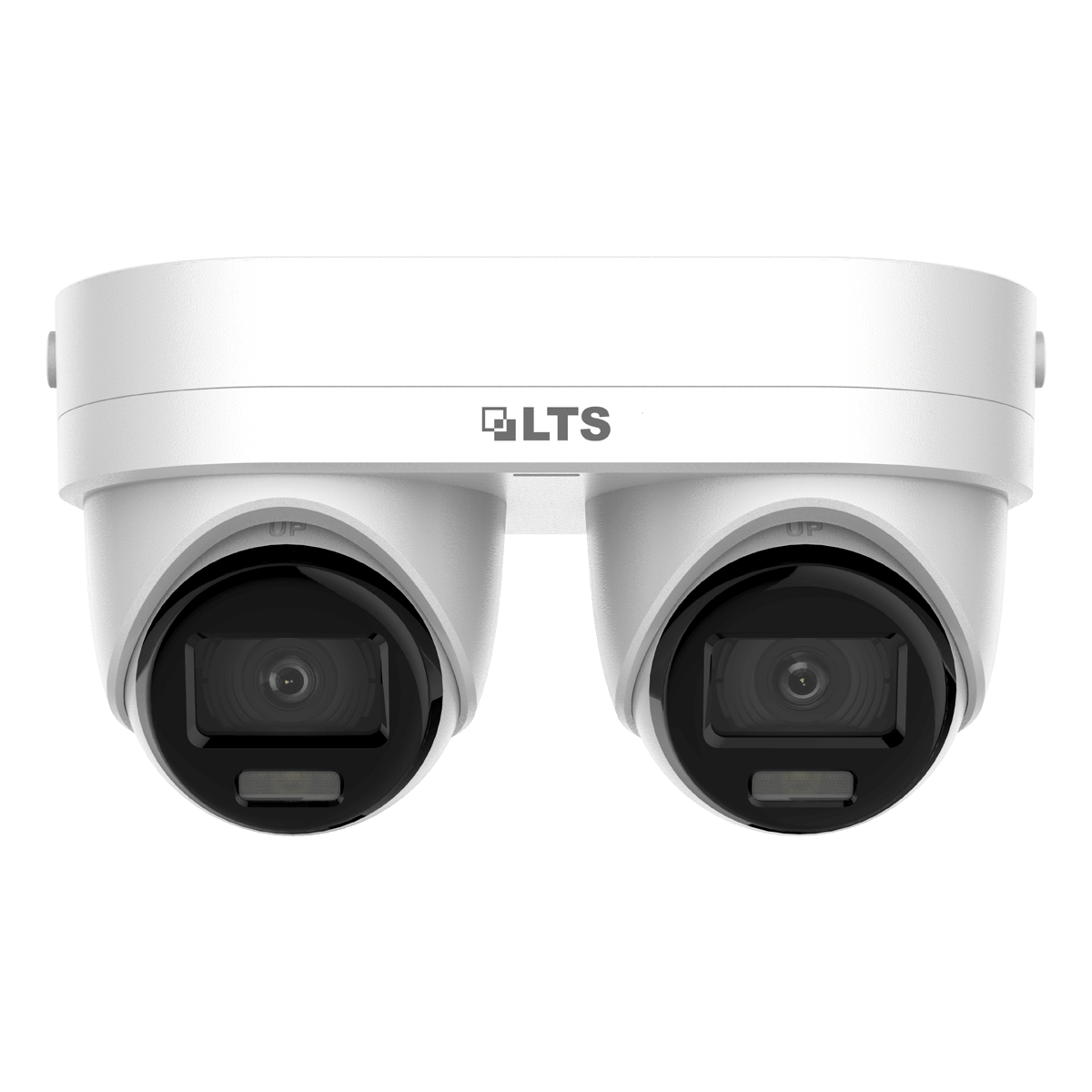

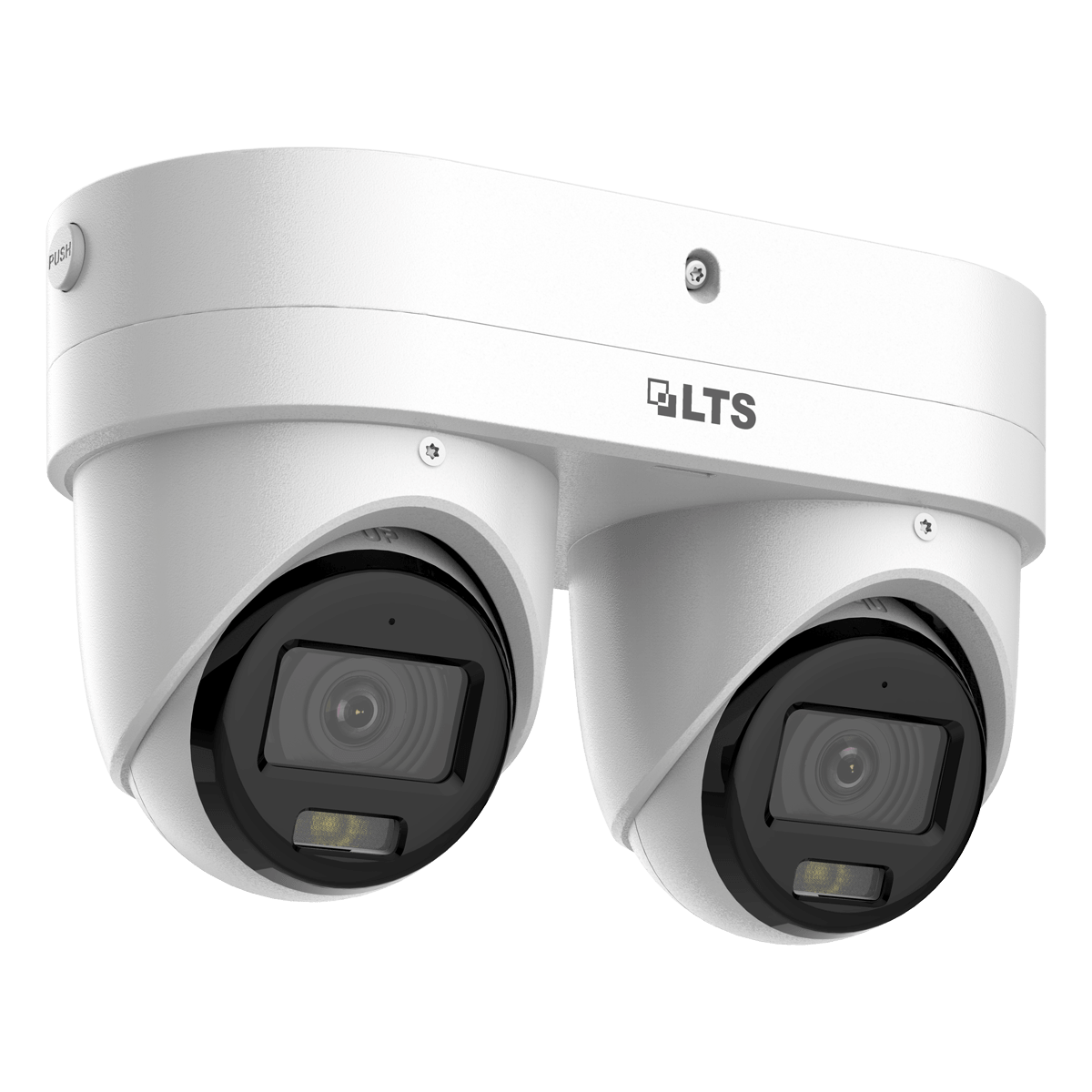

LTS CMIP3743W2-DLZ Dual 4MP Active Deterrence PoE Camera

Dual-lens PoE security camera with two independent 4MP views, adjustable coverage, intelligent detection, two-way audio, and active deterrence.

The LTS CMIP3743W2-DLZ combines two independently adjustable cameras inside one outdoor housing, helping you monitor two directions or coverage zones through a single PoE+ network connection. Each lens can be configured between 2.8mm and 4mm, giving you four practical field-of-view combinations for entrances, driveways, storefronts, hallways, and building corners.

Why customers choose this dual-lens camera

• Two views from one camera: Two independent 4MP channels reduce the need to mount and cable separate cameras for nearby coverage areas.
• Flexible lens positioning: Each motorized lens adjusts between 2.8mm and 4mm, allowing wide or more focused coverage on either channel.
• Independent intelligent detection: Run separate VCA 2.0 tasks so one lens can monitor general movement while the other watches for intrusion activity.
• Human and vehicle classification: Smart detection helps reduce alerts caused by animals, weather, leaves, and other irrelevant movement.
• Visible active deterrence: Red and blue strobe lights help draw attention and discourage unwanted activity around protected areas.
• Two-way audio: A built-in speaker, microphone, and arrayed dual microphones support communication and improved audio capture.
• Day and night coverage: Hybrid infrared and white-light illumination provides visibility at distances up to 100 feet.
• Clearer difficult scenes: 120dB WDR improves detail around doorways, headlights, shadows, and bright background lighting.
• Local recording option: Supports a MicroSD card up to 512GB for edge recording and additional video redundancy.
• Outdoor-ready design: The IP67-rated housing is built for exposed residential and commercial environments.

Best use cases

• Monitoring a driveway and front entrance from one mounting location
• Covering two sides of a home, office, store, or warehouse corner
• Watching a storefront entrance and nearby sidewalk or parking area
• Monitoring intersecting hallways, loading areas, gates, and property boundaries
• Replacing two nearby fixed cameras with one cleaner dual-lens installation
• Locations that need smart alerts, visible deterrence, and two-way communication

Recommended with this product

• LTS network video recorders for recording both video channels and managing intelligent detection events.
• PoE+ network switches when connecting the camera through a separate network switch.
• CAT6 network cables for reliable power and video transmission.
• Security camera mounts and accessories for wall, pendant, or corner installation options.

Quick guidance

This camera is a strong choice when two nearby areas need different viewing angles but you want to minimize cabling and visible equipment. It requires PoE+ rather than standard PoE for network-powered operation, and a compatible recorder should support both camera channels. For help confirming NVR compatibility, mounting accessories, or system capacity, contact us.

1. Does the CMIP3743W2-DLZ provide two separate camera views?
Yes. The camera produces two independent 4MP video channels from two adjustable lenses. This allows one camera to monitor two directions or nearby coverage zones through a single network cable.

2. Can both lenses use different viewing angles?
Yes. Each motorized lens can be configured between 2.8mm and 4mm, allowing wide-angle, focused, or mixed coverage combinations based on the area being monitored.

3. Does this dual-lens camera require PoE+?
Yes. The camera supports 12V DC or PoE+ power. Confirm that the connected NVR PoE port, PoE switch, or injector supports PoE+ and can provide the required power before installation.
