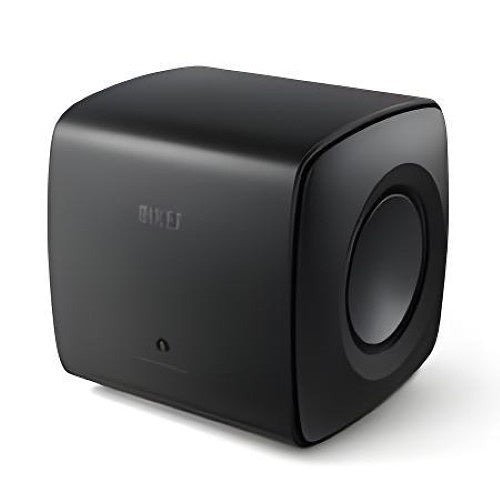

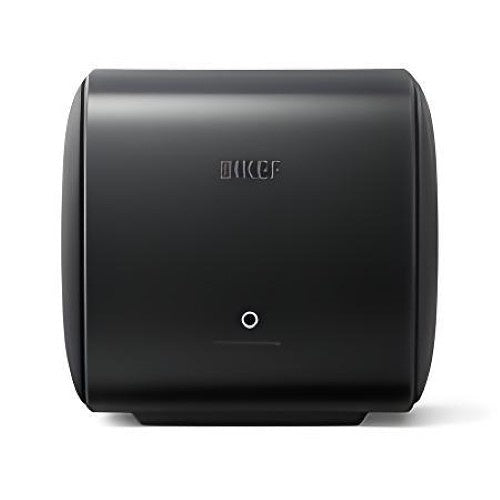

KEF KC62BL Uni-Core 1000W Dual 6.5 Inch Class D Compact Subwoofer

Deep Bass From an Ultra-Compact Powered Subwoofer

The KEF KC62BL KC62 is a compact powered subwoofer in Carbon Black that uses two opposing 6.5" Uni-Core drivers and 1000W RMS of built-in Class D amplification. It is designed for stereo music, home theater, gaming, and other systems where you want substantial low-frequency extension without using a large subwoofer enclosure.

Because the amplifier is built into the KC62, you do not need a separate power amplifier for the subwoofer. You do need an audio connection from a compatible receiver, preamp, integrated amplifier, powered speaker system, or other source with an appropriate subwoofer, line-level, or speaker-level connection.

Key Specifications

• Product type: Powered subwoofer
• Sold as: One subwoofer
• Drivers: 2 × 6.5" force-cancelling Uni-Core drivers
• Amplifier: Built-in Class D
• Amplifier output: 1000W RMS total, 2 × 500W RMS
• Frequency response: 11 Hz–200 Hz (±3 dB)
• Maximum SPL: 105 dB at 1 m
• Variable low-pass filter: 40–140 Hz or LFE
• Line-out high-pass filter: Selectable settings from 40–120 Hz plus bypass
• Inputs: RCA/LFE line input and speaker-level input
• Outputs: RCA line output
• Wireless: Optional with separately sold KEF KW1 adapter
• Power: 100–240V AC, 50/60 Hz
• Finish: Carbon Black
• Dimensions: 9.7" H × 10.1" W × 9.8" D
• Weight: Approximately 30.9 lb

Who Should Choose the KC62?

Choose the KC62 when cabinet size is a major consideration but you still want deep bass for music or home theater. It works especially well with premium bookshelf speakers, floorstanding speakers, compact stereo systems, and AV receivers where a conventional large subwoofer would be difficult to place.

If maximum output in a very large room is more important than compact size, a physically larger subwoofer or multiple-subwoofer system may be a better choice.

1000W RMS Means Built-In Amplifier Output

KEF specifies 1000W RMS of Class D amplification, divided as 500W RMS for each of the two 6.5" drivers. This is the output of the KC62's built-in amplifier and should not be confused with passive-speaker power handling.

The KC62 is self-powered, so your AV receiver or stereo amplifier only needs to provide the appropriate audio signal. It does not need to supply the subwoofer's 1000W of amplifier power.

Uni-Core Force-Cancelling Drivers

The KC62 uses two opposing 6.5" drivers in KEF's Uni-Core configuration. The two voice coils share a single motor structure while the opposed driver arrangement helps cancel mechanical reaction forces.

This allows KEF to achieve substantial driver excursion and low-frequency output from a very compact cabinet.

11 Hz Low-Frequency Extension

KEF specifies a frequency response of 11 Hz–200 Hz at ±3 dB and a maximum output of 105 dB at 1 meter.

The 11 Hz specification describes the measured frequency-response limit. It does not mean every room or listening position will reproduce 11 Hz at the same audible level. Room acoustics, placement, crossover settings, source material, and playback level all affect real-world bass response.

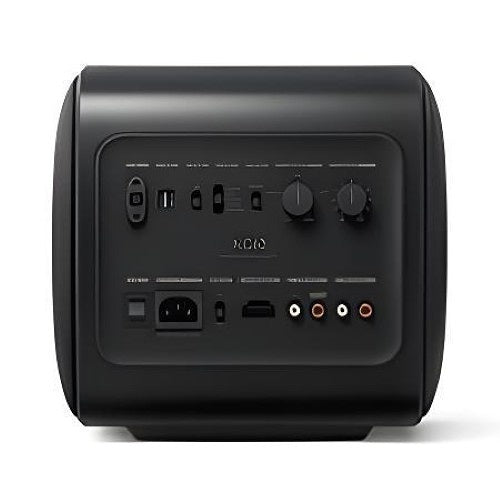

RCA, LFE, and Speaker-Level Connections

The KC62 can connect to an AV receiver or preamp using its RCA/LFE input. It can also accept speaker-level input from compatible stereo amplifiers or receivers that do not provide a dedicated subwoofer output.

For home theater systems with an LFE/subwoofer output, set the KC62 to LFE mode and manage the crossover through the AV receiver or processor.

For stereo systems without bass management, the KC62's manual crossover can be adjusted from 40–140 Hz to blend with the main speakers.

Line Output With High-Pass Filtering

The KC62 also provides RCA line outputs with selectable high-pass filtering. This can be useful in stereo systems where you want to remove deep bass from the main speakers and let the subwoofer handle the lowest frequencies.

The selectable stereo high-pass settings include 40, 45, 50, 55, 60, 70, 80, 90, 100, 110, and 120 Hz, plus bypass. Separate mono settings are also available.

Five Placement EQ Modes

The rear-panel EQ control provides five placement settings:

• Room
• Wall
• Corner
• Cabinet
• Apartment

These presets compensate for common placement conditions. Apartment Mode specifically reduces the level of very low frequencies to help limit bass transmission into adjacent rooms.

Important Placement Clearance

The KC62 uses side-firing drivers. KEF specifies at least 3" of clearance between each driver and any nearby wall or obstruction.

Do not place the cabinet where either driver is blocked. Start with the appropriate Room, Wall, Corner, or Cabinet EQ setting for your placement and fine-tune from there.

Optional KW1 Wireless Connection

The KC62 does not contain a built-in wireless audio receiver. Wireless subwoofer signal transmission requires the separately sold KEF KW1 Wireless Subwoofer Adapter Kit.

The KW1 can simplify placement when running a long signal cable from the receiver or source is inconvenient. The KC62 still requires AC power at its installation location.

KEF Wireless Speaker Integration

The KC62 can also connect by line input to compatible KEF powered speaker systems such as LSX and LS50 Wireless models. KEF instructs users of supported systems to set the KC62 to LFE mode and manage high-pass and low-pass settings through the corresponding KEF app.

This app integration comes from the connected KEF speaker system. The KC62 itself does not have standalone Wi-Fi, Bluetooth, streaming, or app control.

What's Included?

KEF's manual confirms that package contents can vary by region. The KC62 powered subwoofer and required product documentation are supplied, with region-appropriate power accessories where applicable.

The KEF KW1 Wireless Subwoofer Adapter Kit, RCA/subwoofer signal cables, additional subwoofers, surge protection, and other system accessories are sold separately.

Dimensions and Weight

The KC62 measures approximately 9.7" H × 10.1" W × 9.8" D including the rear panel and feet and weighs approximately 30.9 lb.

Its small footprint makes it easier to integrate into living rooms, listening spaces, media rooms, and other areas where a full-size subwoofer may be difficult to accommodate.

Warranty

KEF USA currently lists subwoofer warranty coverage of 5 years for drivers and 2 years for electronics, subject to KEF's warranty terms, authorized-dealer purchase requirements, and proof of purchase.

Complete Your Audio System

• Compare Subwoofers
• KEF Speakers & Subwoofers
• AV Receivers & Surround Sound

Need Help Matching the KC62?

Send Bear Security Shop your speakers, amplifier or AV receiver model, room size, and intended subwoofer location. We can help check connection options, crossover setup, placement, and whether one KC62 or a different subwoofer configuration makes more sense for your system.

Is the KEF KC62 sold individually?

Yes. This listing is for one powered KC62 subwoofer in Carbon Black.

Is the KC62 powered or passive?

It is powered. The KC62 contains its own 1000W RMS Class D amplifier, so it does not require a separate subwoofer power amplifier.

Is the KC62 really 1000 watts?

Yes. KEF specifies 1000W RMS of built-in Class D amplification, divided as 2 × 500W RMS for the two drivers. This is amplifier output, not passive-speaker power handling.

What drivers does the KC62 use?

It uses two opposing 6.5" drivers in KEF's Uni-Core force-cancelling configuration.

What is the frequency response?

KEF specifies 11 Hz–200 Hz at ±3 dB.

Will the KC62 work with an AV receiver?

Yes. Connect a compatible receiver's subwoofer or LFE output to the KC62's RCA/LFE input and use LFE mode when the receiver manages the crossover.

Can I use it with a stereo amplifier that has no subwoofer output?

Yes, if the amplifier is suitable for the KC62's speaker-level input connection. KEF provides a high-level speaker input specifically for this type of setup.

Does the KC62 have Bluetooth or Wi-Fi?

No. The KC62 does not include Bluetooth, Wi-Fi, streaming, or standalone app control.

Is the KC62 wireless?

Not by itself. Wireless audio connection requires the separately sold KEF KW1 Wireless Subwoofer Adapter Kit. The KC62 still requires an AC power connection.

What are the five EQ modes?

The placement settings are Room, Wall, Corner, Cabinet, and Apartment. Apartment Mode reduces very low-frequency output to help limit bass transmission into neighboring spaces.

How much clearance does the KC62 need?

KEF specifies at least 3" of clearance between each side-firing driver and any nearby wall or obstruction.

What crossover range does it provide?

The KC62's manual low-pass crossover can be adjusted from 40–140 Hz. LFE mode bypasses the internal low-pass adjustment so a compatible AV receiver or processor can manage bass crossover.

Does it have line outputs?

Yes. The KC62 provides RCA line outputs with selectable high-pass filtering, which can be useful for integrating the subwoofer with smaller main speakers in a stereo system.

Can I connect two KC62 subwoofers?

Yes. KEF's manual provides both LFE and stereo connection examples for using two KC62 subwoofers.

What are the dimensions and weight?

The KC62 measures approximately 9.7" H × 10.1" W × 9.8" D and weighs approximately 30.9 lb.

What should I confirm before ordering?

Confirm your receiver or amplifier connection type, available AC power, intended placement with at least 3" driver clearance, and whether you need the optional KW1 wireless adapter.
