KEF CI200RR-THX Ultra2 8 Inch Round In-Ceiling Single Speaker

High-Output Architectural Sound for Serious Home Theater

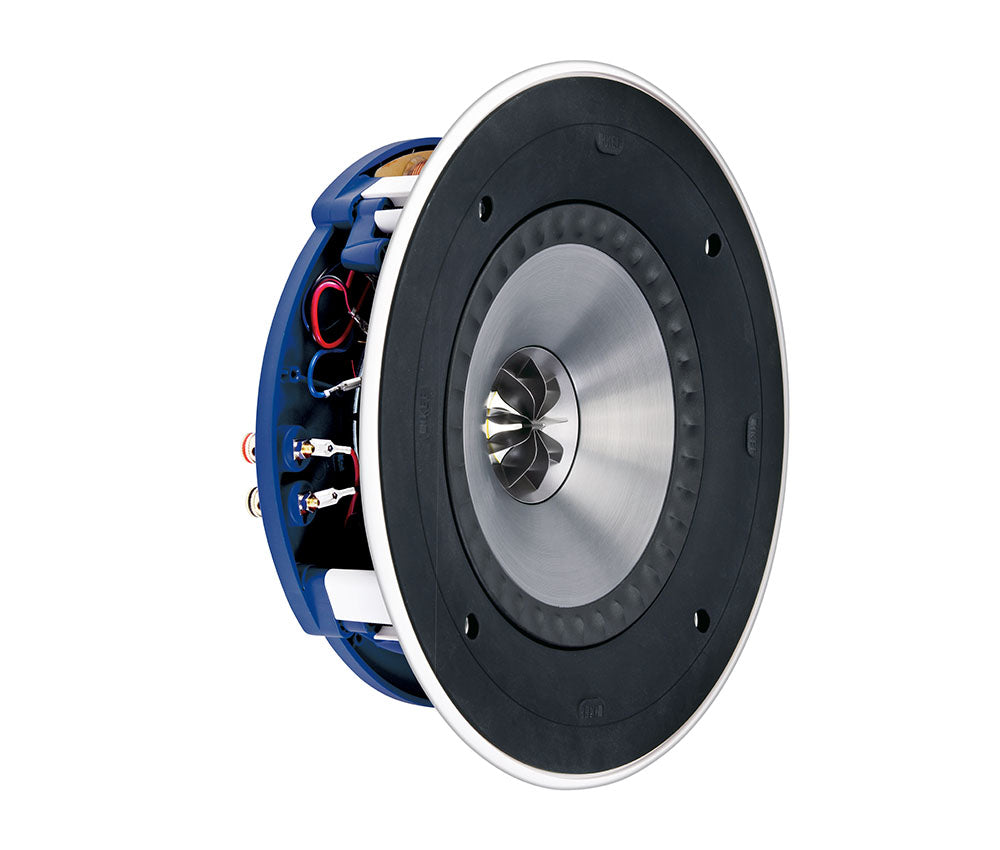

The KEF Ci200RR-THX is a passive 8" in-ceiling LCR speaker sold individually for high-performance home theater, surround, and immersive-audio systems. Its large Uni-Q driver array combines an 8" low-frequency driver with a 1.5" high-frequency driver to provide wide coverage, strong output, and discreet architectural installation.

It is especially well suited to dedicated theaters, premium media rooms, surround channels, height channels, and other systems where higher output and deeper extension are required than smaller ceiling speakers can provide.

Key Specifications

• Sold as: One speaker
• Speaker type: Passive in-ceiling LCR architectural speaker
• LF driver: 200 mm (8") Uni-Q
• HF driver: 38 mm (1.5")
• Nominal impedance: 4 Ω
• Sensitivity: 90 dB (2.83 V / 1 m)
• Frequency response: 33 Hz–28 kHz (±6 dB, open-backed)
• Frequency range: 28 Hz–45 kHz (-10 dB)
• Crossover frequency: 2.2 kHz
• Recommended amplifier power: 10–190 W
• Recommended high-pass filter: 35–80 Hz
• THX high-pass setting: 80 Hz
• Nominal coverage: 120°
• Maximum SPL: 106 dB
• Certification: THX Certified Ultra, IP64

Who Should Choose the Ci200RR-THX?

Choose the Ci200RR-THX when you want a discreet ceiling speaker capable of higher output and deeper low-frequency extension than smaller architectural models. It is a strong choice for dedicated theaters, large media rooms, surround channels, and immersive-audio layouts where performance matters as much as appearance.

If your system does not need this level of output or an 8" architectural driver, a smaller KEF in-ceiling model may be easier to place and may require less ceiling depth.

Amplifier and AV Receiver Requirements

The Ci200RR-THX is completely passive and requires an external amplifier or AV receiver. KEF recommends 10–190 W of amplifier power and specifies a nominal impedance of 4 Ω.

Your AV receiver or amplifier should be designed for stable operation with 4-ohm speakers at your intended listening level and channel count.

The 10–190 W figure is KEF's recommended amplifier range, not an RMS or peak power-handling specification.

THX Certified Ultra

The Ci200RR-THX is THX Certified Ultra. KEF's architectural specification sheet recommends an 80 Hz high-pass filter when configuring the speaker to meet THX system specifications.

This should not be confused with the smaller Ci160RR-THX, which has an additional 3-liter rear-enclosure requirement for its specific THX distortion specification. KEF does not publish that 3-liter requirement for the Ci200RR-THX.

8-Inch Uni-Q With 120-Degree Coverage

The Ci200RR-THX uses an 8" Uni-Q driver array with a 1.5" high-frequency driver. KEF positions the tweeter at the acoustic center of the low-frequency driver to help create broad, even dispersion.

KEF specifies approximately 120° nominal coverage, helping the speaker cover a wider listening area from a ceiling position. Room acoustics, ceiling height, placement, and speaker spacing still affect the final result.

Frequency Response and Bass Performance

KEF specifies an open-backed frequency response of 33 Hz–28 kHz at ±6 dB and a broader frequency range of 28 Hz–45 kHz at -10 dB.

For general system design, KEF lists a recommended high-pass range of 35–80 Hz. For THX system configuration, KEF specifies 80 Hz.

A subwoofer is still strongly recommended for home theater systems because dedicated low-frequency effects are better handled by a powered subwoofer. Browse Subwoofers for compatible options.

Rear Volume Requirements

KEF lists an ideal rear volume of approximately 20 liters and a minimum rear volume of approximately 10 liters for the Ci200RR-THX.

Available cavity volume, insulation, framing, and surrounding construction can affect low-frequency behavior, so these values should be considered during system planning.

IP64 Environmental Protection

The Ci200RR-THX carries an IP64 rating. This provides protection against dust and splashing water but does not make the speaker waterproof or suitable for immersion.

Wiring, ceiling construction, connected electronics, and other system components must also be suitable for the installation environment.

Installation Dimensions

• External diameter: 290 mm (11.42")
• Overall depth: 132.6 mm (5.22")
• Cutout diameter: 238 mm (9.37")
• Mounting depth: 126.5 mm (4.98")
• Supported mounting thickness: 6–37 mm (0.24–1.46")
• Net weight: 3.6 kg (7.94 lb)

Confirm ceiling cavity depth, joist location, electrical wiring, HVAC, plumbing, and rear-volume clearance before cutting the installation opening.

Optional Rough-In Frame

KEF lists the RIF200R as the optional rough-in frame for the Ci200RR-THX. It is sold separately and can be useful during pre-construction when speaker positions are planned before drywall installation.

Paintable Magnetic Grille

The Ci200RR-THX uses KEF's ultra-thin bezel architectural design with a magnetic grille for a discreet finished appearance. The grille can be painted to better match the surrounding ceiling when KEF's painting guidance is followed.

What's Included?

• 1 KEF Ci200RR-THX architectural speaker
• Magnetic grille
• Integrated mounting hardware
• Product documentation

The amplifier or AV receiver, speaker wire, RIF200R rough-in frame, subwoofer, and other installation materials are sold separately.

Warranty

KEF USA currently lists a 5-year warranty period for drivers in Architectural Speakers purchased from an authorized dealer, subject to KEF's warranty terms and proof-of-purchase requirements.

Complete Your Home Theater System

• In-Wall & In-Ceiling Speakers
• AV Receivers & Surround Sound
• Subwoofers

Need Help Planning Your Theater?

Send Bear Security Shop your AV receiver or amplifier model, room dimensions, ceiling height, speaker quantity, and planned surround or immersive-audio layout. We can help check 4-ohm compatibility, amplification, placement, cutout requirements, and whether the Ci200RR-THX is the right model for your system.

Is the KEF Ci200RR-THX sold individually or as a pair?

It is sold individually. KEF USA currently lists the Ci200RR-THX per each.

Is the Ci200RR-THX powered or passive?

It is passive and requires an external amplifier or AV receiver plus speaker wire.

What amplifier power does KEF recommend?

KEF recommends 10–190 W of amplifier power. This is an amplifier recommendation, not an RMS or peak power-handling rating.

What is the speaker impedance?

The Ci200RR-THX has a nominal impedance of 4 Ω. Confirm that your amplifier or AV receiver can safely drive a 4-ohm speaker load.

Is this THX Ultra2 certified?

KEF's current terminology is THX Certified Ultra. Bear Security Shop recommends using the current manufacturer naming rather than the older THX Ultra2 terminology.

What high-pass filter should I use for THX setup?

KEF specifies an 80 Hz high-pass filter for THX system configuration. Its general recommended high-pass range is 35–80 Hz.

Does the Ci200RR-THX require a 3-liter rear enclosure for THX performance?

No such requirement is published for the Ci200RR-THX. KEF's 3-liter rear-enclosure requirement applies specifically to the Ci160RR-THX in the current architectural specification sheet.

What is the frequency response?

KEF specifies 33 Hz–28 kHz at ±6 dB open-backed and a 28 Hz–45 kHz frequency range at -10 dB.

What is the coverage angle?

KEF specifies approximately 120° nominal coverage.

What is the maximum SPL?

KEF specifies a maximum SPL of 106 dB.

What cutout size is required?

The Ci200RR-THX requires a 238 mm, or approximately 9.37", round cutout.

How much mounting depth is required?

KEF specifies approximately 126.5 mm, or 4.98", of mounting depth from the finished surface.

What rear cavity volume does KEF recommend?

KEF lists approximately 20 liters as ideal rear volume and 10 liters as the minimum.

Is a rough-in frame available?

Yes. KEF lists the RIF200R rough-in frame as an optional accessory. It is sold separately.

Is the Ci200RR-THX weather resistant?

It is IP64 certified, providing protection against dust and splashing water. It should not be described as waterproof or suitable for submerged installation.

What are the dimensions and weight?

The speaker measures approximately 11.42" in diameter × 5.22" deep and weighs approximately 7.94 lb.

What should I confirm before ordering?

Confirm speaker quantity, 4-ohm amplifier compatibility, 9.37" cutout, approximately 4.98" mounting depth, available rear volume, speaker wire, and your planned surround or immersive-audio layout.
